SPECIFICATION
|
Model Name |
Antec A40 PRO |
|
Fan Size |
92 mm Blue LED PWM fan (92 × 92 × 25 mm) |
|
Fan Speed |
800–1,900 RPM (some sources indicate up to 2,200 RPM ±10%) |
|
Airflow |
Max ~41 CFM (some listings show up to 77 CFM) |
|
Noise Level |
20.3–34.5 dBA (another source states 16–23 dBA) |
|
Bearing Type |
Fluid Dynamic Bearing |
|
Heatpipe & Contact Tech |
Straight Touch Technology with 8 mm thick copper cold plate and four heat pipes |
|
Heatsink Design |
Two-tier aluminum fin structure, aluminum oxide coating for improved heat dissipation and oxidation resistance |
|
Socket Compatibility |
Intel: LGA 775 / 1150 / 1151 / 1155 / 1156 / 1200 (and occasionally 1366) |
|
AMD: FM1 / FM2 / AM2 / AM2+ / AM3 / AM3+ / AM4 / AM5 (varies by listing) |
|
|
Product Dimensions |
Approx. 100 × 75 × 136 mm (Depth × Width × Height) |
|
Weight |
~570 g |
|
TDP Support (Power) |
125 W rating |
|
Power Connector |
4-pin PWM connector, 12 V DC |
|
Installation |

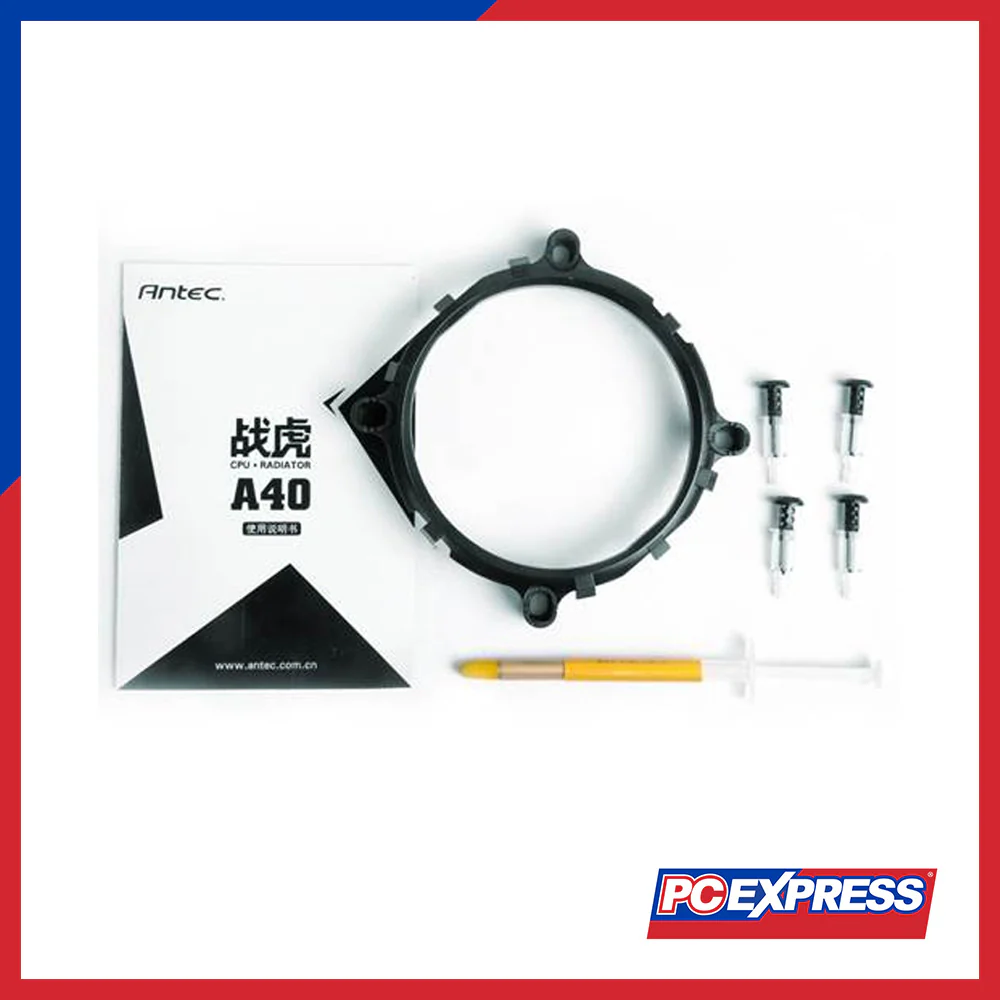

Push-pin mounting system; includes thermal paste; easy installation |
|
UPC# |
0-761345-10923-9 |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
SPECIFICATION
|
Model Name |
Antec A40 PRO |
|
Fan Size |
92 mm Blue LED PWM fan (92 × 92 × 25 mm) |
|
Fan Speed |
800–1,900 RPM (some sources indicate up to 2,200 RPM ±10%) |
|
Airflow |
Max ~41 CFM (some listings show up to 77 CFM) |
|
Noise Level |
20.3–34.5 dBA (another source states 16–23 dBA) |
|
Bearing Type |
Fluid Dynamic Bearing |
|
Heatpipe & Contact Tech |
Straight Touch Technology with 8 mm thick copper cold plate and four heat pipes |
|
Heatsink Design |
Two-tier aluminum fin structure, aluminum oxide coating for improved heat dissipation and oxidation resistance |
|
Socket Compatibility |
Intel: LGA 775 / 1150 / 1151 / 1155 / 1156 / 1200 (and occasionally 1366) |
|
AMD: FM1 / FM2 / AM2 / AM2+ / AM3 / AM3+ / AM4 / AM5 (varies by listing) |
|
|
Product Dimensions |
Approx. 100 × 75 × 136 mm (Depth × Width × Height) |
|
Weight |
~570 g |
|
TDP Support (Power) |
125 W rating |
|
Power Connector |
4-pin PWM connector, 12 V DC |
|
Installation |
Push-pin mounting system; includes thermal paste; easy installation |
|
UPC# |
0-761345-10923-9 |
