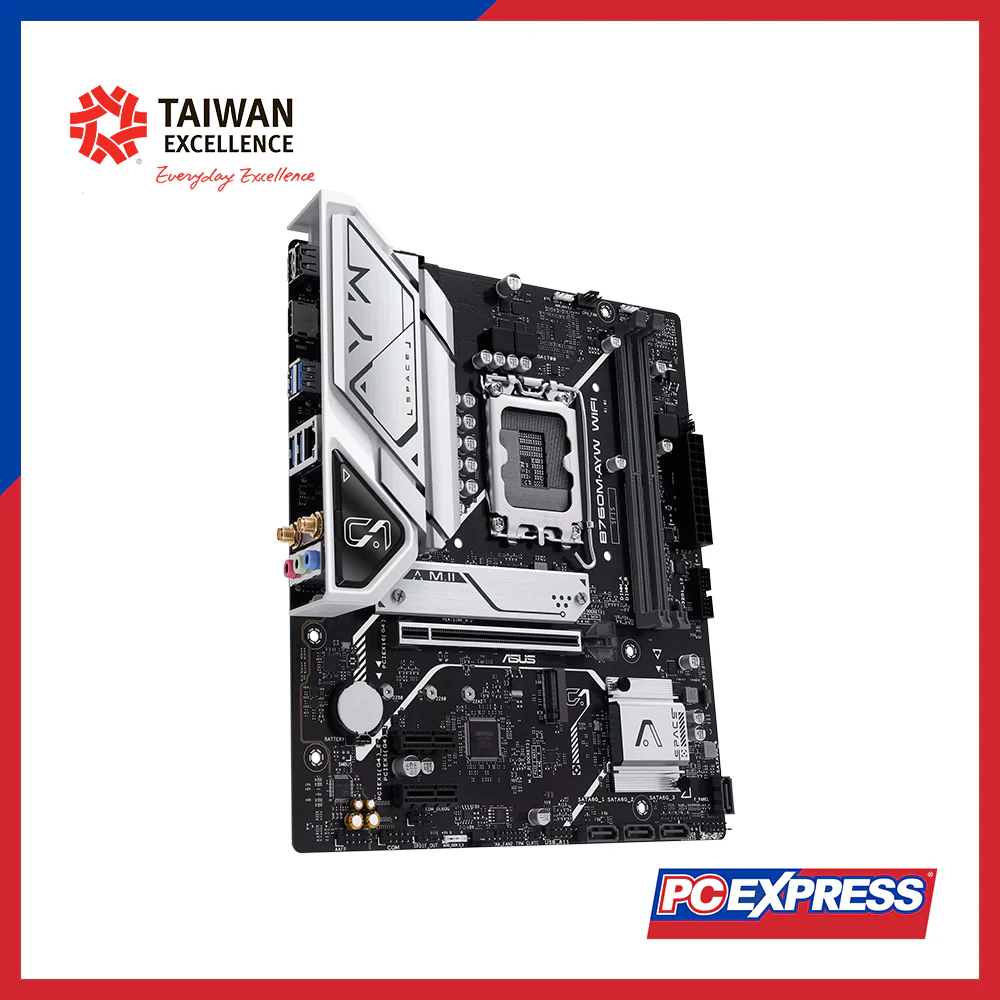

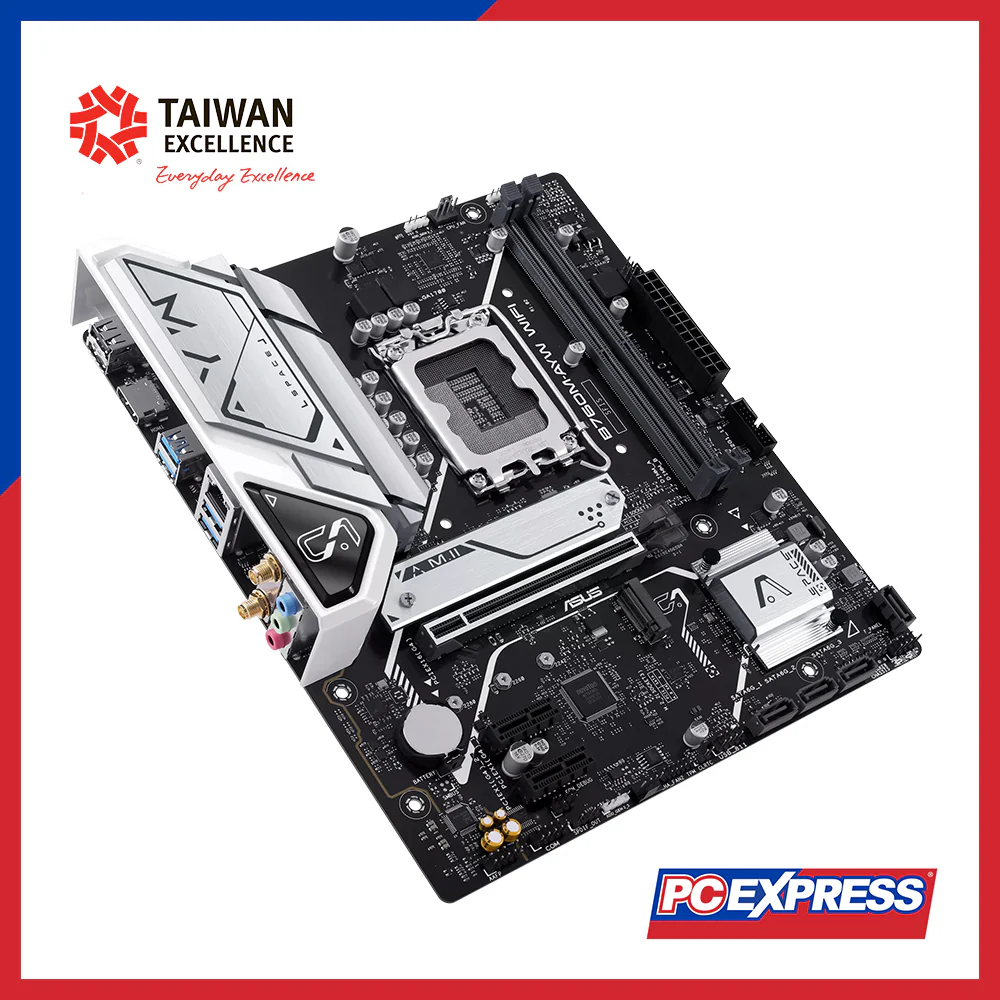

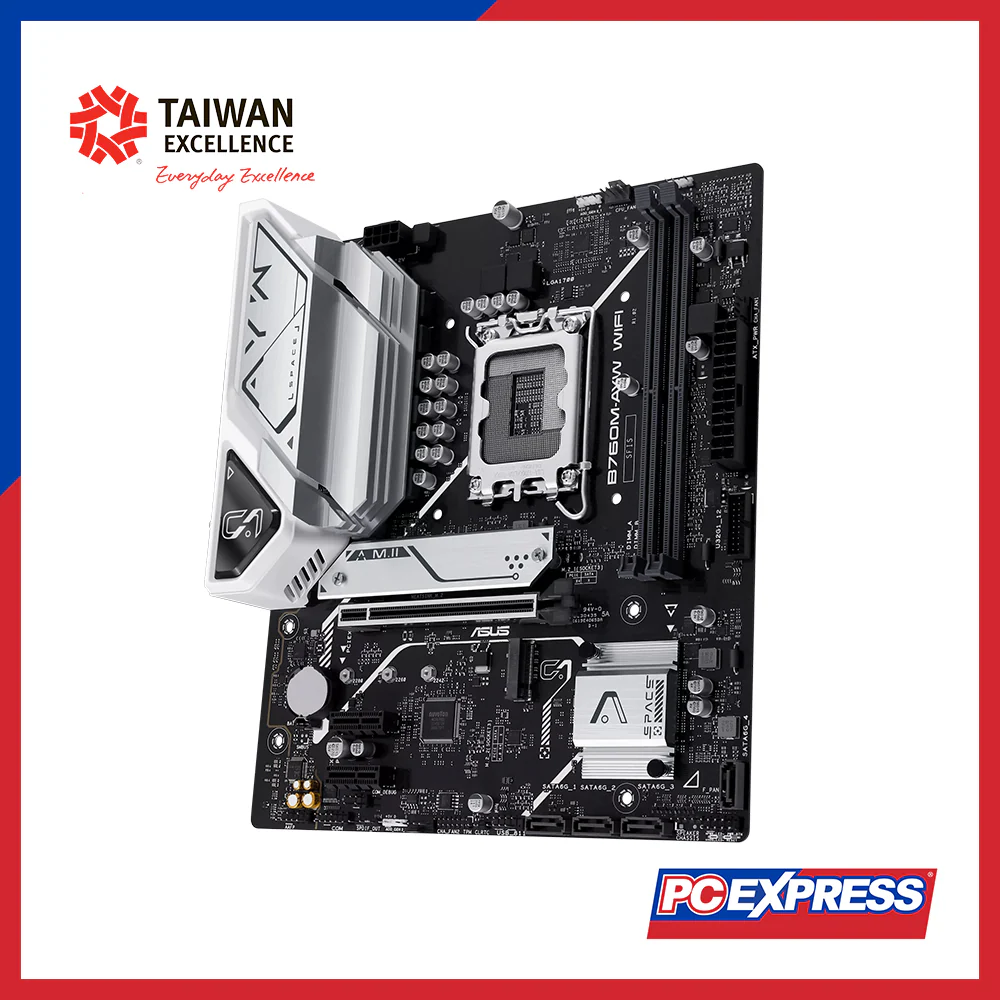

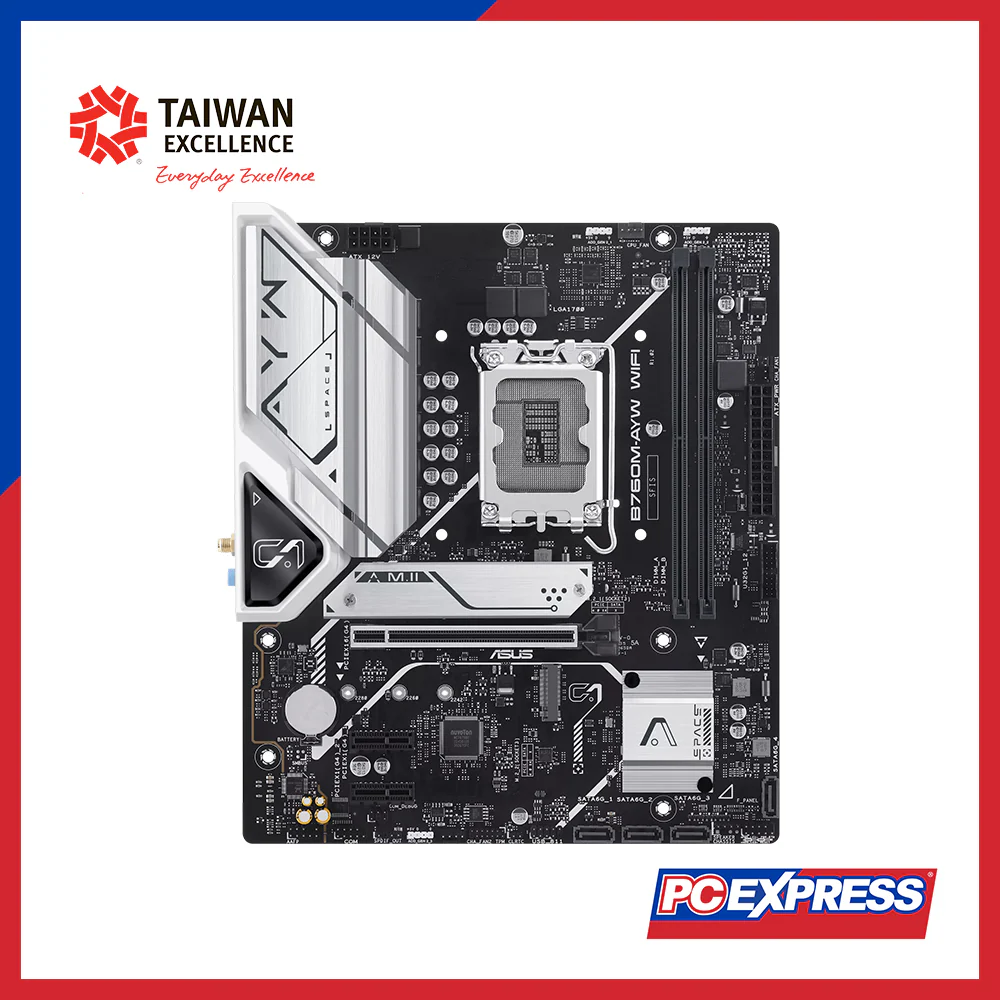

ASUS B760M AYW WiFi mATX Motherboard

Model

B760M-AYW WIFI

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold & Celeron® Processors; Supports Intel® Turbo Boost Technology 2.0 & Turbo Boost Max Technology 3.0 (support depends on CPU type)

Chipset

Intel® B760 Chipset

Memory

2× DIMM slots, Max 96GB DDR5; Supports 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz; Non-ECC, Un-buffered; Dual Channel; Intel® XMP support; DDR5 On-Die ECC (varies by CPU & configuration)

Graphics

1× HDMI™ port; Supports 4K@60Hz (HDMI 2.1); Graphics specs vary by CPU

Expansion Slots

1× PCIe 4.0 x16 (CPU); 2× PCIe 4.0 x1 (Chipset)

Storage

2× M.2 (Key M, 2242/2260/2280, PCIe 4.0 x4); 4× SATA 6Gb/s; Supports Intel® Rapid Storage Technology (RAID 0/1/5/10)

Ethernet

1× Realtek 2.5Gb Ethernet; ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6 (802.11 a/b/g/n/ac/ax); 2.4/5GHz; Bluetooth® 5.3 (version may vary)

USB (Rear)

4× USB 3.2 Gen 1 (5G) Type-A; 2× USB 2.0 Type-A

USB (Front)

1× USB 3.2 Gen 1 header (supports 2 ports); 1× USB 2.0 header (supports 2 ports)

Audio

Realtek 7.1 Surround Sound HD Audio CODEC; Jack-detection; Multi-streaming; Front Panel Jack-retasking; Up to 24-bit/192kHz playback; Audio Shielding; Premium capacitors; Dedicated PCB layers (7.1 requires HD front panel chassis)

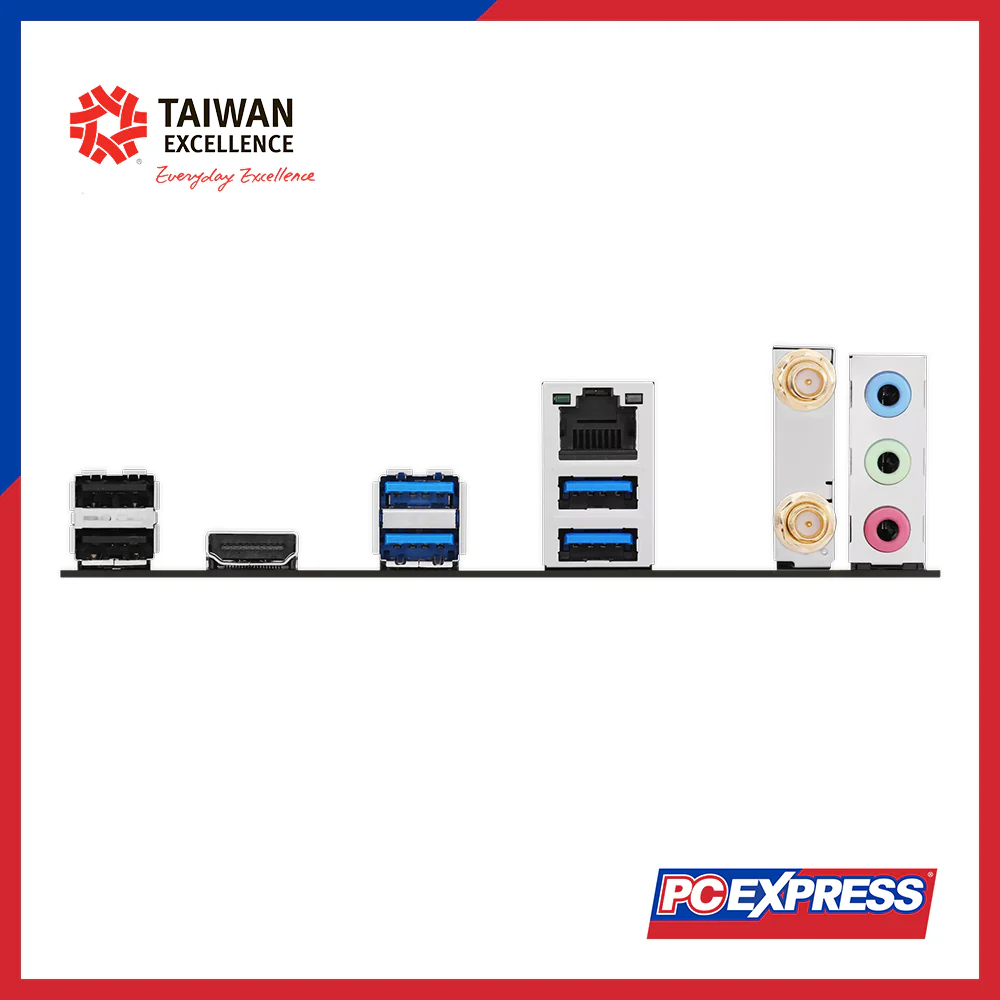

Back Panel I/O

4× USB 3.2 Gen 1; 2× USB 2.0; 1× HDMI™; 1× Wi-Fi Module; 1× Realtek 2.5Gb LAN; 3× Audio jacks

Internal Fan Headers

1× 4-pin CPU Fan; 2× 4-pin Chassis Fan

Power Connectors

1× 24-pin Main Power; 1× 8-pin +12V CPU Power

Internal Storage Connectors

2× M.2 (Key M); 4× SATA 6Gb/s

Internal USB Connectors

1× USB 3.2 Gen 1 header; 1× USB 2.0 header

Other Internal Headers

3× Addressable Gen 2; 1× Clear CMOS; 1× COM Port; 1× Front Panel Audio (AAFP); 1× S/PDIF Out; 1× Speaker; 1× SPI TPM (14-1 pin); 1× 10-1 pin System Panel

Special Features

ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O); ASUS Q-Design (M.2 Q-Latch, Q-DIMM, Q-LED Core, Q-Slot); ASUS EZ DIY (ProCool); ASUS Thermal Solution (M.2 heatsink, VRM heatsink); Aura Sync

Software Features

Armoury Crate (Aura Sync, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancellation); AI Suite 3 (DIGI+ VRM, PC Cleaner); ASUS CPU-Z; MyASUS; Norton 360 Deluxe (60-day trial); WinRAR; ASUS CrashFree BIOS 3; ASUS EZ Flash 3; ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM; UEFI AMI BIOS

Manageability

WOL by PME; PXE

Accessories

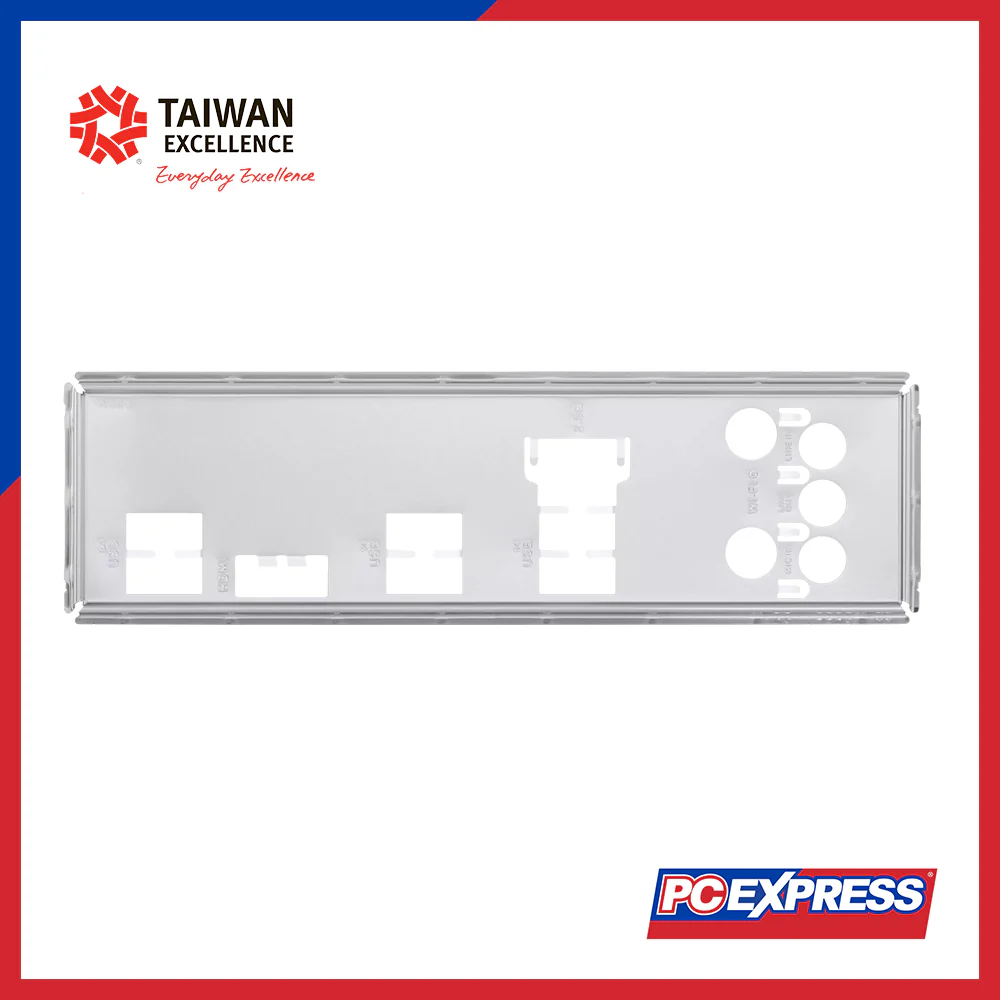

2× SATA 6Gb/s cables; ASUS Wi-Fi moving antennas; I/O Shield; M.2 Rubber Package; M.2 SSD Screw Package; User Guide

Operating System

Windows® 11; Windows® 10 64-bit

Form Factor

mATX; 9.6" × 8.3" (24.4 cm × 21.1 cm)
