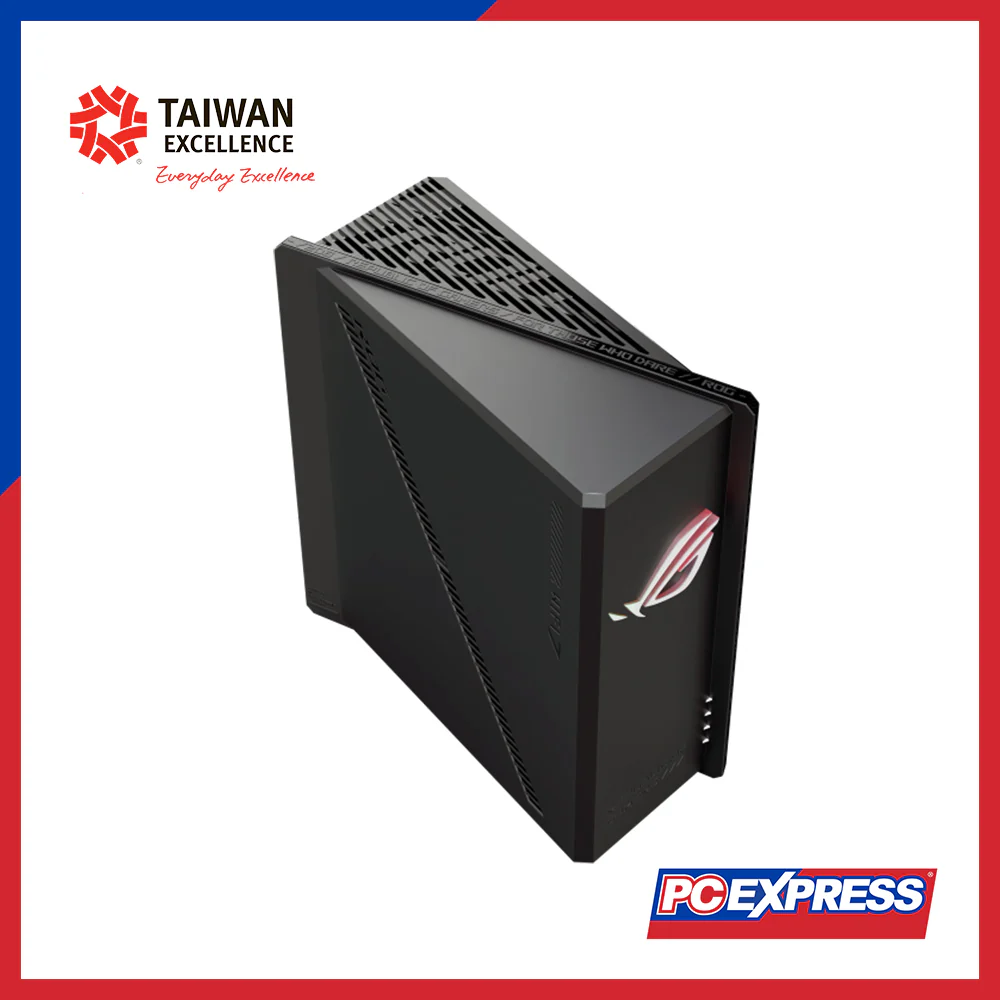

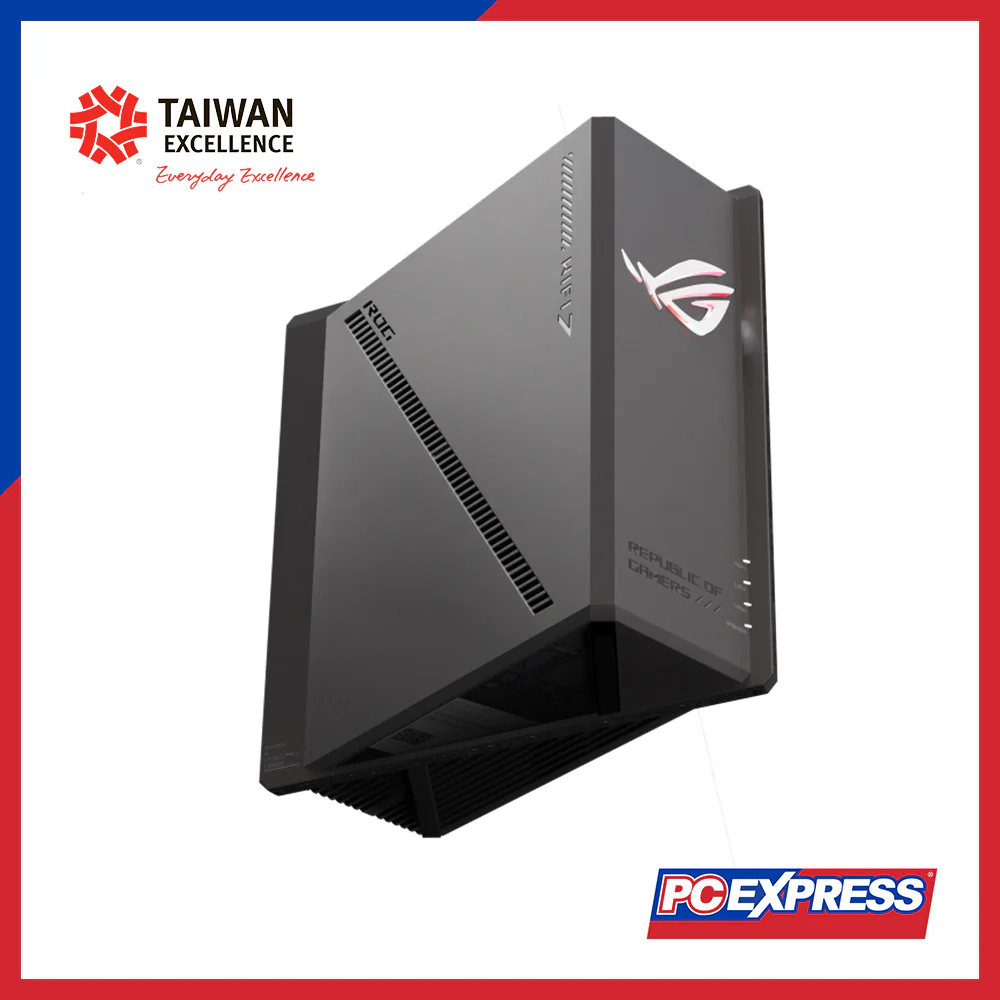

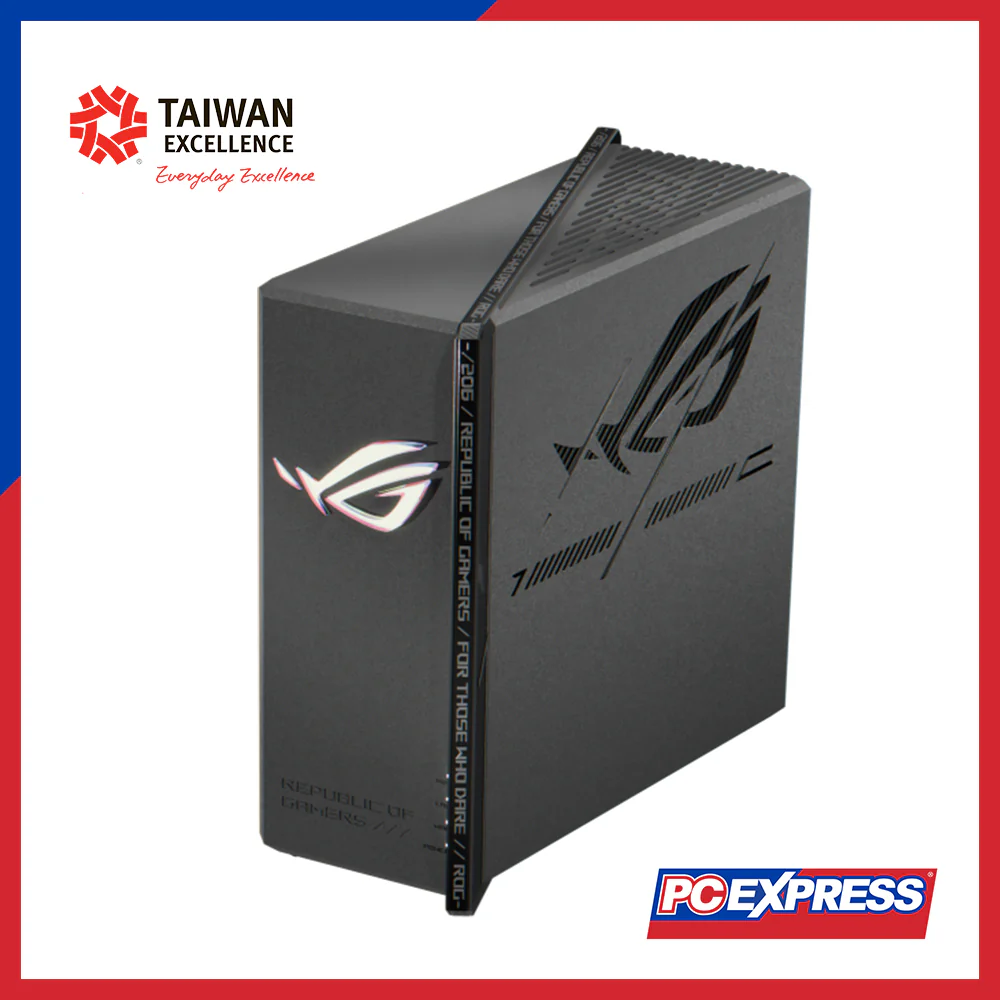

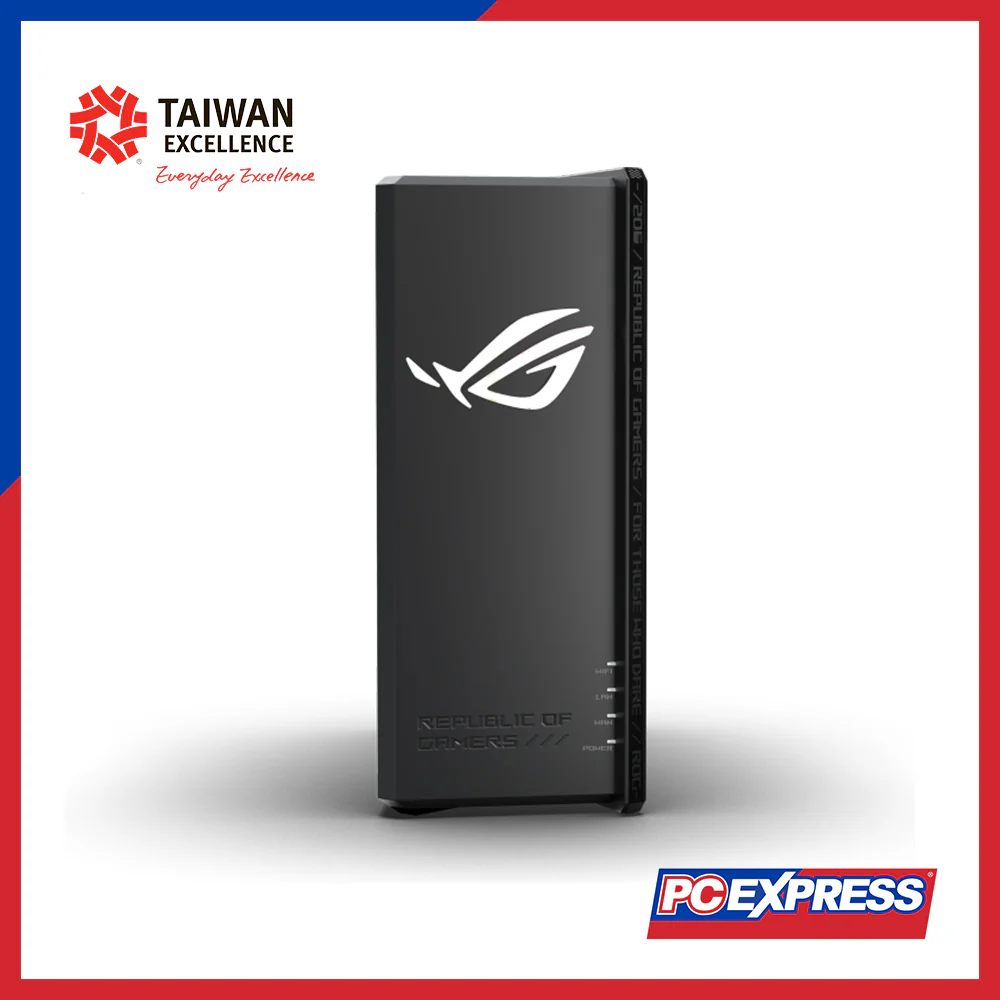

ASUS GS-BE7200X ROG Strix WiFi 7 Wireless Router

Model Name

GS-BE7200X

Network Standard

WiFi 7 (802.11be), IEEE 802.11a/b/g/n/ac/ax/be, IPv4, IPv6

Product Segment

BE7200 ultimate BE performance: 1376 + 5764 Mbps

WiFi Data Rate

2.4GHz BE: 4×4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376 Mbps
5GHz BE: 4×4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764 Mbps

Antenna

Internal antenna × 8

Transmit / Receive

2.4GHz 4×4
5GHz 4×4

Processor

1.8GHz Tri-core processor

Memory

128 MB Flash
DDR4 1 GB RAM

Boosts Speed

OFDMA, Beamforming (standard-based & universal), 4096-QAM, 20/40/80/160 MHz bandwidth

Operating Frequency

2.4 GHz, 5 GHz

Operating Mode

Wireless Router Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode

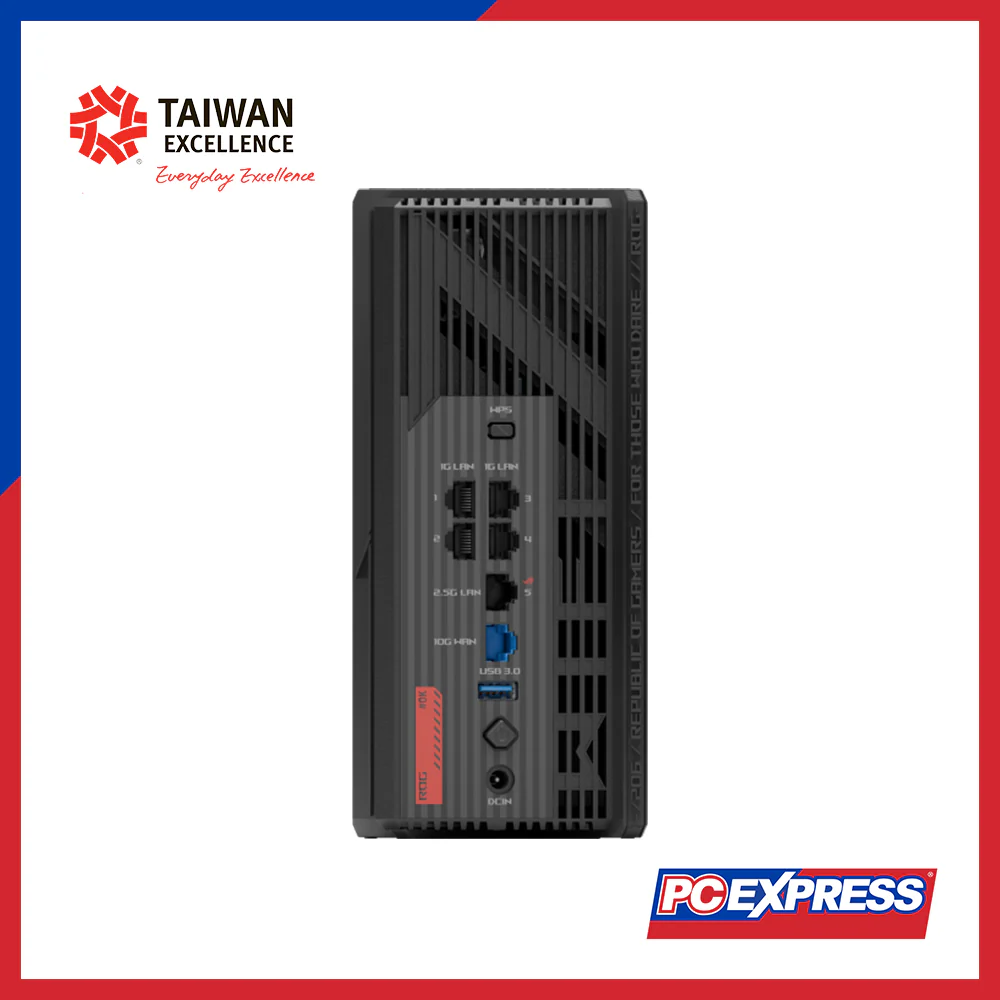

I/O Ports

1 × 10G WAN
1 × 2.5G LAN
4 × 1G LAN
USB 3.2 Gen1 × 1

Buttons

Power, WPS, Reset

LED Indicator

Internet (WAN), WiFi, LAN, Power

Power Supply

AC Input: 110–240V (50/60Hz)
DC Output: 12V / 3A max

Package Content

WiFi 7 Dual-Band Router
ROG RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card

Product Weight

811 g

Product Dimensions (mm)

225 × 90 × 225

AiMesh

Primary AiMesh Router
AiMesh Node

Game Features

Game Boost / Acceleration
Mobile Game Mode
Gear Accelerator
UU Boost
ROG_First
OpenNAT (Game Profile)
Gaming Port
Gaming Network

Parental Control

Time Scheduling
Reward
Customized Internet Schedule
Max Profiles: 64

Guest Network

Supported
Max Rules: 2.4GHz + 5GHz = 3
Connection Time Limit Supported
Encryption: Open, WPA/WPA2/WPA3-Personal

Security

AiProtection
WiFi Encryption: WPA/WPA2/WPA3 Personal & Enterprise
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall (Keyword Filter Max: 64; Network Service Filter Max: 32; URL Filter Max: 64)

AiProtection Pro

Router Security Assessment
Malicious Site Blocking
Two-Way IPS
Infected Device Prevention & Blocking

VPN

Instant Guard
VPN Client: L2TP, OpenVPN, PPTP, WireGuard
VPN Server: IPSec, OpenVPN, PPTP, WireGuard
VPN Fusion
Supports Surfshark

Traffic Control

Adaptive QoS
Bandwidth Monitor
Bandwidth Limiter (Max 32 Rules)
Traditional QoS
Real-time / Wired / Wireless Traffic Monitor
Traffic Analyzer (Daily/Weekly/Monthly, Website History)

WAN

Internet Connection Types: PPPoE, PPTP, L2TP, Automatic IP, Static IP, IPSec
4G/5G Auto Mobile Tethering
NAT Passthrough: PPTP, L2TP, IPSec, RTSP, H.323, SIP, PPPoE Relay

LAN

DHCP Server
IGMP Snooping
IPTV
Manually Assign IP (Max 128 Rules)
Wake-on-LAN (WOL)

Wireless

MU-MIMO

USB Application

4G/5G Mobile Tethering
File System: HFS+, NTFS, vFAT, ext2/3/4
Safely Remove Disk
Download Master
Media Server
Samba Server
FTP Server
Shared Folder Privileges

User Interface

WEB: ASUSWRT
APP: ASUS Router App

Administration

Config Backup/Restore
Diagnostic Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
