CPU

Intel® Socket LGA1700 for Intel® Core™ 14th, 13th & 12th Gen Processors, Pentium® Gold, and Celeron® Processors*
Supports up to Intel® 65W CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
*Refer to ASUS Support for CPU support list.
**Turbo Boost Max Technology 3.0 support depends on CPU type.

Chipset

Intel® H610 Chipset

Memory

2 x DIMM slots, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Architecture
Supports Intel® Extreme Memory Profile (XMP)
*Refer to ASUS Support for compatible memory list and configurations.

Graphics

2 x HDMI™ ports**
*Graphics specs vary by CPU. Refer to Intel® for updates.
**Supports 4K@30Hz (HDMI 1.4).

Expansion Slots

Intel® Core™ Processors (14th/13th/12th Gen): 1 x PCIe 4.0 x16 slot
Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot
*Refer to ASUS Support for device compatibility list.

Storage

1 x M.2 slot and 2 x SATA 6Gb/s ports
M.2 slot (Key M): Type 2242/2260/2280 (PCIe 3.0 x4 mode)
SATA: 2 x 6Gb/s ports

Ethernet

1 x Realtek 1Gb Ethernet

Wireless & Bluetooth

Wi-Fi 6 (802.11 a/b/g/n/ac/ax), supports 2.4GHz/5GHz frequency bands
Bluetooth® v5.3*
*Bluetooth version may vary; refer to module manufacturer’s website.

USB

Rear USB (Total 5 ports): 2 x USB 5Gbps (Type-A), 3 x USB 2.0 (Type-A)
Front USB (Total 4 ports): 1 x USB 5Gbps header (supports 2 ports), 1 x USB 2.0 header (supports 2 ports)

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192kHz playback
Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers
*Chassis with HD audio module required for 7.1 output.

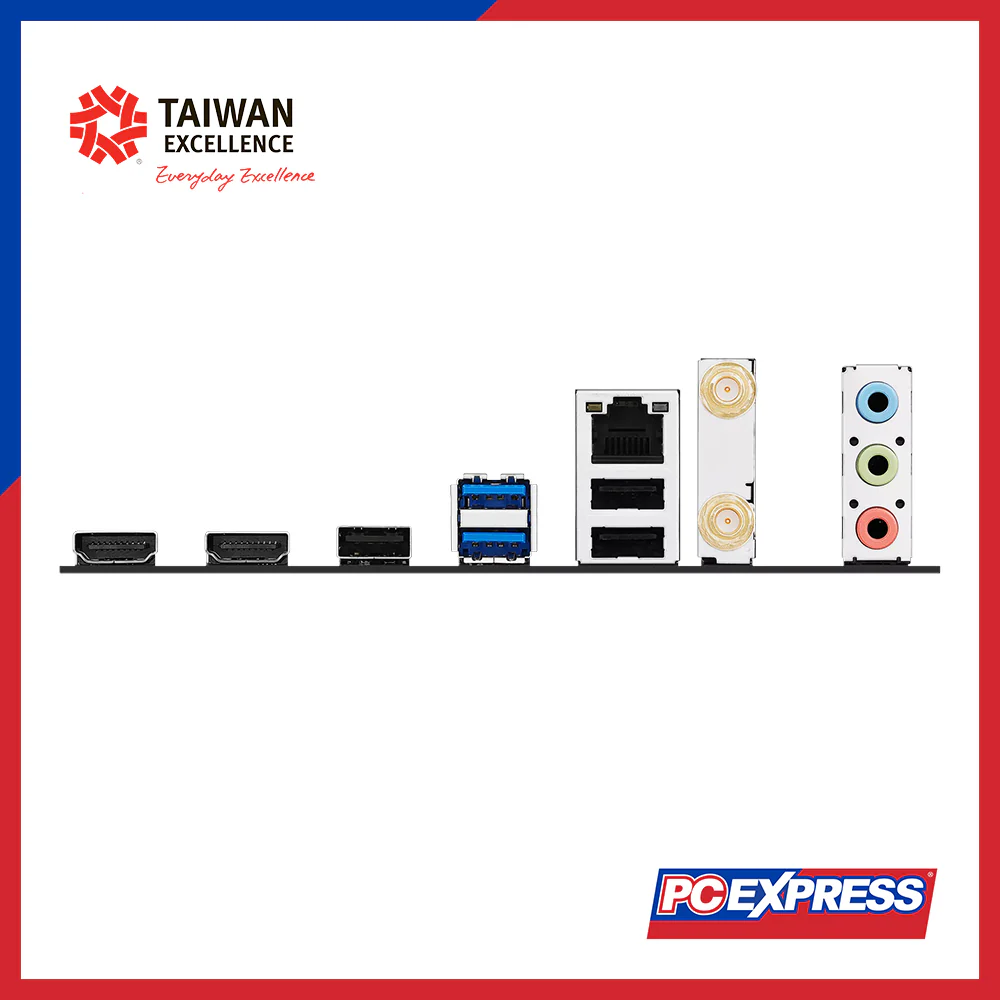

Back Panel I/O Ports

2 x USB 5Gbps (Type-A)
3 x USB 2.0 (Type-A)
2 x HDMI™ ports
1 x Wi-Fi module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks

Internal I/O Connectors

Fan & Cooling: 1 x 4-pin CPU Fan, 1 x 4-pin Chassis Fan
Power: 1 x 24-pin Main Power, 1 x 4-pin +12V Power
Storage: 1 x M.2 (Key M), 2 x SATA 6Gb/s ports
USB: 1 x USB 5Gbps header (supports 2 ports), 1 x USB 2.0 header (supports 2 ports)
Miscellaneous: 1 x Clear CMOS, 1 x Front Panel Audio (F_AUDIO), 1 x Speaker header, 1 x 10-1 pin Front Panel System header

Special Features

ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core, Stainless-steel back I/O
ASUS Q-Design: Q-DIMM, Q-Slot, Q-LED Core
ASUS Thermal Solution: Aluminum heatsink design

Software Features

ASUS Exclusive Software: Armoury Crate (Power Saving), ASUS DriverHub, ASUS CPU-Z, Norton 360 Deluxe (60-Day Trial), WinRAR (40-Day Trial)

UEFI BIOS

ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables: 2 x SATA 6Gb/s cables
Miscellaneous: 1 x ASUS Wi-Fi moving antennas, 1 x I/O shield, 1 x M.2 anchor
Documentation: 1 x Quick Start Guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

micro-ATX Form Factor (8.9 in x 7.4 in / 22.6 cm x 18.8 cm)
