Original: $261.16
-70%$261.16
$78.35The Story
SPECIFICATION
|
CPU Support |
IntelĀ® Coreā¢ Ultra Processors (Series 2), LGA1851, IntelĀ® Turbo Boost Technology 2.0 & 3.0 |
|
Chipset |
IntelĀ® B860 Chipset |
|
Memory |
4 x DIMM slots, max. 256GB, DDR5, up to 8800+MT/s (OC), Dual Channel Memory, Non-ECC, Un-buffered, IntelĀ® Extreme Memory Profile (XMP) support |
|
Graphics |
1 x DisplayPort (max. 4K@60Hz), 1 x HDMIā¢ port (4K@60Hz), 1 x USB 20Gbps (USB Type-CĀ®) with DisplayPort video output |
|
Expansion Slots |
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4 |
|
Storage |
3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, IntelĀ® Rapid Storage Technology (RAID 0/1/5/10) |
|
Ethernet |
1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
|
Wireless & Bluetooth |
Wi-Fi 7 (802.11be), 2x2, up to 2.9Gbps, BluetoothĀ® v5.4 |
|
USB Ports |
8 x Rear USB (1 x USB 20Gbps Type-CĀ®, 2 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A), 5 x Front USB (USB 10Gbps, 5Gbps, 2.0 headers) |
|
Audio |
Realtek 7.1 Surround Sound, Optical S/PDIF out, supports up to 24-Bit/192 kHz playback, Premium audio capacitors, Audio Shielding |
|

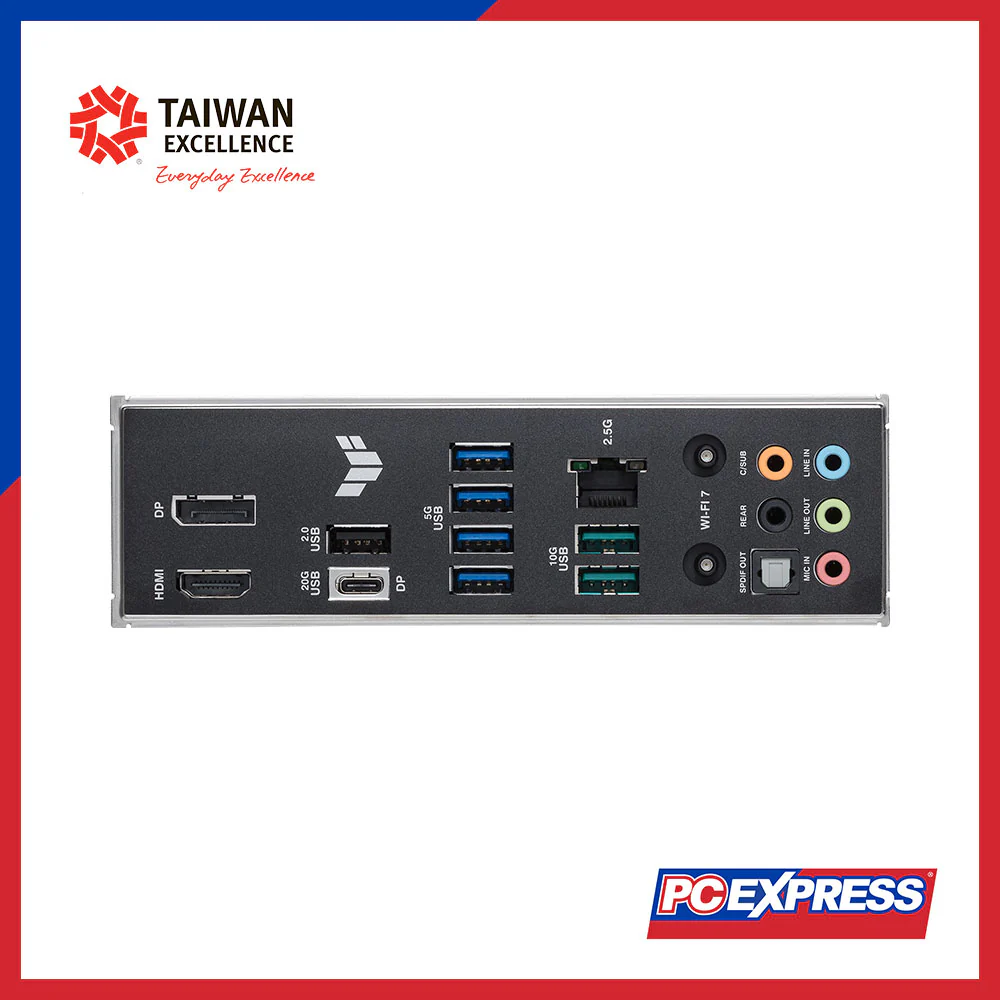

Back Panel I/O |
1 x USB 20Gbps Type-CĀ® (with DP Alt mode), 2 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A, 1 x DisplayPort, 1 x HDMIā¢, 1 x Ethernet, 5 Audio jacks, 1 x Optical S/PDIF out |
|
Internal I/O Connectors |
1 x 24-pin Main Power, 2 x 8-pin +12V, 3 x M.2 slots, 4 x SATA 6Gb/s, USB headers (10Gbps, 5Gbps, 2.0), 3 x Addressable Gen 2 headers, Clear CMOS header |
|
Special Features |
ASUS TUF PROTECTION (DIGI+ VRM, TUF LANGuard, SafeSlot), ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release), ASUS Thermal Solution (M.2 heatsinks, VRM heatsink) |
|
Software Features |
Armoury Crate, AURA Sync, Fan Xpert 2+, TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing, WinRAR, Norton 360 for Gamers (60 Days Free Trial) |
|
BIOS |
UEFI AMI BIOS, 2 x 128Mb Flash ROM, ASUS CrashFree BIOS 3, EZ Mode, MyHotkey |
|
Manageability |
WOL by PME, PXE |
|
Accessories |
2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 2 x M.2 Rubber Packages, 1 x TUF Gaming sticker, 1 x Screw package for M.2 SSD, Quick start guide |
|
Operating System |
Windows 11 (22H2 & later) |
|
Form Factor |
mATX, 9.6 x 9.6 inches (24.4 cm x 24.4 cm) |
Ā
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
SPECIFICATION
|
CPU Support |
IntelĀ® Coreā¢ Ultra Processors (Series 2), LGA1851, IntelĀ® Turbo Boost Technology 2.0 & 3.0 |
|
Chipset |
IntelĀ® B860 Chipset |
|
Memory |
4 x DIMM slots, max. 256GB, DDR5, up to 8800+MT/s (OC), Dual Channel Memory, Non-ECC, Un-buffered, IntelĀ® Extreme Memory Profile (XMP) support |
|
Graphics |
1 x DisplayPort (max. 4K@60Hz), 1 x HDMIā¢ port (4K@60Hz), 1 x USB 20Gbps (USB Type-CĀ®) with DisplayPort video output |
|
Expansion Slots |
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4 |
|
Storage |
3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, IntelĀ® Rapid Storage Technology (RAID 0/1/5/10) |
|
Ethernet |
1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
|
Wireless & Bluetooth |
Wi-Fi 7 (802.11be), 2x2, up to 2.9Gbps, BluetoothĀ® v5.4 |
|
USB Ports |
8 x Rear USB (1 x USB 20Gbps Type-CĀ®, 2 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A), 5 x Front USB (USB 10Gbps, 5Gbps, 2.0 headers) |
|
Audio |
Realtek 7.1 Surround Sound, Optical S/PDIF out, supports up to 24-Bit/192 kHz playback, Premium audio capacitors, Audio Shielding |
|
Back Panel I/O |
1 x USB 20Gbps Type-CĀ® (with DP Alt mode), 2 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A, 1 x DisplayPort, 1 x HDMIā¢, 1 x Ethernet, 5 Audio jacks, 1 x Optical S/PDIF out |
|
Internal I/O Connectors |
1 x 24-pin Main Power, 2 x 8-pin +12V, 3 x M.2 slots, 4 x SATA 6Gb/s, USB headers (10Gbps, 5Gbps, 2.0), 3 x Addressable Gen 2 headers, Clear CMOS header |
|
Special Features |
ASUS TUF PROTECTION (DIGI+ VRM, TUF LANGuard, SafeSlot), ASUS Q-Design (M.2 Q-Latch, PCIe Slot Q-Release), ASUS Thermal Solution (M.2 heatsinks, VRM heatsink) |
|
Software Features |
Armoury Crate, AURA Sync, Fan Xpert 2+, TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing, WinRAR, Norton 360 for Gamers (60 Days Free Trial) |
|
BIOS |
UEFI AMI BIOS, 2 x 128Mb Flash ROM, ASUS CrashFree BIOS 3, EZ Mode, MyHotkey |
|
Manageability |
WOL by PME, PXE |
|
Accessories |
2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 2 x M.2 Rubber Packages, 1 x TUF Gaming sticker, 1 x Screw package for M.2 SSD, Quick start guide |
|
Operating System |
Windows 11 (22H2 & later) |
|
Form Factor |
mATX, 9.6 x 9.6 inches (24.4 cm x 24.4 cm) |
