Original: $366.63
-70%$366.63
$109.99The Story
SPECIFICATION
|
Model |
TUF GAMING X870-PLUS WIFI |
|
CPU |
AMD Socket AM5, Ryzen™ 9000/8000/7000 Series Desktop Processors |
|
Chipset |
AMD X870 |
|
Memory |
4 x DIMM, max. 192GB DDR5, up to 8000+ MT/s (OC), ECC/Non-ECC, Dual-channel, EXPO™, AEMP support |
|
Graphics |
HDMI™ 2.1 (4K@60Hz), 2 x USB4® (40Gbps, USB Type-C® display outputs, 4K@60Hz) |
|
Expansion Slots |
PCIe 5.0/4.0 slots (configurations vary by CPU) |
|
Storage |
4 x M.2 slots (PCIe 5.0/4.0), 2 x SATA 6Gb/s, RAID 0/1/5/10 support (Ryzen™ 9000 CPUs only) |
|
Ethernet |
Realtek 2.5Gb Ethernet, TUF LANGuard |
|
Wireless & Bluetooth |
Wi-Fi 7 (802.11be), 2.4/5/6GHz, up to 2.9Gbps, Bluetooth® v5.4 |
|
USB Ports |
Rear: 10 ports (2 x USB4®, 3 x 10Gbps, 4 x 5Gbps, 1 x USB 2.0) |
|
Audio |
Realtek ALC1220P 7.1 Surround Sound, 32-bit/192 kHz playback, premium audio capacitors |
|

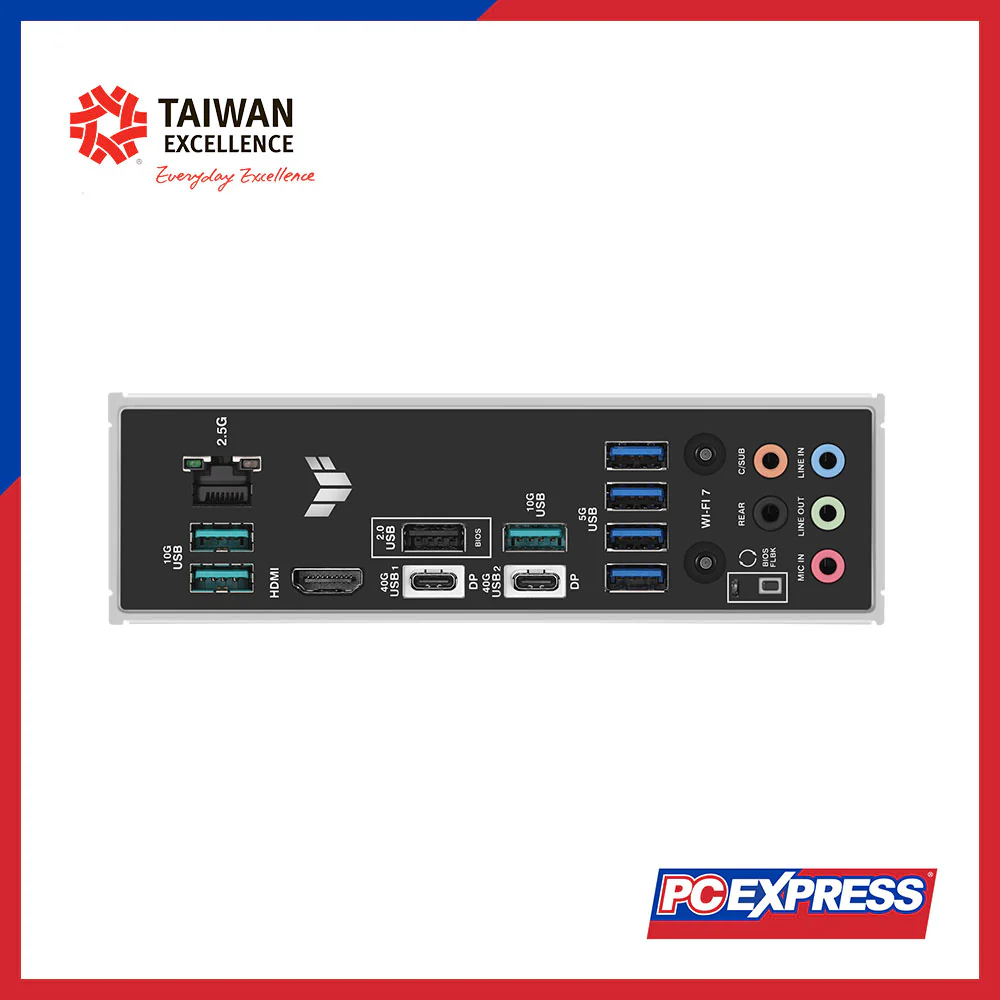

Back Panel I/O |
USB4®, USB 10Gbps, USB 5Gbps, USB 2.0, HDMI™, Ethernet, audio jacks, Wi-Fi module, BIOS FlashBack™ |
|
Internal I/O |
Fan headers, CPU/Chassis fan, AIO pump, thermal sensor, USB headers, M.2, SATA, and more |
|
Special Features |
TUF Protection, Q-Design (M.2 Q-Latch, PCIe Q-Release), Aura Sync, VRM & M.2 heatsinks, BIOS FlashBack™ |
|
Software Features |
Armoury Crate, Aura Sync, Fan Xpert 4, DTS Audio Processing, Norton 360 (trial), USB Wattage Watcher |
|
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
|
Accessories |
Wi-Fi Q-Antenna, 2 x SATA cables, M.2 screws/rubbers, TUF GAMING sticker, Quick Start Guide |
|
Operating System |
Windows 11 |
|
Form Factor |
ATX, 12 x 9.6 inches (30.5 x 24.4 cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
SPECIFICATION
|
Model |
TUF GAMING X870-PLUS WIFI |
|
CPU |
AMD Socket AM5, Ryzen™ 9000/8000/7000 Series Desktop Processors |
|
Chipset |
AMD X870 |
|
Memory |
4 x DIMM, max. 192GB DDR5, up to 8000+ MT/s (OC), ECC/Non-ECC, Dual-channel, EXPO™, AEMP support |
|
Graphics |
HDMI™ 2.1 (4K@60Hz), 2 x USB4® (40Gbps, USB Type-C® display outputs, 4K@60Hz) |
|
Expansion Slots |
PCIe 5.0/4.0 slots (configurations vary by CPU) |
|
Storage |
4 x M.2 slots (PCIe 5.0/4.0), 2 x SATA 6Gb/s, RAID 0/1/5/10 support (Ryzen™ 9000 CPUs only) |
|
Ethernet |
Realtek 2.5Gb Ethernet, TUF LANGuard |
|
Wireless & Bluetooth |
Wi-Fi 7 (802.11be), 2.4/5/6GHz, up to 2.9Gbps, Bluetooth® v5.4 |
|
USB Ports |
Rear: 10 ports (2 x USB4®, 3 x 10Gbps, 4 x 5Gbps, 1 x USB 2.0) |
|
Audio |
Realtek ALC1220P 7.1 Surround Sound, 32-bit/192 kHz playback, premium audio capacitors |
|
Back Panel I/O |
USB4®, USB 10Gbps, USB 5Gbps, USB 2.0, HDMI™, Ethernet, audio jacks, Wi-Fi module, BIOS FlashBack™ |
|
Internal I/O |
Fan headers, CPU/Chassis fan, AIO pump, thermal sensor, USB headers, M.2, SATA, and more |
|
Special Features |
TUF Protection, Q-Design (M.2 Q-Latch, PCIe Q-Release), Aura Sync, VRM & M.2 heatsinks, BIOS FlashBack™ |
|
Software Features |
Armoury Crate, Aura Sync, Fan Xpert 4, DTS Audio Processing, Norton 360 (trial), USB Wattage Watcher |
|
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
|
Accessories |
Wi-Fi Q-Antenna, 2 x SATA cables, M.2 screws/rubbers, TUF GAMING sticker, Quick Start Guide |
|
Operating System |
Windows 11 |
|
Form Factor |
ATX, 12 x 9.6 inches (30.5 x 24.4 cm) |
