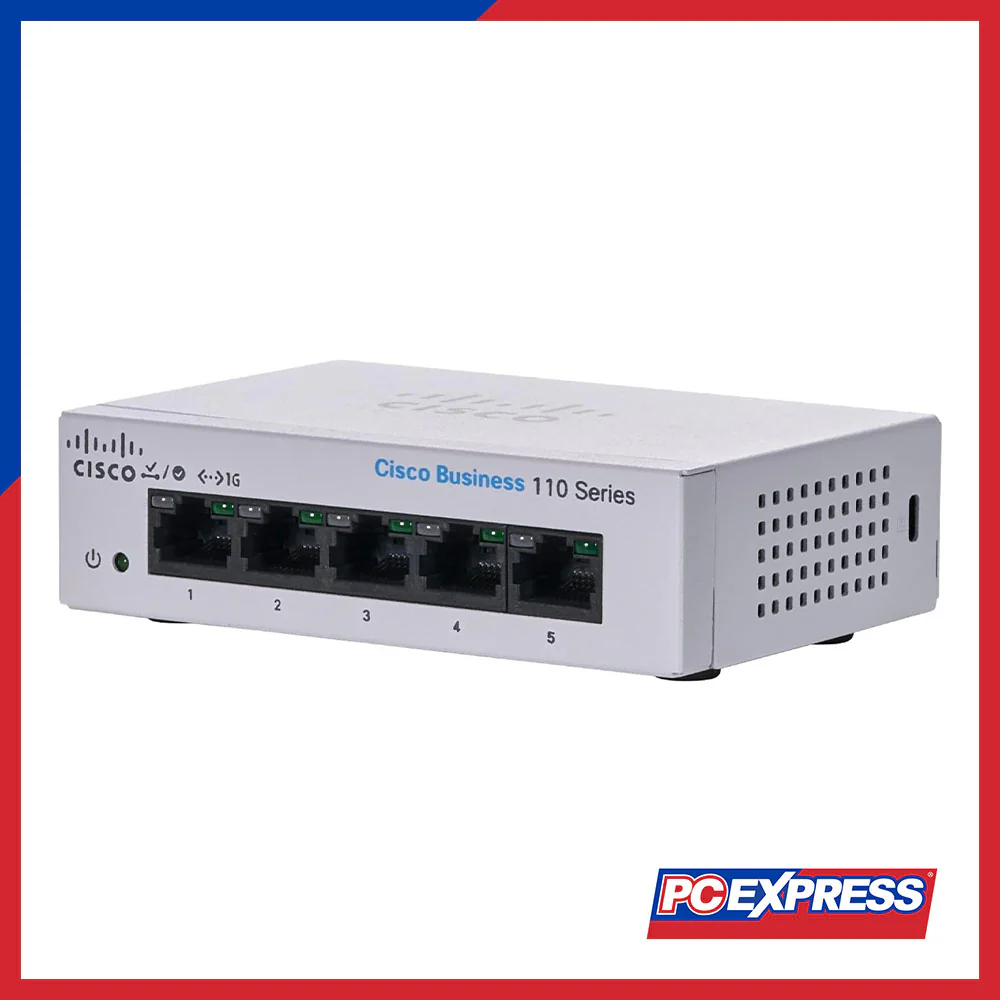

CISCO Business 110 Series (CBS110-5T-D) 5-port Unmanaged Switch

Performance

Switching capacity and forwarding rate

All switches are wire- speed and nonblocking

Model

Capacity in millions of packets per second (mpps) (64-byte packets)

Switching capacity in gigabits per second (Gbps)

CBS110-5T-D

7.4 mpps

10 Gbps

CBS110-8T-D

11.9 mpps

16 Gbps

CBS110-8PP-D

11.9 mpps

16 Gbps

CBS110-16T

23.8 mpps

32 Gbps

CBS110-16PP

23.8 mpps

32 Gbps

CBS110-24T

35.7 mpps

48 Gbps

CBS110-24PP

35.7 mpps

48 Gbps

General

Head-of-Line (HOL) blocking

HOL blocking prevention

MAC table

2K addresses for CBS110-5T-D

8K addresses for all other models

Jumbo frame

9216 bytes

Quality of Service (QoS)

802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)

Loop detection

Helps discover loops in the network to avoid broadcast storms

Cable diagnostics

Quickly identify and troubleshoot network cable faults and/or shorts

Media-dependent interface

Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)

Standards

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet

Hardware

Ports

Model name

Total system ports

RJ-45 ports

Combo ports (RJ-45 + Small Form-factor Pluggable [SFP])

CBS110-5T-D

5 Gigabit Ethernet

5 Gigabit Ethernet

–

CBS110-8T-D

8 Gigabit Ethernet

8 Gigabit Ethernet

–

CBS110-8PP-D

8 Gigabit Ethernet

8 Gigabit Ethernet

–

CBS110-16T

16 Gigabit Ethernet

16 Gigabit Ethernet

–

CBS110-16PP

16 Gigabit Ethernet

16 Gigabit Ethernet

–

CBS110-24T
