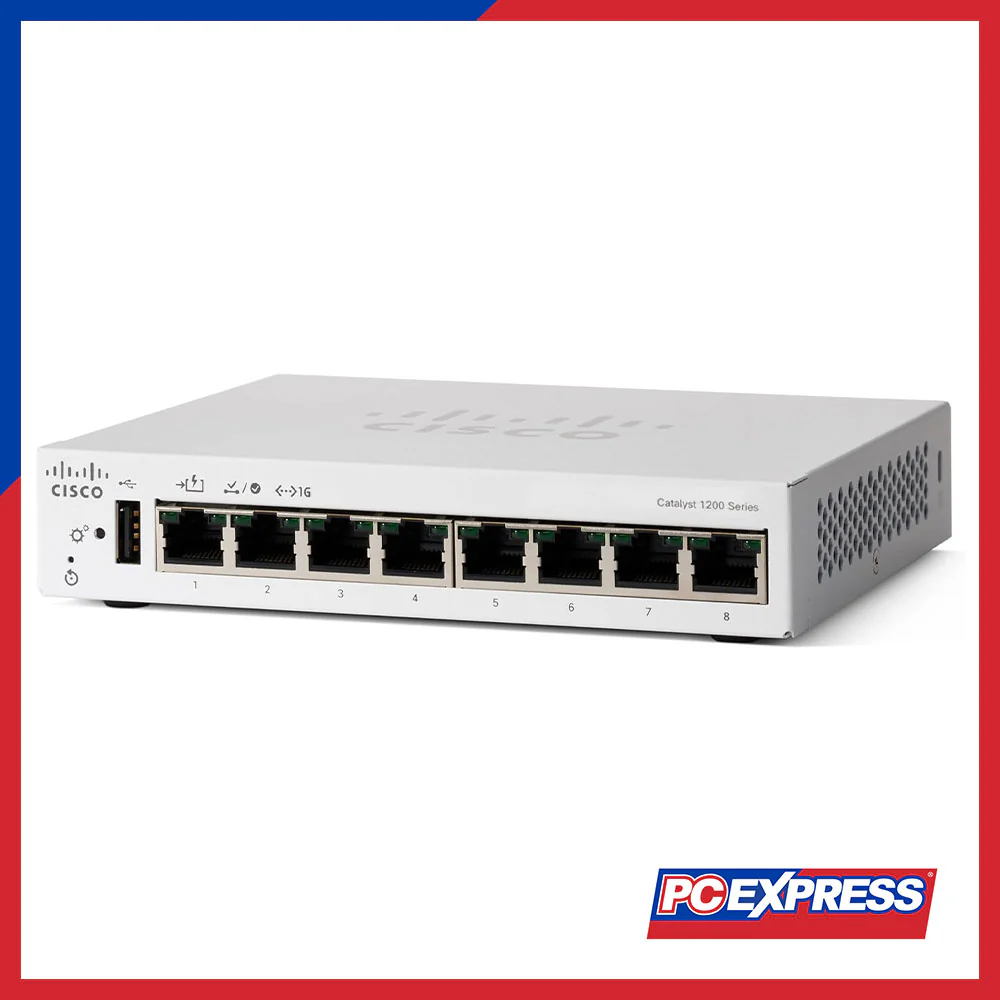

CISCO Catalyst (C1200-8T-D) 8-Port Smart Switch

Performance

Switching capacity and forwarding rate

All switches are wire-speed and nonblocking

Model

Capacity in millions of packets per second (mpps) (64-byte packets)

Switching capacity in gigabits per second (Gbps)

C1200-8T-D

11.90

16.0

C1200-8T-E-2G

14.88

20.0

C1200-8P-E-2G

14.88

20.0

C1200-8FP-2G

14.88

20.0

C1200-16T-2G

26.78

36.0

C1200-16P-2G

26.78

36.0

C1200-24T-4G

41.66

56.0

C1200-24P-4G

41.66

56.0

C1200-24FP-4G

41.66

56.0

C1200-48T-4G

77.38

104.0

C1200-48P-4G

77.38

104.0

C1200-24T-4X

95.23

128.0

C1200-24P-4X

95.23

128.0

C1200-24FP-4X

95.23

128.0

C1200-48T-4X

130.94

176.0

C1200-48P-4X

130.94

176.0

Layer 2 switching

Spanning Tree Protocol (STP)

Standard 802.1d spanning tree support

Fast convergence using 802.1w (Rapid Spanning Tree Protocol [RSTP]), enabled by default

Multiple spanning tree instances using 802.1s (MSTP); 8 instances are supported

Per-VLAN Spanning Tree Plus (PVST+); 126 instances are supported

Rapid PVST+ (RPVST+); 126 instances are supported

Port grouping/link aggregation

Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

●  Up to 4 groups

●  Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad Link Aggregation Group (LAG)

VLAN

Support for up to 255 active VLANs simultaneously

Port-based and 802.1Q tag-based VLANs

Management VLAN

Guest VLAN

Auto Surveillance VLAN (ASV)

Voice VLAN

Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices

Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP)

Enable automatically propagation and configuration of VLANs in a bridged domain

Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping
