SPECIFICATION
|
General |
|
|
Phase |
Single Phase |
|
Form Factor |
Tower |
|
UPS Topology |
Line-interactive |
|
Energy Saving Technology |
GreenPower UPS™ Bypass Technology |
|
Input |
|
|
Generator Compatibility |
Yes |
|
Nominal Input Voltage (Vac) |
230 ± 10% |
|
Input Voltage Range (Vac) |
167 ~ 295 |
|
Input Frequency (Hz) |
50 ± 5, 60 ± 5 |
|
Input Frequency Detection |
Auto-sensing |
|
Rated Input Current (A) |
3.04 |
|
Input Connector Type |
IEC C14 |
|
Detachable Power Cord Plug Type |
AU x 1 |
|
Power Cord Length (ft) |
5 |
|
Power Cord Length (m) |
1.5 |
|
Output |
|
|
Capacity (VA) |
700 |
|
Capacity (Watts) |
390 |
|
On Battery Waveform |
Simulated Sine Wave |
|
On Battery Voltage(s) (Vac) |
230 ± 10% |
|
On Battery Frequency (Hz) |
50 ± 1%, 60 ± 1% |
|
Automatic Voltage Regulation (AVR) |
Single Boost, Single Buck |
|
Overload Protection |
Circuit Breaker |
|

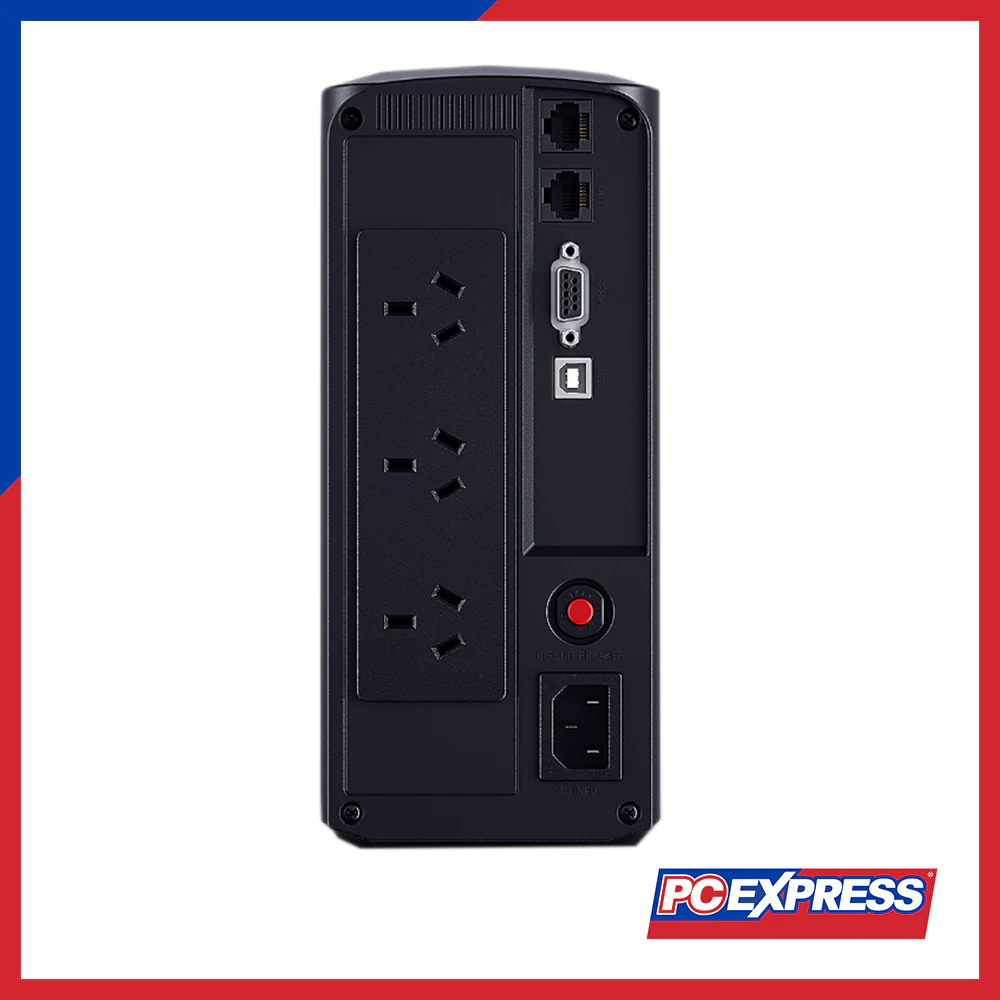

Outlet(s) – Total |
3 |
|
Outlet Type |
AU x 3 |
|
Outlet(s) – Battery & Surge Protected |
3 |
|
Typical Transfer Time (ms) |
4 |
|
Battery |
|
|
Runtime at Half Load (min) |
10 |
|
Runtime at Full Load (min) |
1 |
|
Typical Recharge Time (Hours) |
8 |
|
Start On Battery |
Yes |
|
User-replaceable |
No |
|
Battery Type |
Sealed Lead-acid |
|
Surge Protection & Filtering |
|
|
Surge Suppression (Joules) |
450 |
|
EMI/RFI Filtration |
Yes |
|
Phone/Network Protection RJ11/RJ45 (Combo) |
1-in, 1-out |
|
Management & Communications |
|
|

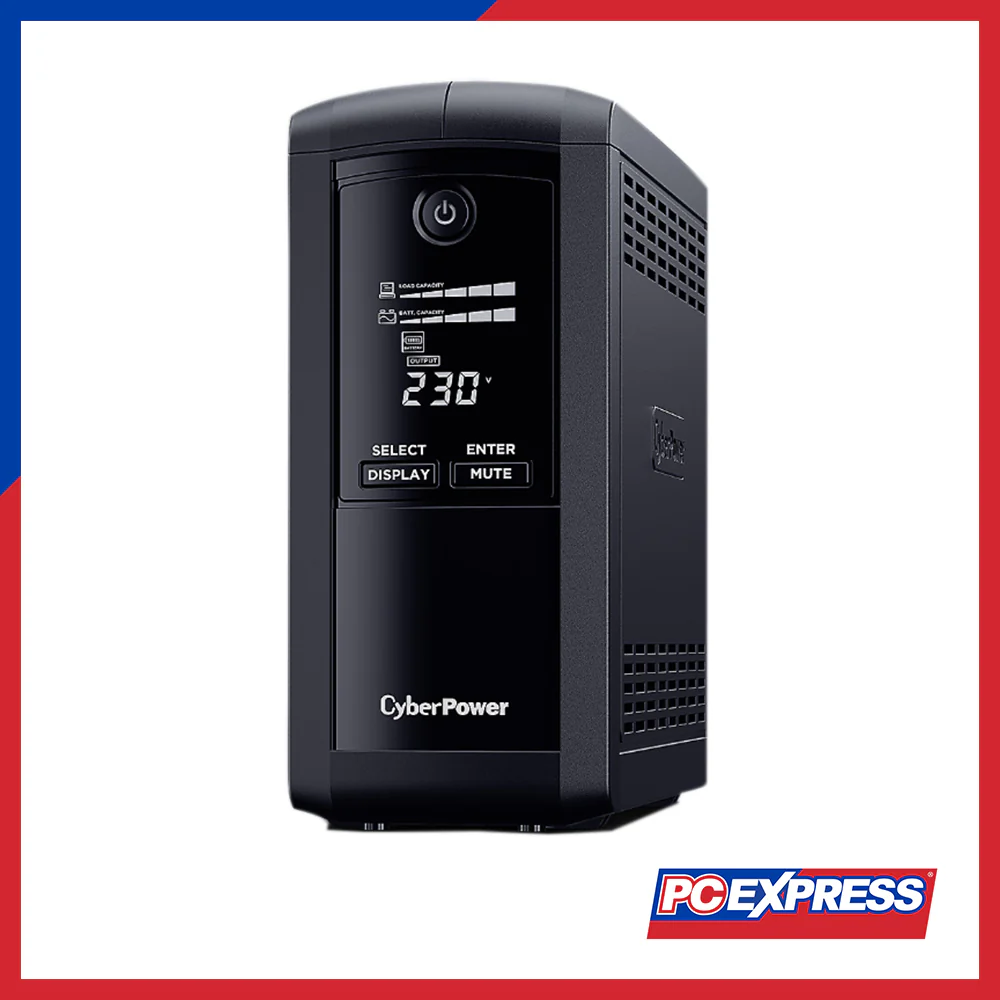

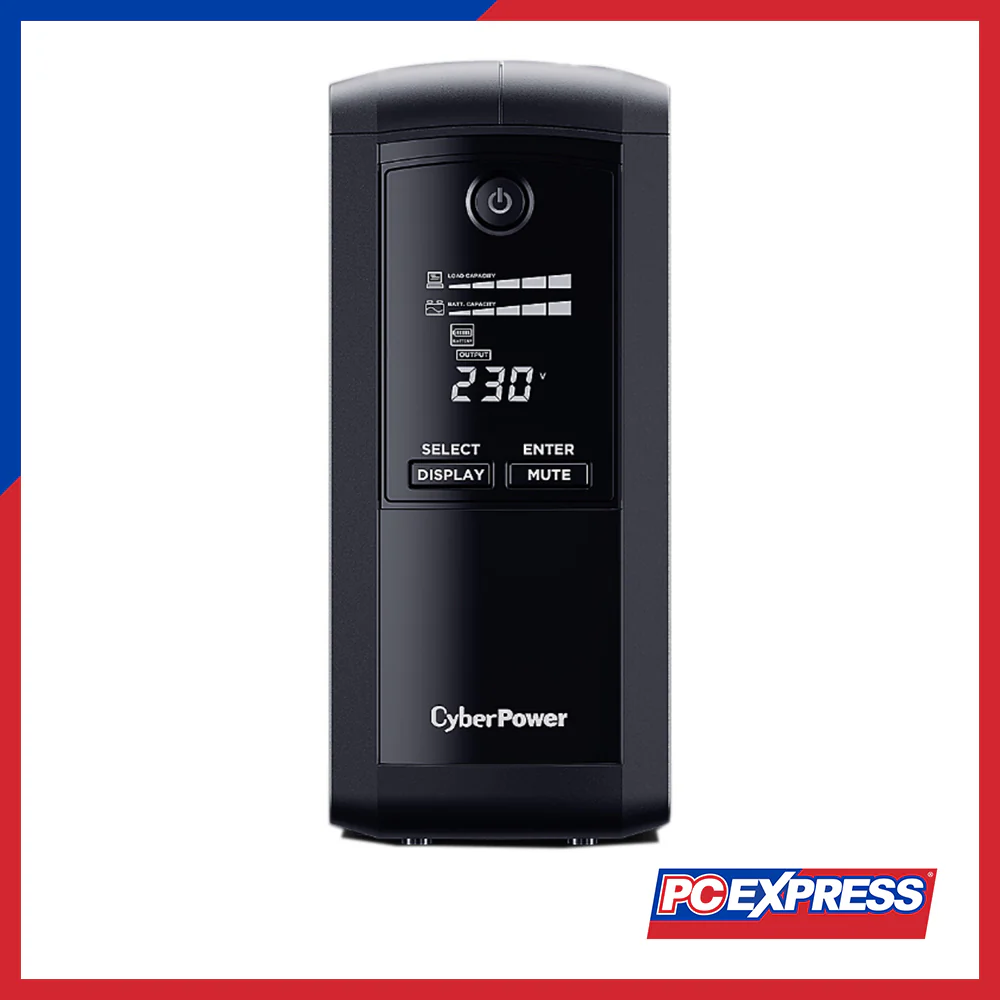

LCD Panel |
Yes |
|
LCD Information Display |
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Info |
|
LCD Setting & Control |
Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning |
|
LED Indicators |
Power On |
|
HID Compliant USB Port(s) |
1 |
|
Audible Alarms |
Battery Mode, Low Battery, Overload, UPS Fault |
|
Management Cable |
USB Cable x1 |
|
Ethernet Data Transmission Speed |
Up to 1Gbps |
|
Power Management Software |
PowerPanel Personal (Recommended) |
|
Physical |
|
|
Enclosure Construction |
Plastic |
|
Color |
Black |
|
Physical Dimensions (WxHxD) (in) |
3.9 x 8.9 x 10.2 |
|
Physical Dimensions (WxHxD) (mm) |
100 x 227 x 260 |
|
Weight (lbs) |
11.33 |
|
Weight (kg) |
5.14 |
|
Shipping Dimensions (in) |
11.81 x 13.19 x 5.63 |
|
Shipping Dimensions (mm) |
300 x 335 x 143 |
|
Shipping Weight (lbs) |
12.7 |
|
Shipping Weight (kg) |
5.76 |
|
Environmental |
|
|
Operating Temperature (°F) |
32 ~ 104 |
|
Operating Temperature (°C) |
0 ~ 40 |
|
Operating Relative Humidity (Non-condensing) |
0 ~ 90% |
|
Operating Elevation |
0–9,843 ft (0–3,000 m) |
|
Storage Temperature (°F) |
-4 ~ 122 |
|
Storage Temperature (°C) |
-20 ~ 50 |
|
Storage Relative Humidity (Non-condensing) |
0 ~ 90% |
|
Storage Elevation |
0–9,843 ft (0–3,000 m) |
|
Online Thermal Dissipation (BTU/hr) |
9.5 |
|
Audible Noise (dBA @ 1.0m) |
40 |
|
Certifications |
|
|
Certifications |
CE, RCM |
|
RoHS |
Yes |
