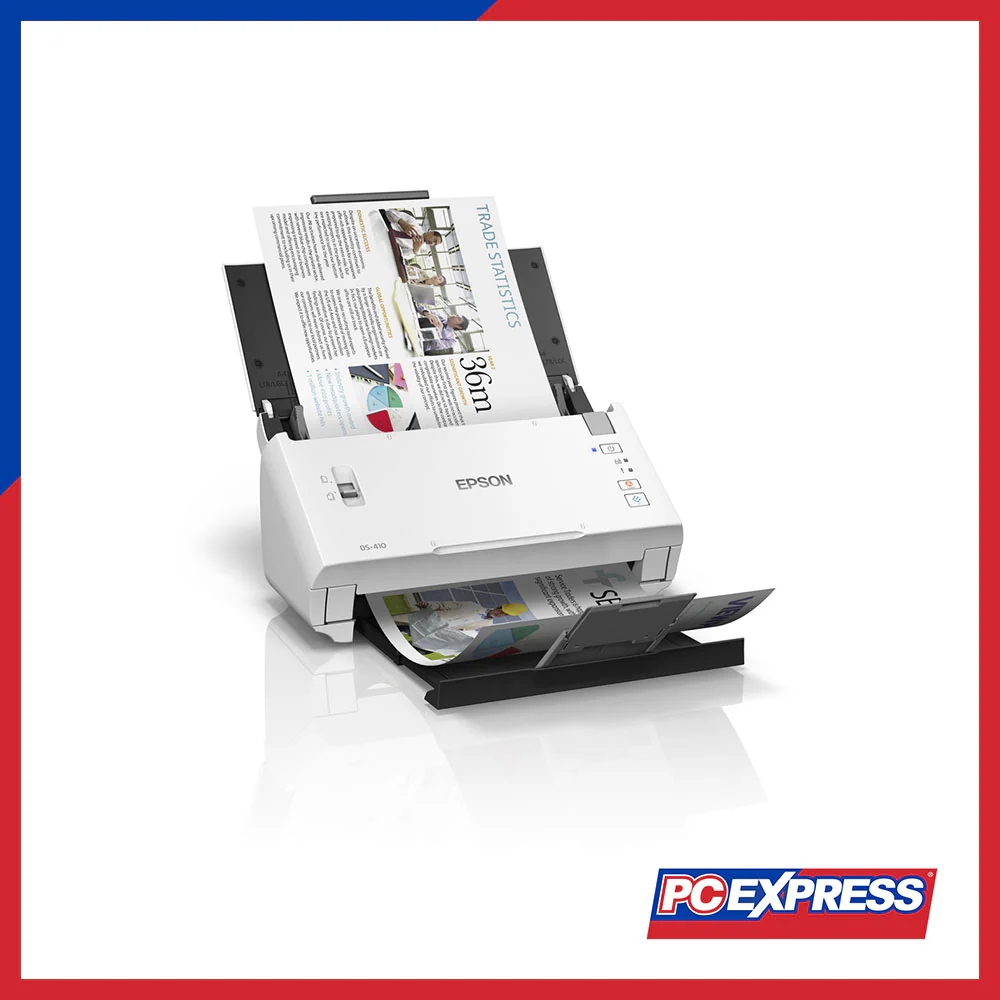

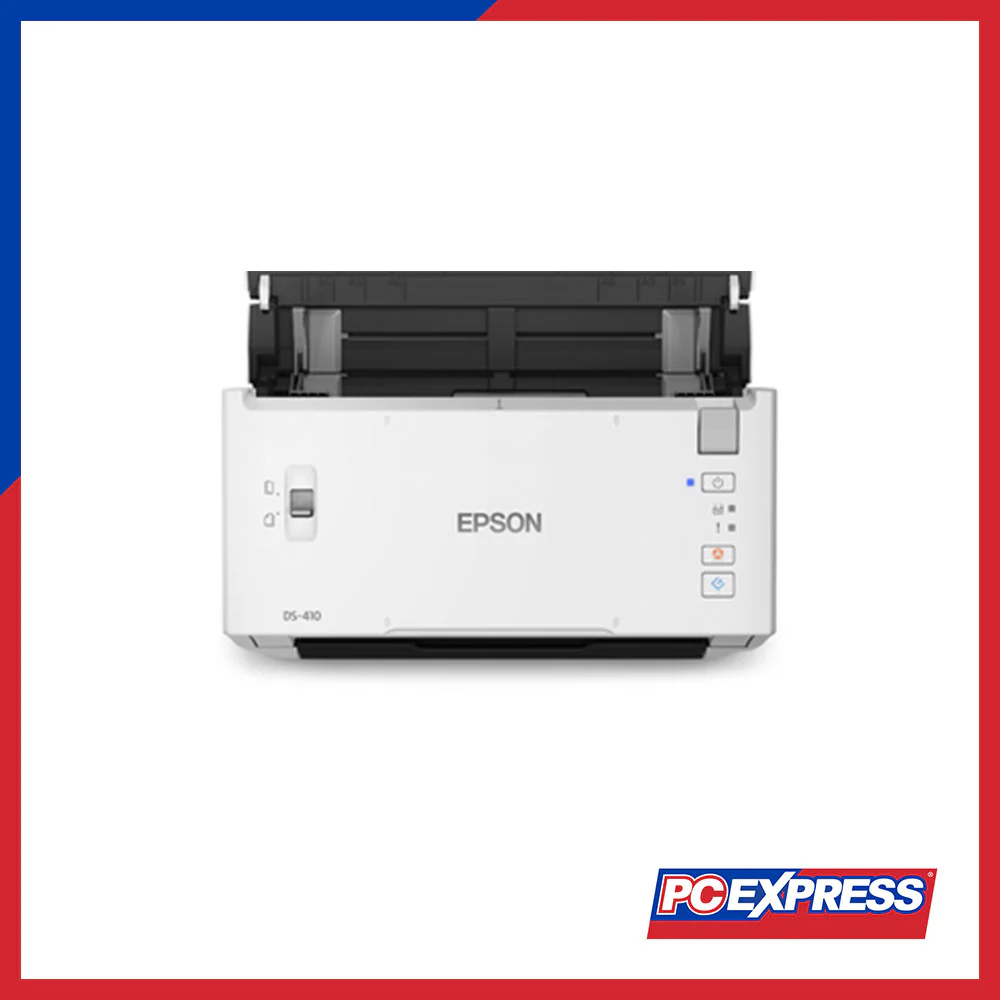

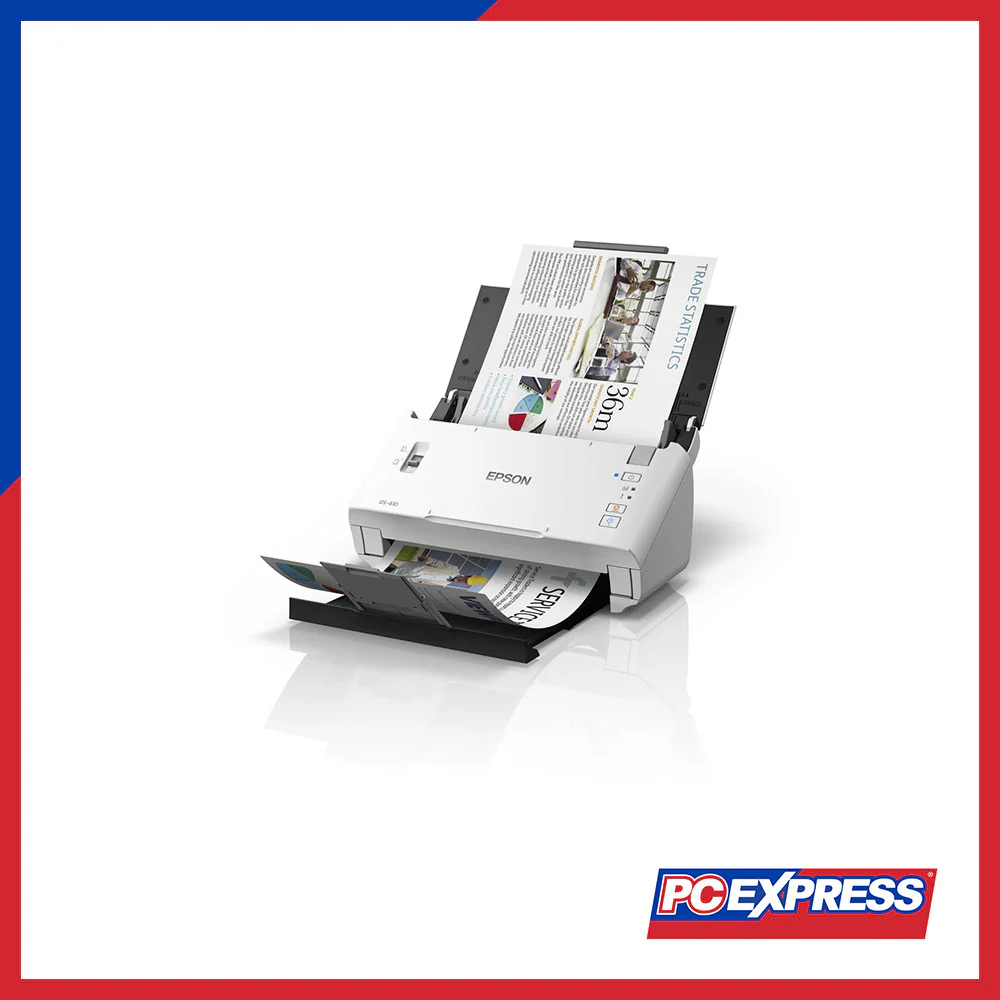

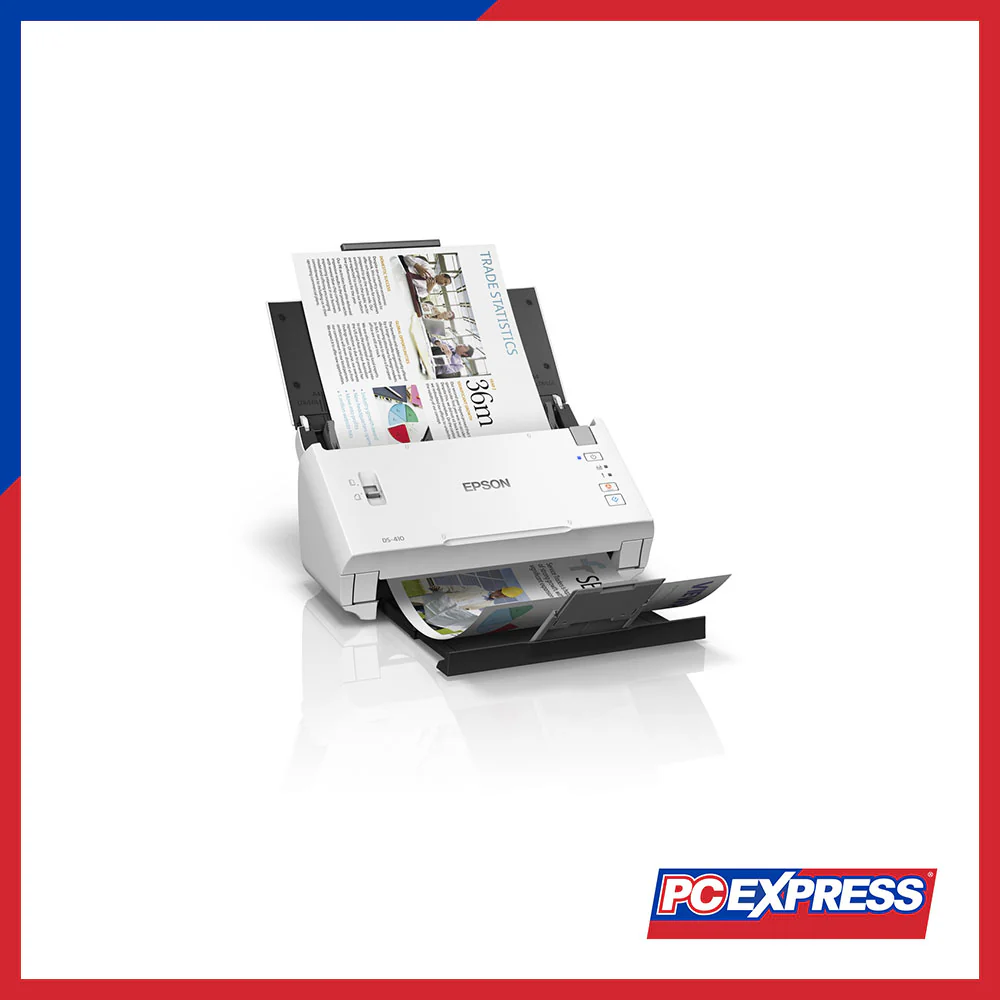

EPSON DS-410 A4 Duplex Scanner

High Reliability & Durability
The DS-410 scanner is designed to deliver a high daily duty cycle of 3,000 pages, and it comes with separation roller that ensures stable and continuous scanning for large batch requirements.

A3 Scanning Without Carrier Sheet
A3 size documents can now be scanned without a carrier sheet. Simply switch the scanner to non-separation mode, and with the automatic stitching function in Epson Scan, both halves of the image will be reproduced as an entire image.

Easy File Management
Easily scan, view, edit, save and transfer scanned documents with Document Capture*. The software optically recognises barcodes, characters and blank pages in scanned documents to separate them into different folders. It allows you to create up to 30 customised job settings, making multiple scan jobs a breeze.

*Document Capture Pro (Windows), Document Capture (Mac OS X)

Epson OCR Component
This OCR add-on allows you to create searchable PDF files, automatically straighten and orientate your documents based on character recognition.

High Speed Duplex Scanning
The DS-410 utilises LED technology and is always ready with zero warm-up time. With its 50-sheet Automatic Document Feeder, it performs speedily at 26ppm/52ipm at 300dpi for both colour and monochrome, resulting in significant improvements in office productivity.

ISIS Driver Support
The DS-410 comes with support for the web-downloadable, open standard ISIS driver, allowing quick and easy integration with document imaging solutions.

Powerful and Comprehensive Epson Scan Features
The Epson Scan suite of functions includes numerous useful and innovative capabilities including the following highlights:

Automatic Size Recognition
Place documents of different sizes ranging from A6 to Legal in the middle of the feeding tray and the DS-410 will automatically detect and scan everything in the correct size, all in a single batch.

Text Enhancement
Improves text recognition when scanning text documents, whether in colour, greyscale or black-and-white. Removes background for better clarity, which is especially useful for double-sided printed documents.

Document Skew Correction
Automatically adjusts and straightens scanned images

Colour Enhancement & Colour Dropout
Remove or enhance the visibility of ink signatures such as “Confidential” and “Urgent” stamps. Users can pick one of the preset colours (red, green, blue, pink, purple, yellow, orange, or all colours except black), or use the customised settings to dropout or enhance up to 5 colours of your choice with a single scan. Up to 10 preset colours can be saved for reuse.

PDF Features for Added Convenience
The built-in OCR enables searchable PDF files. Secure your PDF files by setting a password to prevent unauthorised viewing, editing or printing.

PDF/A-1b (ISO) Compliant Files
Archive your digital documents for long term storage and visual reproduction with embedded fonts.

Power Off Timer Setting
Save power consumption by programming the scanner to Power Off after being idle for a set time.

SPECIFICATION

Scanner Type	A4 sheet-fed, one-pass duplex colour scanner
Sensor Type	Contact Image Sensor (CIS) x 2
Scanning Method	Fixed carriage and moving document
Light Source	RGB LED
Optical Resolution	600 x 600 dpi*1
Output Resolution	50 - 1,200 dpi (in 1 dpi increments)
Scanner Bit Depth (Colour)	48-bit input, 24-bit output
Scanner Bit Depth (Grayscale)	16-bit input, 8-bit output
Scanner Bit Depth (Black & White)	16-bit input, 1-bit output
Min Document Size	50.8 x 50.8 mm
Max Document Size	215.9 x 3,048 mm
Supported Paper Weight	50 - 209 g/m²; Less than A8 size: 127 - 209 g/m²
Output File Formats	JPEG, TIFF, Multi-TIFF, PDF, Searchable PDF, BMP, PNG (Epson Scan 2)
	JPEG, BMP, PDF, Searchable PDF, TIFF, Multi-TIFF, PNG, DOCX, XLSX, PPTX (Document Capture Pro)
Scan Speed	200 dpi: 26 ppm / 52 ipm (Monochrome, Colour)
	300 dpi: 26 ppm / 52 ipm (Monochrome, Colour)
	600 dpi: 21 ppm / 42 ipm (Monochrome), 7.0 ppm / 14 ipm (Colour)
ADF Capacity	50 sheets (80 g/m²)
Daily Duty Cycle	Up to 3,000 sheets / day
Multi-feed Detection	Length Detection
Connectivity	USB 2.0
Supported OS	Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2003 / 2008 / 2012 / 2016
	Mac OS X 10.6.8 or later
Scanner Driver Compatibility	TWAIN, SANE, WIA, ICA, ISIS (Windows)
Bundled Applications	Epson Scan 2, Epson Scan OCR Component, Epson Scan PDF Extensions, Document Capture Pro (Windows), Document Capture (Mac)
Consumables	Carrier Sheet (Order Code: B12B813431)
	Roller Assembly Kit (200,000 scans, Order Code: B12B819381)
	Cleaning Kit (Order Code: DSCLKIT1)
Environmental Conditions	Temperature: Operating: 5 - 35°C, Storage: -25 - 60°C
	Humidity: Operating: 15 – 80% (No condensation), Storage: 15 – 85% (No condensation)
