Original: $80.36
-70%$80.36
$24.11The Story
SPECIFICATION
|
Model |
GP-UD750GM |
|
Type |
Intel Form Factor ATX 12V v2.31 |
|
PFC |
Active PFC (>0.9 typical) |
|
Input Voltage |
100-240 Vac (full range) |
|
Input Current |
12-6A |
|
Input Frequency |
60-50 Hz |
|
Output Capacity |
750W |
|
Dimension |
150 x 140 x 86 mm |
|
Fan Type |
120mm Hydraulic Bearing (HYB) fan |
|
80 PLUS |
Gold |
|
Efficiency |
90% at typical load |
|
MTBF |
>100,000 hours |
|
Protection |
OVP/OPP/SCP/UVP/OCP/OTP |
|
Power Good Signal |
100-150ms |
|
Hold Up Time |
>16ms |
|
Cable Type |
Flat, All black |
|

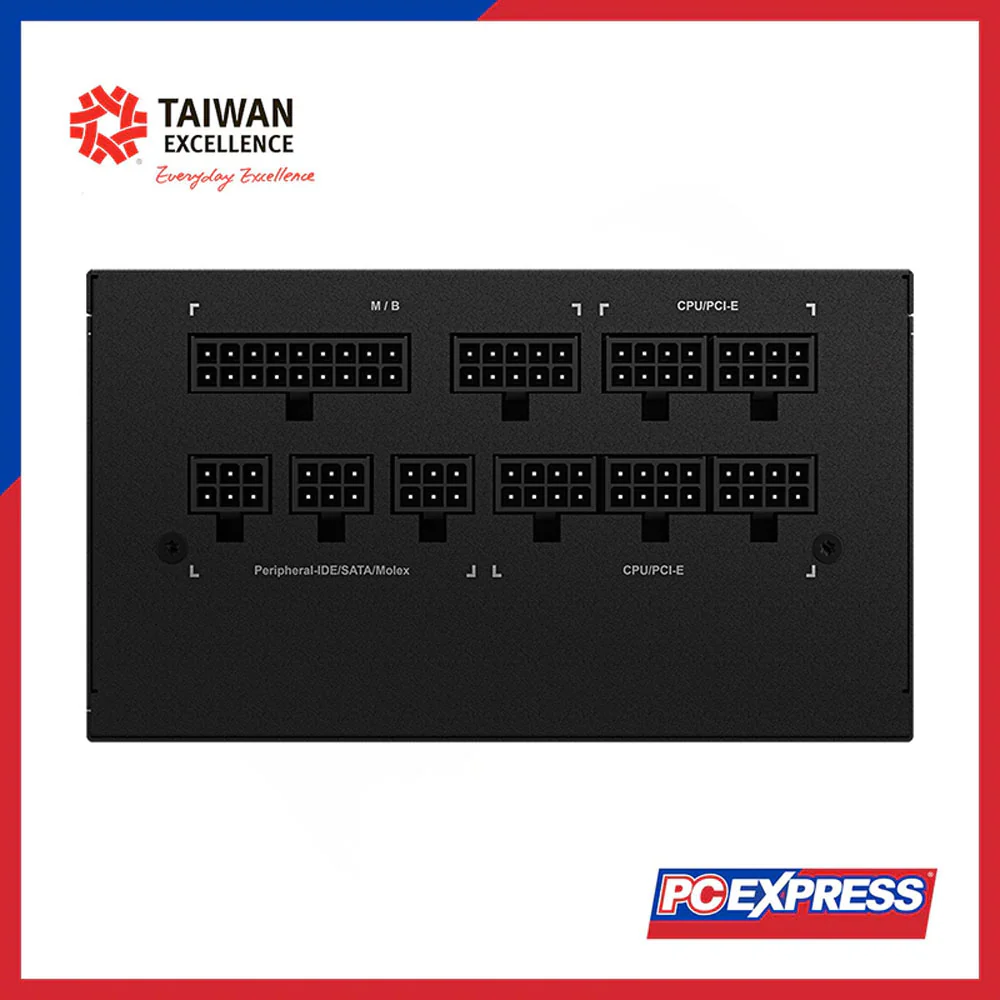

Connectors |
- ATX/MB 20+4 Pin x 1 : 610mm*1 |
|
- CPU/EPS 4+4 Pin x 2 : 600mm*2 |
|
|
- PCI-e 6+2 Pin x 4 : 600mm+150mm*2 |
|
|
- SATA x 8 : |
|
|
600mm+150mm+150mm+150mm*2 |
|
|
- 4 Pin Peripheral x 3+4-Pin floppy x 1 : |
|
|
500mm+120mm+120mm+150mm*1 |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
SPECIFICATION
|
Model |
GP-UD750GM |
|
Type |
Intel Form Factor ATX 12V v2.31 |
|
PFC |
Active PFC (>0.9 typical) |
|
Input Voltage |
100-240 Vac (full range) |
|
Input Current |
12-6A |
|
Input Frequency |
60-50 Hz |
|
Output Capacity |
750W |
|
Dimension |
150 x 140 x 86 mm |
|
Fan Type |
120mm Hydraulic Bearing (HYB) fan |
|
80 PLUS |
Gold |
|
Efficiency |
90% at typical load |
|
MTBF |
>100,000 hours |
|
Protection |
OVP/OPP/SCP/UVP/OCP/OTP |
|
Power Good Signal |
100-150ms |
|
Hold Up Time |
>16ms |
|
Cable Type |
Flat, All black |
|
Connectors |
- ATX/MB 20+4 Pin x 1 : 610mm*1 |
|
- CPU/EPS 4+4 Pin x 2 : 600mm*2 |
|
|
- PCI-e 6+2 Pin x 4 : 600mm+150mm*2 |
|
|
- SATA x 8 : |
|
|
600mm+150mm+150mm+150mm*2 |
|
|
- 4 Pin Peripheral x 3+4-Pin floppy x 1 : |
|
|
500mm+120mm+120mm+150mm*1 |
