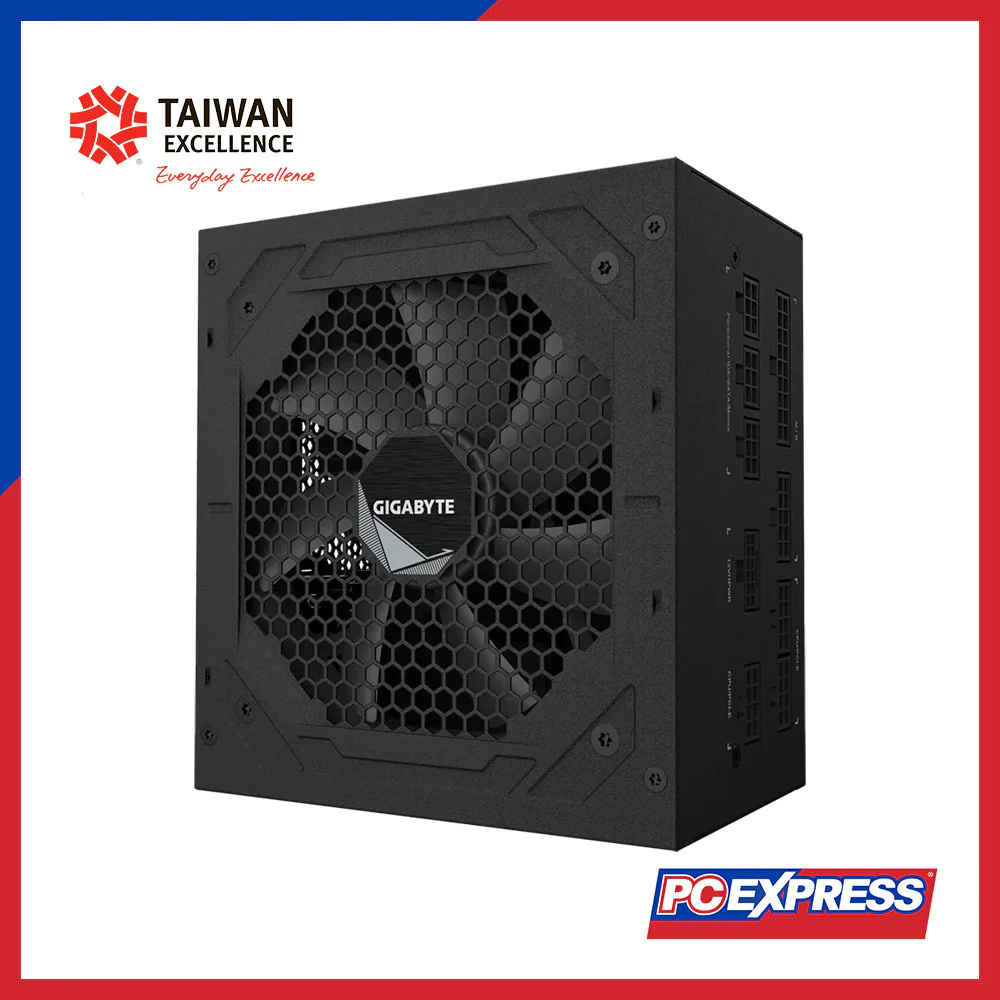

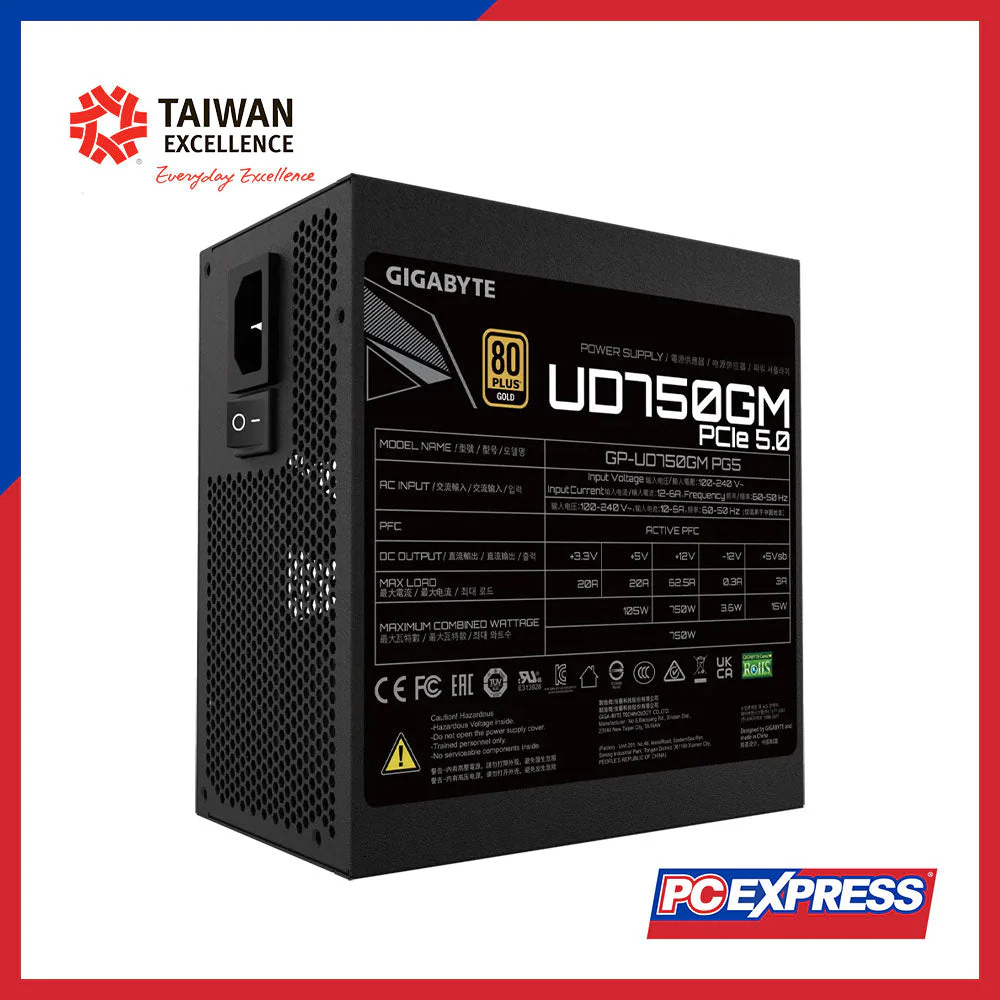

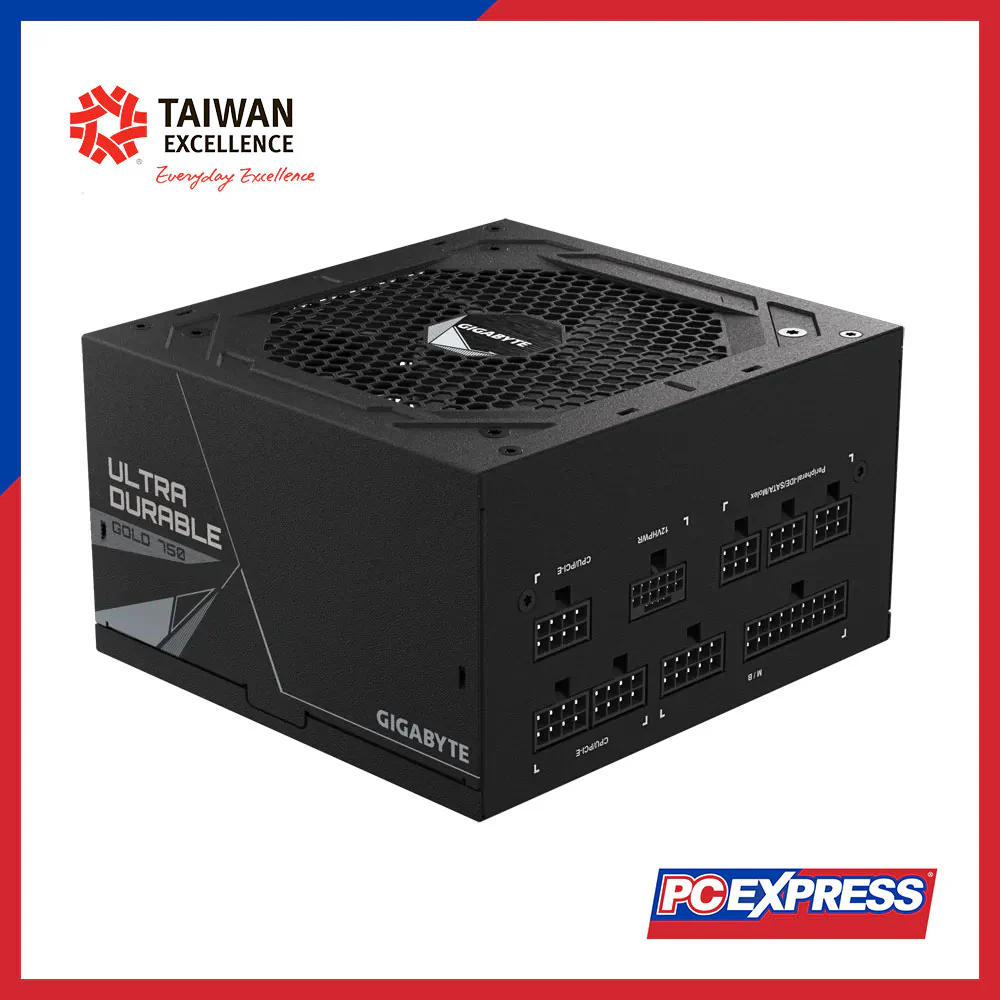

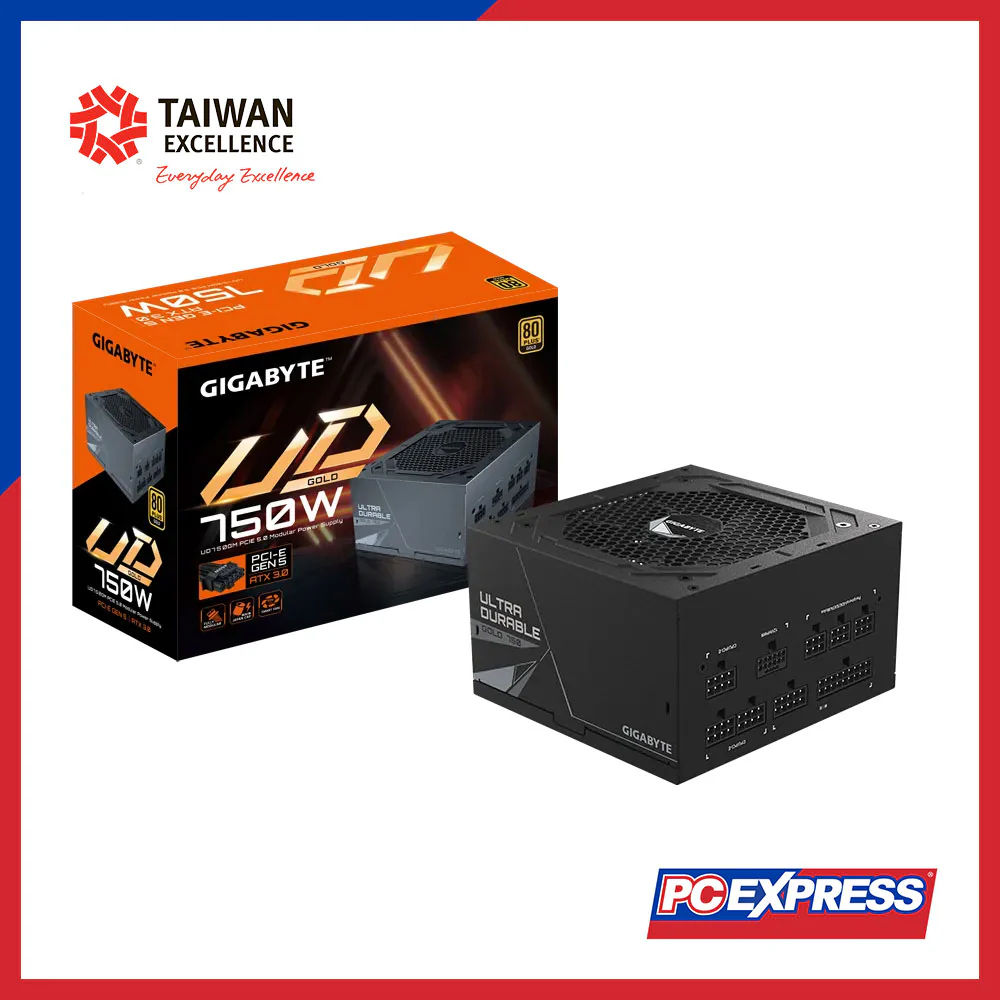

GIGABYTE 750W GP-UD750GM-PG5 80+ Gold Modular Power Supply

Model

GP-UD750GM PG5

Type

Intel Form Factor ATX 12V v3.0

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

12-6A

Input Frequency

60-50 Hz

Output Capacity

750W

Dimension

150 x 140 x 86mm

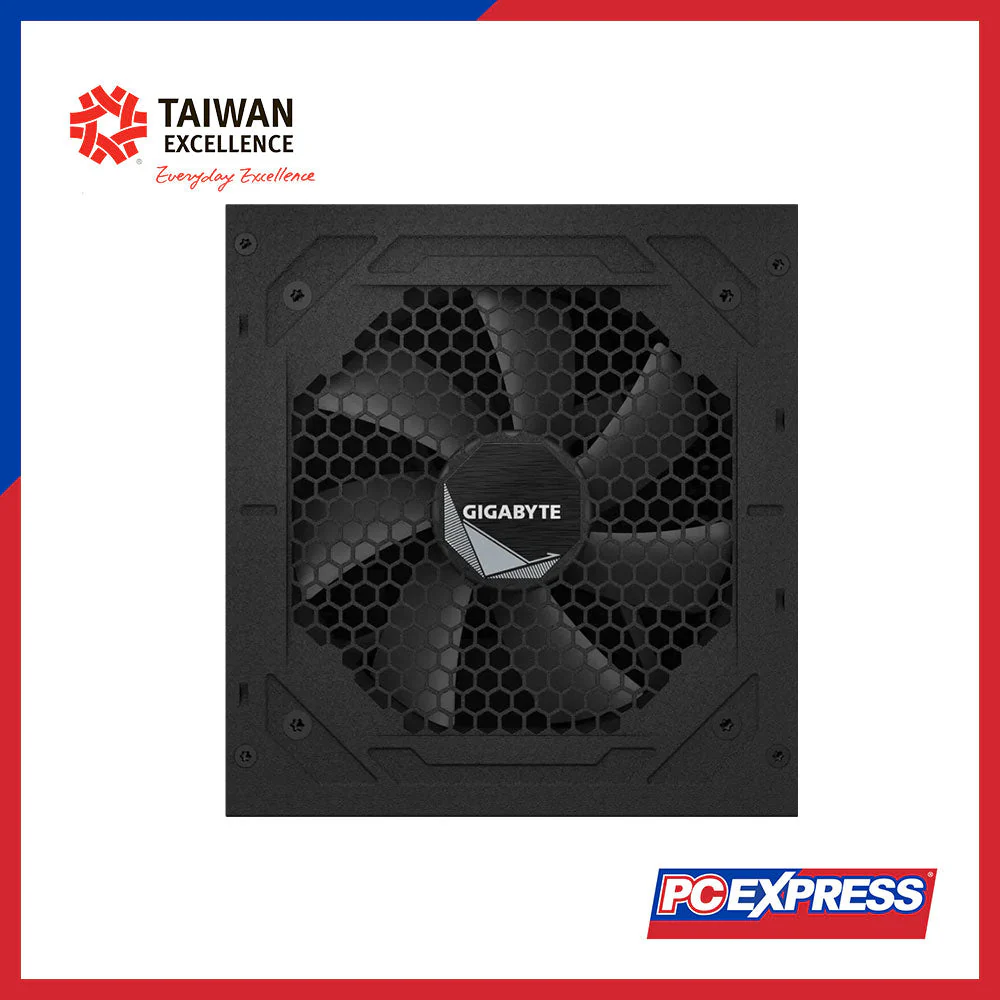

Fan Type

120mm Hydraulic Bearing (HYB) fan

80 PLUS

Gold

Efficiency

90% at typical load

MTBF

>100,000 hours

Protection

OVP, OPP, SCP, UVP, OCP, OTP

Power Good Signal

100-150ms

Hold Up Time

>16ms

Cable Type

Flat, All black

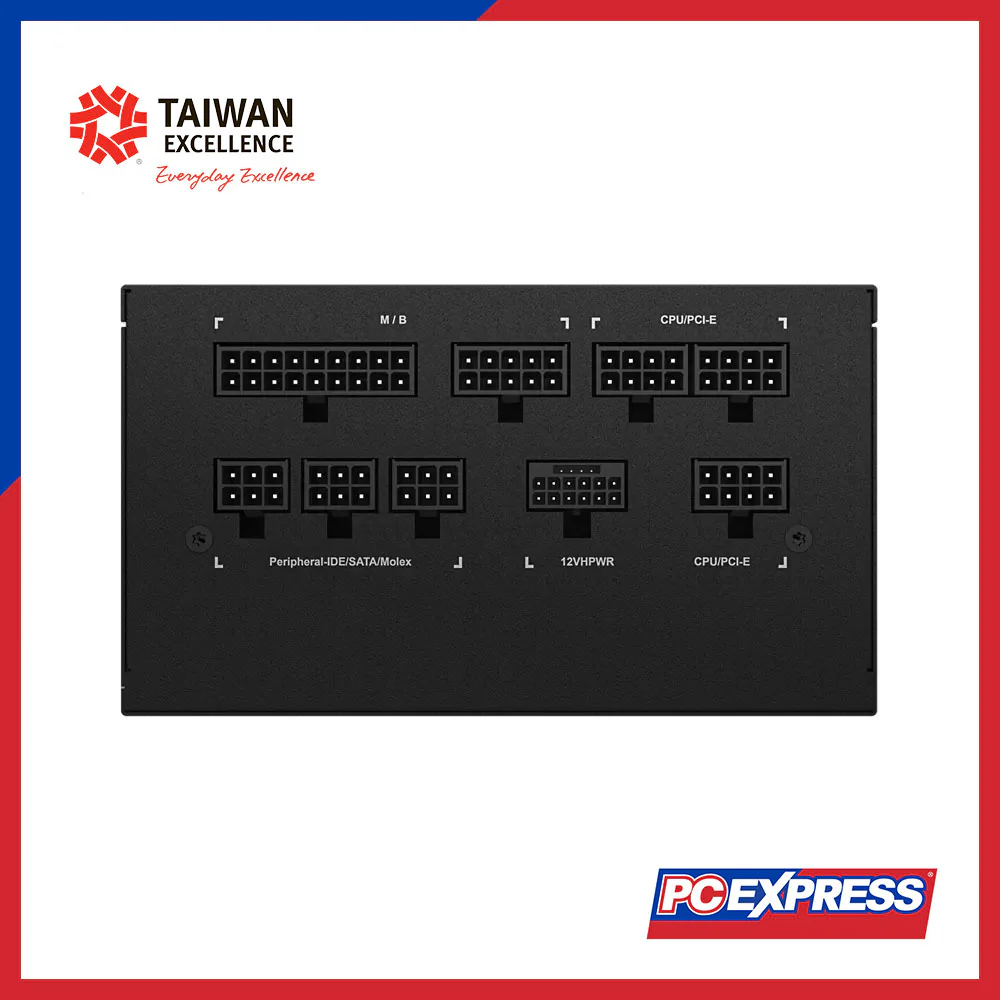

Connectors

ATX/MB 20+4 Pin x 1: 610mm

CPU/EPS 4+4 Pin x 2: 600mm + 200mm

PCIe 16 Pin x 1: 700mm

PCIe 6+2 Pin x 4: 600mm + 150mm x 2

SATA x 8: 600mm + 150mm + 150mm + 150mm x 2

4 Pin Peripheral x 3 + 4-Pin floppy x 1: 500mm + 120mm + 120mm + 150mm
