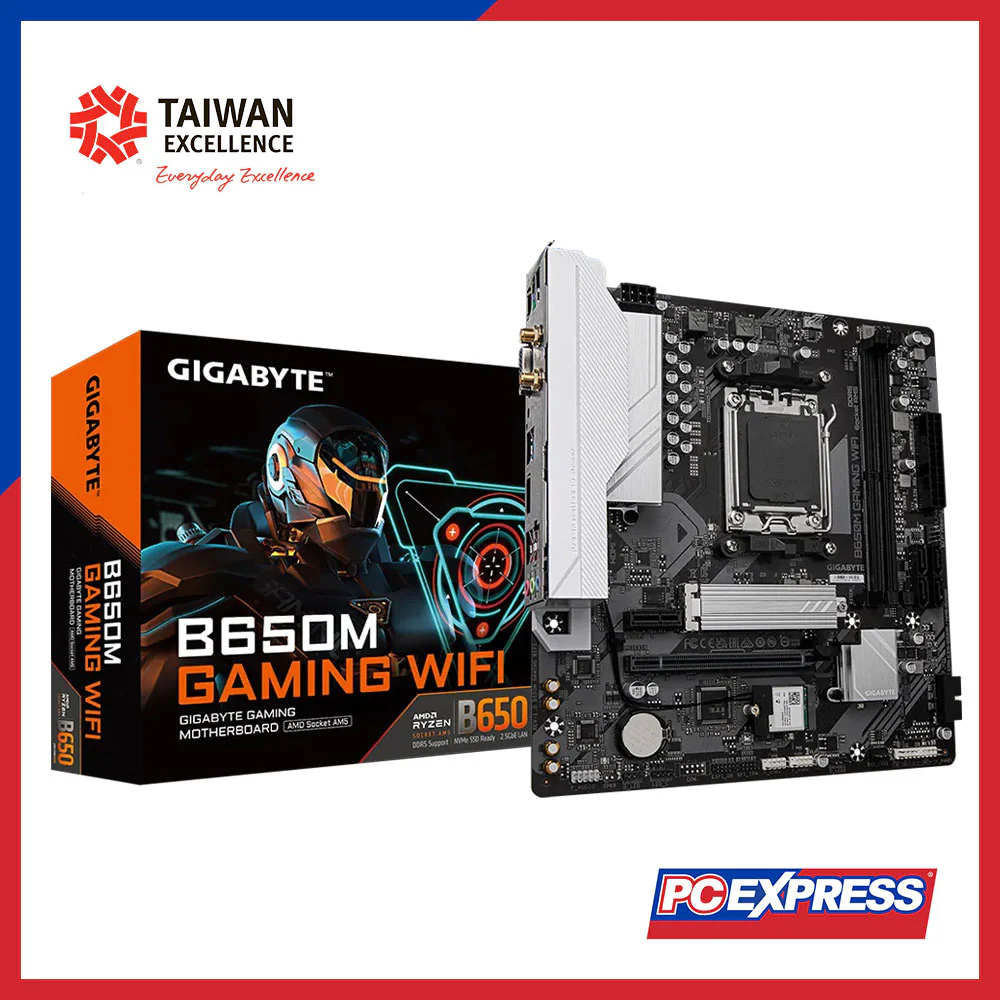

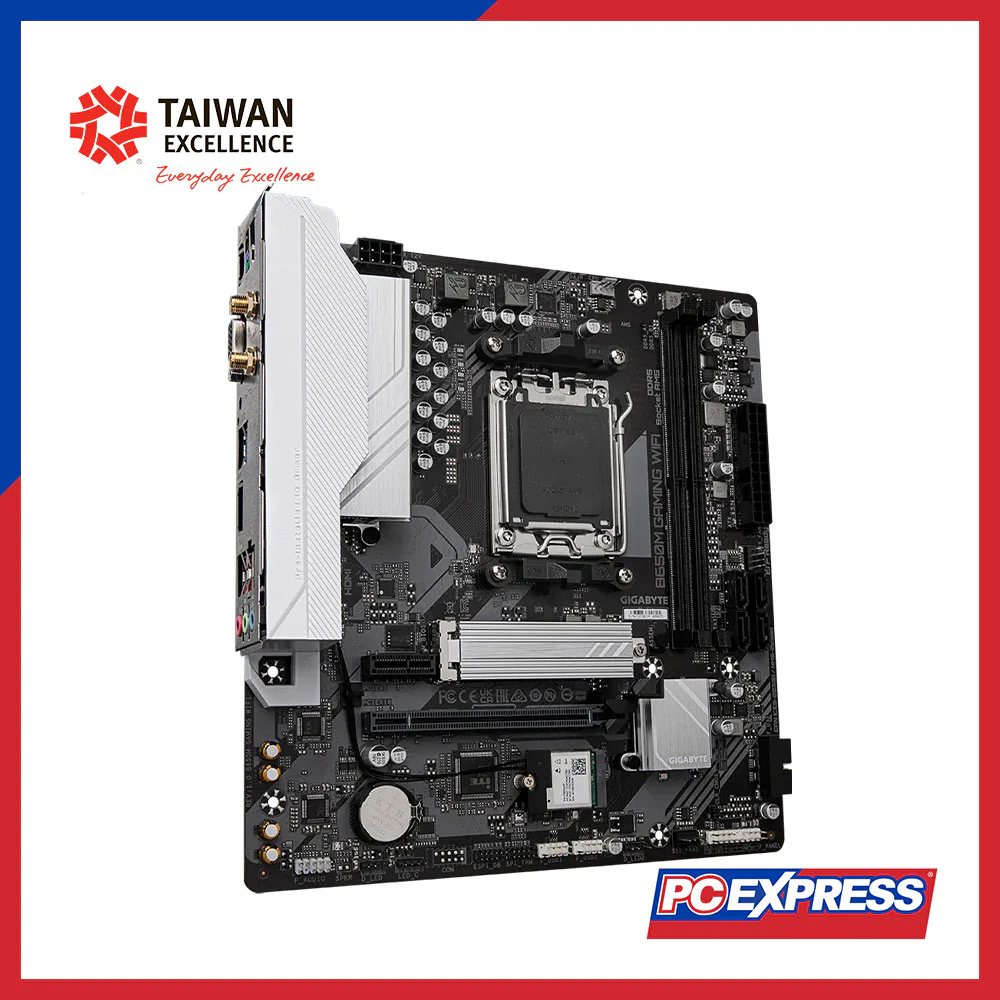

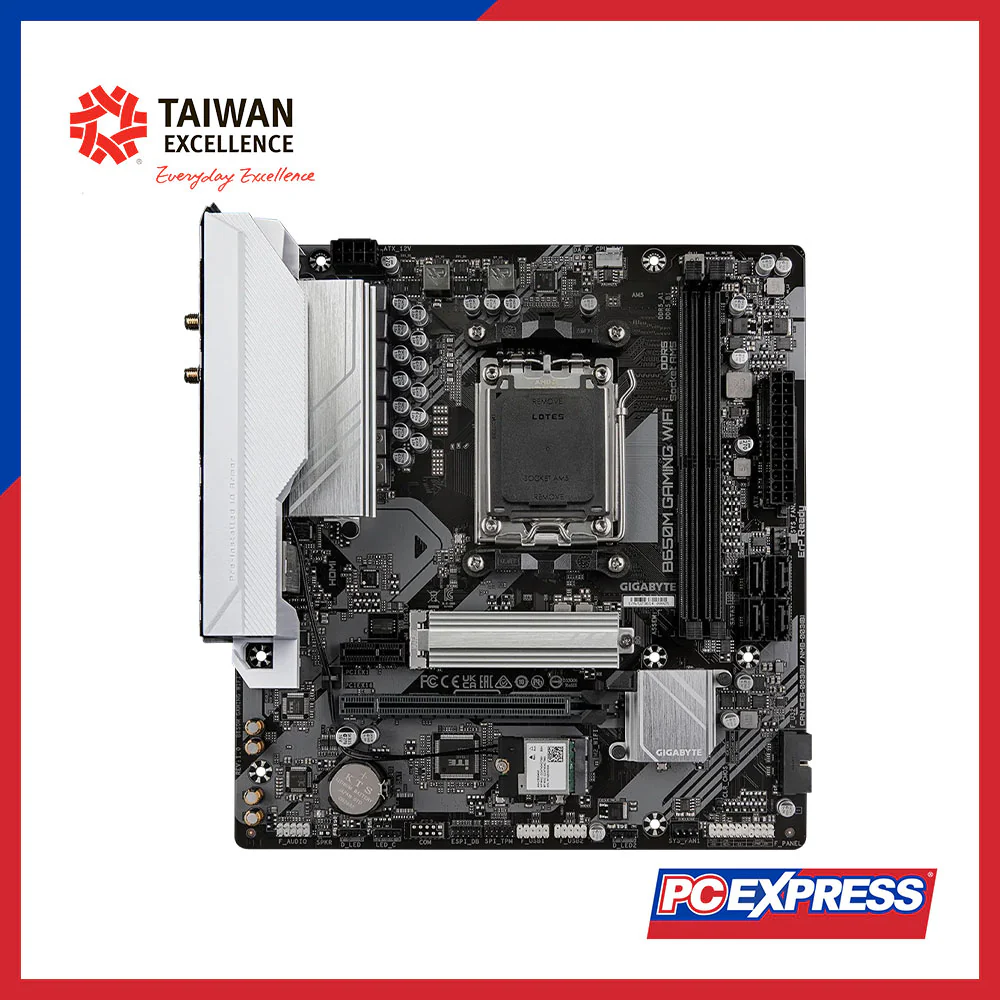

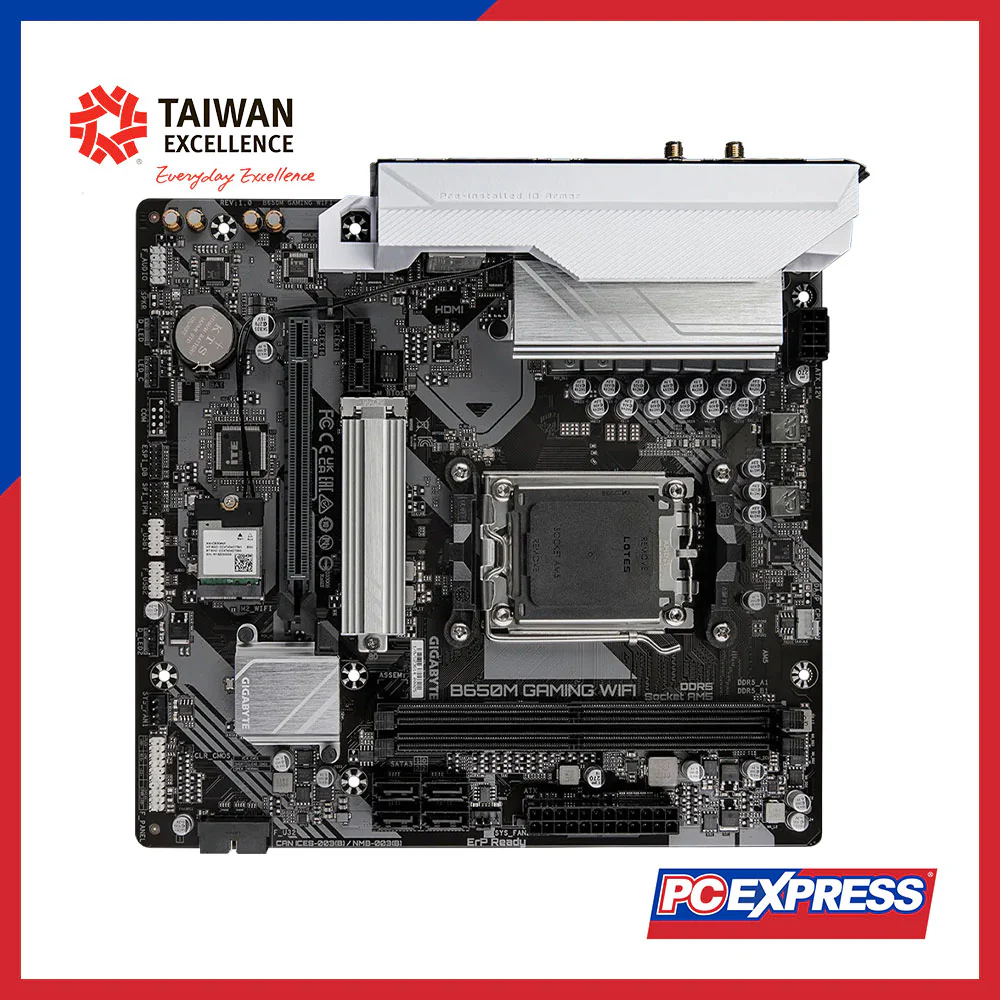

GIGABYTE B650M GAMING WIFI Micro-ATX Motherboard

Model

GIGABYTE Micro ATX (24.0 × 22.5 cm)

CPU Support

AMD AM5 socket; Ryzen™ 7000 / 8000 / 9000 Series (refer to GIGABYTE CPU support list)

Chipset

AMD B650

Memory

2× DDR5 DIMM sockets, up to 128 GB (64 GB per DIMM); 4400–6400 MT/s (OC); dual‑channel; non‑ECC 1Rx8/2Rx8/1Rx16; AMD EXPO™ & Intel XMP support

Onboard Graphics

1× D‑Sub (up to 1920×1200@60 Hz); 1× HDMI (up to 4096×2160@60 Hz; HDMI 2.1, HDCP 2.3)

Audio

Realtek® HD Audio CODEC; up to 7.1‑channel; jack‑detection, multi‑streaming, front‑panel retasking; 24‑bit/192 kHz; premium caps, shielding

LAN

Realtek® 2.5 GbE (2.5 Gbps/1 Gbps/100 Mbps)

Wireless & Bluetooth

AzureWave AW‑CB304NF (Realtek® RTL8821CE): Wi‑Fi 5/6 dual‑band; Bluetooth 4.2

Expansion Slots

• 1× PCIe 4.0 ×16 (CPU‑driven; x16/x8/x4 modes per CPU series)
• 1× PCIe 3.0 ×1 (chipset)

Storage

• 1× M.2 Socket 3 (CPU‑driven; PCIe 4.0×4/x2)
• 4× SATA 6 Gb/s
• RAID 0/1/10 support for NVMe & SATA via chipset

USB Ports

Back: 2× USB 3.2 Gen 1; 1× USB 2.0; 4× USB 2.0
Internal: 1× USB 3.2 Gen 1 header; 5× USB 2.0 headers

Internal I/O Headers

24‑pin ATX; 8‑pin 12 V; CPU & 2× system fan; 2× addressable LED; RGB LED; M.2; 4× SATA; front panel; audio; USB 3.2 Gen 1; 2× USB 2.0; TPM header; Clear CMOS

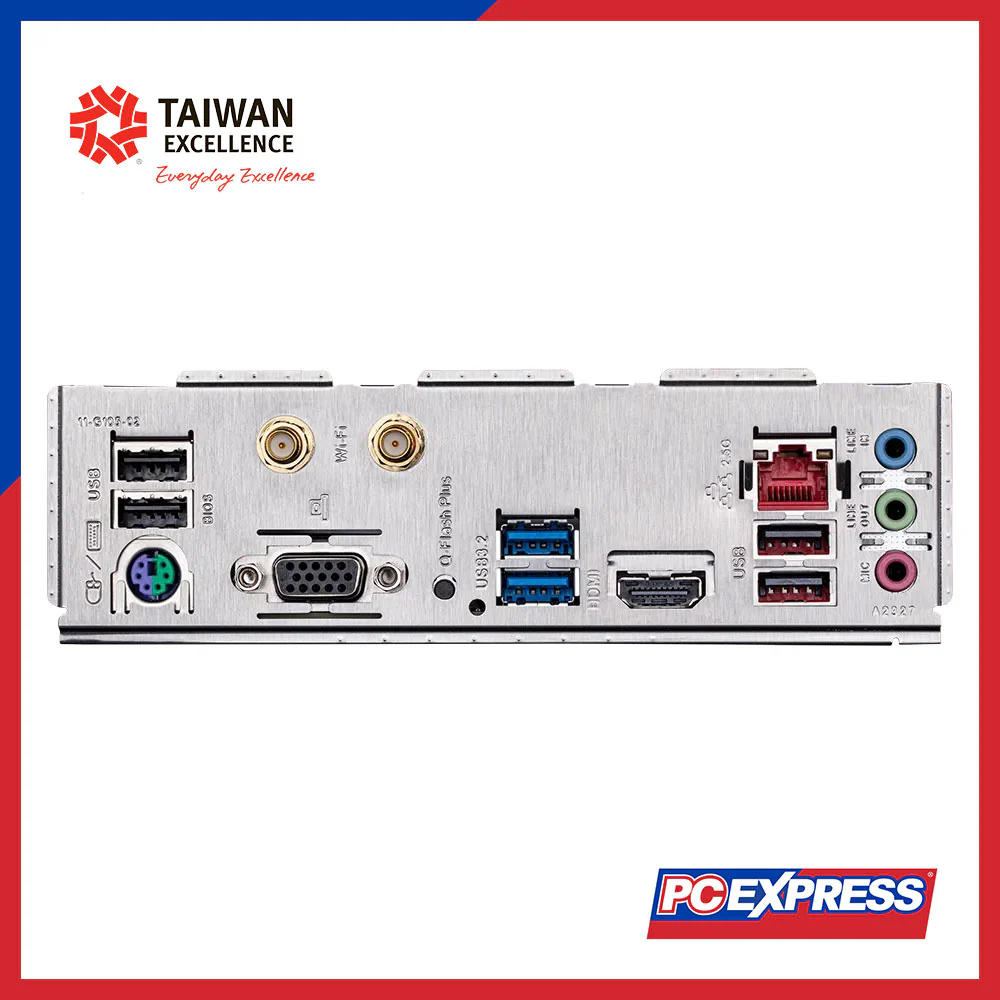

Back Panel I/O

4× USB 2.0; PS/2 combo; D‑Sub; Q‑Flash Plus button; 2× USB 3.2 Gen 1; HDMI; Realtek 2.5 GbE; 3× audio jacks

I/O Controller & Monitoring

iTE® I/O controller; voltage, temperature, fan speed & flow monitoring; fan speed control & fail warning

BIOS

AMI UEFI BIOS (256 Mbit Flash); PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0

Software Features

GIGABYTE Control Center; Q‑Flash/Plus

Bundled Software

Norton® Internet Security; LAN bandwidth management

Operating System Support

Windows 11 & Windows 10 (64‑bit)
