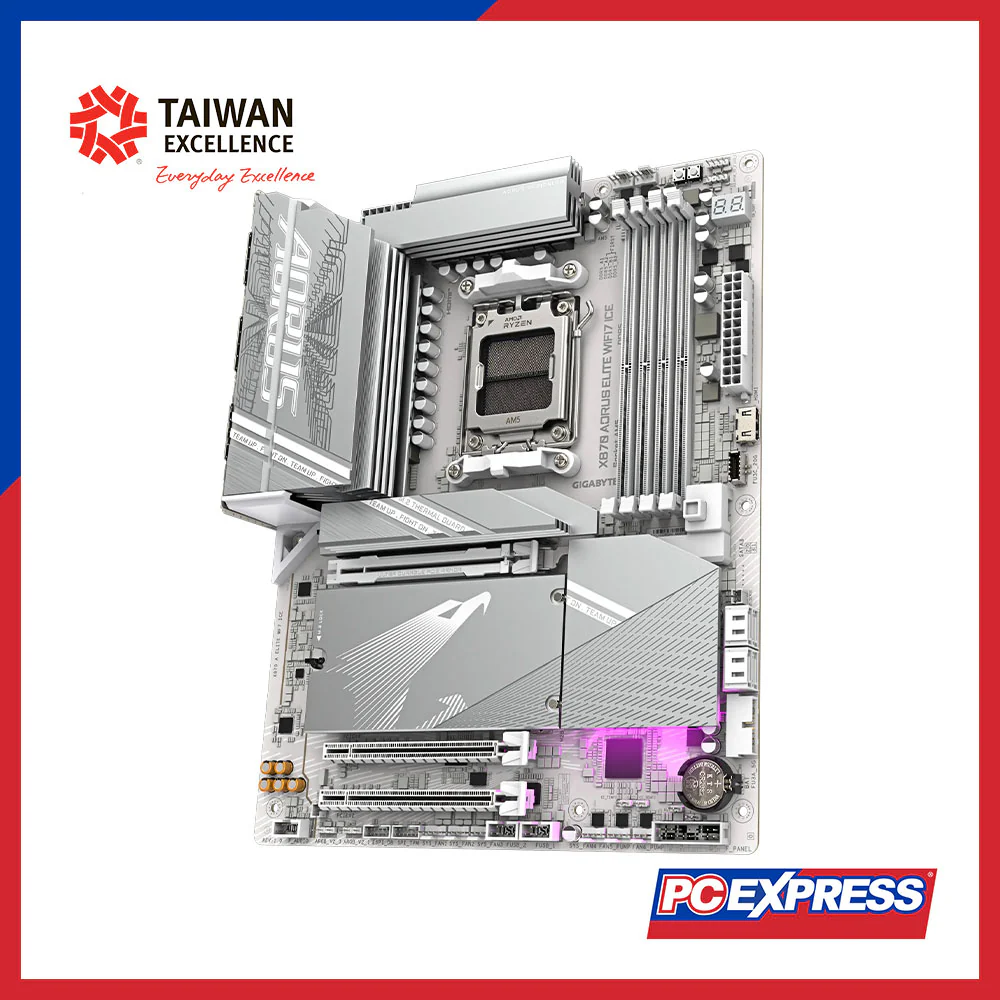

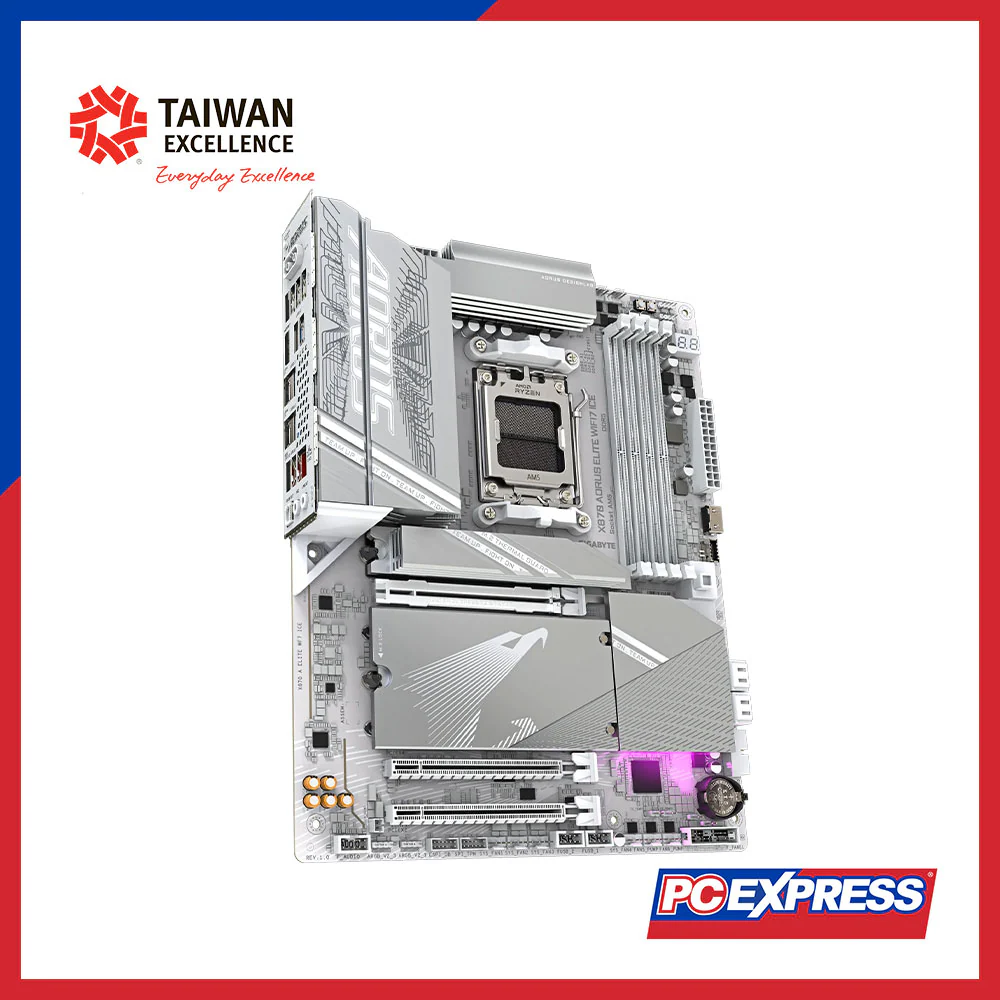

GIGABYTE X870 AORUS ELITE ICE WIFI 7 ATX Motherboard

CPU

AMD Socket AM5, supports AMD Ryzen™ 9000/8000/7000 Series Processors

Chipset

AMD X870

Memory

- DDR5 4400–8200 MT/s (OC), up to 256 GB (4 slots, 64 GB per DIMM)

- Dual channel, non-ECC Un-buffered DIMMs

- Supports AMD EXPO™ and XMP memory modules

Integrated Graphics

- AMD Radeon™ Graphics, supports up to quad-display

- 2 x USB4® USB Type-C®: 3840x2160@240 Hz (DP 1.4)

- 1 x HDMI: 4096x2160@60 Hz (HDMI 2.1)

- 1 x Front HDMI: 1920x1080@30 Hz (HDMI 1.4)

Audio

Realtek® ALC1220 CODEC, 7.1-channel HD Audio, supports S/PDIF Out

LAN

Realtek® 2.5GbE LAN

Wireless

MediaTek Wi-Fi 7 MT7925 / Realtek Wi-Fi 7 RTL8922AE, Bluetooth 5.4

- 2.4/5/6 GHz bands, supports 11be (160MHz)

Expansion Slots

- 1 x PCIe 5.0 x16 (CPU-integrated, up to x8 with shared M.2 slots)

- 1 x PCIe 4.0 x4

- 1 x PCIe 3.0 x2

Storage

- 1 x M.2 (PCIe 5.0, up to 25110/22110)

- 2 x M.2 (PCIe 5.0, 22110, unavailable with certain CPUs)

- 1 x M.2 (PCIe 4.0, 22110)

- 4 x SATA 6Gb/s (RAID 0/1/5/10)

USB

- 2 x USB4® Type-C® (rear), 1 x USB 3.2 Gen 2x2 Type-C® (internal)

- 4 x USB 3.2 Gen 1 (rear), 4 x USB 2.0/1.1 (rear)

- Additional USB through internal headers

Internal I/O

- Multiple fan headers, RGB headers, 4 x SATA connectors, USB headers

- Trusted Platform Module, power/reset buttons, temperature sensors

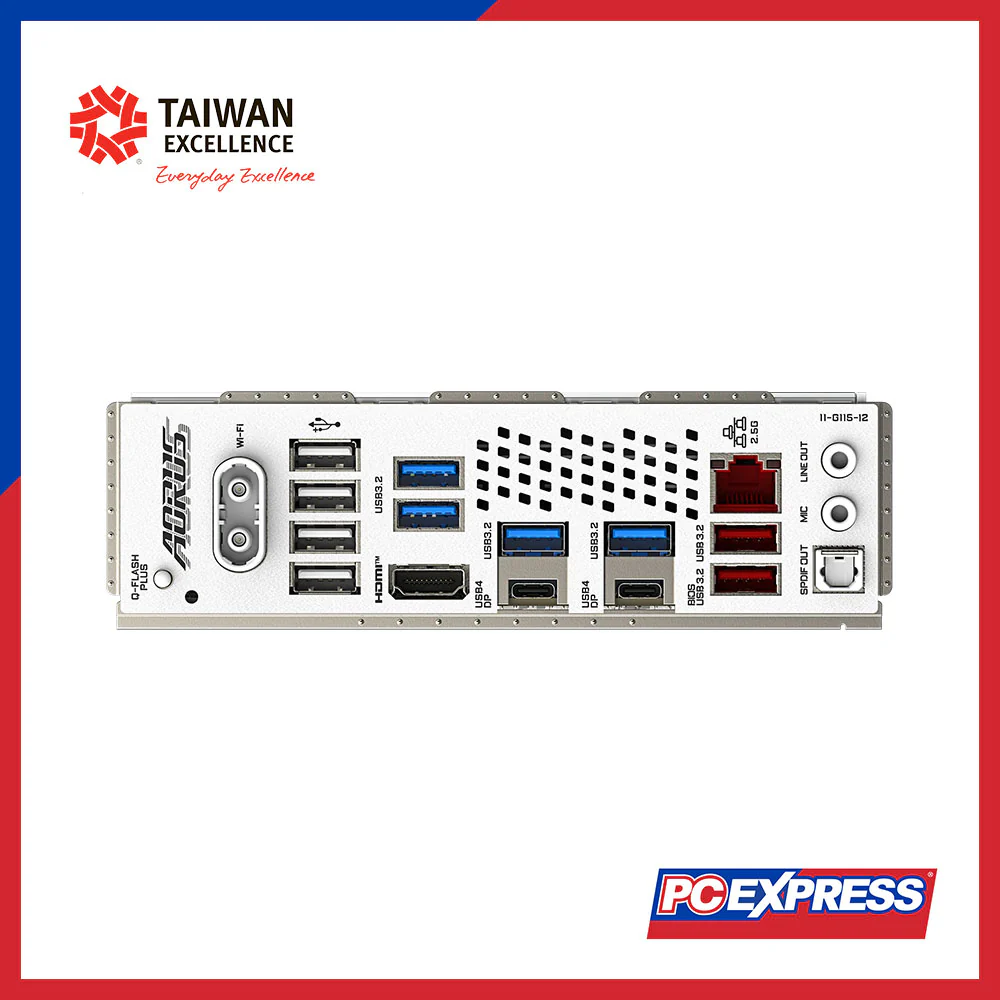

Back Panel

- Q-Flash Plus button, HDMI, RJ-45, S/PDIF, audio jacks

- USB4® Type-C®, USB 3.2 Gen 2 (red), USB 3.2 Gen 1, USB 2.0/1.1

I/O Controller

iTE® I/O Controller Chip

BIOS

256 Mbit AMI UEFI BIOS, supports Q-Flash, Q-Flash Plus

Bundled Software

Norton® Internet Security (OEM), LAN bandwidth management software

OS Support

Windows 11 64-bit

Form Factor

ATX (30.5cm x 24.4cm)
