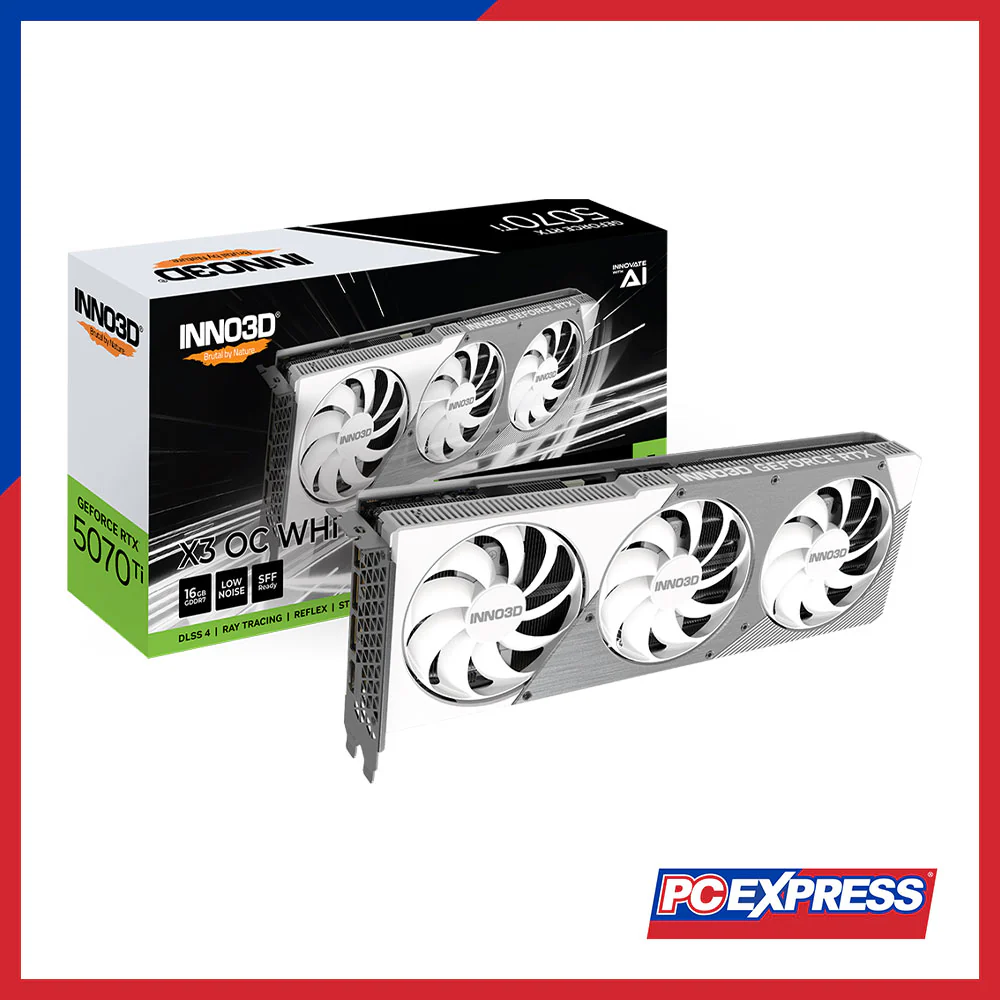

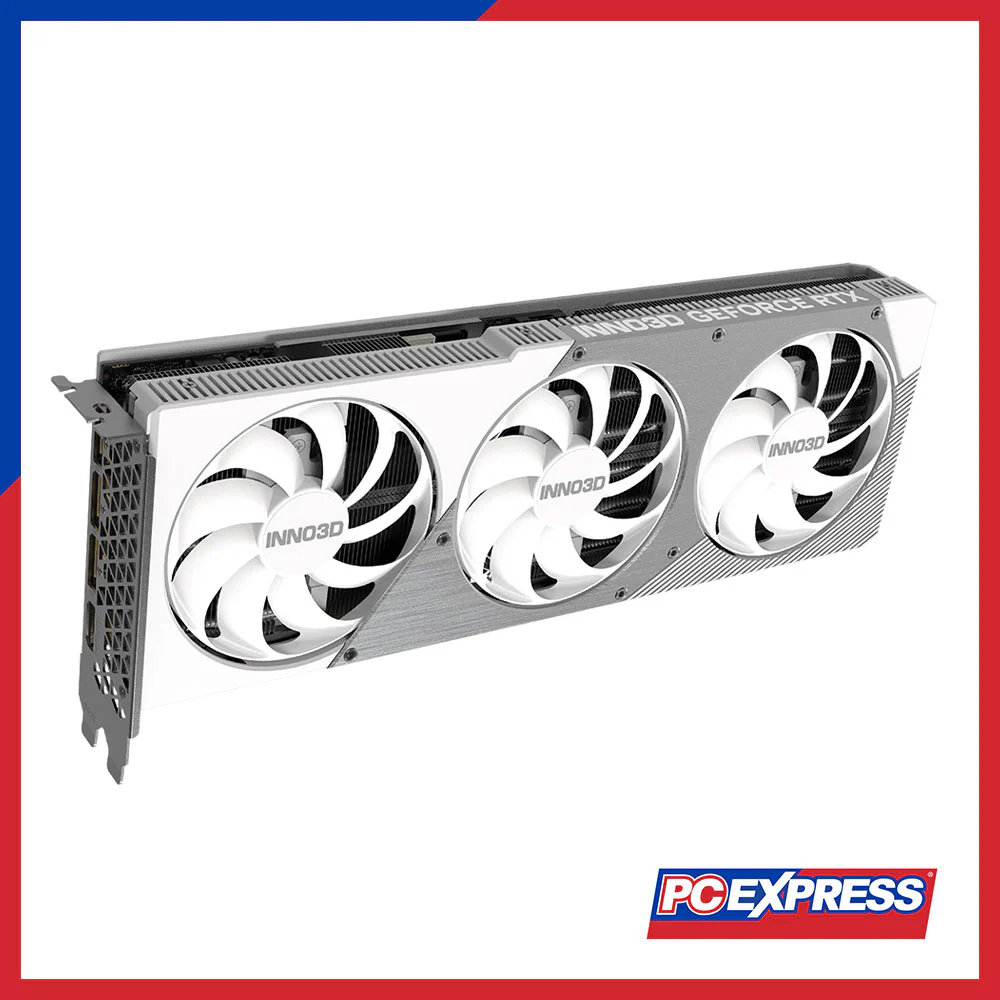

INNO3D GeForce RTX™ 5070 Ti X3 OC 16GB GDDR7 256-bit Graphics Card (White)

Part No.

N507T3-16D7X-176068W

CUDA Cores

8960

Clock Speeds

Boost Clock: 2482 MHz
Base Clock: 2295 MHz

Thermal & Power

Minimum System Power Requirement: 750W
Supplementary Power Connectors: 2x PCIe 8-pin cables (adapter in box) OR 300W+ PCIe Gen 5 cable

Memory Specs

Memory Clock: 28 Gbps
Standard Memory Config: 16GB
Memory Interface: GDDR7
Interface Width: 256-bit
Memory Bandwidth: 896 GB/sec

Feature Support

Real-Time Ray Tracing: Yes
Ray Tracing Cores: 4th Generation, 133 TFLOPS
Tensor Cores: 5th Generation, 1406 AI TOPS
NVIDIA Architecture: Blackwell

APIs & Drivers

Microsoft DirectX: 12 Ultimate
Vulkan API: 1.4
OpenGL: 4.6
NVIDIA DLSS: 4
NVIDIA Ansel: Yes
NVIDIA FreeStyle: Yes

Additional Features

PCI Express: Gen 5
NVIDIA ShadowPlay: Yes
OS Certification: Windows 11/10, Linux, FreeBSDx86
NVIDIA Highlights: Yes
G-SYNC™-Ready: Yes
Game Ready Drivers: Yes
NVIDIA Studio Drivers: Yes
NVIDIA GPU Boost™: Yes

Encoder / Decoder

NVIDIA Encoder: 2x Ninth Generation
NVIDIA Decoder: 1x Sixth Generation

Graphics Card Dimensions

Length: 300 mm
Height: 116 mm
Width: 41 mm

Display Support

Multi Monitor: up to 4
Maximum Digital Resolution: 4K at 480Hz or 8K at 165Hz with DSC
HDCP: 2.3
Display Connectors: 3x DisplayPort 2.1b, 1x HDMI 2.1b
