SPECIFICATION
|
Chipset |
AMD B450 |
|
CPU |
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series, and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors. Socket AM4 |
|
Memory |
2x DDR4, Max Memory Capacity 64GB |
|
Memory Support DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133 MHz (by A-XMP OC MODE) |
|
|
Supports Dual-Channel mode |
|
|
Supports non-ECC, UDIMM memory |
|
|
Supports ECC UDIMM memory (non-ECC mode) |
|
|
Supports un-buffered memory |
|
|
Onboard Graphics |
1x HDMI™ (HDMITM 2.0b, max resolution 4K 60Hz) |
|
1x DVI (DVI-D, max resolution 1920x1200 60Hz) |
|
|
Slots |
1x PCI-E x16 (PCI_E1 Gen PCIe 3.0, supports up to x16 - From CPU) |
|
1x PCI-E x1 (PCI_E2 Gen PCIe 2.0, supports up to x1 - From Chipset) |
|
|
Storage |
1x M.2 (M.2_1 Source supports PCIe 3.0 x4/SATA, supports 2280/2260/2242 devices) |
|
4x SATA 6G |
|
|
RAID |
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
|
USB |
2x USB 2.0 (Rear), 4x USB 2.0 (Front) |
|
4x USB 3.2 Gen1 Type A (Rear), 2x USB 3.2 Gen1 Type A (Front) |
|
|
LAN |
Realtek® 8125 2.5Gbps LAN controller |
|
Audio |
Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
|
Internal I/O |
Various internal connectors including power, CPU fan, system fan, front panel, chassis intrusion, front audio, COM port, TPM pin header, USB ports, etc. |
|

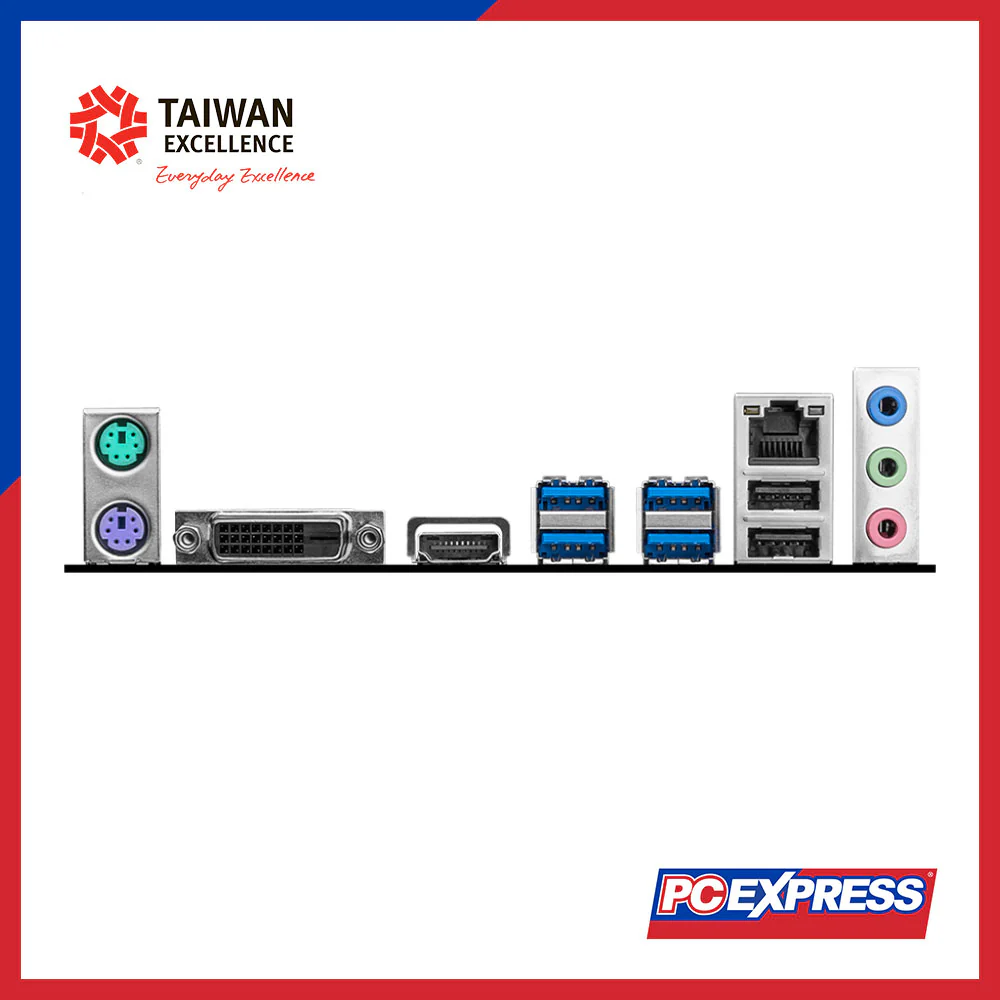

Back Panel Ports |
Keyboard/Mouse, DVI-D, HDMI™, USB 3.2 Gen 1, 2.5G LAN, Audio connectors, USB 2.0 |
|
Operating System |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
|
PCB Info |
mATX, 200mm x 236mm |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
