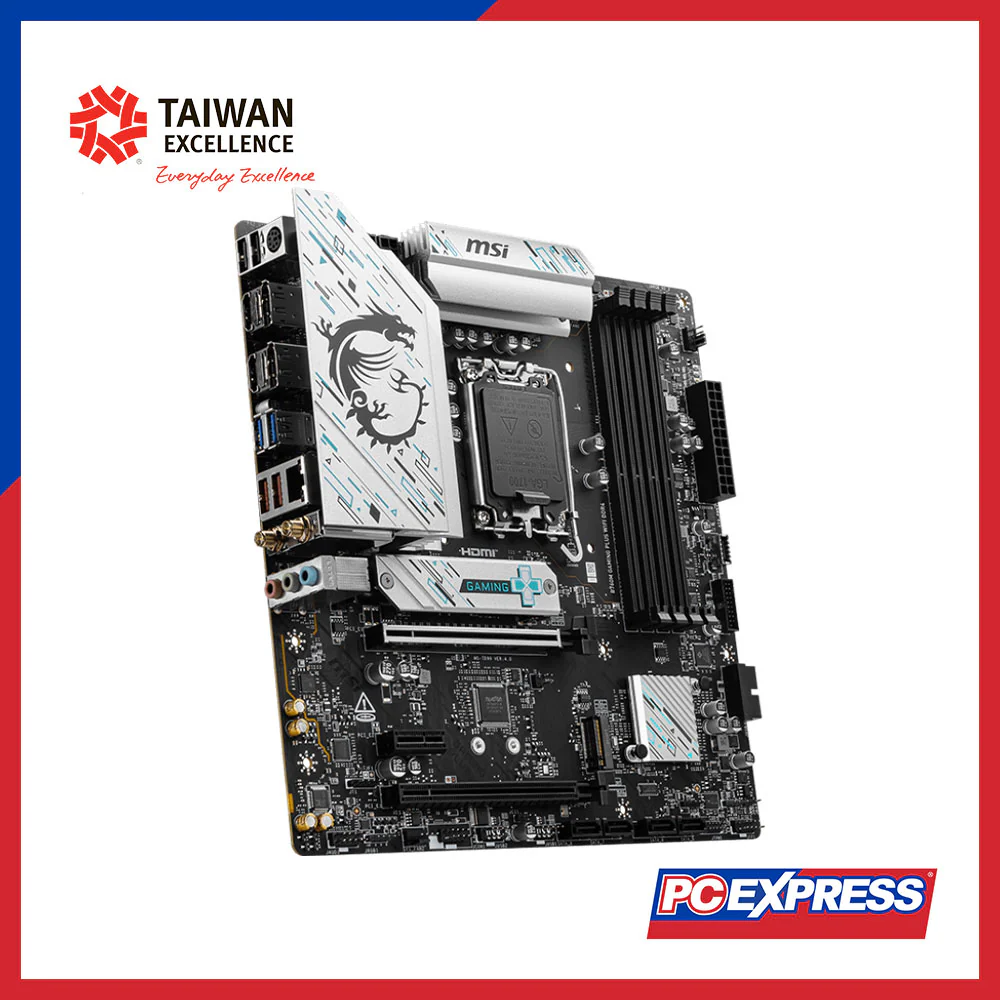

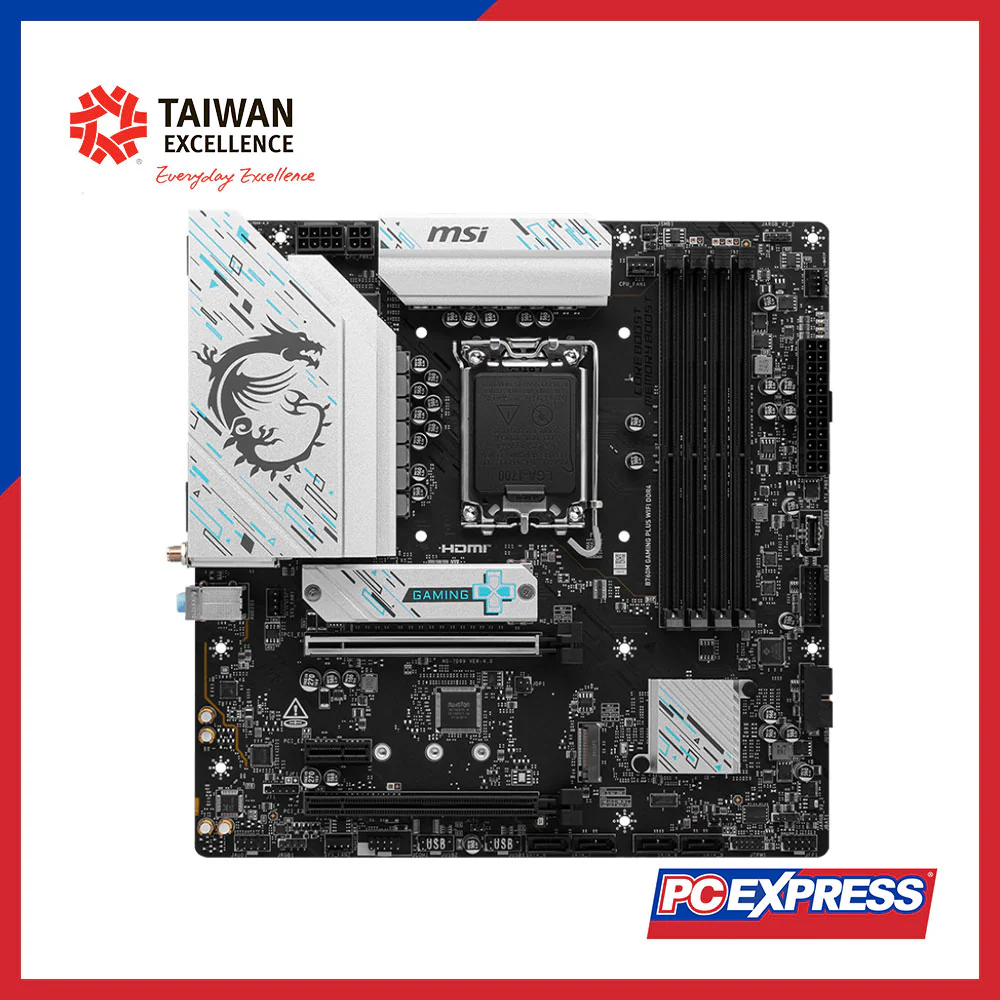

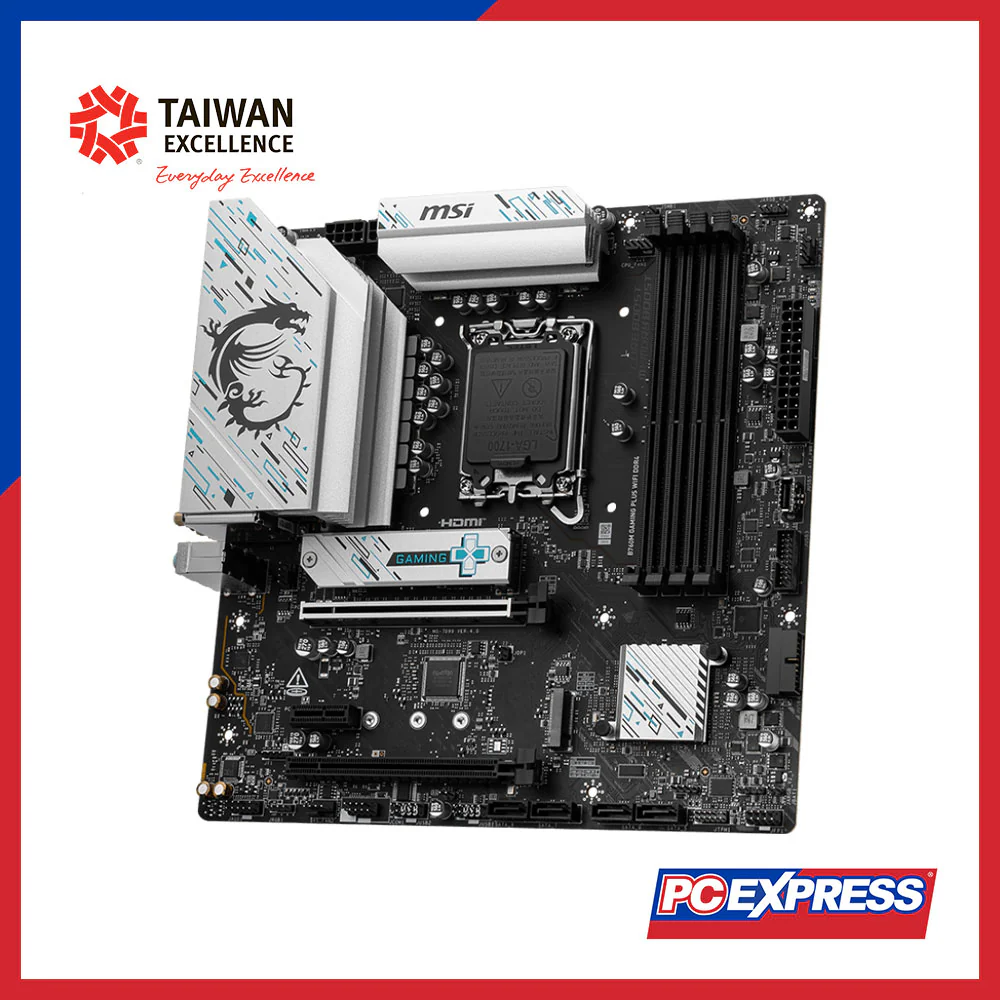

MSI B760M GAMING PLUS WIFI D4 micro-ATX Motherboard

Chipset

Intel B760

CPU

Supports Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold, and Celeron® Processors (LGA 1700)

Memory

4x DDR4, Max. Capacity: 128GB
Supported Frequencies: 5333(OC), 5200(OC), 5066(OC), 5000(OC), 4800(OC), 4600(OC), 4400(OC), 4266(OC), 4200(OC), 4000(OC), 3800(OC), 3733(OC), 3600(OC), 3466(OC), 3400(OC), 3333(OC), 3200(JEDEC), 2933(JEDEC), 2666(JEDEC), 2400(JEDEC), 2133(JEDEC)
Overclocking:
- 1DPC 1R: Up to 5333+ MHz
- 1DPC 2R: Up to 4800+ MHz
- 2DPC 1R: Up to 4400+ MHz
- 2DPC 2R: Up to 4000+ MHz
Supports Intel® XMP 3.0 OC, Dual-Controller Dual-Channel mode, non-ECC, un-buffered memory

Onboard Graphics

2x HDMI™ (HDMI™ 2.1, max. resolution 4K 60Hz*)
2x DisplayPort (DP 1.4, max. resolution 4K 60Hz*)
*Available only with processors featuring integrated graphics. Graphics specs may vary depending on installed CPU.

Slots

2x PCI-E x16 slots
1x PCI-E x1 slot
PCI_E1: PCIe 4.0, up to x16 (from CPU)
PCI_E2: PCIe 3.0, up to x1 (from Chipset)
PCI_E3: PCIe 4.0, up to x4 (from Chipset)

Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

Storage

2x M.2 Slots:
- M.2_1 (from CPU): PCIe 4.0 x4, supports 2280/2260/2242 devices
- M.2_2 (from Chipset): PCIe 4.0 x4/SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
*SATA8 unavailable when using M.2 SATA SSD in M2_2 slot

RAID

Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices

USB Ports

Rear:
- 2x USB 2.0
- 2x USB 5Gbps Type A
- 2x USB 10Gbps Type A
Front:
- 4x USB 2.0
- 4x USB 5Gbps Type A
- 1x USB 5Gbps Type C

LAN

Realtek® RTL8125BG 2.5G LAN

Internal I/O

- 1x ATX_PWR Connector
- 2x CPU_PWR Connectors
- 1x CPU Fan
- 1x Pump Fan
- 2x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Com Port (JCOM)
- 2x Addressable V2 RGB LED (JARGB_V2)
- 1x RGB LED (JRGB)
- 1x TPM pin header (TPM 2.0)
- 4x USB 2.0 ports
- 4x USB 5Gbps Type A ports
- 1x USB 5Gbps Type C port

Wireless LAN & Bluetooth

Intel® Wi-Fi 6E (M.2 Key-E slot)
MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (160MHz), up to 2.4Gbps
Supports 802.11 a/b/g/n/ac/ax
Bluetooth® 5.3 (FIPS, FISMA)
*Wi-Fi 6E and Bluetooth 5.3 availability dependent on OS versions and country regulations

LED Feature

4x EZ Debug LED

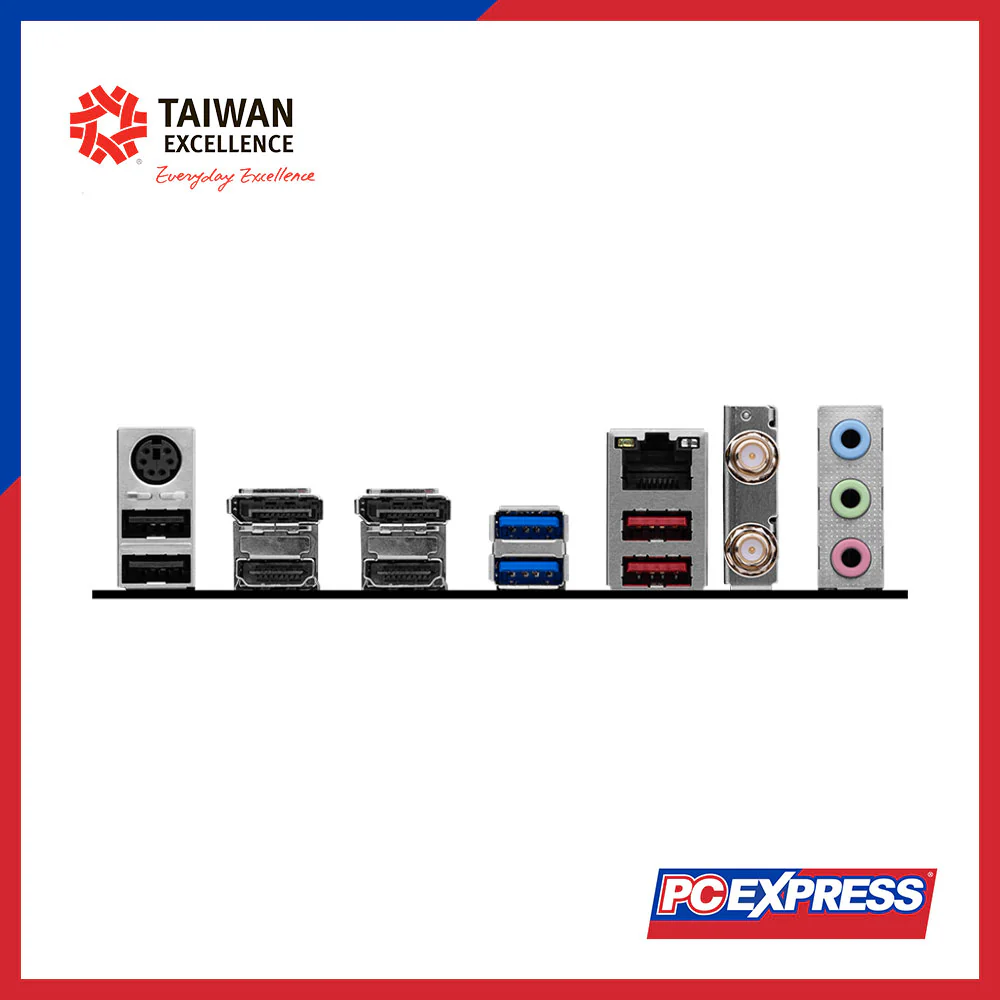

Back Panel Ports

- Keyboard/Mouse
- DisplayPort
- USB 5Gbps Type A ports
- 2.5G LAN
- Wi-Fi/Bluetooth
- USB 2.0
- HDMI™
- USB 10Gbps Type A ports
- Audio Connectors

Operating System

Supports Windows® 11 64-bit, Windows® 10 64-bit

Box Content

PCB Info: mATX, 243.84mm x 243.84mm
