SPECIFICATION
|
Chipset |
AMD B650 |
|
CPU |
Supports AMD Ryzenā¢ 8000/7000 Series Desktop Processors |
|
Socket |
AM5 |
|
Memory |
4x DDR5 DIMM slots, Maximum Memory Capacity: 256GB |
|
Memory Support: DDR5 7600+(OC)/7400(OC)/7200(OC)/... MHz |
|
|
Onboard Graphics |
1x HDMIā¢ (HDMI 2.1 with HDR, max resolution of 4K 60Hz) |
|
1x DisplayPort (DP 1.4, max resolution of 8K 60Hz) |
|
|
Slot |
2x PCI-E x16 slots |
|
1x PCI-E x1 slot |
|
|
Storage |
2x M.2 (supports PCIe 4.0 x4, 2280/2260 devices) |
|
6x SATA 6G |
|
|
RAID |
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
|
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
|
USB |
4x USB 2.0 (Front) |
|
4x USB 3.2 Gen1 Type A (Rear) |
|
|
2x USB 3.2 Gen1 Type A (Front) |
|
|
3x USB 3.2 Gen2 Type A (Rear) |
|
|
1x USB 3.2 Gen2 Type C (Front) |
|
|
1x USB 3.2 Gen2x2 Type C (Rear) |
|
|
LAN |
RealtekĀ® RTL8125B 2.5Gbps LAN |
|
Wireless LAN & Bluetooth |
AMD Wi-Fi 6E (pre-installed in M.2 Key-E slot) |
|
Audio |
RealtekĀ® ALC4080 Codec |
|
7.1-Channel High Performance Audio |
|
|
Internal IO |
Various connectors for power, fans, audio, USB, RGB, etc. |
|
LED Feature |
4x EZ Debug LED |
|

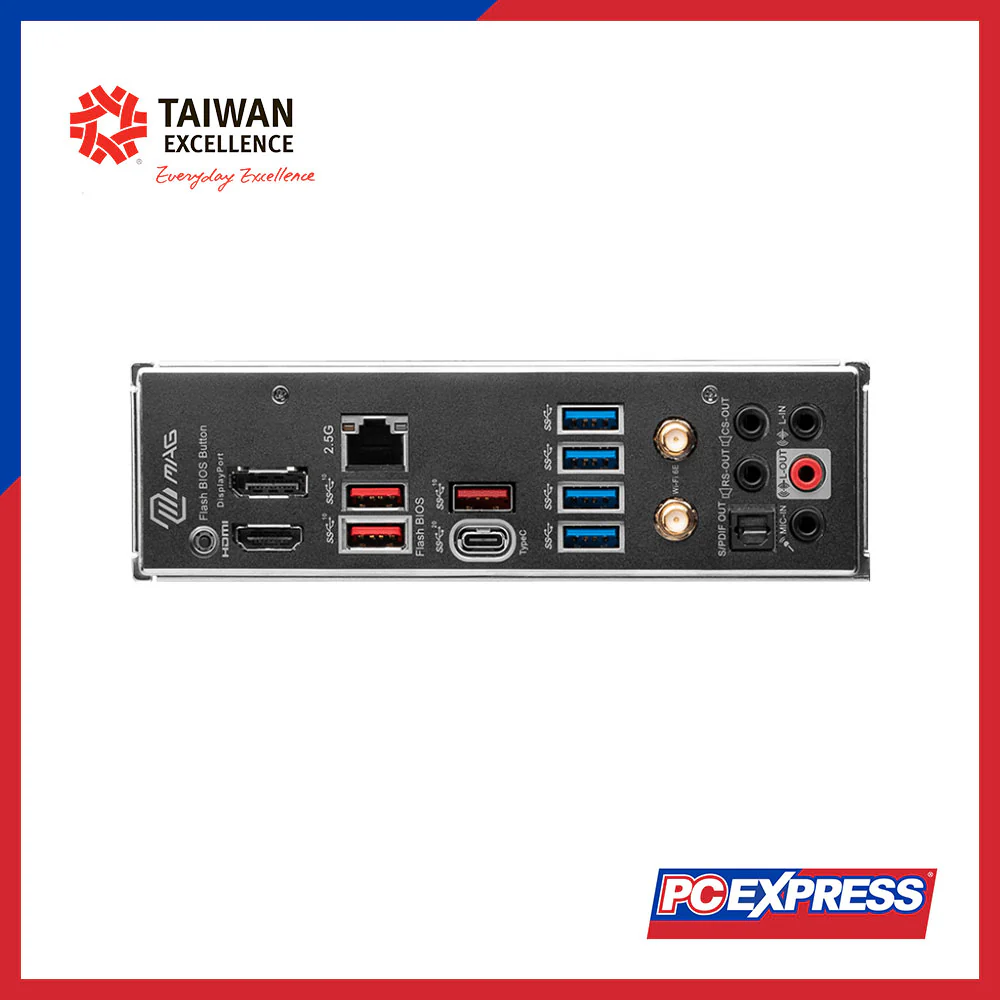

Back Panel Ports |
DisplayPort 1.4 |
|
2.5G LAN Port |
|
|
USB 3.2 Gen 2 10Gbps Type-A |
|
|
USB 3.2 Gen 1 5Gbps Type-A |
|
|
Wi-Fi / Bluetooth Antenna |
|
|
HD Audio Connectors |
|
|
Flash BIOS Button |
|
|
HDMIā¢ 2.1 Port |
|
|
USB 3.2 Gen 2x2 20Gbps Type-C |
|
|
Optical S/PDIF OUT |
|
|
Operating System |
Support for WindowsĀ® 11 64-bit, WindowsĀ® 10 64-bit |
|
PCB Info |
mATX (243.84mmx243.84mm) |
