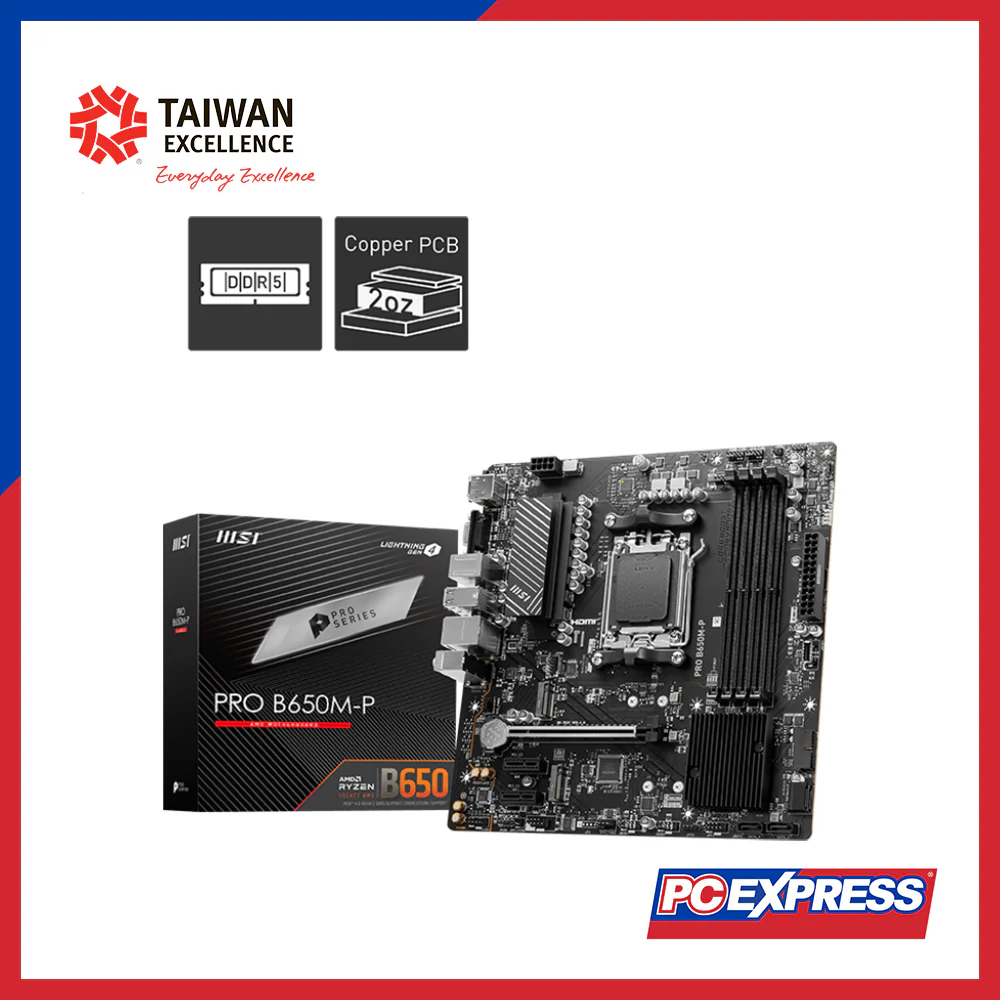

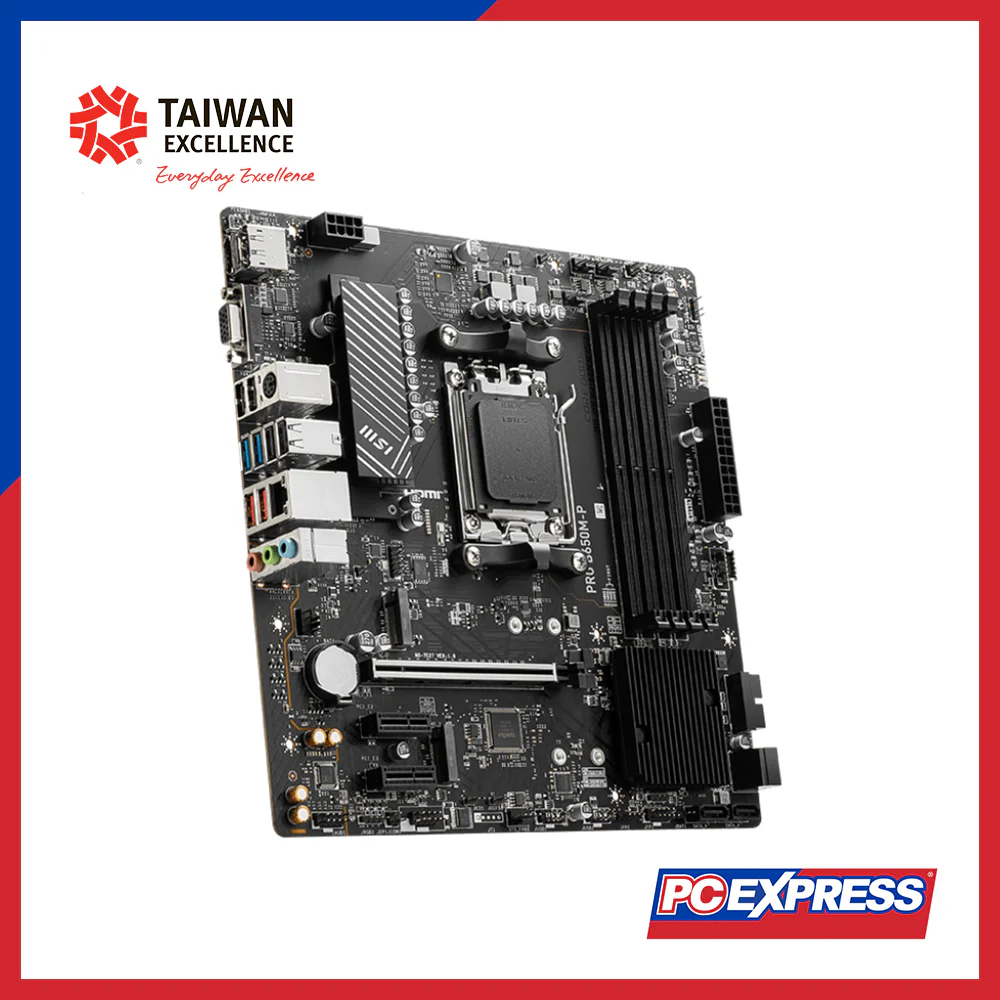

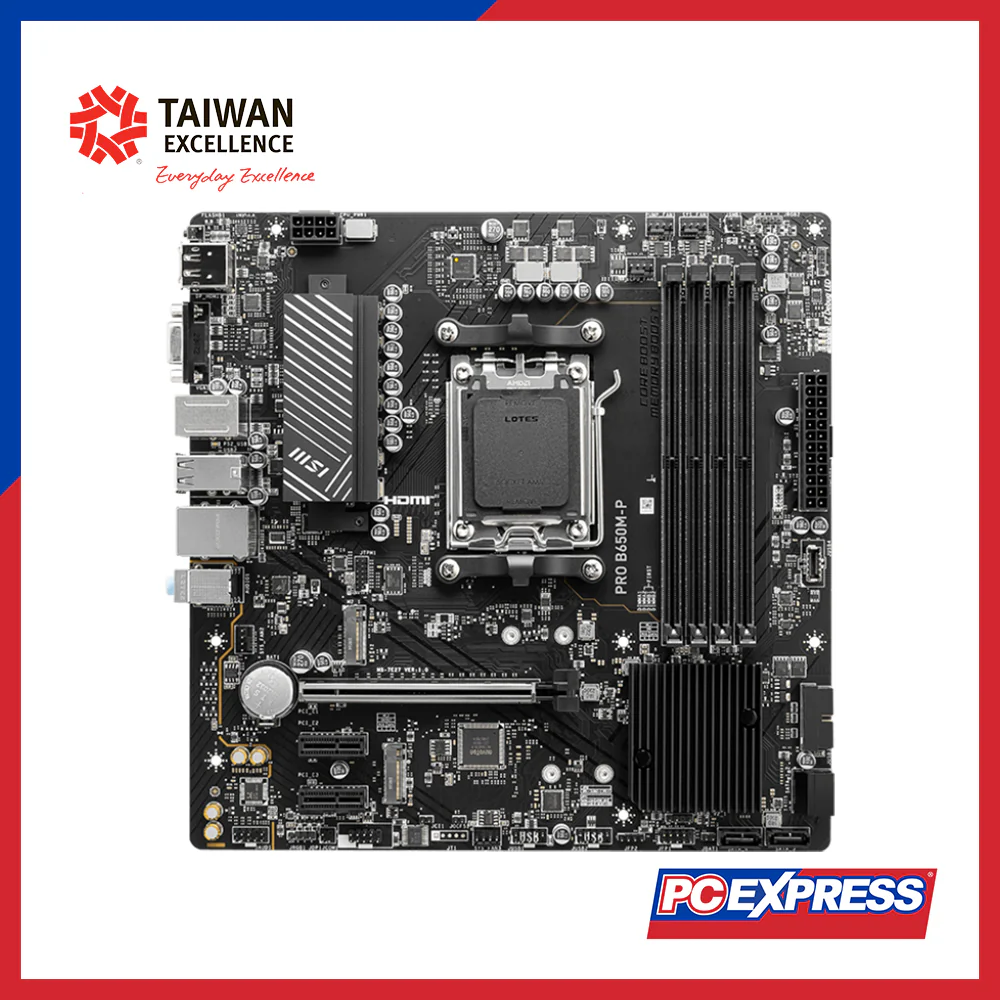

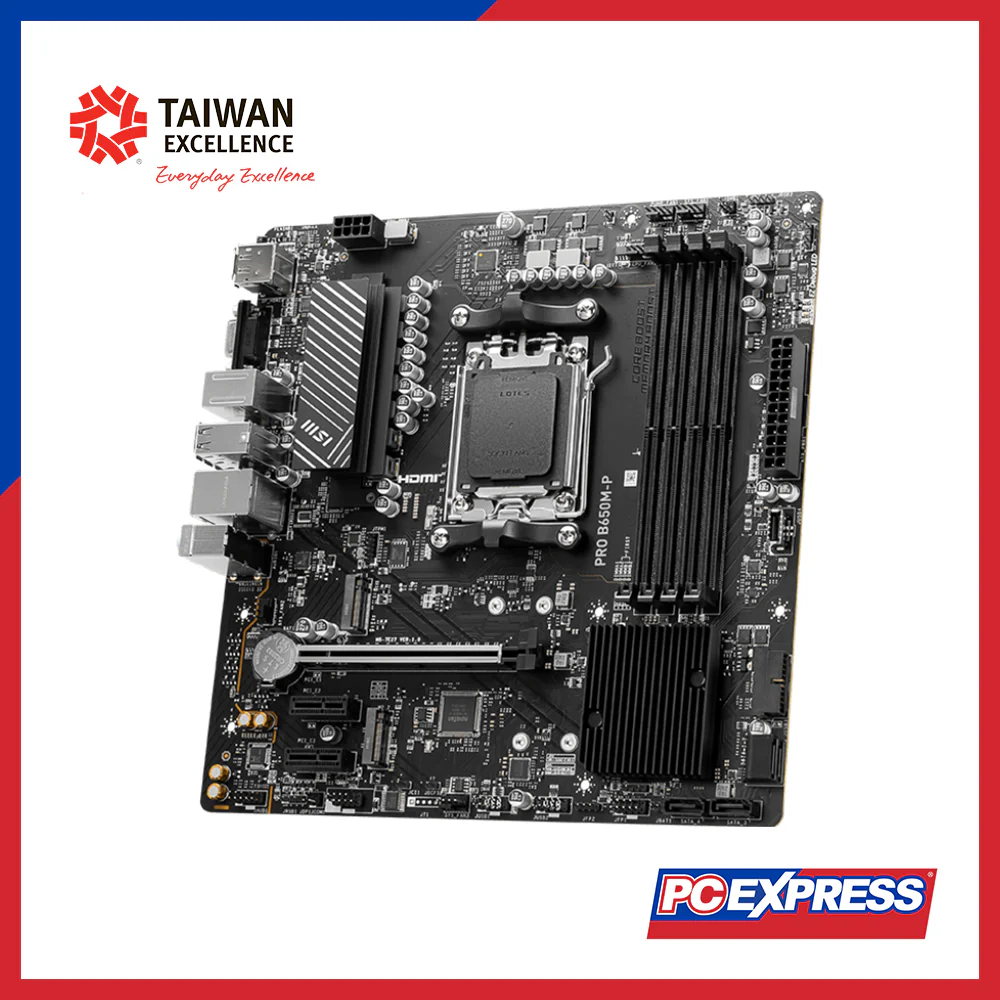

MSI PRO B650M-P micro-ATX Motherboard

Chipset

AMD B650

CPU

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Socket

AM5

Memory

4x DDR5, Max 256GB

Memory Support

DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. Overclocking Frequency

• 1DPC 1R: up to 7200+ MHz
• 1DPC 2R: up to 6000+ MHz
• 2DPC 1R: up to 6000+ MHz
• 2DPC 2R: up to 5400+ MHz

Memory Features

Dual-Channel, non-ECC, un-buffered, AMD EXPO support

Onboard Graphics

1x HDMI™ 2.1 (4K 60Hz)
1x DisplayPort 1.4 (4K 60Hz)
1x VGA (1920×1200 60Hz)
Available only with CPUs that feature iGPU

Slots

1x PCI-E x16
• x16 (Ryzen™ 9000 / 7000)
• x8 (Ryzen™ 8700 / 8600 / 8400)
• x4 (Ryzen™ 8500 / 8300)
2x PCI-E x1

PCIe Support

PCI_E1: Gen 4.0 up to x16 (CPU)
PCI_E2: Gen 3.0 up to x1 (Chipset)
PCI_E3: Gen 3.0 up to x1 (Chipset)

Audio

Realtek® ALC897 Codec, 7.1-Channel HD Audio

Storage

2x M.2 (2280/2260)
• M.2_1: PCIe 4.0 x4 (CPU)
• M.2_2: PCIe 4.0 x4 (Chipset)
4x SATA 6Gb/s

RAID

SATA: RAID 0, 1, 10
M.2 NVMe: RAID 0, 1

USB Ports

Rear: 4x USB 2.0, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A
Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C

LAN

Realtek® 8125BG 2.5G LAN

Internal I/O

1x ATX_PWR, 1x CPU_PWR
1x CPU Fan, 1x Pump Fan, 3x System Fan
2x Front Panel (JFP), 1x Chassis Intrusion (JCI)
1x Front Audio (JAUD), 1x Com Port (JCOM)
2x ARGB V2 connectors, 2x RGB connectors
1x TPM (TPM 2.0)
4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C

LED Feature

4x EZ Debug LED

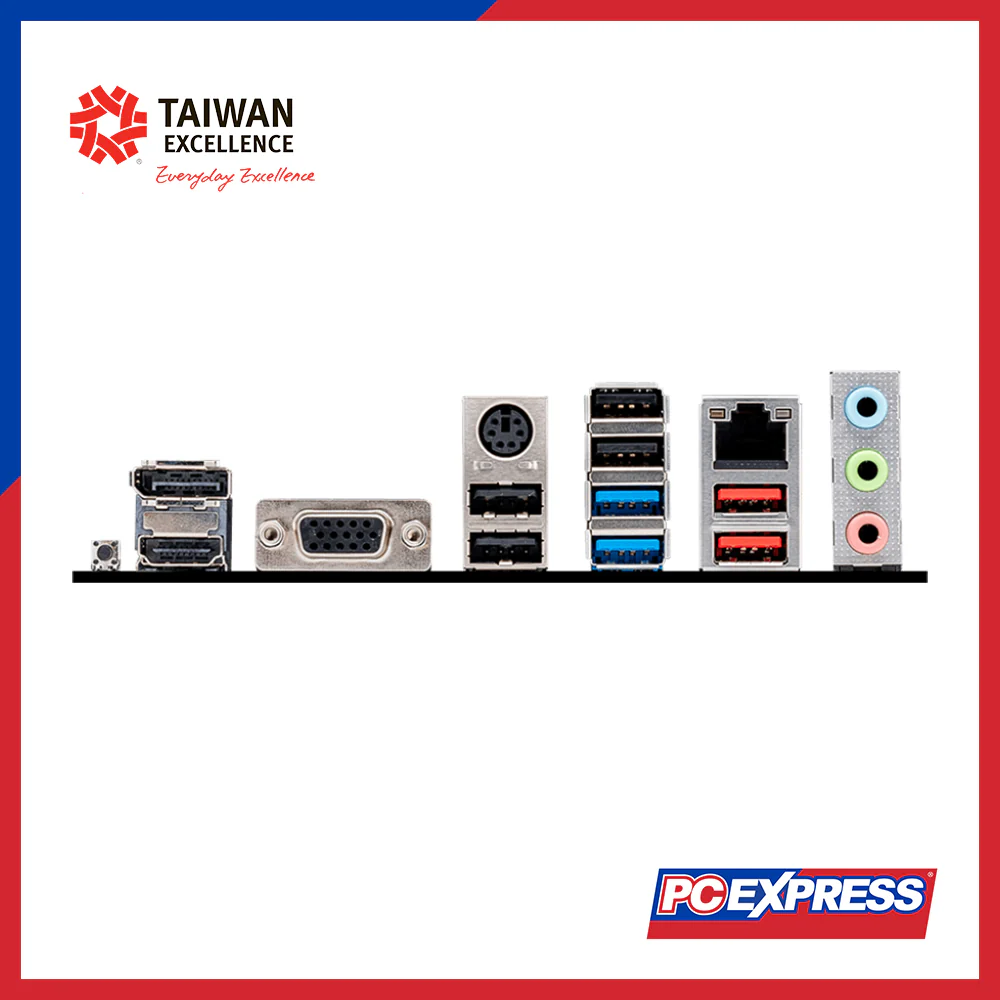

Back Panel Ports

DisplayPort, VGA, HDMI™, Keyboard/Mouse, 2.5G LAN, Audio jacks, Flash BIOS Button, USB 2.0, USB 3.2 Gen1 5Gbps (Type-A), USB 3.2 Gen2 10Gbps (Type-A)

Operating System

Windows® 11 64-bit, Windows® 10 64-bit
