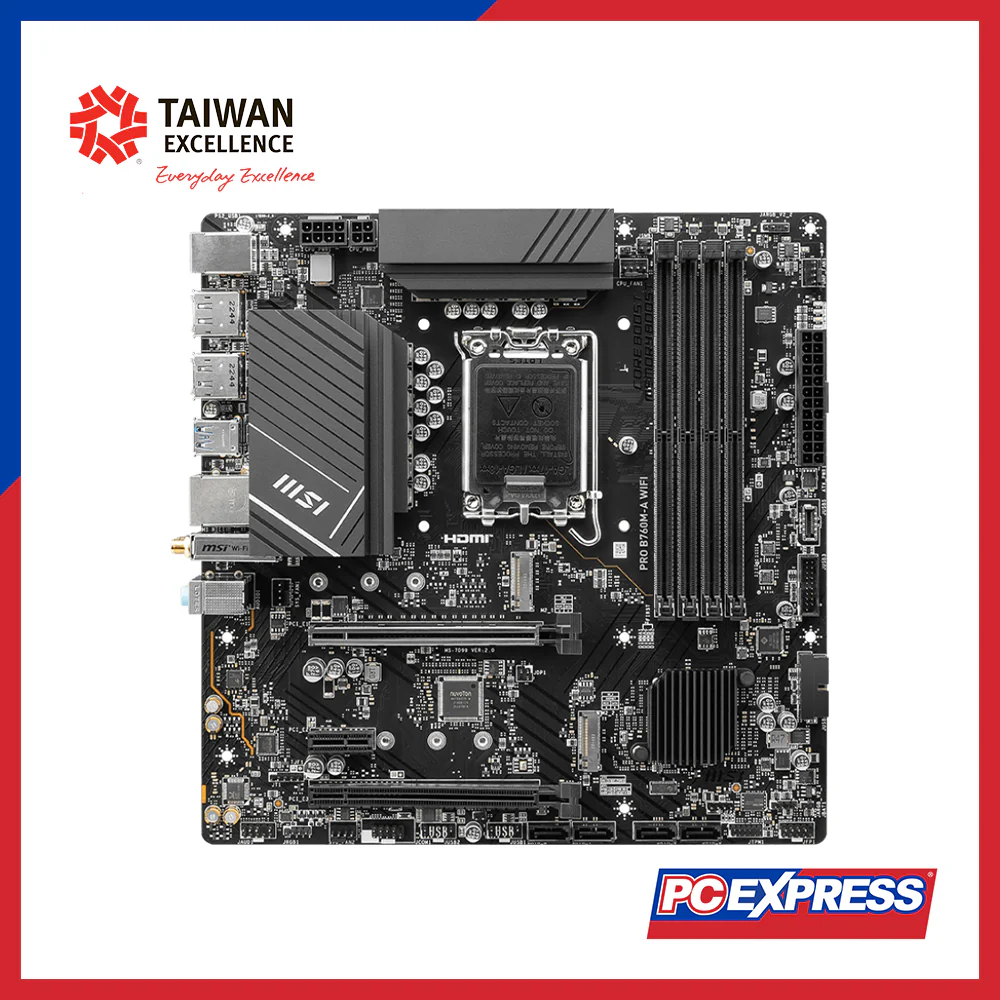

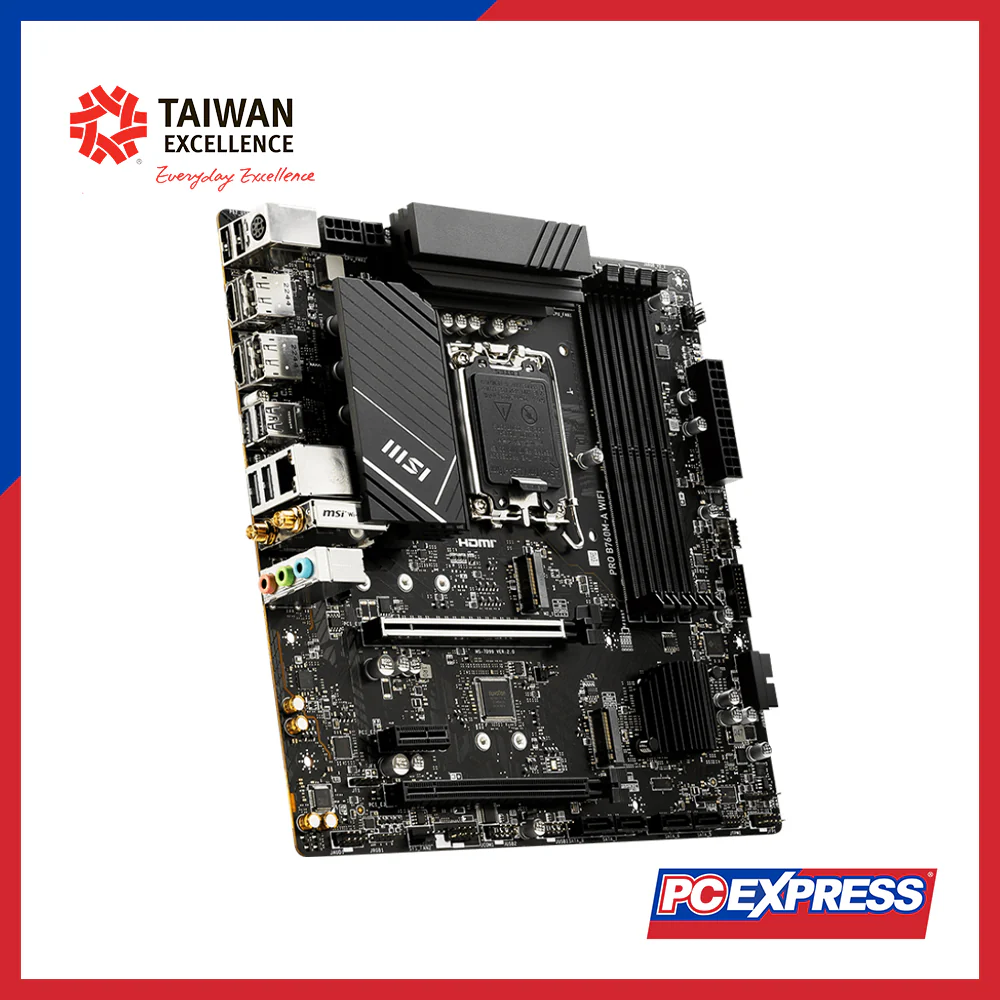

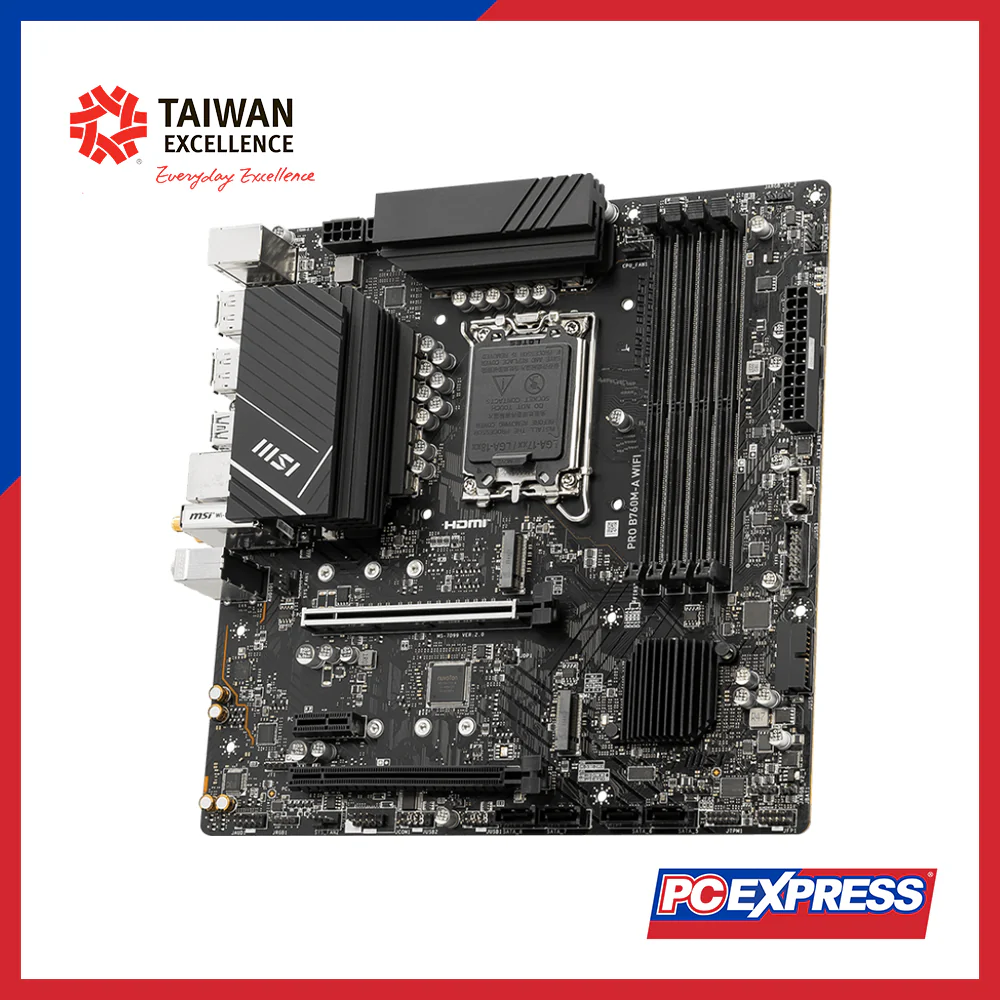

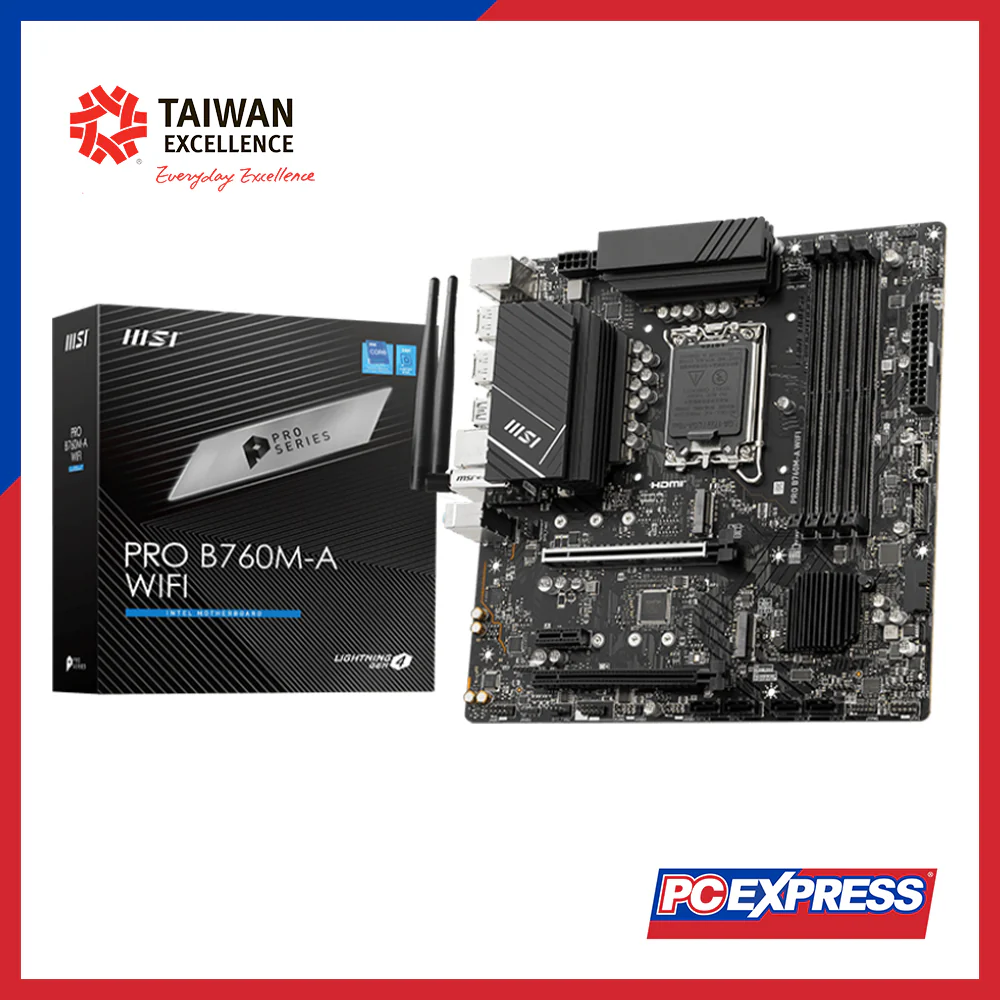

MSI PRO B760M-A Wifi (DR5) Motherboard

Chipset

Intel® B760

CPU

Support Intel® Core™ 14th / 13th / 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors (LGA 1700)

Memory

4x DDR5, Maximum Capacity 256GB

Memory Support

DDR5 6800+(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MHz

Max Overclocking Frequency

• 1DPC 1R: Up to 6800+ MHz
• 1DPC 2R: Up to 6400+ MHz
• 2DPC 1R: Up to 6000+ MHz
• 2DPC 2R: Up to 5600+ MHz

Memory Features

Supports Intel® XMP 3.0 OC, Dual-Controller Dual-Channel mode, Non-ECC un-buffered memory

Onboard Graphics

2x HDMI™ (2.1, 4K 60Hz)
2x DisplayPort (1.4, 4K 60Hz)
Available only on processors with integrated graphics; specifications vary by CPU.

Expansion Slots

2x PCI-E x16
1x PCI-E x1
PCI_E1 (CPU): PCIe 4.0 x16
PCI_E2 (Chipset): PCIe 3.0 x1
PCI_E3 (Chipset): PCIe 4.0 x4

Audio

Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

Storage

2x M.2 Slots:
• M.2_1 (CPU): PCIe 4.0 x4, 2280/2260/2242
• M.2_2 (Chipset): PCIe 4.0 x4 / SATA, 2280/2260/2242
4x SATA 6G Ports
SATA8 unavailable when M.2 SATA SSD is installed in M2_2 slot.

RAID Support

RAID 0, 1, 5, 10 for SATA devices

USB Ports

Rear: 2x USB 2.0, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A
Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C

LAN

Realtek® RTL8125BG 2.5G LAN

Internal I/O

1x ATX_PWR, 2x CPU_PWR, 1x CPU Fan, 1x Pump Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x COM Port (JCOM), 2x Addressable V2 RGB (JARGB_V2), 1x RGB LED (JRGB), 1x TPM (TPM 2.0), 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C

Wireless LAN & Bluetooth

Intel® Wi-Fi 6E (M.2 Key-E pre-installed)
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/b/g/n/ac/ax
Bluetooth® 5.3, FIPS, FISMA
6GHz availability depends on country; Bluetooth 5.3 requires Windows 10 build 21H1 or Windows 11.

LED Feature

4x EZ Debug LED

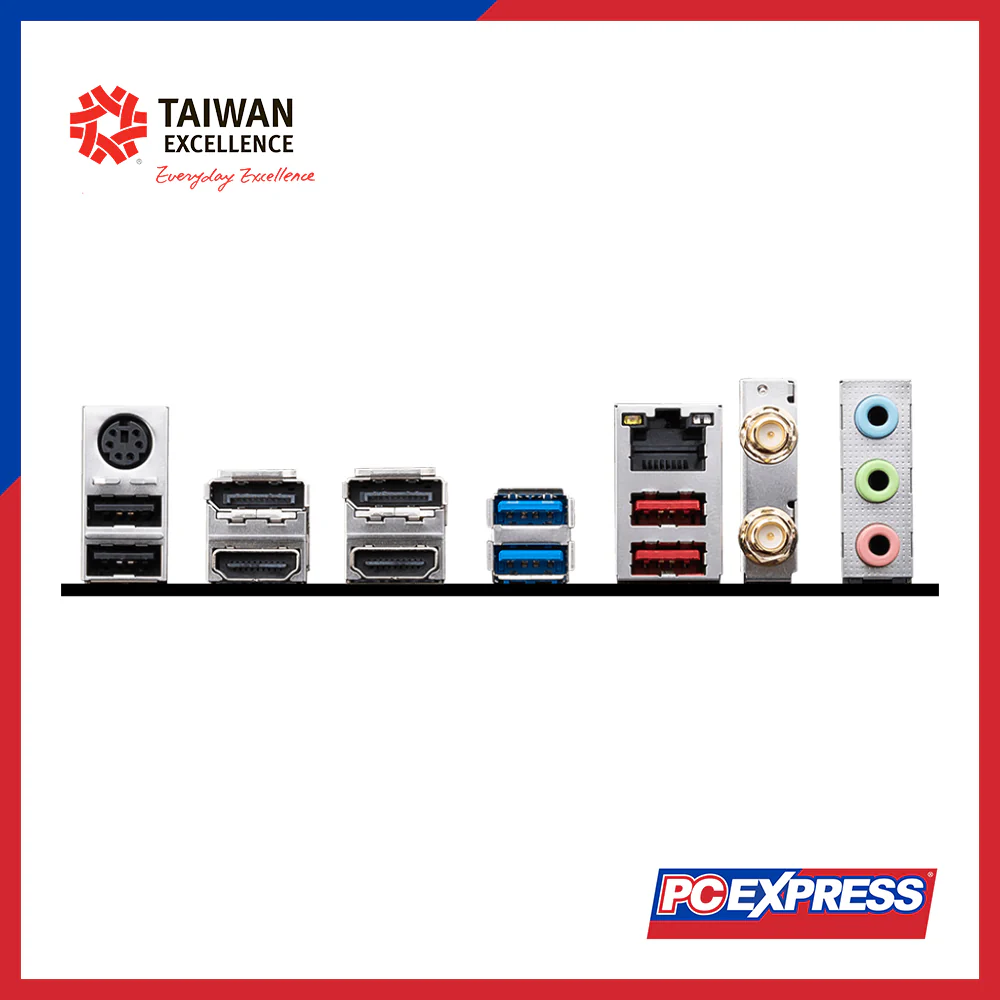

Back Panel Ports

Keyboard / Mouse, DisplayPort, HDMI™, USB 3.2 Gen 1 5Gbps (Type-A), USB 3.2 Gen 2 10Gbps (Type-A), USB 2.0, 2.5G LAN, Wi-Fi / Bluetooth, Audio Connectors

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit
