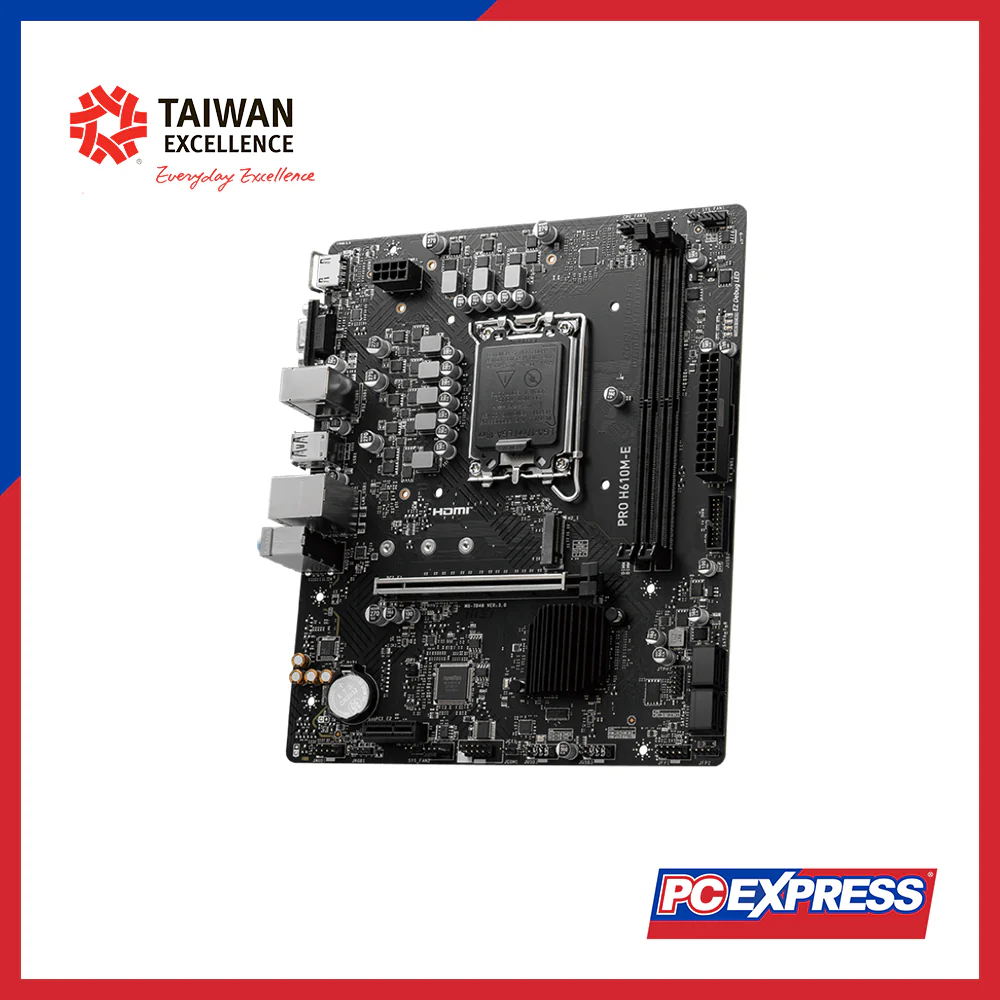

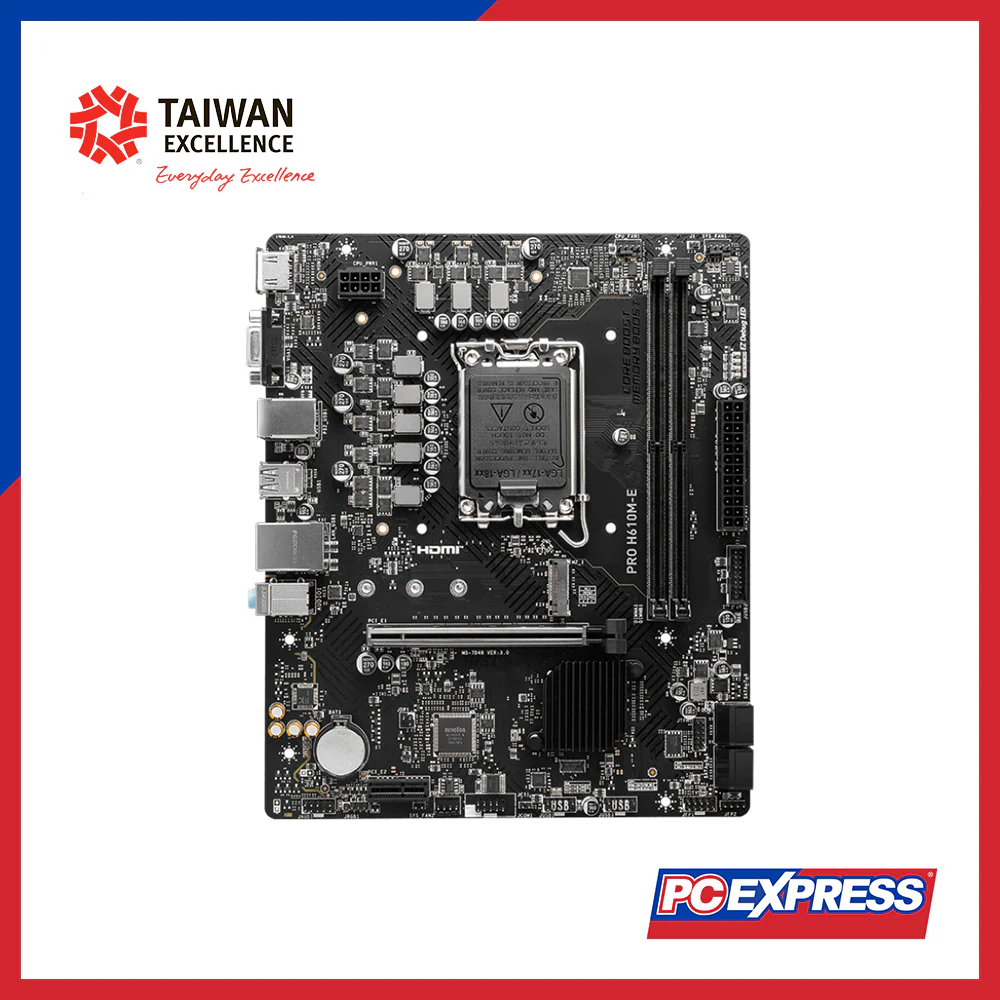

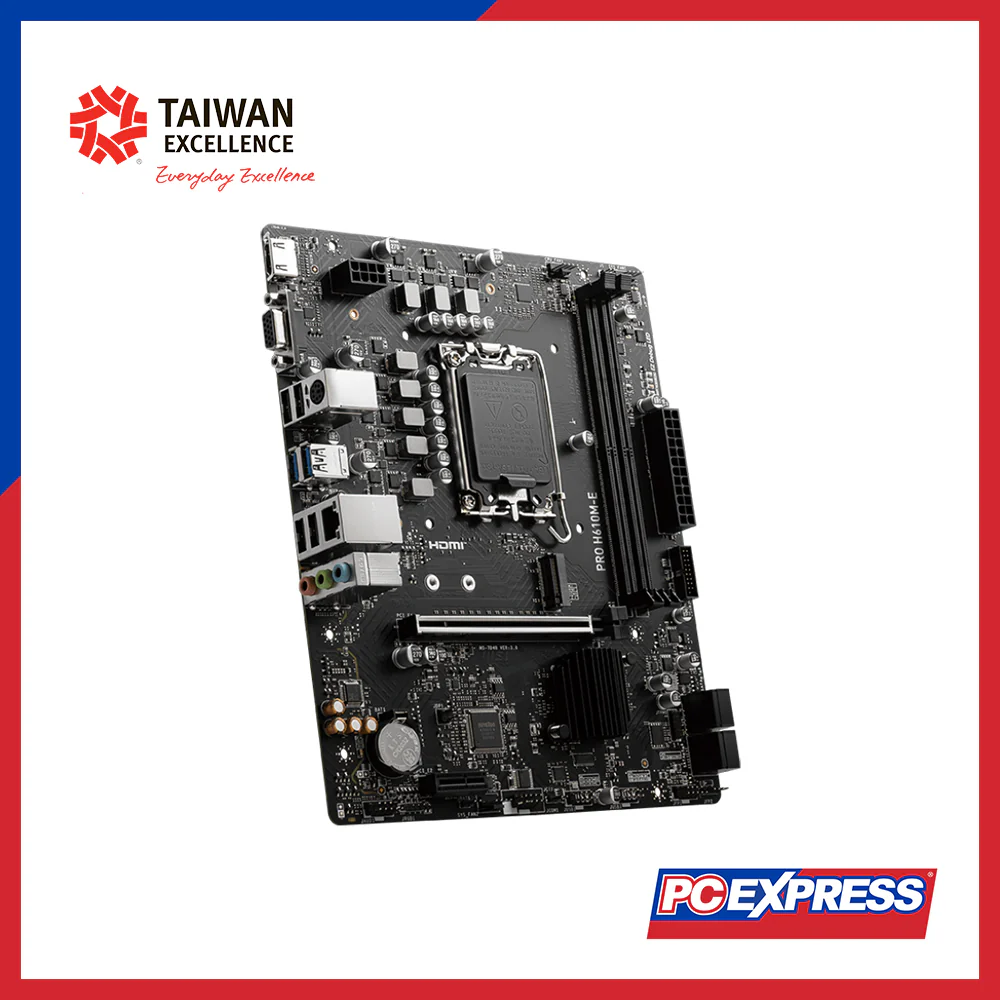

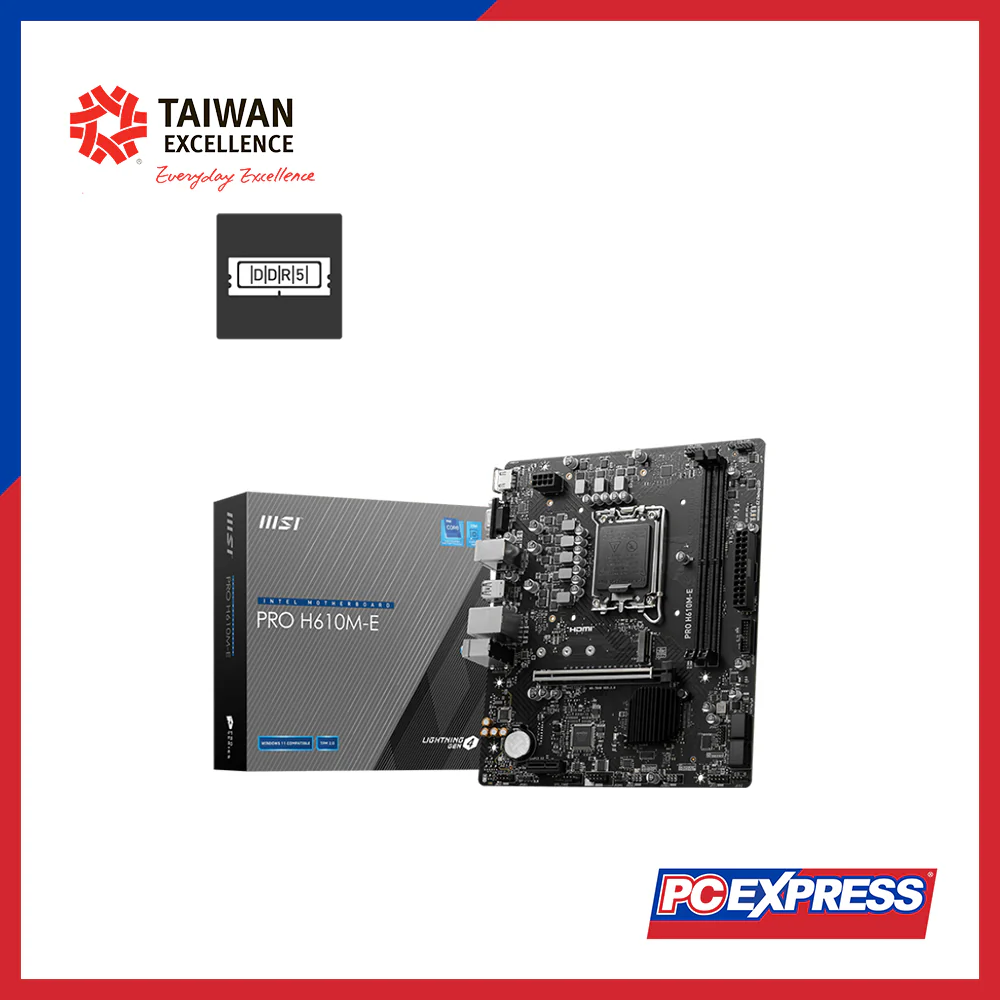

MSI PRO H610M-E D5 Micro-ATX Motherboard

Chipset

INTEL H610

CPU Support

Intel® Core™ 14th/13th/12th Gen, Pentium® Gold & Celeron® (LGA 1700)

Memory Slots

2 x DDR5

Max Memory Capacity

96 GB

Memory Support

DDR5 5600 MHz (JEDEC & POR)

Memory Features

Supports Intel® XMP 3.0 OC, Dual-Channel, Non-ECC, Un-buffered

Onboard Graphics

1 x HDMI™ 1.4 (4K @30Hz HDR), 1 x VGA (up to 2048x1536 @50Hz) *CPU dependent

Expansion Slots

1 x PCI-E x16 (PCIe 4.0 from CPU), 1 x PCI-E x1 (PCIe 3.0 from Chipset)

Audio

Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

M.2 Slot

1 x M.2 (PCIe 3.0 x4 / SATA, 2280/2260/2242, from Chipset)

SATA Ports

4 x SATA 6Gb/s (SATA5 unavailable if M.2 SATA SSD is installed)

USB Ports (Rear)

4 x USB 2.0, 2 x USB 5Gbps Type-A

USB Ports (Front)

4 x USB 2.0, 2 x USB 5Gbps Type-A

LAN

Realtek® RTL8111H Gigabit LAN

Internal I/O Headers

ATX_PWR, CPU_PWR, CPU Fan, 2 x System Fan, 2 x JFP, JCI, JAUD, JCOM, JRGB, TPM, 4 x USB 2.0, 2 x USB 5Gbps

LED Feature

4 x EZ Debug LED

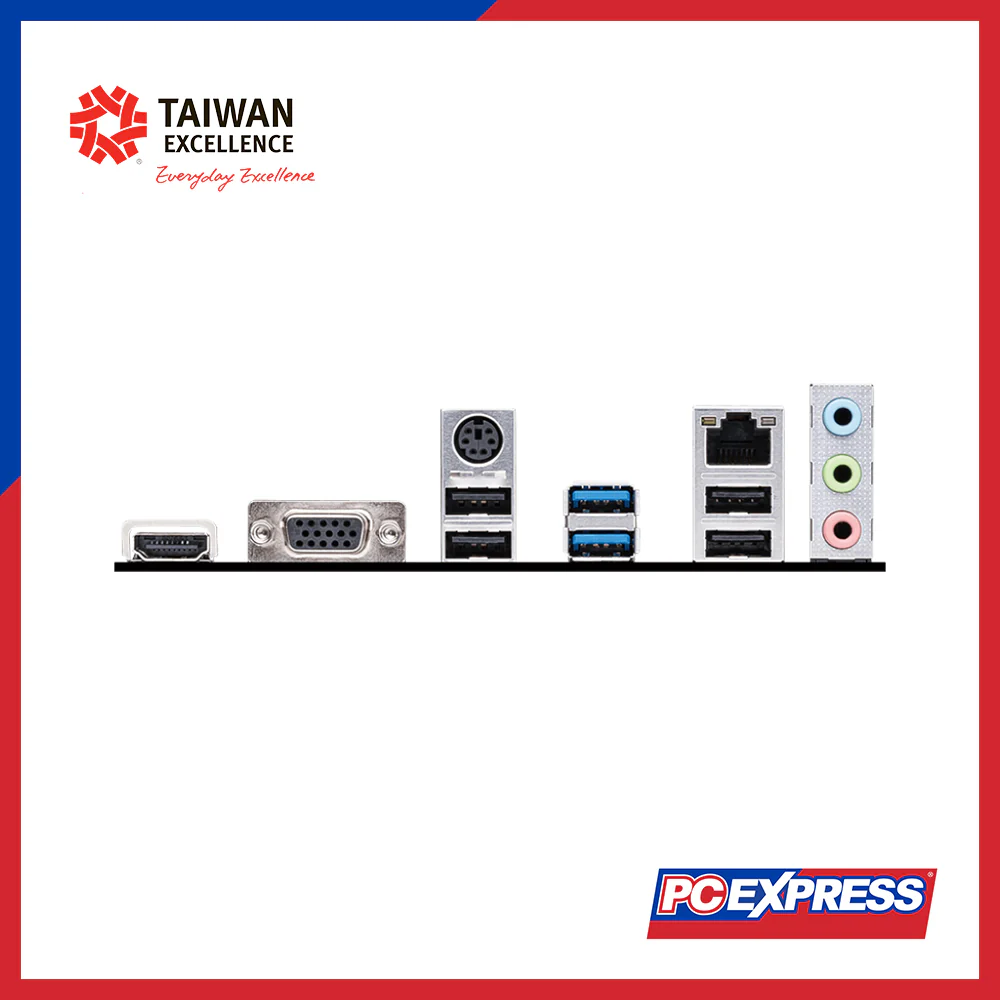

Back Panel Ports

HDMI™, VGA, PS/2 Keyboard/Mouse, 2 x USB 3.2 Gen 1 Type-A, LAN, Audio, 2 x USB 2.0

Operating System

Windows® 11 64-bit, Windows® 10 64-bit
