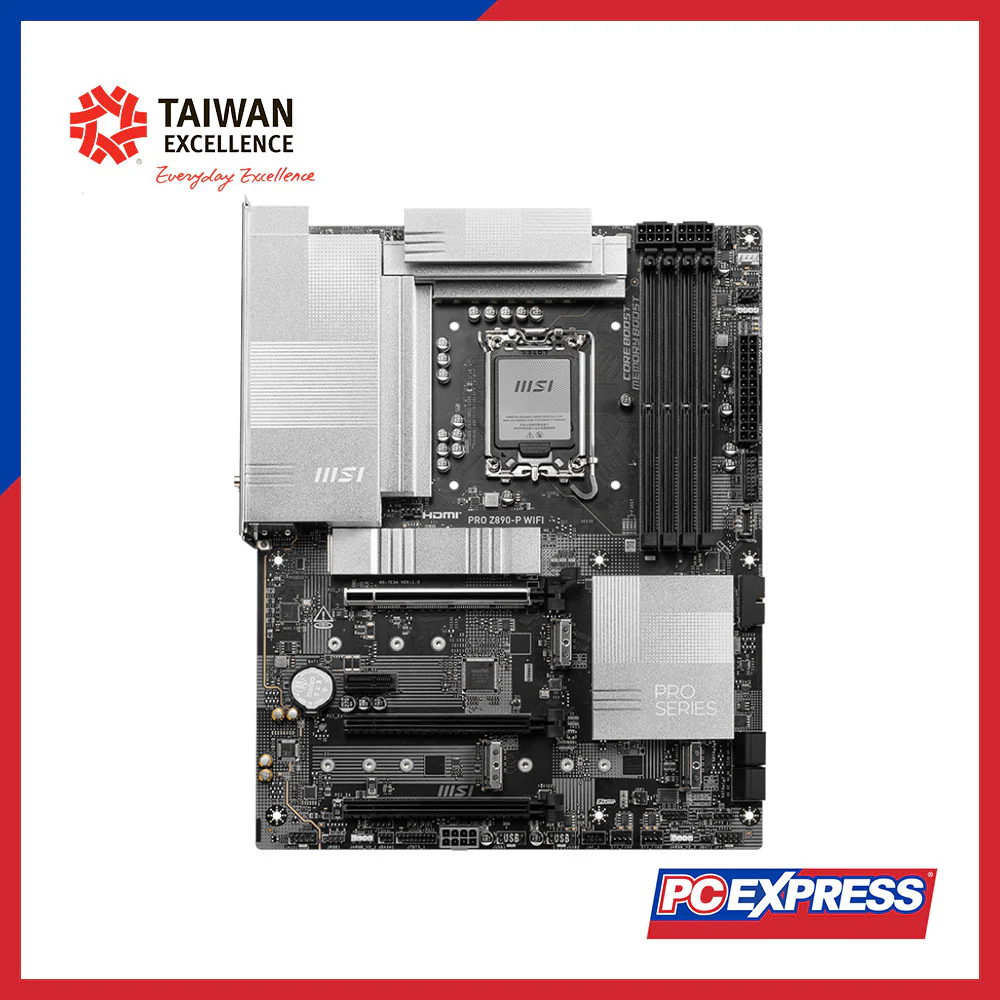

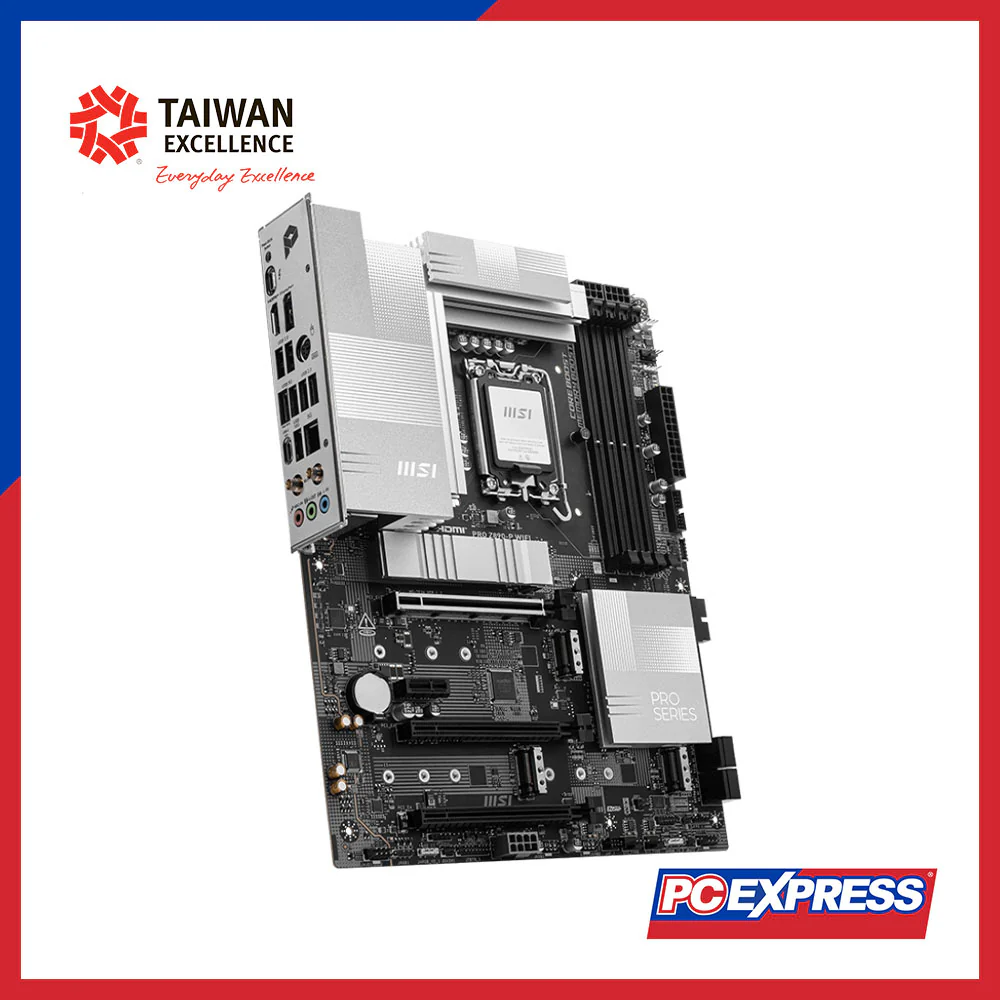

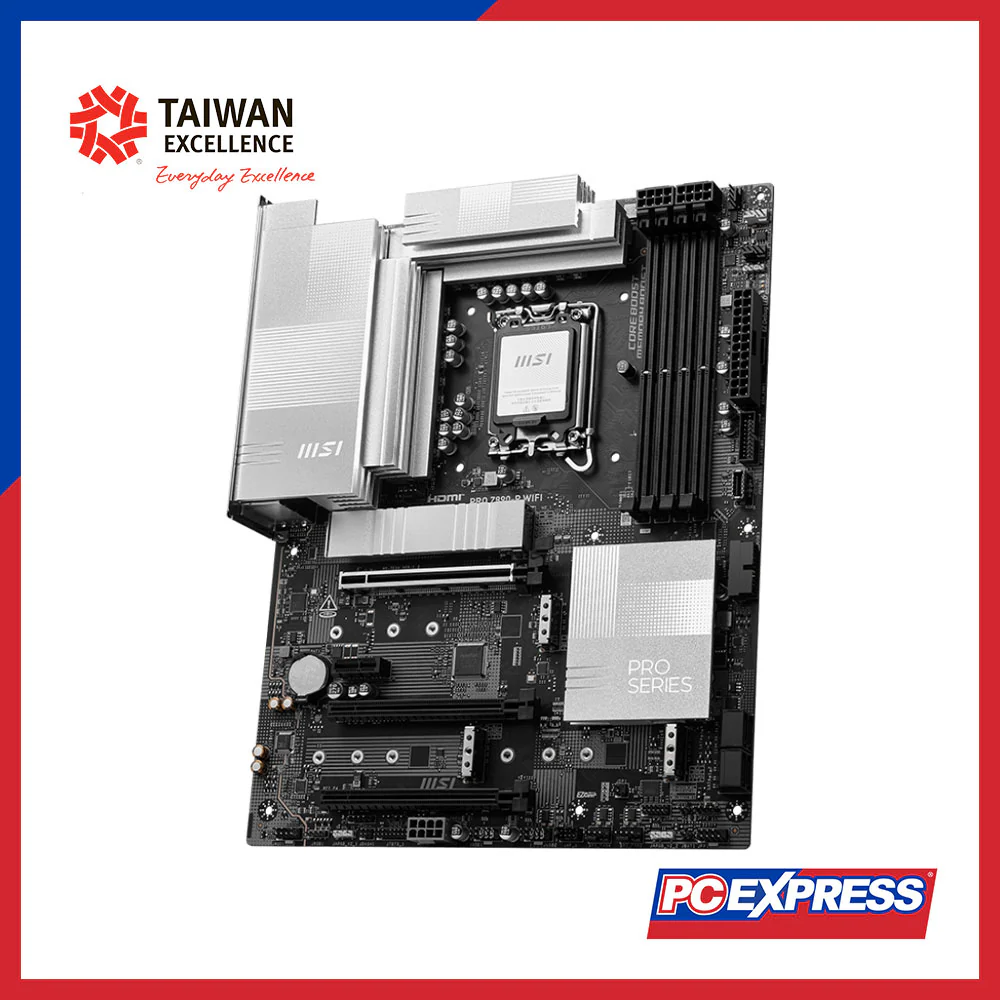

MSI PRO Z890-P WIFI ATX Motherboard

Chipset

INTEL Z890

CPU

Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support: 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. Overclocking Frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports Intel® POR Speed, JEDEC Speed, Memory Overclocking, Intel® XMP 3.0, Dual-Controller Dual-Channel mode, Non-ECC, Un-buffered memory, CUDIMM

Onboard Graphics

1x HDMI™ (HDMI™ 2.1, max resolution 4K@60Hz)
1x DisplayPort (DisplayPort 1.4, max resolution 4K@60Hz)
1x Type-C DisplayPort (Thunderbolt™ 4, DisplayPort 2.1, max resolution 4K@120Hz / 8K@60Hz)*
*Available only on processors with integrated graphics

Slots

3x PCI-E x16
1x PCI-E x1
• PCI_E1 (Gen PCIe 5.0, up to x16 from CPU)
• PCI_E2 (Gen PCIe 4.0, up to x1 from Chipset)
• PCI_E3 (Gen PCIe 4.0, up to x4 from Chipset)
• PCI_E4 (Gen PCIe 4.0, up to x4 from Chipset)

Audio

Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

Storage

4x M.2 Slots
• M.2_1 (From CPU) PCIe 5.0 x4, 2280/2260 devices
• M.2_2 (From CPU) PCIe 4.0 x4, 22110/2280/2260 devices
• M.2_3 (From Chipset) PCIe 4.0 x4, 2280/2260/2242 devices
• M.2_4 (From Chipset) PCIe 4.0 x4/SATA mode, 2280/2260/2242 devices
4x SATA 6G

RAID

Supports RAID 0, RAID 1, RAID 5, RAID 10 for SATA and M.2 NVMe devices

Onboard Thunderbolt

1x Thunderbolt™ 4 port (Rear)
• Up to 40Gbps transfer rate with Thunderbolt devices
• Up to 20Gbps transfer rate with USB4 devices
• Up to 10Gbps transfer rate with USB 3.2 devices
• Supports up to 5V/3A, 15W power charging
• Daisy-chaining up to 3x Thunderbolt 4 devices or 5x Thunderbolt 3 devices
• Supports up to 8K display

USB

Rear: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C
Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C

LAN

Realtek® 8126 5Gbps LAN

Internal IO

1x Thunderbolt5 card connector (JTBT5)
1x ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR 8pin
1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 5x System Fan
2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD)
1x Tuning Controller connector (JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector (JRGB)
1x TPM pin header (Support TPM 2.0)
4x USB 2.0 ports, 4x USB 5Gbps Type-A ports, 1x USB 20Gbps Type-C port

Wireless LAN & Bluetooth

Intel® Wi-Fi 7 (M.2 Key-E)
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
• 802.11 a/b/g/n/ac/ax/be
• Bluetooth® 5.4**, MLO, 4KQAM
*6GHz support may vary by country; **Bluetooth 5.4 available with Windows 11 version 24H2

LED Feature

4x EZ Debug LED

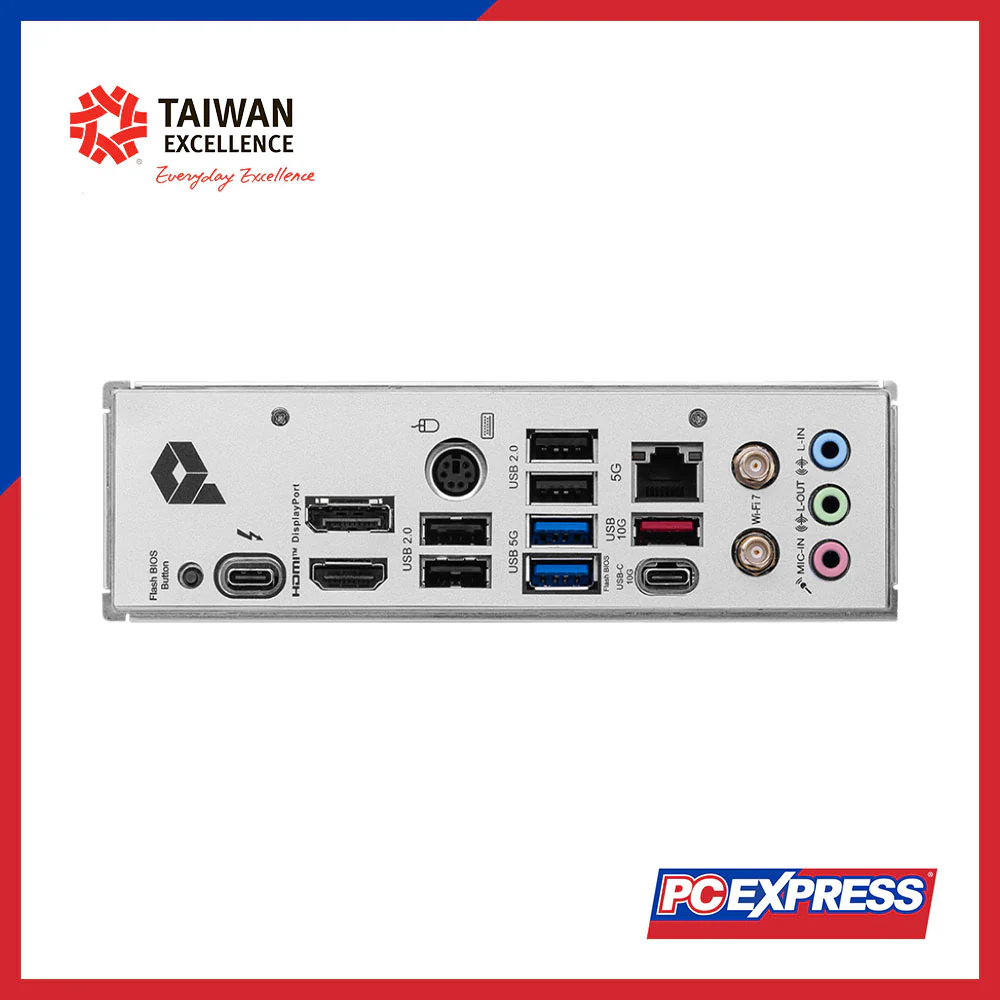

Back Panel Ports

DisplayPort, Mouse/Keyboard, USB 2.0, 5G LAN, Wi-Fi/Bluetooth, Audio Connectors, Flash BIOS Button, Thunderbolt™ 4 (Type-C), HDMI™, USB 5Gbps Type-A, USB 10Gbps Type-A, USB 10Gbps Type-C

Operating System

Support for Windows® 11 64-bit

PCB Info

ATX, 243.84mm x 304.8mm
