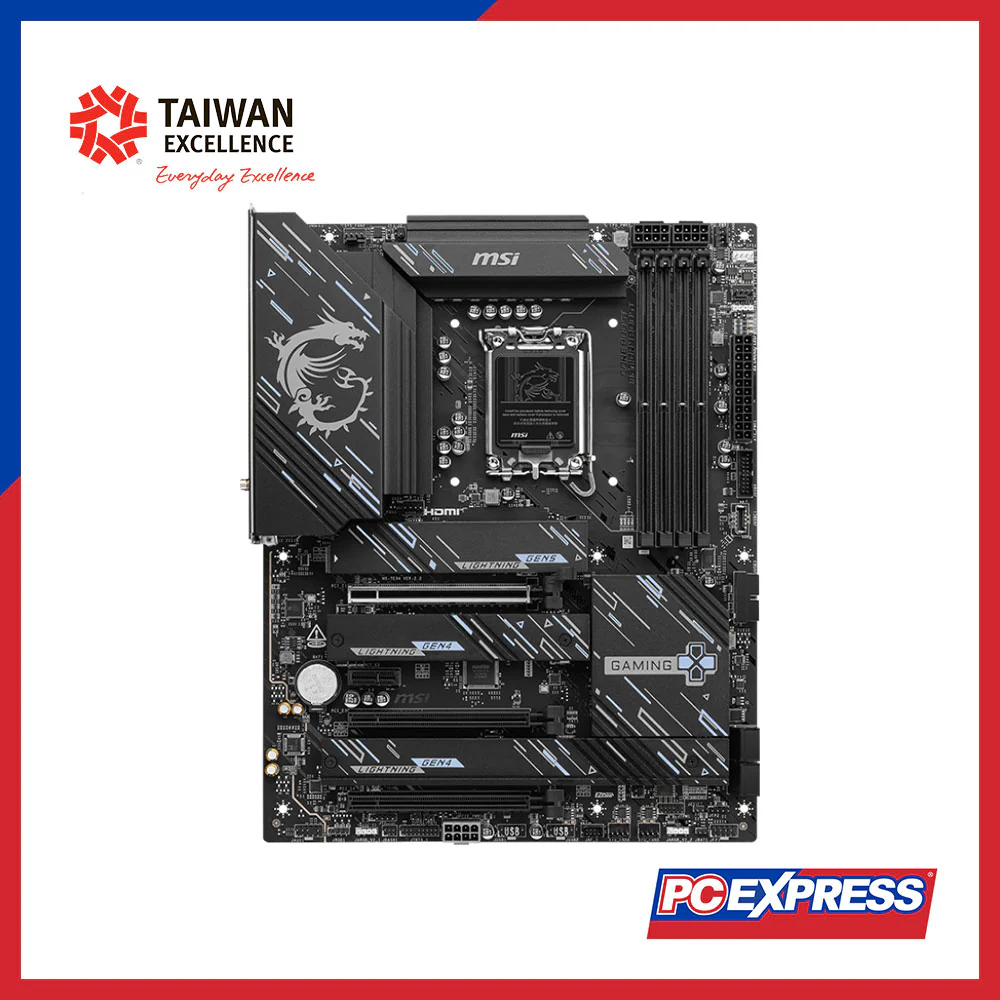

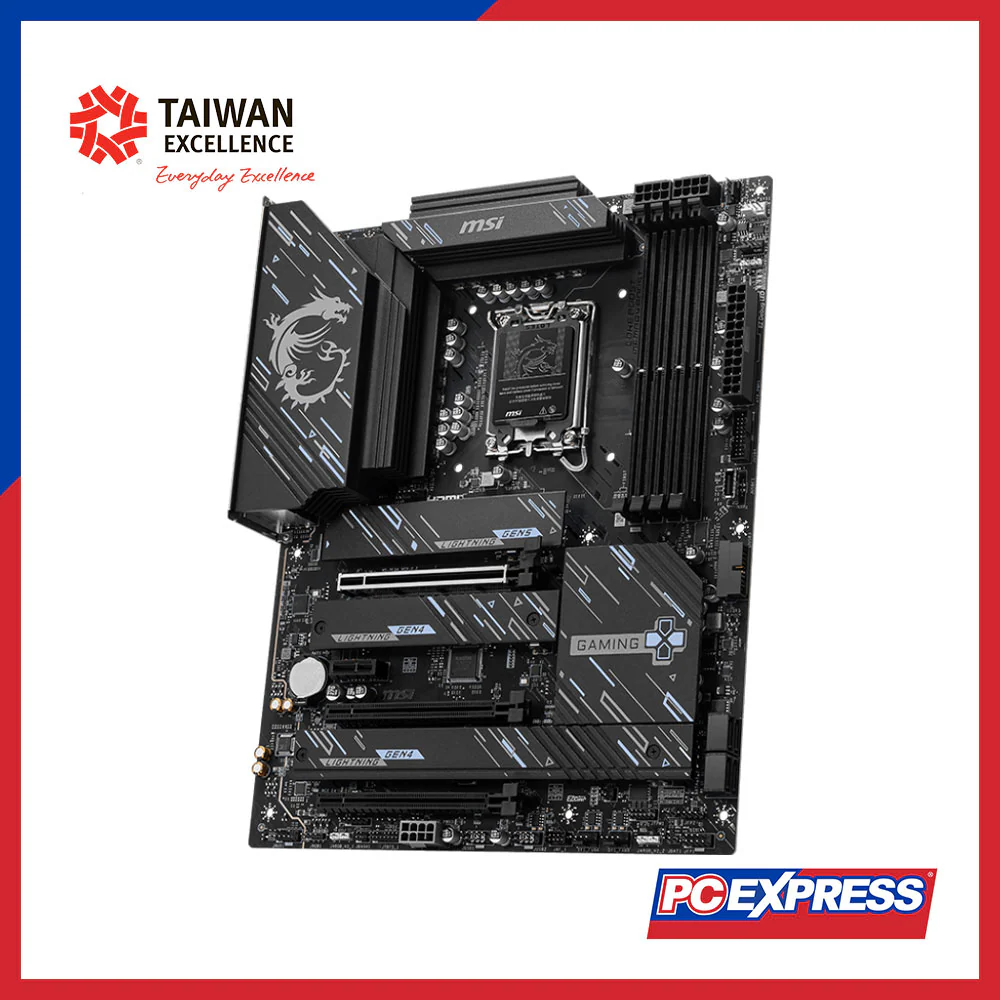

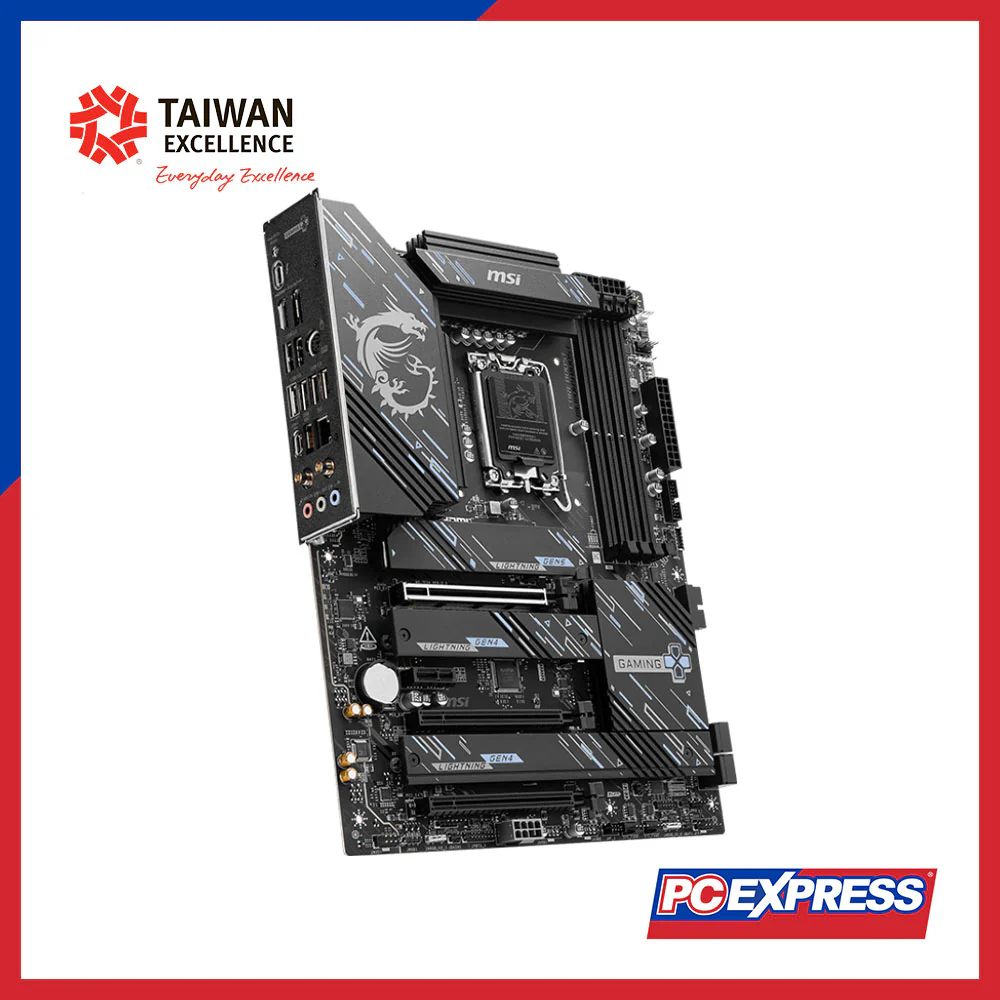

MSI Z890 GAMING PLUS WIFI ATX Motherboard

Chipset

Intel Z890

CPU Support

Intel® Core™ Ultra Processors (Series 2), LGA 1851

Memory

4x DDR5 UDIMM, up to 256GB; Speeds: 9200 - 6400 (OC) MT/s, 6400 - 4800 (JEDEC) MT/s
Overclocking Max Frequency:
- 1DPC 1R up to 9200+ MT/s
- 1DPC 2R up to 7200+ MT/s
- 2DPC 1R/2R up to 4800+ MT/s
Supports Intel® XMP 3.0, Dual-Controller Dual-Channel, Non-ECC Un-buffered memory, and CUDIMM.
*Single-sided latches on DIMM slots.

Onboard Graphics

1x HDMI™ 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz), 1x Thunderbolt™ 4 (DisplayPort 2.1, max 4K@120Hz / 8K@60Hz)*
*Available only on CPUs with integrated graphics.

Expansion Slots

3x PCI-E x16, 1x PCI-E x1
PCI_E1 Gen 5.0 (x16, from CPU)
PCI_E2/3/4 Gen 4.0 (x1/x4, from Chipset)

Audio

Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

Storage

4x M.2 Slots (Supports PCIe 5.0/4.0 modes) and 4x SATA 6G

RAID

Supports RAID 0, 1, 5, 10 for SATA & M.2 NVMe

Onboard Thunderbolt

1x Thunderbolt™ 4 (Rear), supports up to 40Gbps, 8K display, daisy-chaining

USB Ports

Rear: 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type A, 1x USB 10Gbps Type C
Front: 4x USB 5Gbps Type A, 1x USB 20Gbps Type C

LAN

Intel® Killer™ E5000 5Gbps

Internal I/O

1x Thunderbolt5 card connector, Power (ATX, CPU, PCIE), CPU Fan, Combo Fan, 5x System Fan, Front Audio, Tuning Controller, RGB/LED connectors, USB ports

Wireless LAN & Bluetooth

Intel® Killer™ BE1750x Wi-Fi 7 (M.2 slot), MU-MIMO TX/RX, 2.4/5/6GHz (320MHz), Bluetooth® 5.4**

LED Feature

4x EZ Debug LED

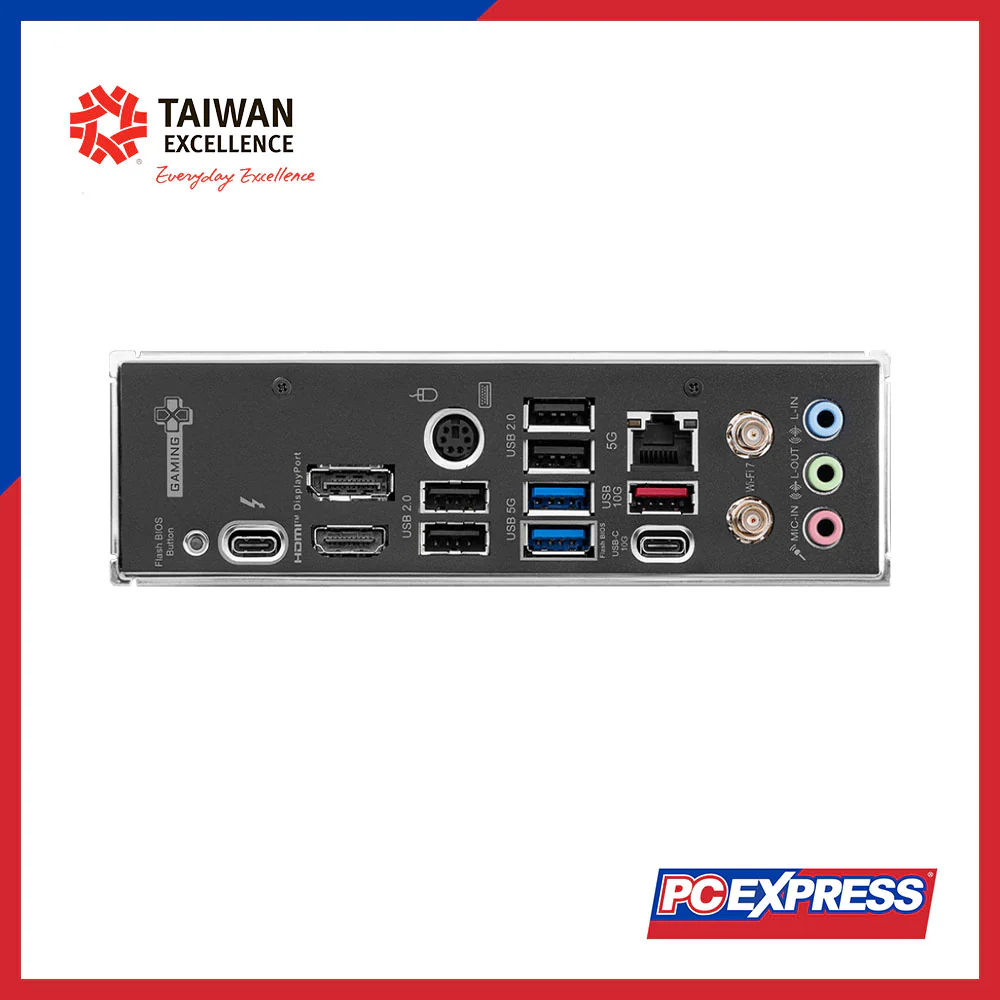

Back Panel Ports

DisplayPort, Keyboard/Mouse, USB 2.0, 5G LAN, Wi-Fi/Bluetooth, Audio, Flash BIOS, Thunderbolt™ 4 40Gbps (Type-C), HDMI™, USB (various speeds)

Operating System

Windows® 11 64-bit

Form Factor

ATX (243.84mm x 304.8mm)
