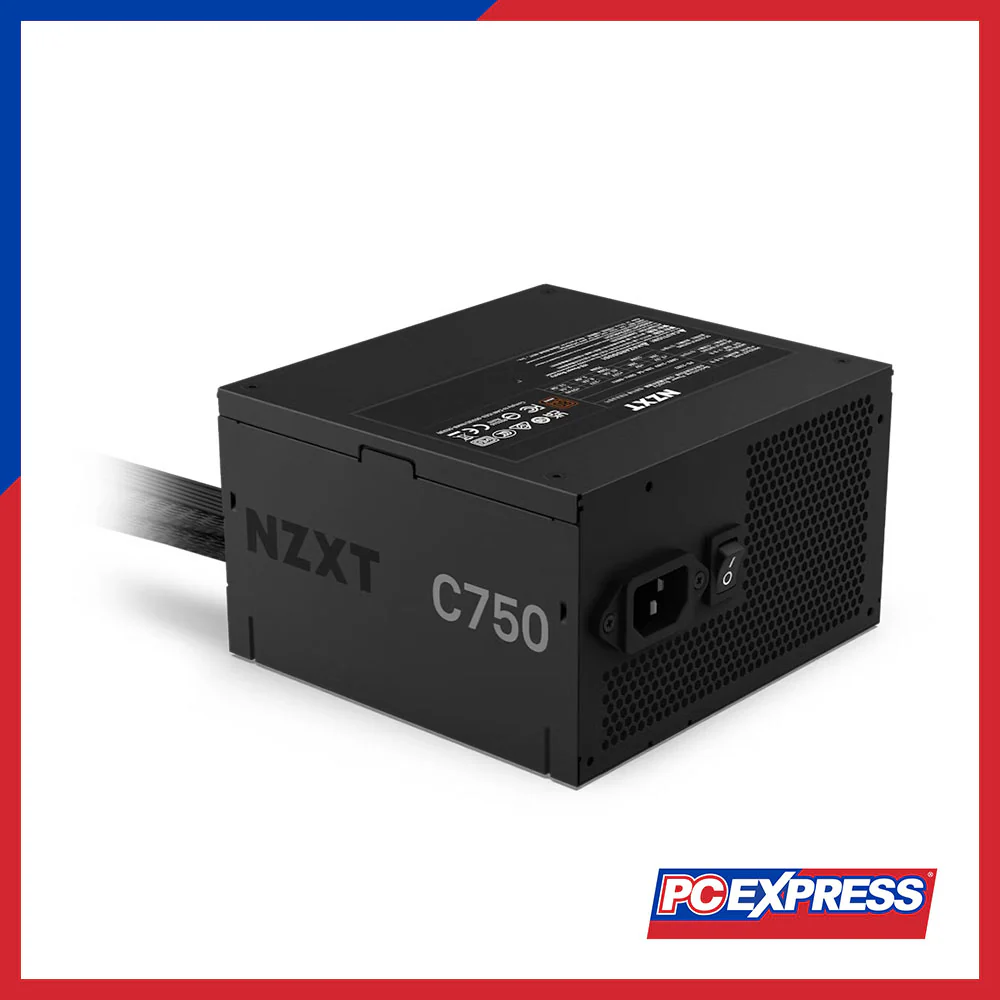

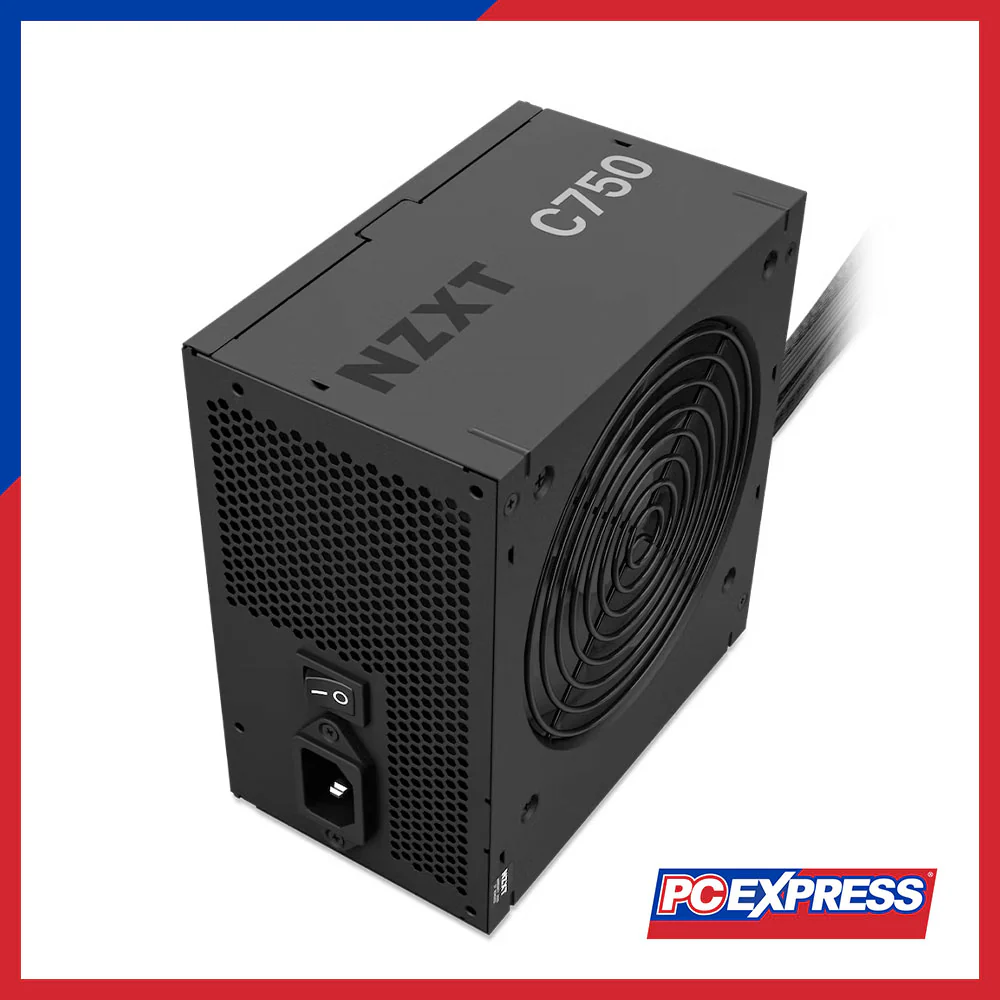

NZXT C750 750W 80+ Bronze Non-Modular Power Supply

OUTPUT CONNECTOR(S)

24-pin ATX Power

1

4+4-pin CPU power

2

6+2-pin PCIe power

2

SATA Power

4

Peripherals

4

CABLE SPECS

24-pin ATX power

600mm, Nylon sleeving

4+4-pin CPU power

700mm, Nylon sleeving

6+2-pin PCIe power

650 + 150mm, Nylon sleeving

SATA power

500 + 150 mm

Peripherals

500 + 150 mm

AC INPUT RATING

100 - 240Vac

10A-5A 50Hz-60Hz

DC OUTPUT RATING

+3.3V

20A (120W)

+5V

20A (120W)

+12V

62.5A (750W)

-12V

0.3A (3.6W)

5Vsb

2.5A (12.5W)

Total

750W

OPERATION

PF Correction

[email protected]

MTBF

100,000 hours

Operation Temperature

0 to 40°C

ENERGY EFFICIENCY

Rating

80 Plus Bronze

10% loading

86.2% @115Vac

20% loading

88.97% @115Vac

50% loading

88.7% @115Vac

100% loading

83.2% @115Vac

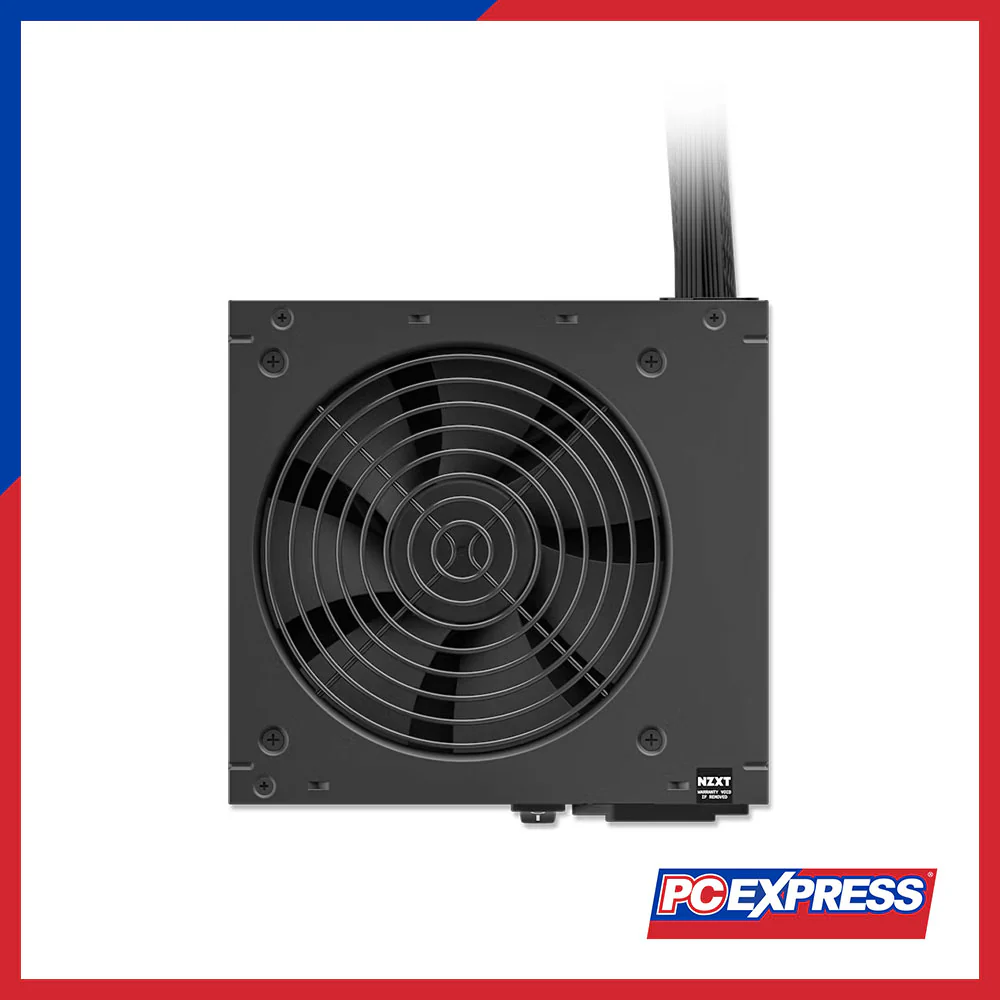

FAN SPECS

Dimensions

120 x 120 x 25 (mm)

Speed

2400 ±10% RPM

Airflow

64.4 CFM (Tpy.)

Noise

39.92 dBA max

Bearing

FDB (Fluid Dynamic Bearing)

GENERAL

Dimensions (W x L x H)

150 x 140 x 86mm

Material(s)

Steel, PCB and Plastic

Compliance Standard

ATX12V v2.53 / EPS12V v2.92

Regulation & Certification

FCC, Canada, CE, CB(IEC 62368-1), BIS, UKCA, CCC, BSMI, Mexico NOM

Hazardous Materials

Taiwan and China RoHS Table, CP65, EU REACH

Protections

OVP (Over Voltage Protection), UVP (Under Voltage Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection), OPP (Over Power Protection), OCP (Over Current Protection)
