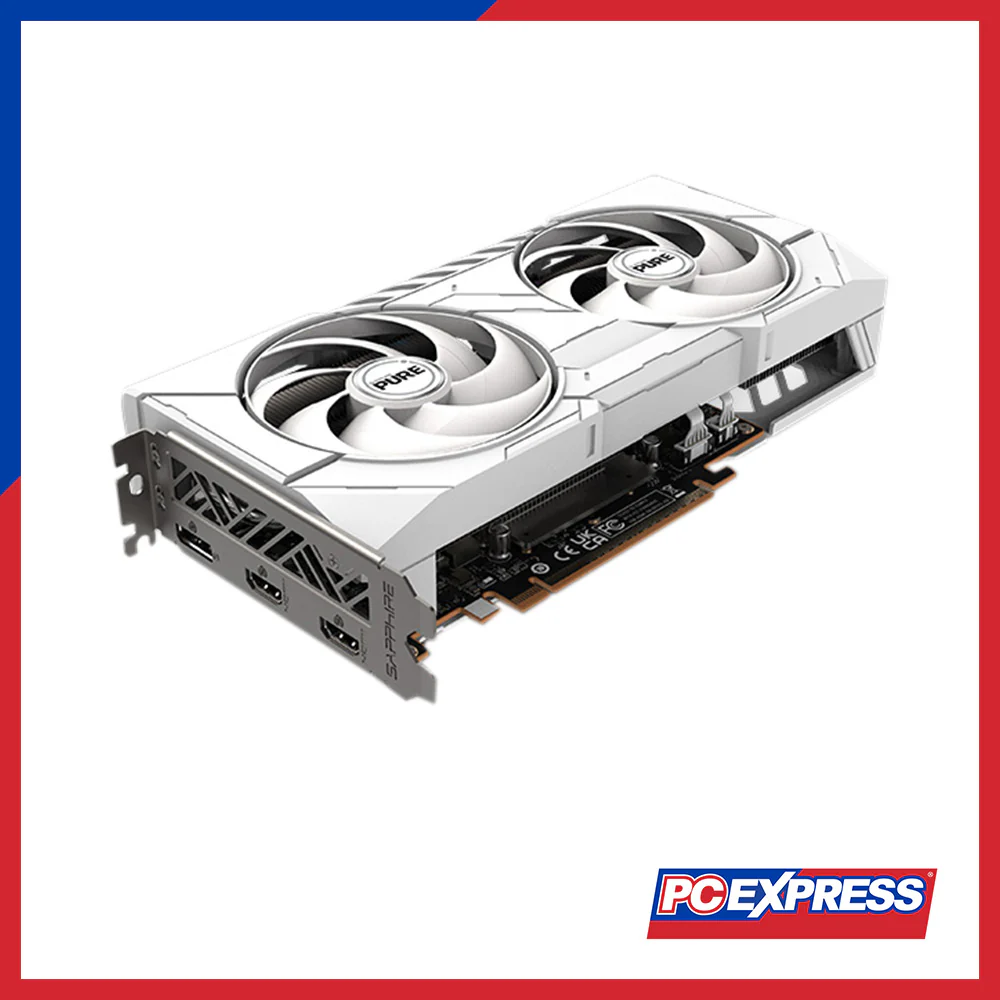

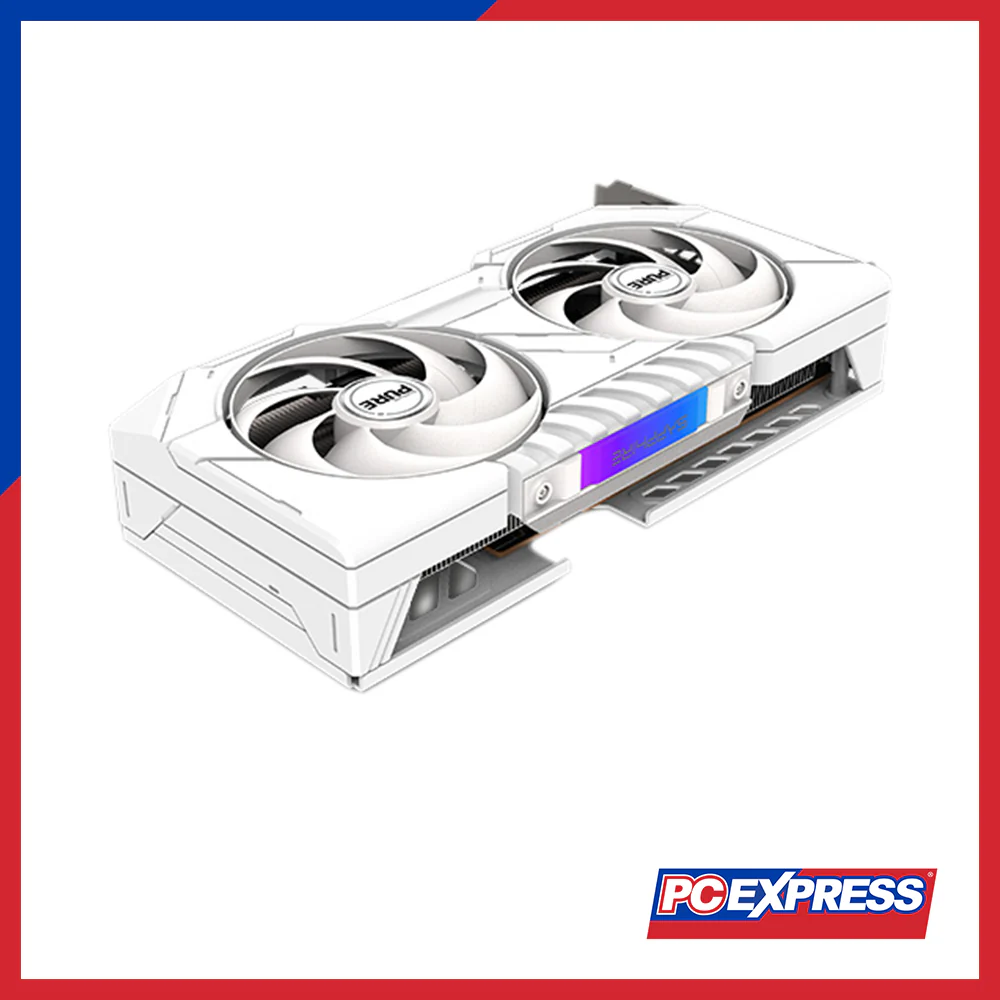

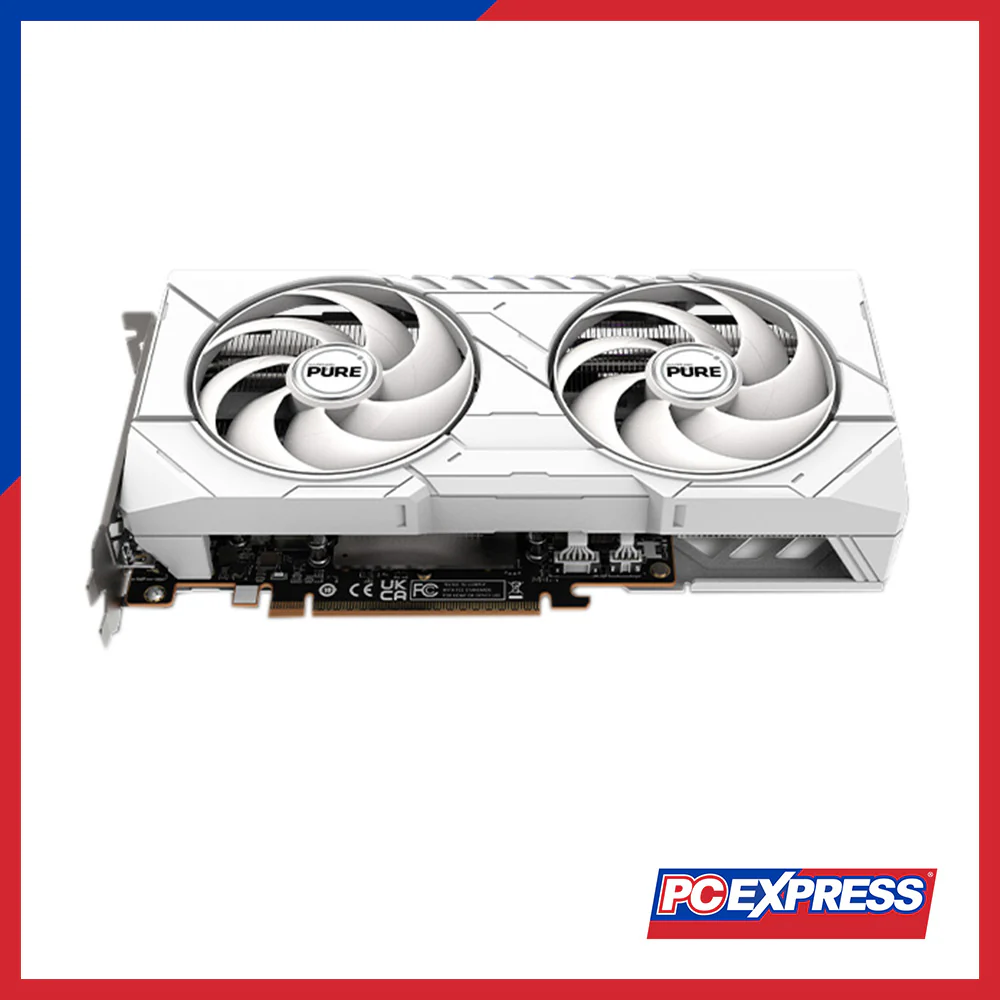

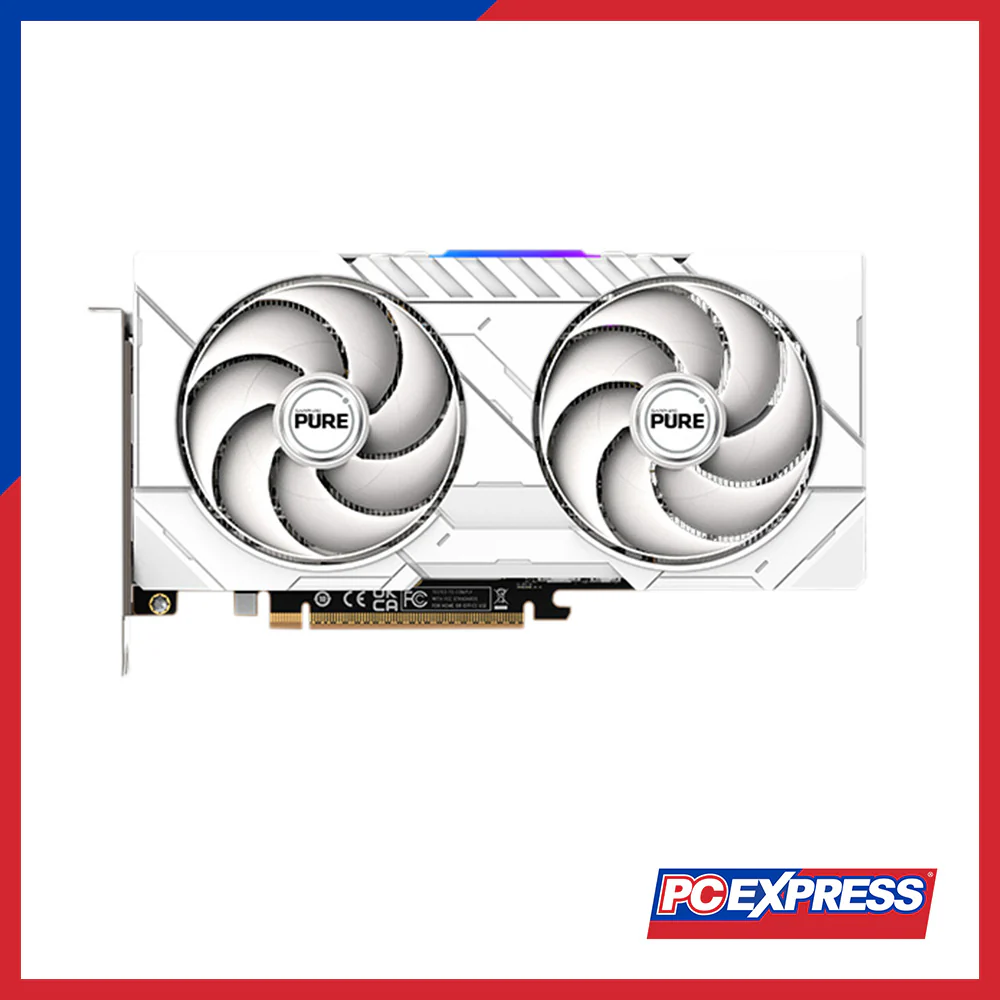

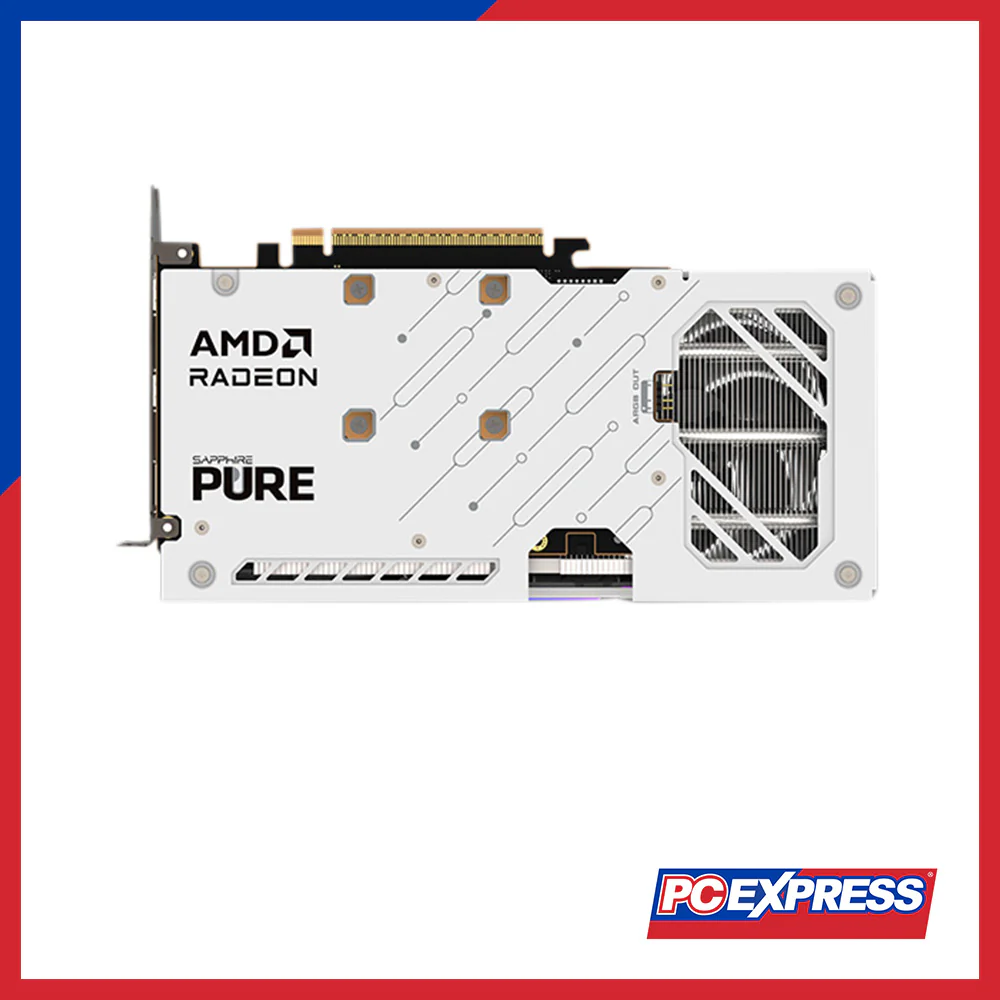

SAPPHIRE AMD Radeon™ RX 9060 XT PURE GAMING OC 16GB GDDR6 128-bit Graphics Card

Part Number

SPR-11350-02-20G

GPU

 Graphics Card

Architecture

AMD RDNA™ 4

Engine Clock

Boost Clock: Up to 3290 MHz
Game Clock: Up to 2700 MHz

Boost Clock is the maximum frequency achievable under burst workloads; may vary by conditions. Game Clock is the expected frequency under typical gaming workloads.

Stream Processors

2048

Compute Units

32 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache

32 MB

Ray Accelerators

32

AI Accelerators

64

Memory Size / Bus

16GB GDDR6 / 128-bit

Memory Clock

20 Gbps Effective

Displays

Maximum 3 Displays

Resolution

HDMI®: 7680 × 4320
DisplayPort™ 2.1a: 7680 × 4320

Interface

PCI Express® 5.0 x16

Output

2 × HDMI®
1 × DisplayPort™ 2.1a

BIOS Support

UEFI

Game Index

1440p

Sapphire Features

Honeywell PTM7950 TIM, AeroCurve Fan Blade, Free Flow, FrameDefense, Integrated Cooling Module, Dual-X Cooling, High TG Copper PCB, Optimized Composite Heatpipes, Metal Backplate, ARGB SAPPHIRE Logo, Two-Ball Bearing Fans, 9-Phase Digital Power Design, Fuse Protection, Intelligent Fan Control, Precision Fan Control, TriXX Supported, Performance vs. Efficiency Quicksets, Glow!, TriXX Boost, External RGB LED MB Sync

Accessories Bundled

3-pin 5V ARGB Cable

AMD Features

AMD RDNA™ 4, 32 Compute Units (3rd Gen RT + 2nd Gen AI), AMD HYPR-RX with AFMF 2, AMD FidelityFX™ Super Resolution 4 with AI Upscaling, DisplayPort™ 2.1a, AMD Radiance Display™ Engine, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag 2, AV1 Encode/Decode, AMD FidelityFX™ Technologies, DirectX® 12 Ultimate, AMD Noise Suppression, AMD FreeSync™, AMD Infinity Cache, 16GB GDDR6 128-bit, AMD Smart Technologies, Adrenalin Edition™ Software

Cooler Type

Dual-X Cooling, AeroCurve Fan Blade, Free Flow, Integrated Cooling Module, High TG Copper PCB, Optimized Composite Heatpipes, Two-Ball Bearing

Form Factor

2.3 Slot, ATX
Dimensions: 240 × 124 × 46.1 mm

Power Consumption

170W Typical Board Power

System Requirement

Minimum 450W PSU
1 × 8-pin Power Connector
PCIe x16 Slot Required
Minimum 8GB System Memory (16GB Recommended)

Operating System

Linux®, Windows® 10, Windows® 11 (64-bit)
