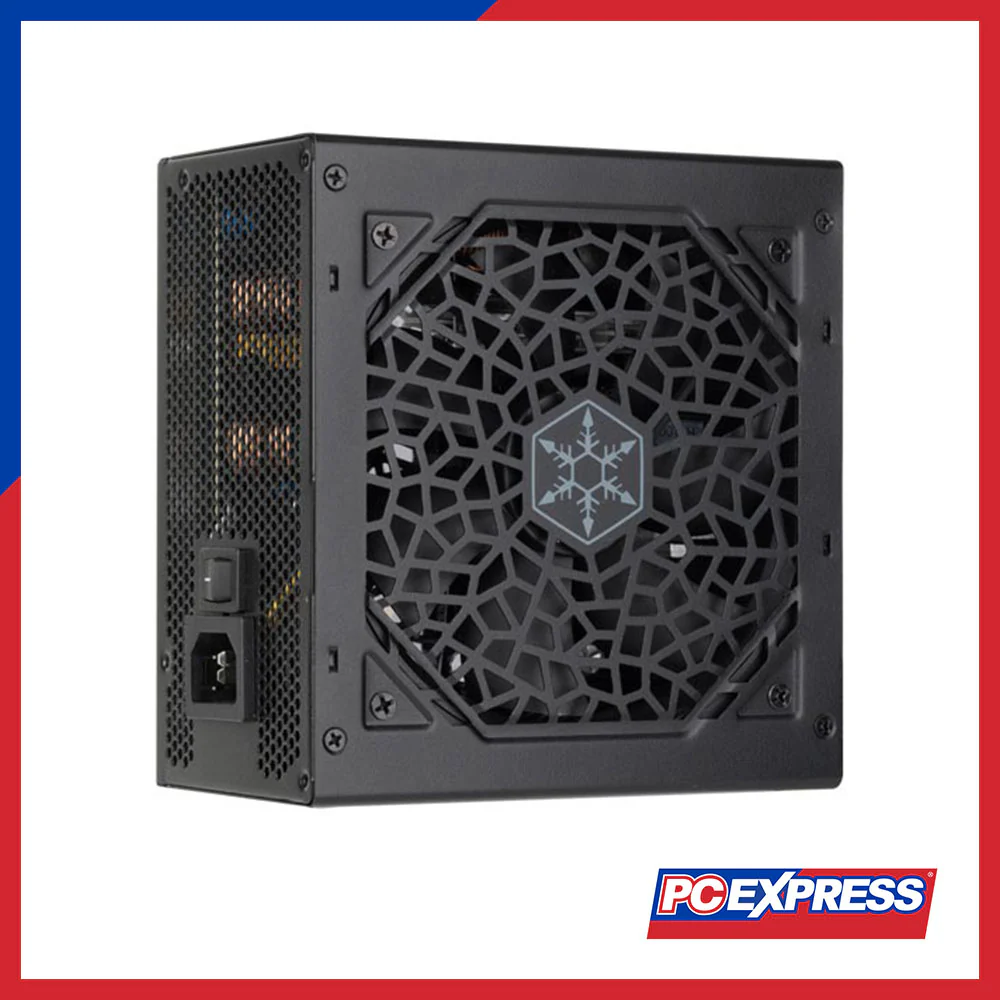

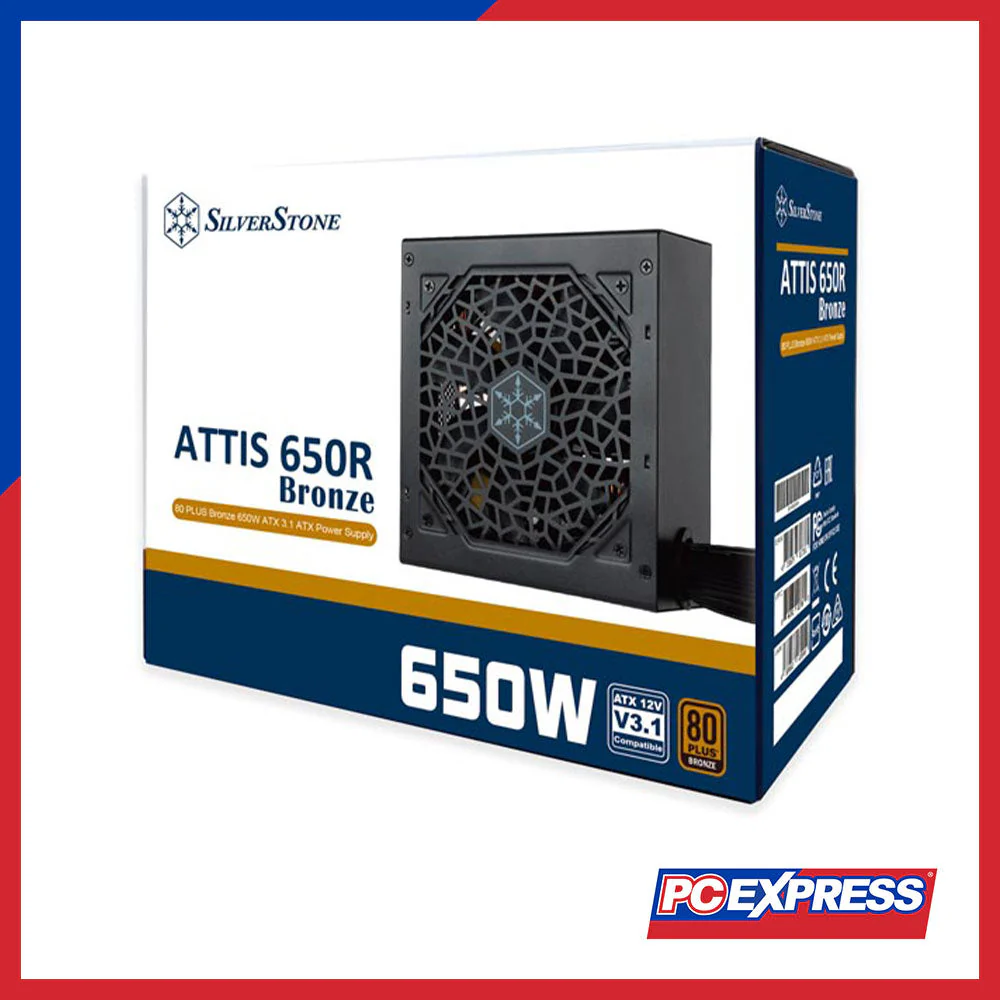

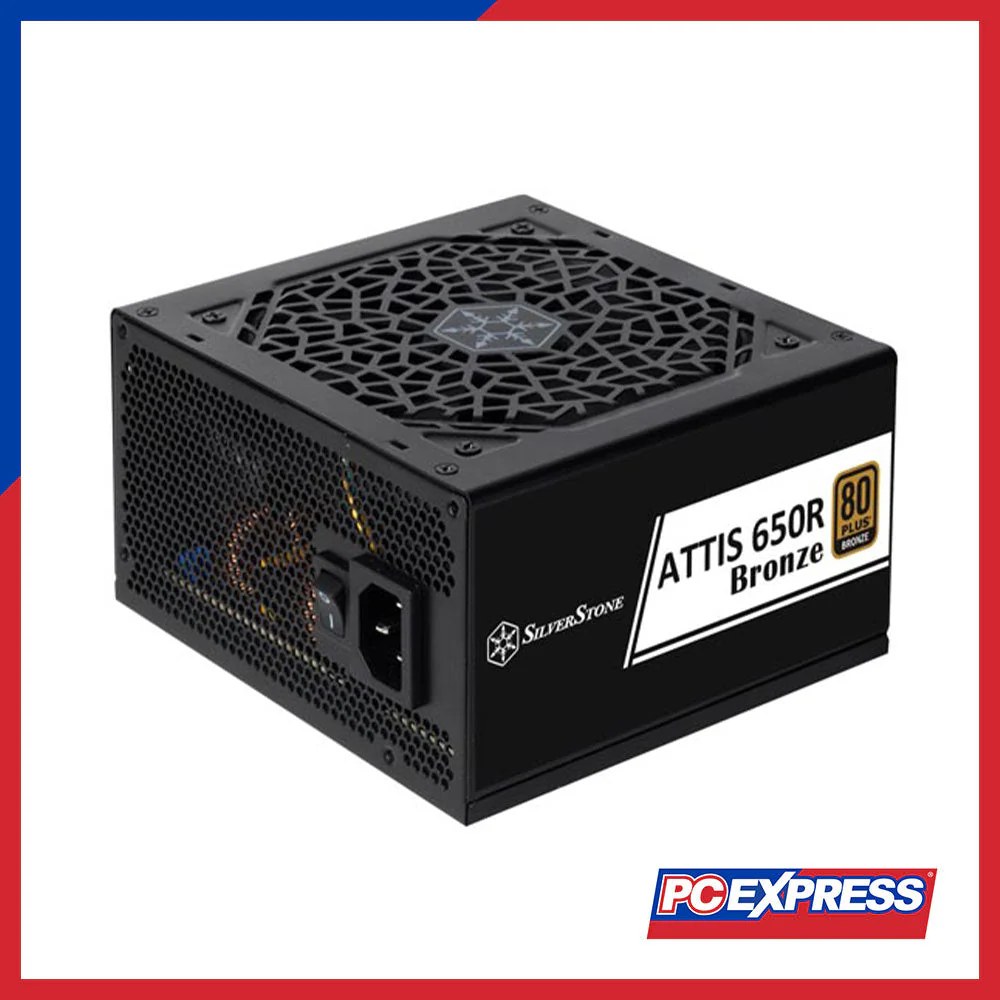

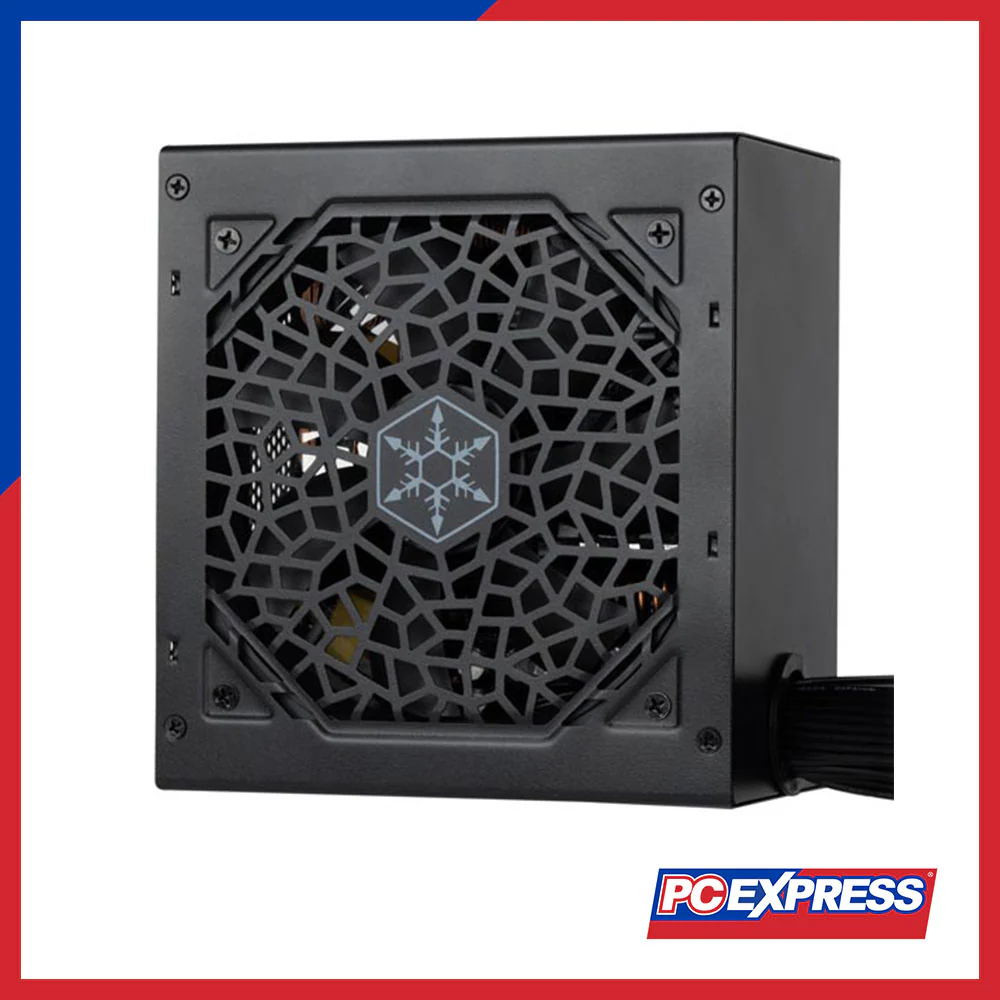

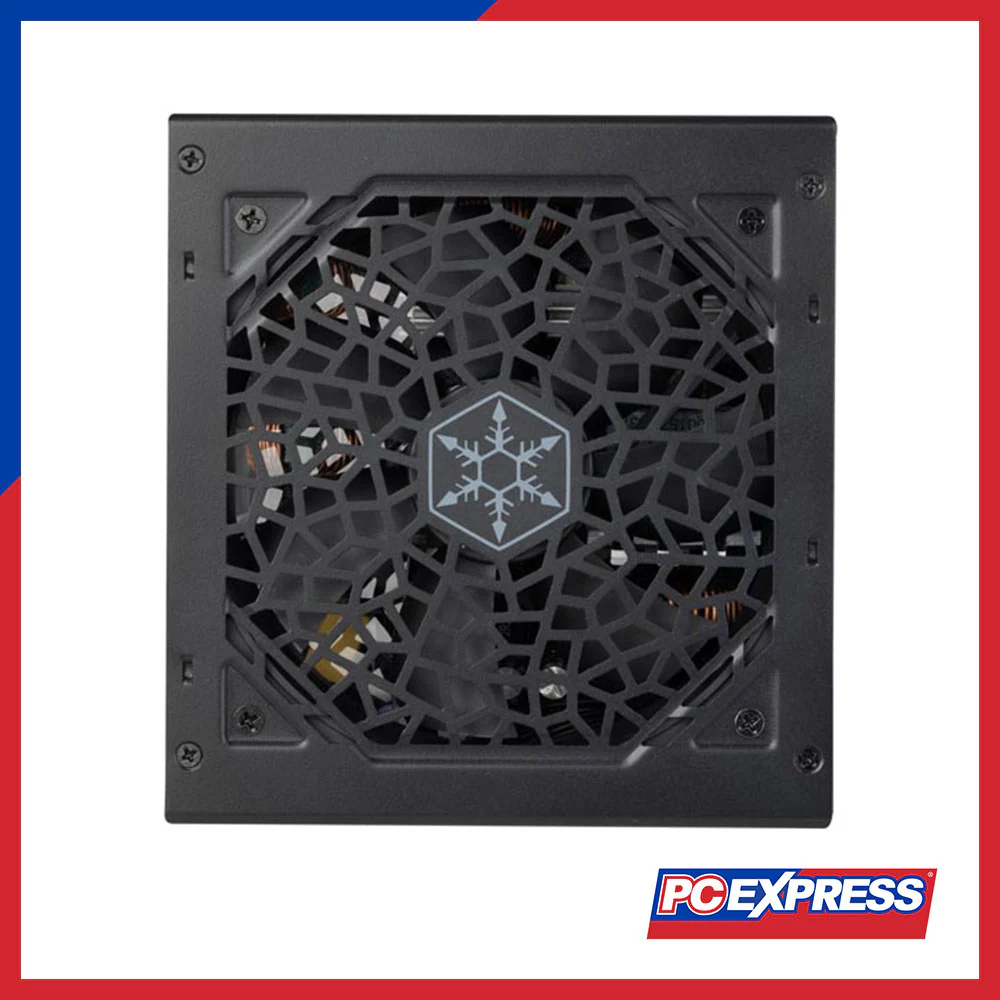

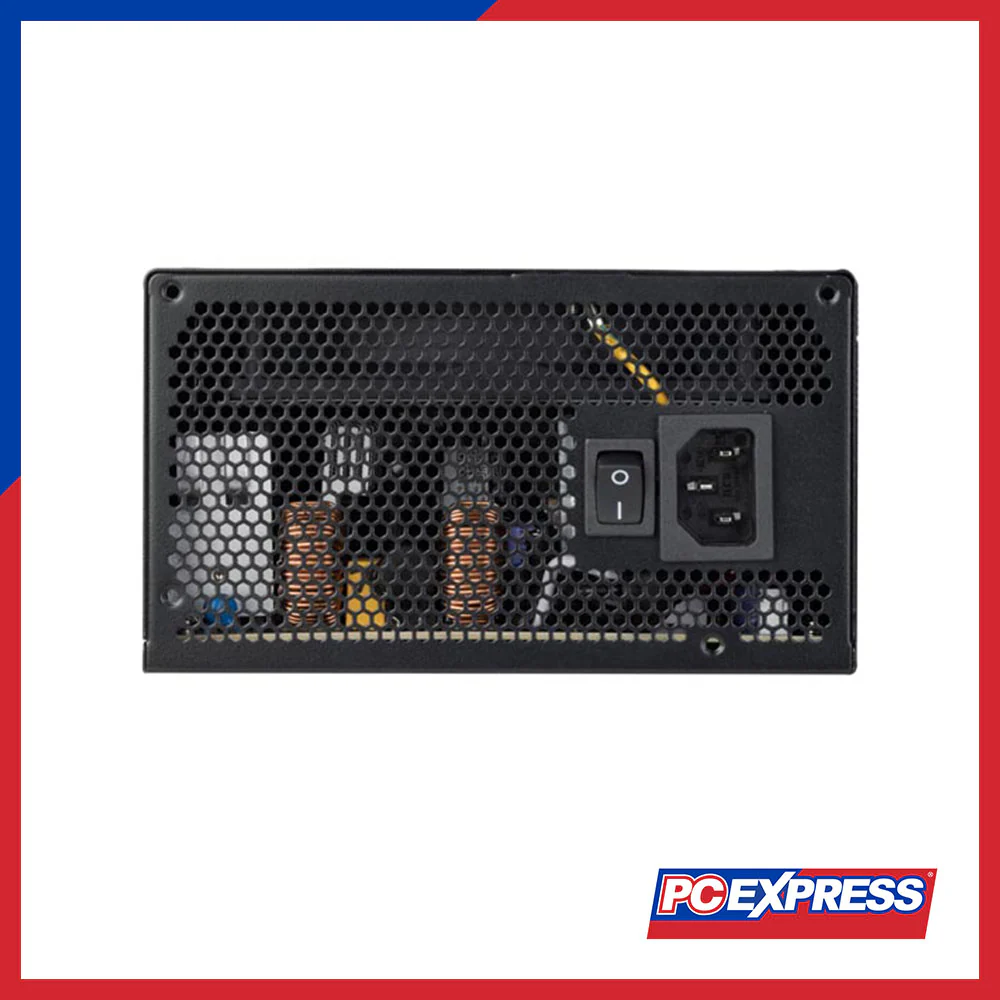

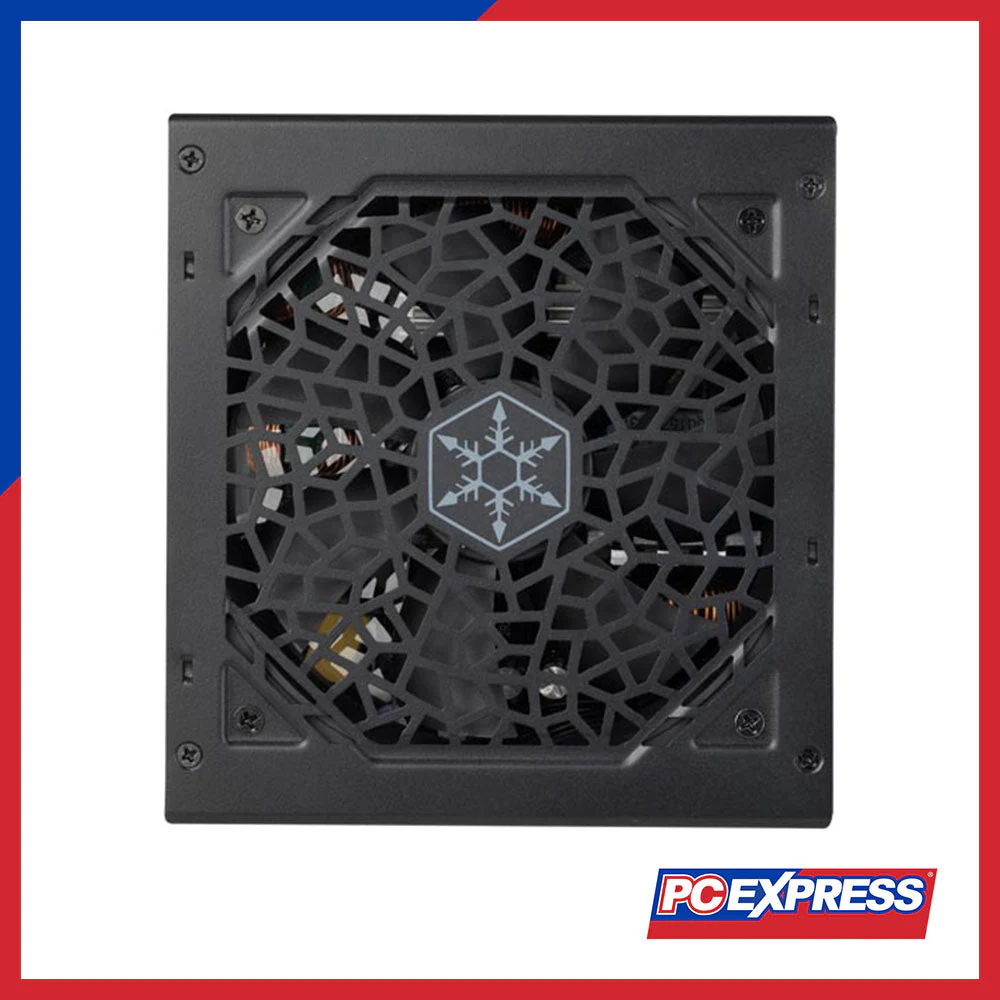

SILVERSTONE ATTIS 650W 80+ Bronze Non-Modular Power Supply

Product No.

SST-AT650R-BF (Black), SST-AT650R-BF-WBW (White)

Model (safety certification)

SST-AX0650FCBR-A

Color

SST-AT650R-BF: Black (lead-free paint)

SST-AT650R-BF-WBW: White (lead-free paint)

Max. DC Output

650W

Load Range

Output

+3.3V

+5V

+12V

+5VSB

-12V

Combined +3.3V & +5V

100W

Combined +12V

649.2W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC (PF>0.9 at full load)

Efficiency

82% ~ 85% (at 20% ~ 100% loading)

MTBF

100,000 hours

Operating Temperature

0°C ~ 50°C

Protection

Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection

Connectors

1 x 24 / 20-Pin motherboard connector

2 x 4-Pin + 4-Pin ATX 12V connectors

4 x 8 / 6-Pin PCIe connectors

6 x SATA connectors

3 x 4-Pin Peripheral connector

Cooling System

Silent 120mm fan

Noise Level

18 dBA minimum

Certification

80 PLUS Bronze

Form Factor

ATX (PS2)

Dimension

150mm (W) × 86mm (H) × 140mm (D)

5.91" (W) x 3.39" (H) x 5.5" (D)

Weight

1.52 kg

Other

GPU Support list
