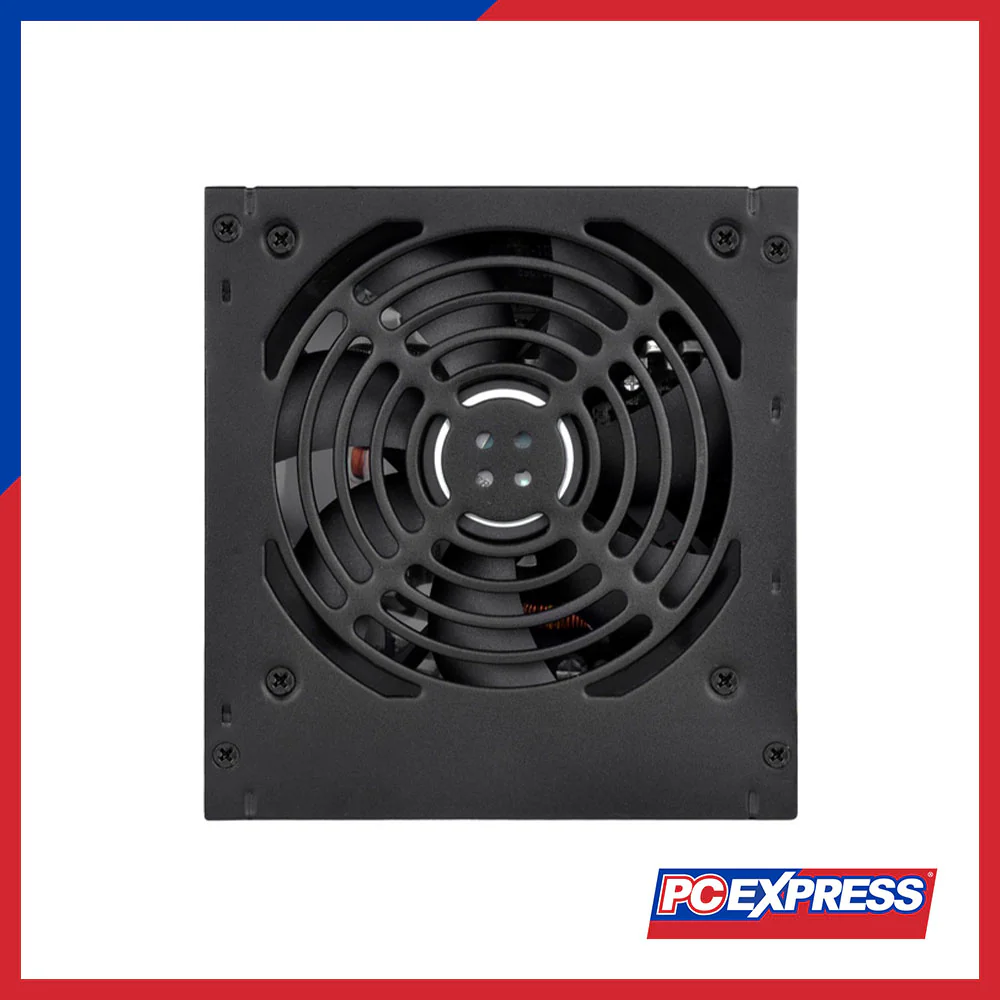

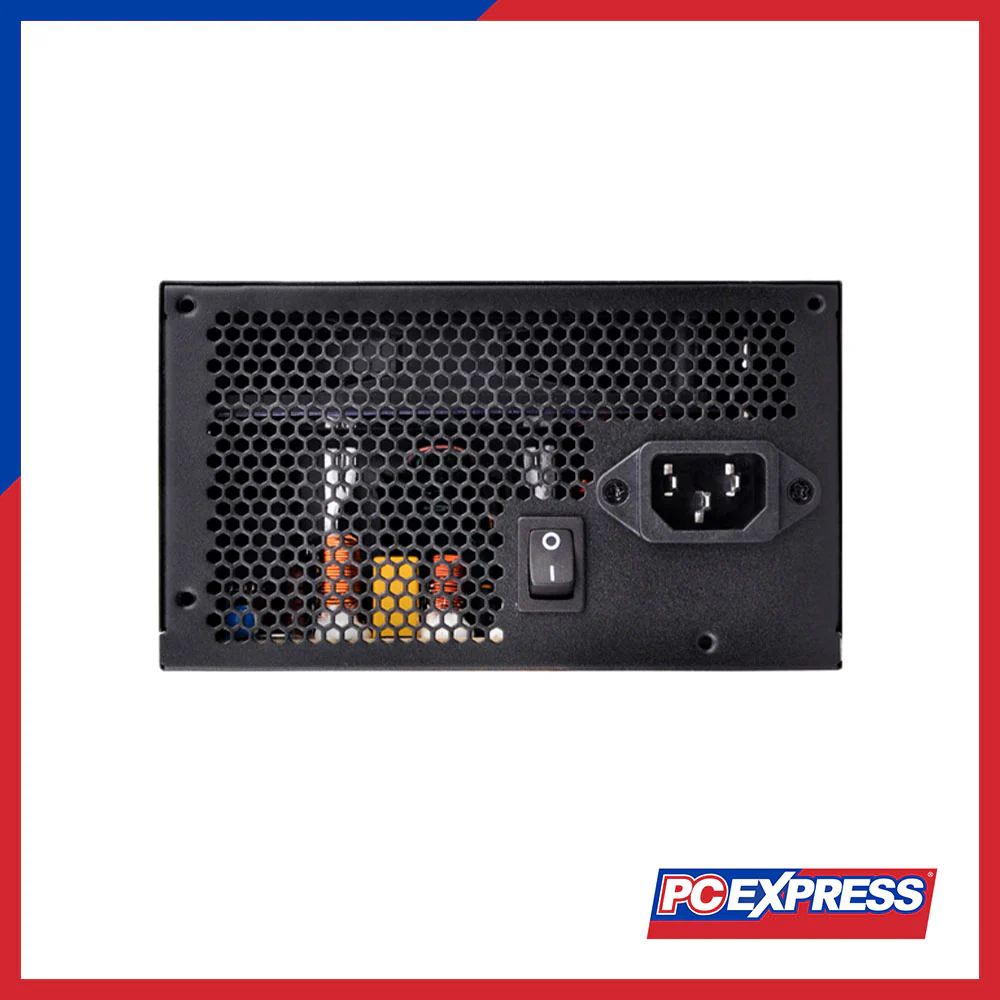

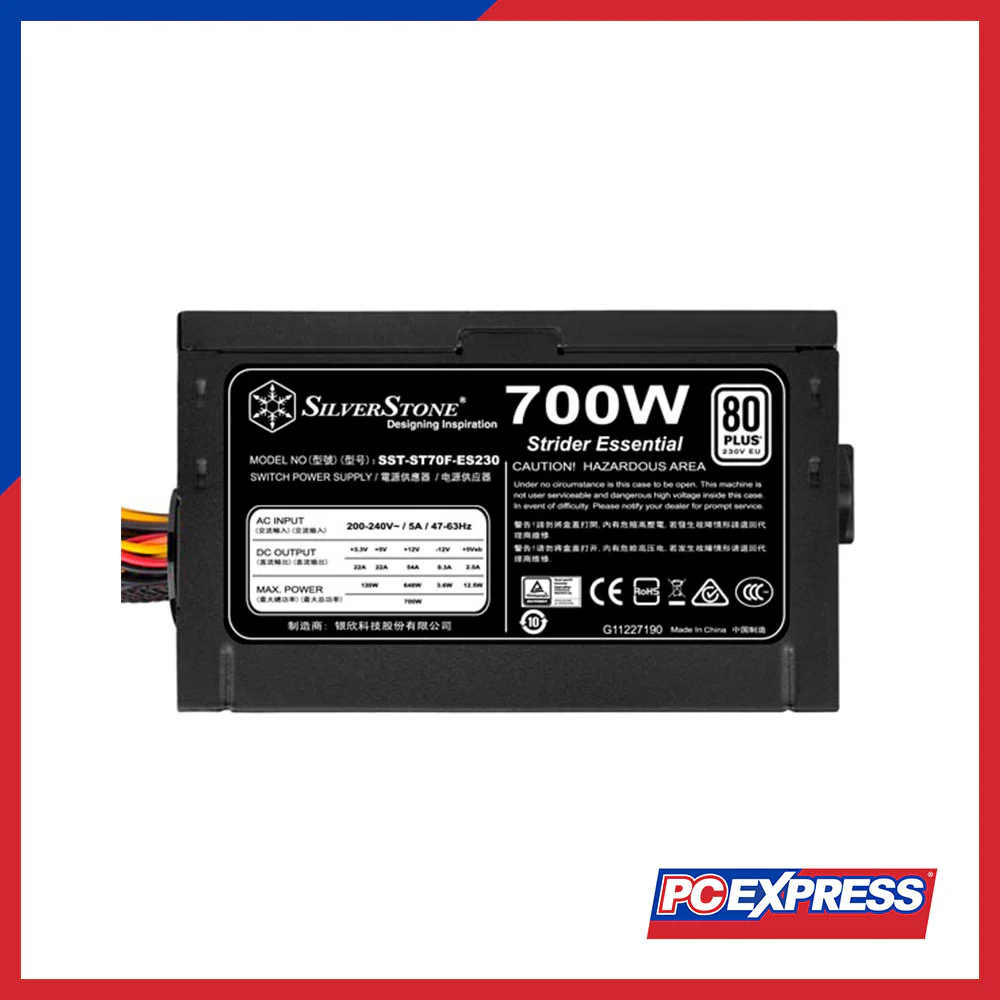

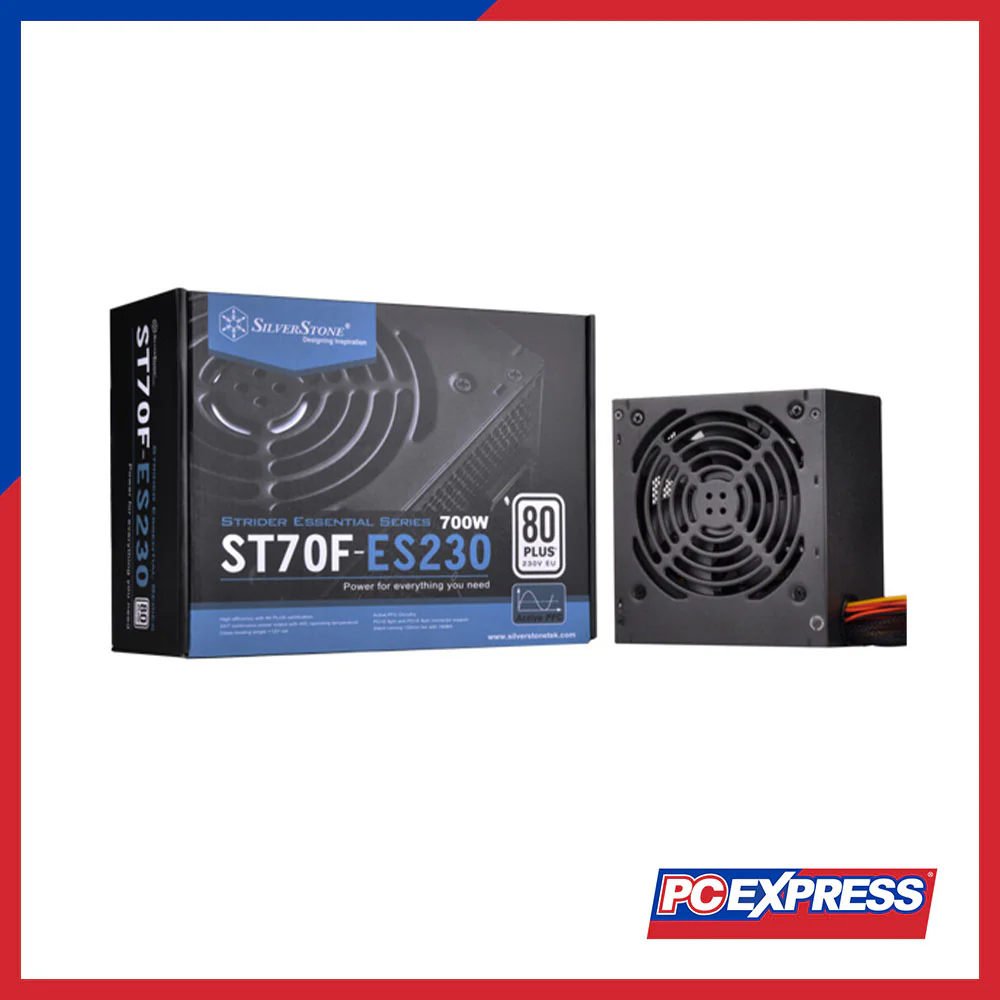

SILVERSTONE SST-ST70F-ES230 700W 80+ True Rated Power Supply

Product No.

SST-ST70F-ES230 (80 PLUS)

Color

Black (Lead-Free Paint)

Max. DC Output

700W

Power density

388W per liter

Load Range

+3.3V, +5V, +12V, +5VSB, -12V

Max. Amps

22A, 22A, 54A, 2.5A, 0.3A

Peak Amps

N/A

Min. Amps

0A, 0A, 0A, 0A, 0A

Range (%)

±5% for +3.3V, +5V; ±5% for +12V; ±5% for +5VSB; ±10% for -12V

Line Reg. (%)

±1% for all outputs

Ripple (mVp-p)

50mV for +3.3V, +5V; 120mV for +12V, +5VSB; 120mV for -12V

Combined +3.3V & +5V

130W

Combined +12V

648W

Input Voltage

180V~264V

Input Frequency Range

47Hz~63Hz

PFC

Active PFC (PF > 0.9 at full load)

Efficiency

82% ~ 85% at 20% ~ 100% loading

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over power protection, Over voltage protection, Short circuit protection

Connectors

See detailed list in the description

Cooling System

Single 120mm silent fan

Noise Level

18 dBA minimum

Certification

80 PLUS

Form factor

ATX

Dimension

150mm (W) x 86mm (H) x 140mm (D)

Weight

1.43 kg

Other

GPU Support list
