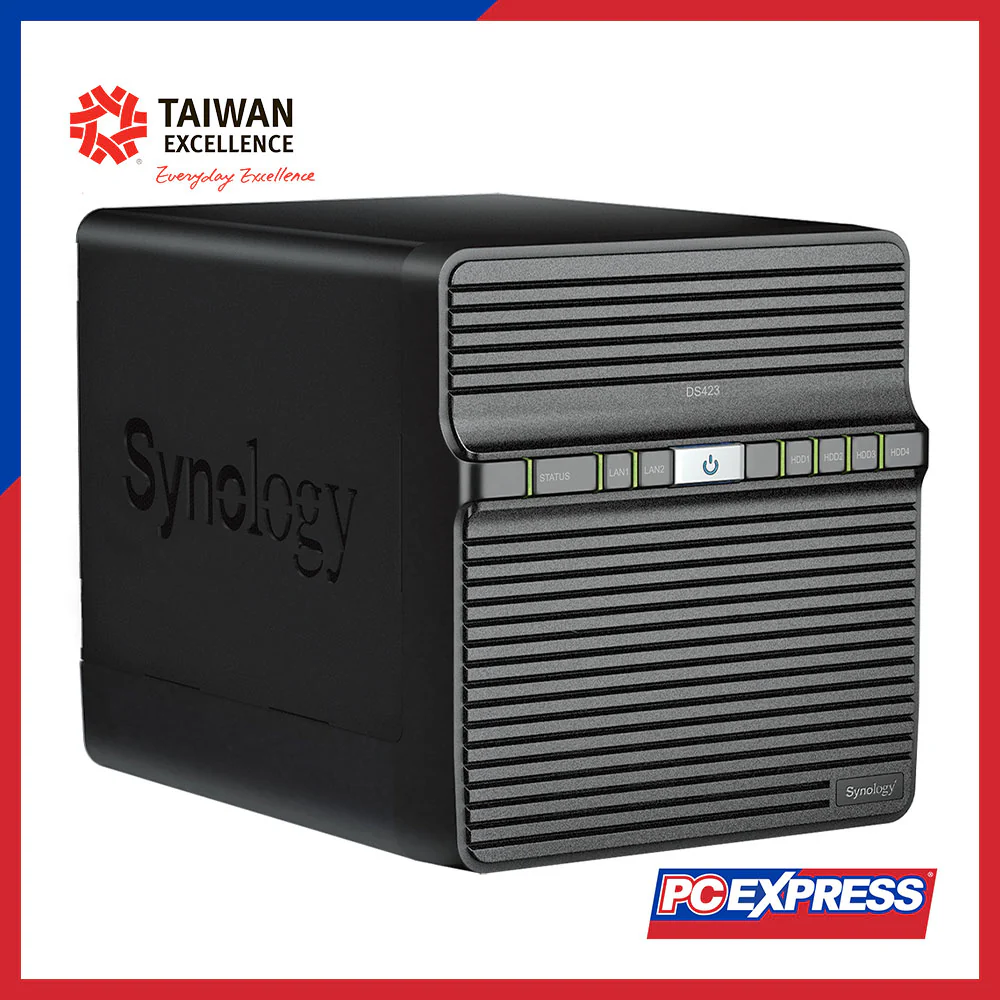

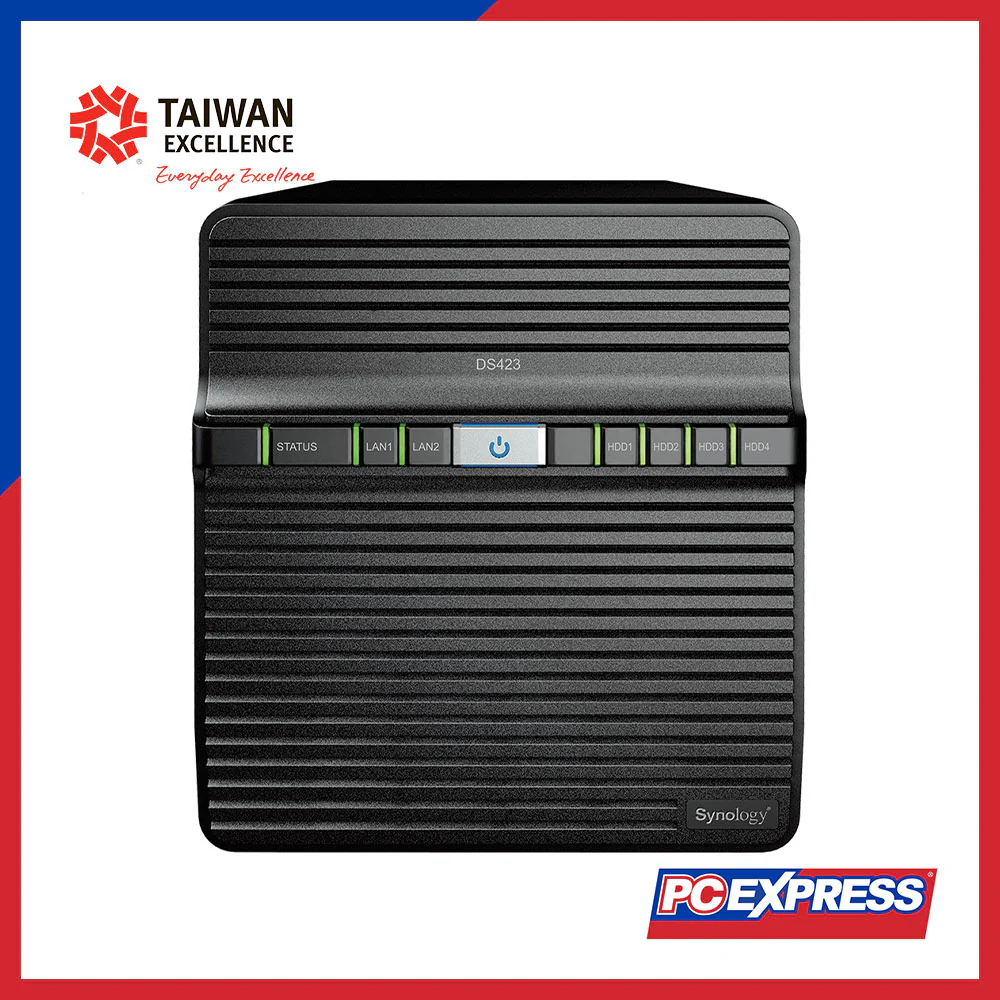

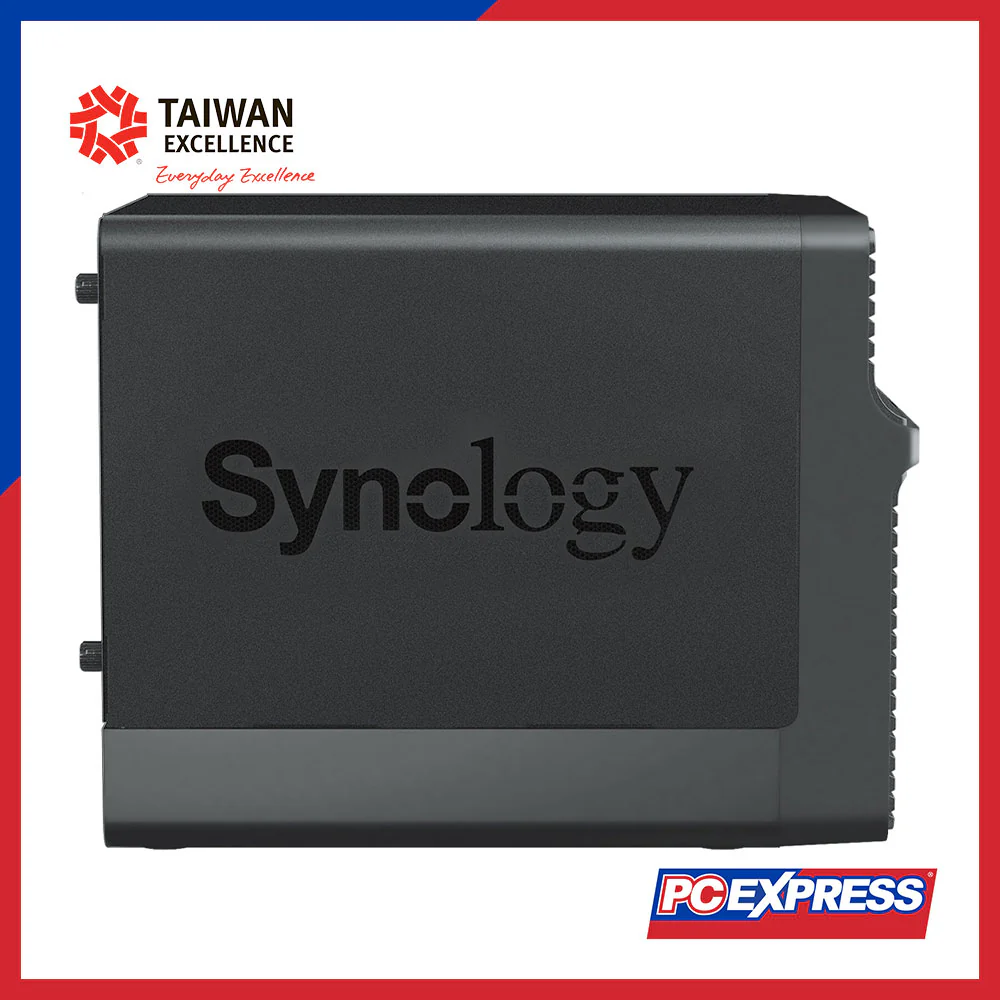

SYNOLOGY 4-Bay DiskStation DS423

CPU

CPU Model

Realtek RTD1619B

CPU Quantity

1

CPU Core

4

CPU Architecture

64-bit

CPU Frequency

1.7 GHz

Hardware Encryption

Not specified

Memory

System Memory

2 GB DDR4 non-ECC

Memory Notes

Synology may replace memory modules with same or higher frequency for compatibility

Storage

Drive Bays

4

Drive Type

3.5" SATA HDD, 2.5" SATA SSD

Hot Swappable Drive

Yes*

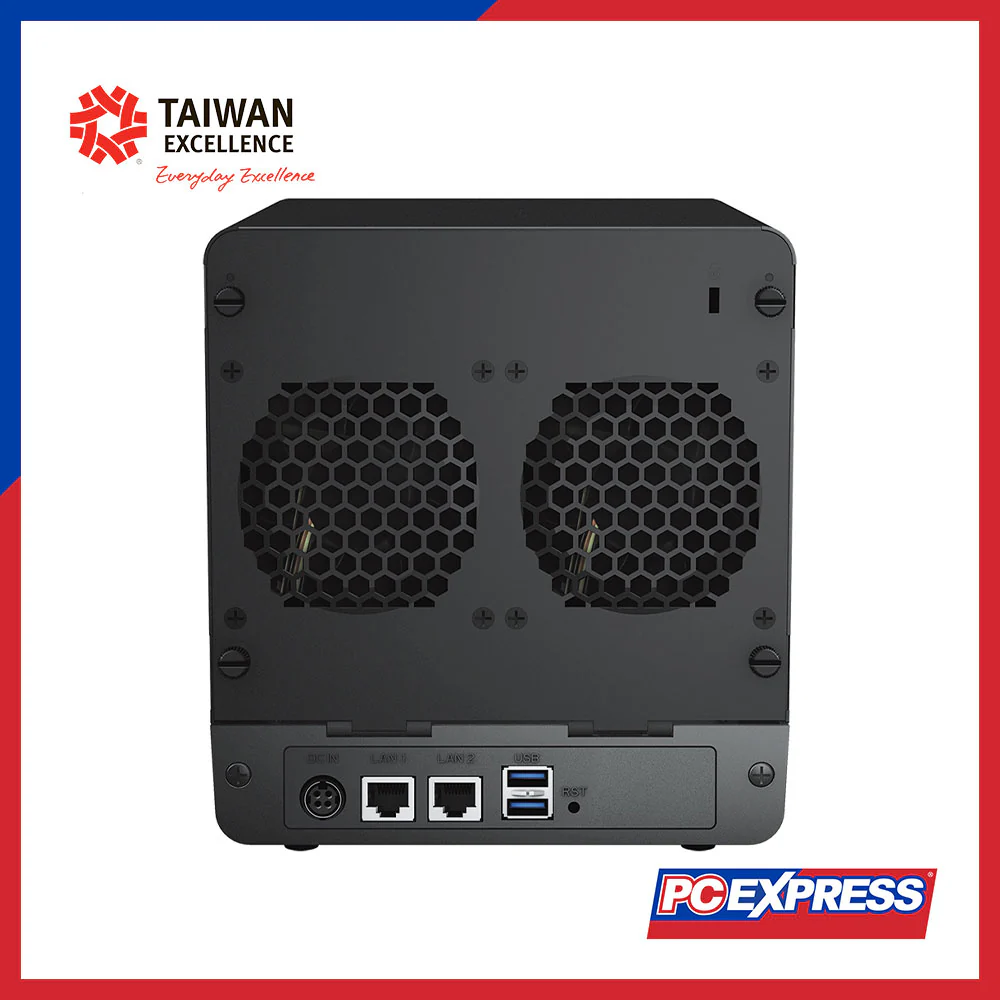

External Ports

RJ-45 1GbE LAN Ports

2 (MTU size: 1,500 bytes)

USB 3.2 Gen 1 Ports

2

Appearance

Dimensions (HxWxD)

184 mm x 168 mm x 230 mm

Weight

2.21 kg

Others

System Fans

2 × 80 mm x 80 mm

Fan Speed Modes

Full-Speed Mode, Cool Mode, Quiet Mode

LED Indicators

Brightness adjustable

Power Recovery

Yes

Noise Level

20.6 dB(A)

Scheduled Power On/Off

Yes

Wake on LAN/WAN

Yes

Power Adapter

90 watts

AC Input Voltage

100V – 240V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption

32.41 W (Access), 4.97 W (HDD Hibernation)

BTU

110.52 BTU/hr (Access), 16.95 BTU/hr (HDD Hibernation)

Temperature & Humidity

Operating Temp.

0°C to 40°C (32°F to 104°F)

Storage Temp.

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS

Warranty

2-year (extendable to 4 years with Extended Warranty Plus*)

Environment

RoHS Compliant

Packaging Content

Main Unit, Accessory Pack, AC Adapter, Power Cord, 2x RJ-45 LAN Cables, QIG

Optional Accessories

HAT5300 (Enterprise HDD), HAT3300 (Plus HDD), SAT5200 (Enterprise SSD)
