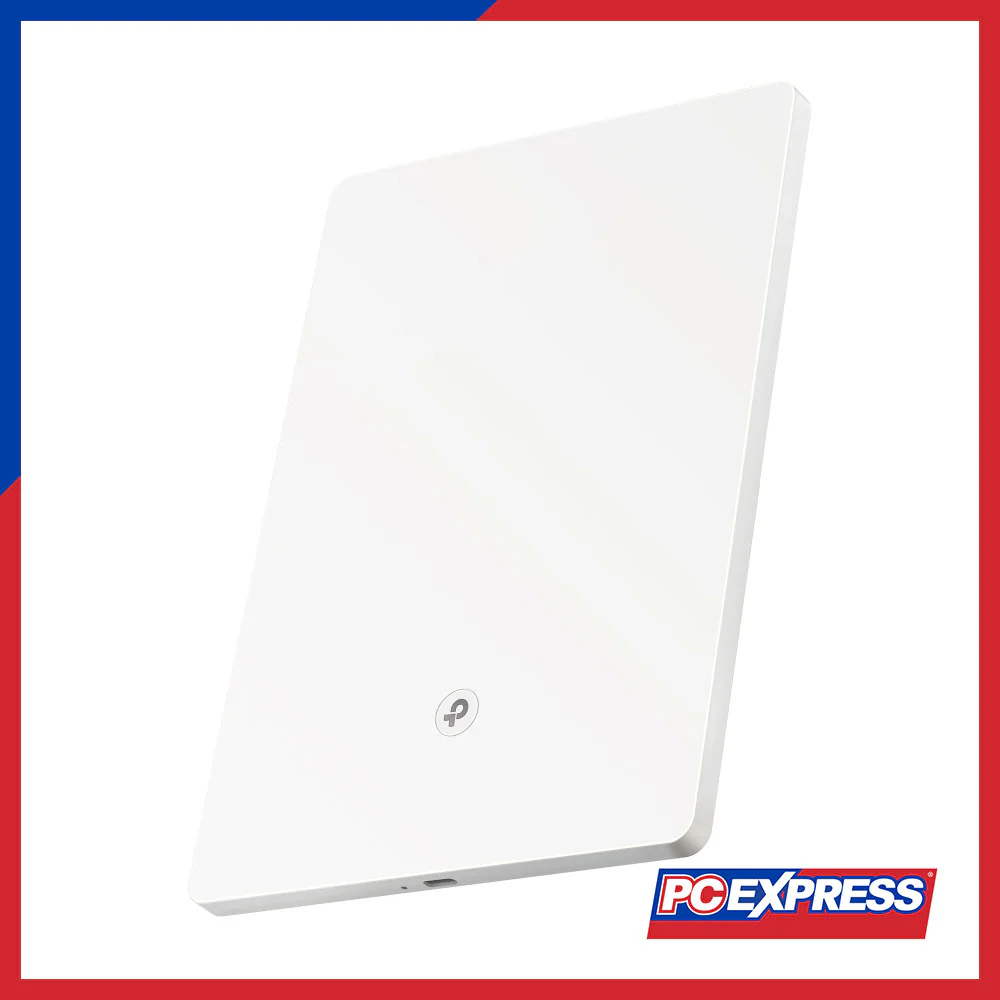

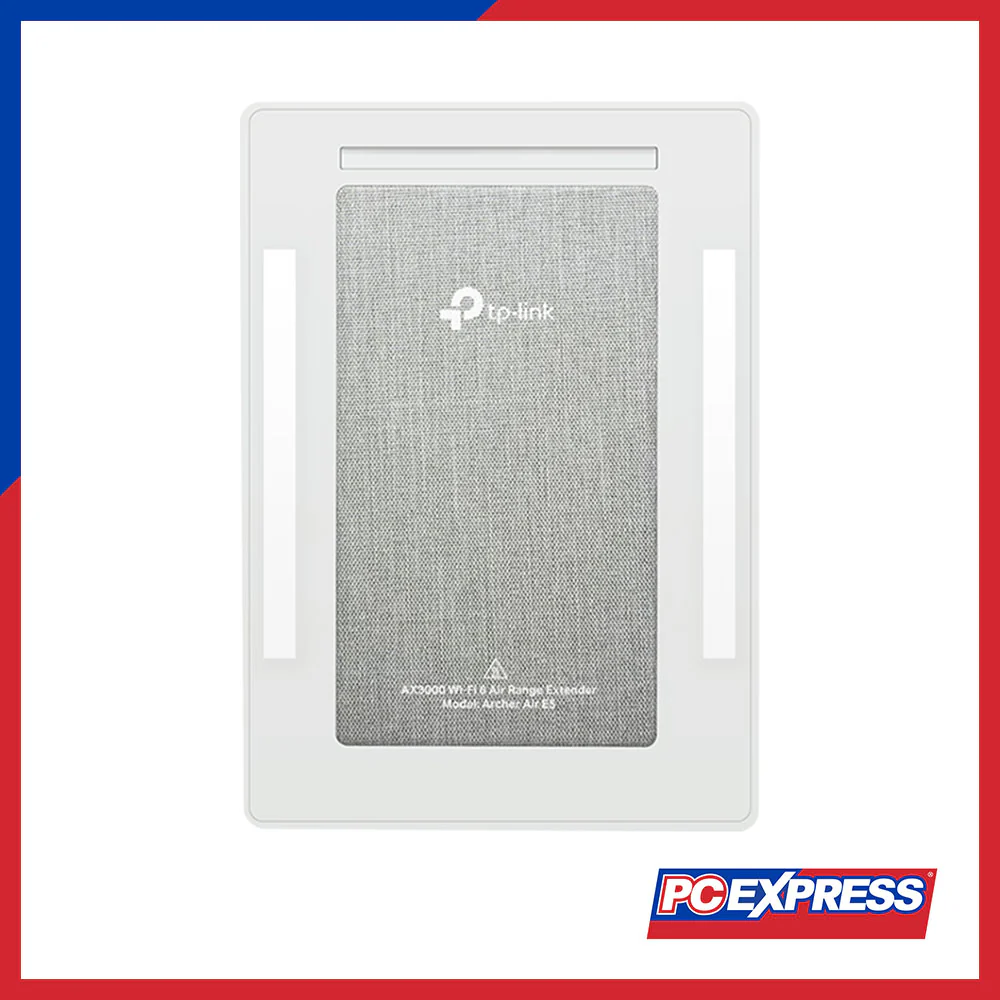

TP-LINK Archer Air E5 AX3000 Dual-Band Wi-Fi 6 Air Range Extender

HARDWARE FEATURES

Ports

-

Button

LED and WPS 2-in-1 Button

Input Power

100-240V~50/60Hz

Power Consumption

17 W

Antenna

Internal Antennas

WIRELESS FEATURES

Wireless Standards

- IEEE 802.11a/n/ac/ax 5 GHz

- IEEE 802.11b/g/n/ax 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

- 574 Mbps at 2.4 GHz

- 2402 Mbps at 5 GHz

Working Modes

Range Extender

Reception Sensitivity

- 5GHz:

- 11ax HE20 MCS0: -97 dBm, HE20 MCS11: -66 dBm

- 11ax HE40 MCS0: -94 dBm, HE40 MCS11: -63 dBm

- 11ax HE80 MCS0: -91 dBm, HE80 MCS11: -60 dBm

- 11ax HE160 MCS0: -88 dBm, HE160 MCS11: -58 dBm

- 2.4GHz:

- 11ax HE20 MCS0: -95 dBm, HE20 MCS11: -65 dBm

- 11ax HE40 MCS0: -93 dBm, HE40 MCS11: -62 dBm

Wireless Functions

- Smart Antennas

- Enable/Disable Wireless Radio

- Access Control

- LED Control

- Power Schedule

- Wi-Fi Coverage Adjustment

Wireless Security

- WPA3

- WPA2-PSK

- WPA

Transmission Power

- CE:

- <20 dBm (2.4 GHz)

- <23 dBm (5.15 GHz~5.25 GHz)

- FCC:

- <30 dBm (2.4 GHz & 5.15 GHz~5.825 GHz)

Mesh Technology

EasyMesh-Compatible

OTHERS

Certification

FCC, RoHS

Package Contents

- Wi-Fi Range Extender Archer Air E5

- Quick Installation Guide

- Power Adapter

- Plastic Bracket

- Level

- Installation Accessories

System Requirements

- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux

- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Environment

- Operating Temperature: 0℃~40℃ (32℉ ~104℉)

- Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 5%~90% non-condensing
