TP-LINK Archer C54 AC1200 Dual-Band WI-FI Router

Network Security

- SPI Firewall

- Access Control

- IP & MAC Binding

- Application Layer Gateway

Guest Network

- 1× 5 GHz Guest Network

- 1× 2.4 GHz Guest Network

WiFi Encryption

- WEP

- WPA

- WPA2

- WPA/WPA2-Enterprise (802.1x)

WIRELESS

- Standards: Wi-Fi 5

- WiFi Speeds: AC1200

- 5 GHz: 867 Mbps (802.11ac)

- 2.4 GHz: 300 Mbps (802.11n)

WiFi Range

- Suitable for 3 Bedroom Houses

- 4× Fixed Antennas

- Beamforming: Concentrates wireless signal

strength towards clients to expand WiFi range

- WiFi Capacity: Medium

- Dual-Band: Allocates devices to different bands

for optimal performance

- MU-MIMO: Simultaneously communicates with multiple

MU-MIMO clients

Working Modes

- Router Mode

- Access Point Mode

- Range Extender Mode

HARDWARE

- Processor: Single-Core CPU

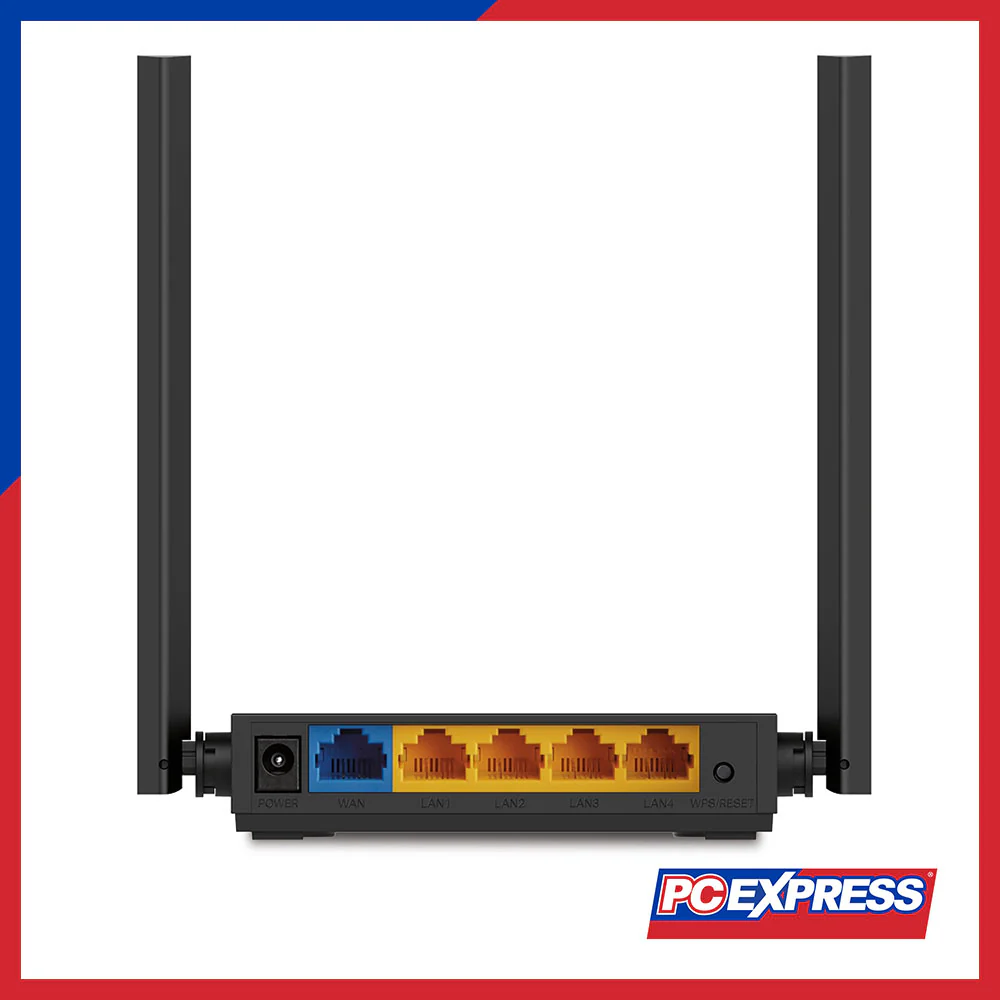

- Ethernet Ports: 1× 10/100 Mbps WAN Port

4× 10/100 Mbps LAN Ports

- Buttons: WPS/Reset Button

- Power: 9 V ⎓ 0.85 A

SOFTWARE

- Protocols: IPv4, IPv6

- Parental Controls: URL Filtering, Time Controls

- WAN Types: Dynamic IP, Static IP, PPPoE, PPTP,

L2TP

- Quality of Service (QoS) by Device

- NAT Forwarding, Port Forwarding, Port Triggering,

DMZ, UPnP

- IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN,

DHCP, Address Reservation, DHCP Client List, DDNS

- Management: Tether App, Webpage

OTHER

- System Requirements: Compatible browsers (e.g.,

Internet Explorer, Firefox, Chrome, Safari),

Cable or DSL Modem (if needed), Subscription

with an internet service provider (for internet

access)

- Certifications: FCC, CE, RoHS

- Environment: Operating Temperature: 0℃~40℃ (32℉

60℃ (-40℉ ~140℉)

Operating Humidity: 10%~90% non-condensing,

Storage Humidity: 5%~90% non-condensing

TEST DATA

- WiFi Transmission Power: CE EIRP: <20dBm(2.4GHz),

<23dBm(5GHz); FCC: <30dBm(2.4GHz & 5GHz)

- WiFi Reception Sensitivity: 5GHz and 2.4GHz

PHYSICAL

- Dimensions (W×D×H): 4.5 × 4.2 × 1.0 in (115 ×

106.7 × 24.3 mm)

Package Contents

- Wi-Fi Router Archer C54

- Power Adapter

- RJ45 Ethernet Cable

- Quick Installation Guide
