SPECIFICATION
|

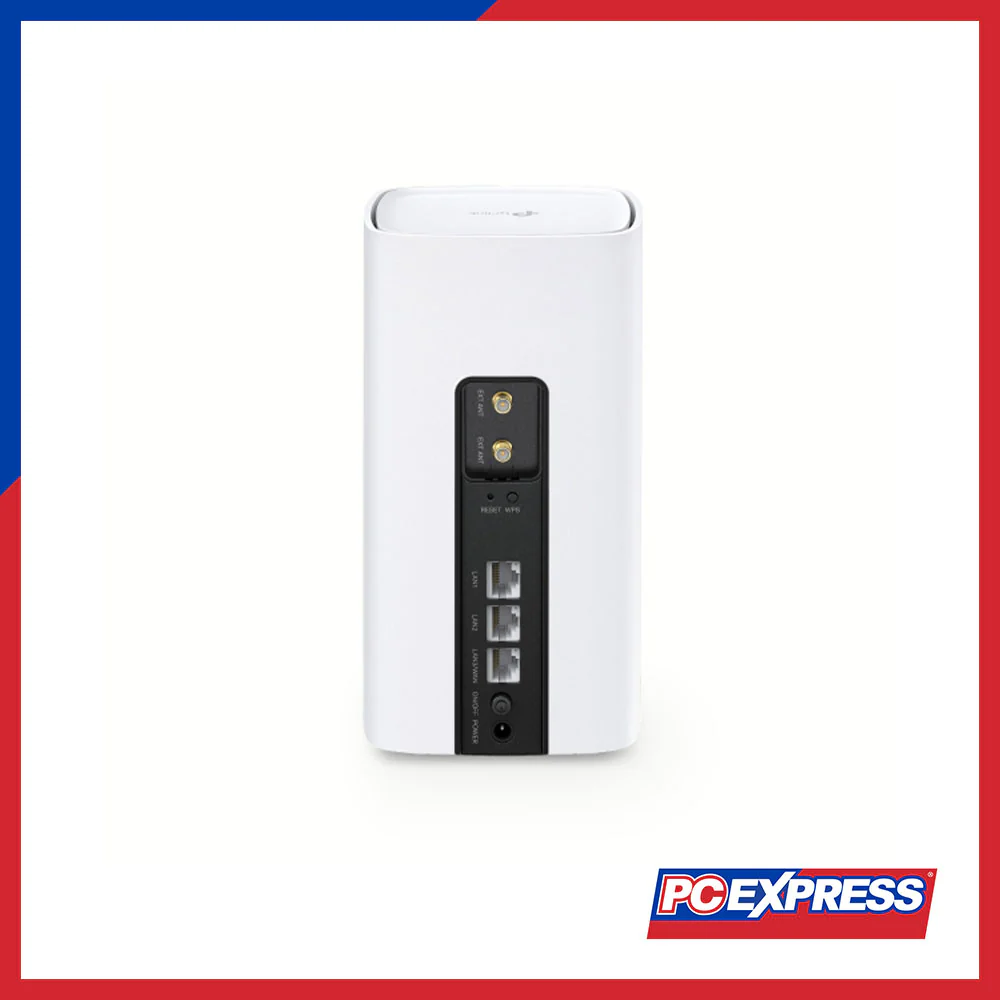

Interface |
1 × 10/100/1000 Mbps LAN/WAN Port |
|
2 × 10/100/1000 Mbps LAN Ports |
|
|
1 × Nano SIM Card Slot |
|
|
2 × External SMA-F Antenna Interface |
|
|
Button |
WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button |
|
External Power Supply |
Power Adapter: Input Power 100-240v~50/60 Hz 0.6A |
|
Output parameter 12VDC 2A |
|
|
Dimensions (W x D x H) |
3.9 × 3.9 × 7.5 in (99 × 99 × 190 mm) |
|
Antenna |
8 × 5G/LTE Internal Antennas |
|
2 × Wi-Fi Internal Antennas |
|
|
Wireless Standards |
IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz |
|
Frequency |
2.4 GHz and 5 GHz |
|
Signal Rate |
574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz |
|
Reception Sensitivity |
5GHz: |
|
11a 54M: -80 dBm |
|
|
11ax HE20: -68 dBm |
|
|
11ax HE40: -65 dBm |
|
|
11ax HE80: -62 dBm |
|
|
11ac VHT20: -76 dBm |
|
|
11ac VHT40: -72 dBm |
|
|
11ac VHT80: -68 dBm |
|
|
11n HT20: -79 dBm |
|
|
11n HT40: -75 dBm |
|
|
2.4GHz: |
|
|
11g 54M: -78 dBm |
|
|
11ax HE20: -65 dBm |
|
|
11ax HE40: -62 dBm |
|
|
11ac VHT20: -73 dBm |
|
|
11ac VHT40: -68 dBm |
|
|
11n HT20: -75 dBm |
|
|
11n HT40: -72 dBm |
|
|
Transmit Power |
<23dBm (5.15GHz~5.35GHz) |
|
<30dBm (5.47GHz~5.71GHz) |
|
|
<20dBm (2.4GHz) |
|
|
Wireless Functions |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
|
WAN Failover |
Yes |
|
Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
|
Network Type |
5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz) |
|
FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz) |
|
|
TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz) |
|
|
DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
|
|
Quality of Service |
Prioritizes network traffic by device or application |
|
Security |
DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control |
|
WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
|
Management |
TP-Link Cloud, Local Management, Remote Management |
|
DHCP |
Server, DHCP Client List, Address Reservation |
|
Port Forwarding |
ALG, Virtual Server, Port Triggering, UPnP, DMZ |
|
Dynamic DNS |
TP-Link, DynDns, NO-IP |
|
VPN |
|
