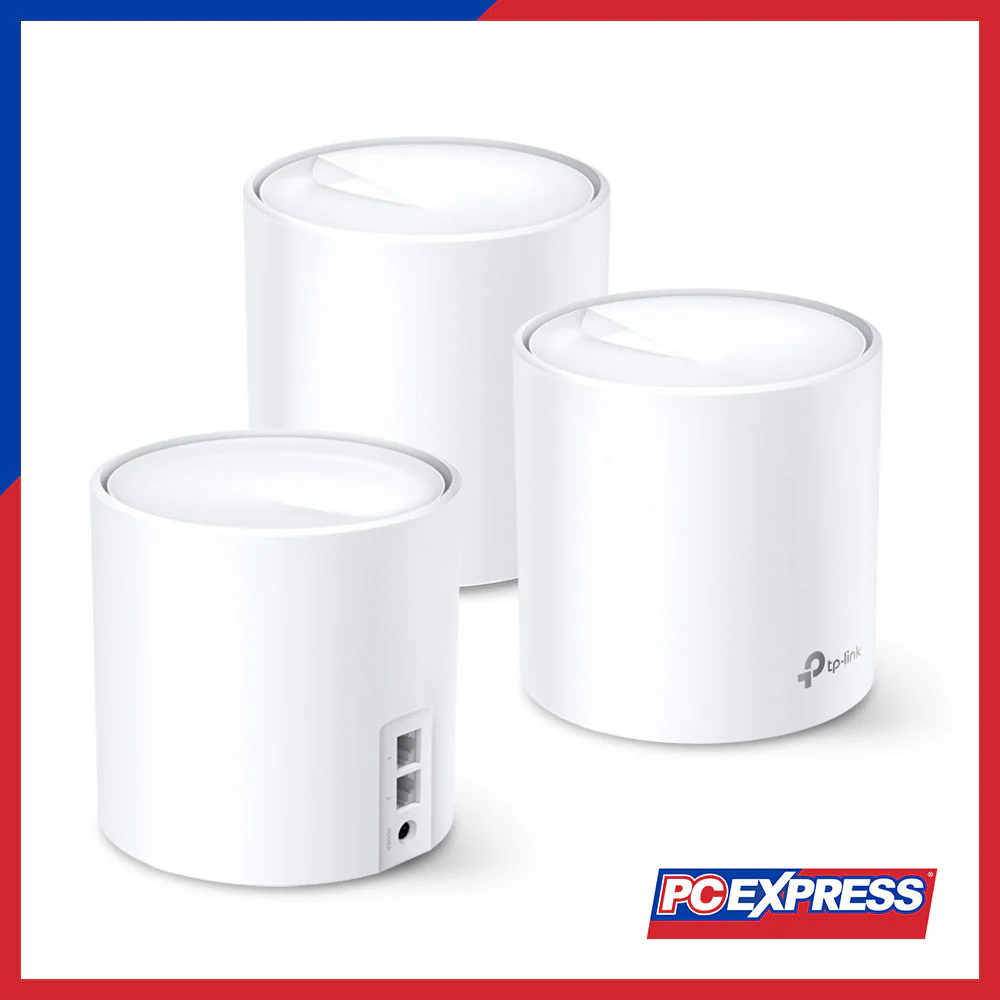

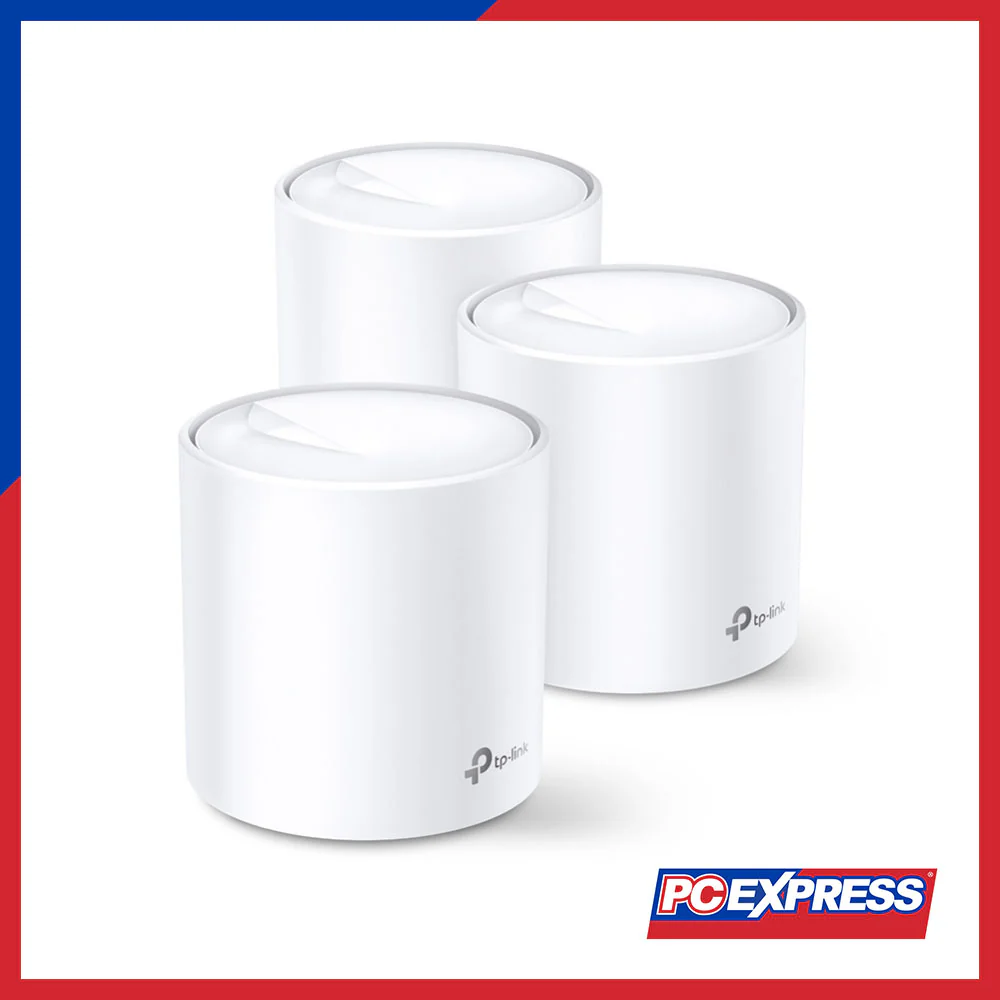

TP-LINK Deco X20 AX1800 Whole Home Mesh Wi-Fi 6 System

WIRELESS

Standards

- Wi-Fi 6

- IEEE 802.11ax/ac/n/a 5 GHz

- IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

- AX1800

- 5 GHz: 1201 Mbps (802.11ax)

- 2.4 GHz: 574 Mbps (802.11ax)

WiFi Range

- 4-6 Bedroom Houses (3-pack)

- TP-Link Mesh Technology

- Optional Ethernet backhaul works together to link Deco units

- 2× Antennas (Internal)

- Beamforming

WiFi Capacity

- High

- Dual-Band

- MU-MIMO

- OFDMA

- 4 Streams

Working Modes

- Router Mode

- Access Point Mode

SECURITY

Network Security

- SPI Firewall

- Access Control

- HomeCare™ Antivirus

- Malicious Site Checker

- Port Intrusion Prevention

- Infected Device Isolation

- Notification and Log

Guest Network

- 1× 5 GHz Guest Network

- 1× 2.4 GHz Guest Network

WiFi Encryption

- WPA-Personal

- WPA2-Personal

- WPA3-Personal

HARDWARE

Ethernet Ports

- 2× Gigabit Ports (Per Deco Unit)

Buttons

- Reset Button

SOFTWARE

Protocols

- IPv4

- IPv6

Service Kits

- HomeCare™

Parental Controls

- HomeCare™ Parental Controls

- Custom Profiles

- Content Filtering

- URL Filtering

- Time Limit

- Time Schedule (Bed Time)

- Log Insight

- Usage Monitor

- Monthly Reports

WAN Types

- Dynamic IP

- Static IP

- PPPoE

- PPTP

- L2TP

Quality of Service

- HomeCare™ QoS

- QoS by Device

- QoS by Application

Cloud Service

- OTA Firmware Upgrade

- TP-Link ID

- DDNS

NAT Forwarding

- Port Forwarding

- UPnP

IPTV

- IGMP Proxy

- IGMP Snooping

- Bridge

- Tag VLAN

DHCP

- Address Reservation

- DHCP Client List

- Server

DDNS

- TP-Link

Management

- Deco App

TEST DATA

WiFi Transmission Power

- CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)

- FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz)

PHYSICAL

Dimensions (W×D×H)

- 4.33 × 4.33 × 4.49 in (110 × 110 × 114 mm)

Package Contents

- Deco X20 (3-pack): 3 Deco X20 Units, 1 RJ45 Ethernet Cable, 3 Power Adapters, 1 Quick Installation Guide

- Deco X20 (2-pack): 2 Deco X20 Units, 1 RJ45 Ethernet Cable, 2 Power Adapters, 1 Quick Installation Guide

- Deco X20 (1-pack): 1 Deco X20 Unit, 1 RJ45 Ethernet Cable, 1 Power Adapter, 1 Quick Installation Guide

OTHERS

System Requirements

- Android 5.0 or later

- iOS 9.0 or later

*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.

Certifications

- CE, FCC, IC, RoHS, RCM, JPA, JRF, VCCI

Environment

Operating Temperature

- 0℃~40℃ (32℉ ~104℉)

Storage Temperature

- -40℃~70℃ (-40℉ ~158℉)

Operating Humidity

- 10%~90% non-condensing

Storage Humidity

- 5%~90% non-condensing
