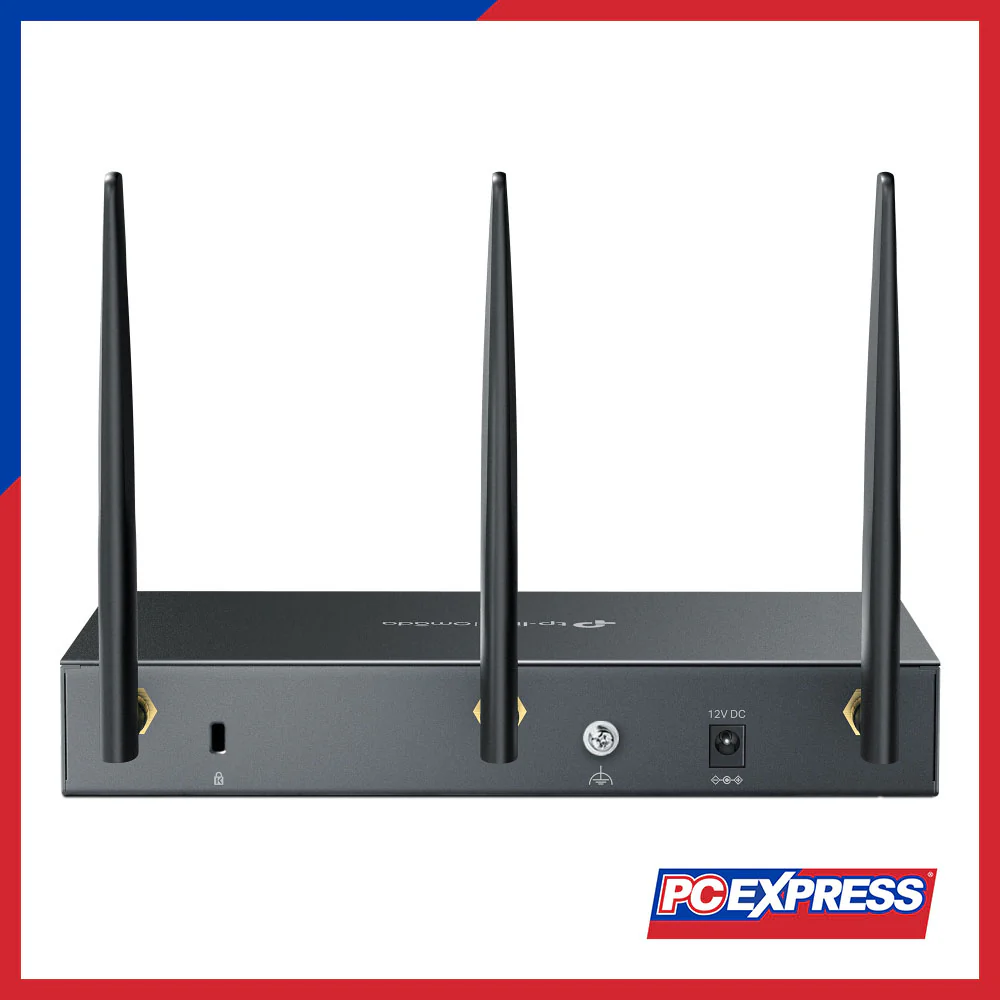

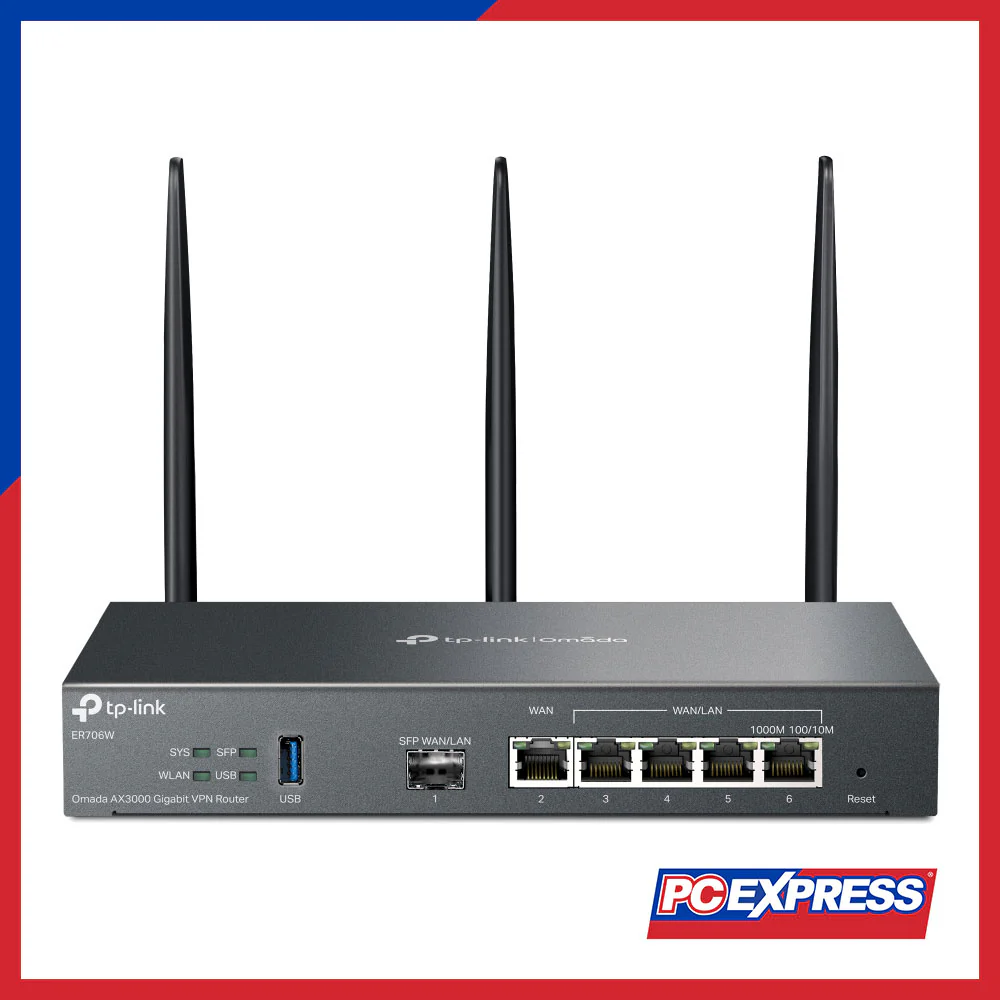

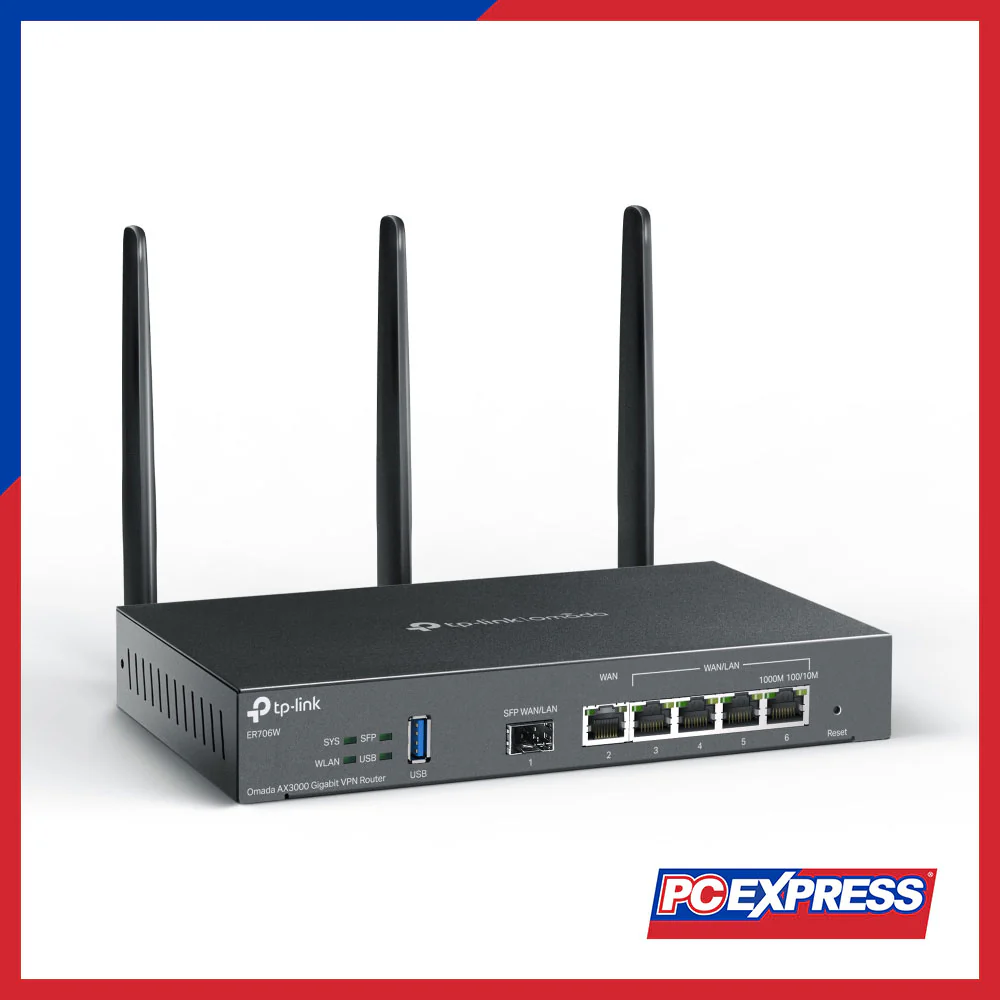

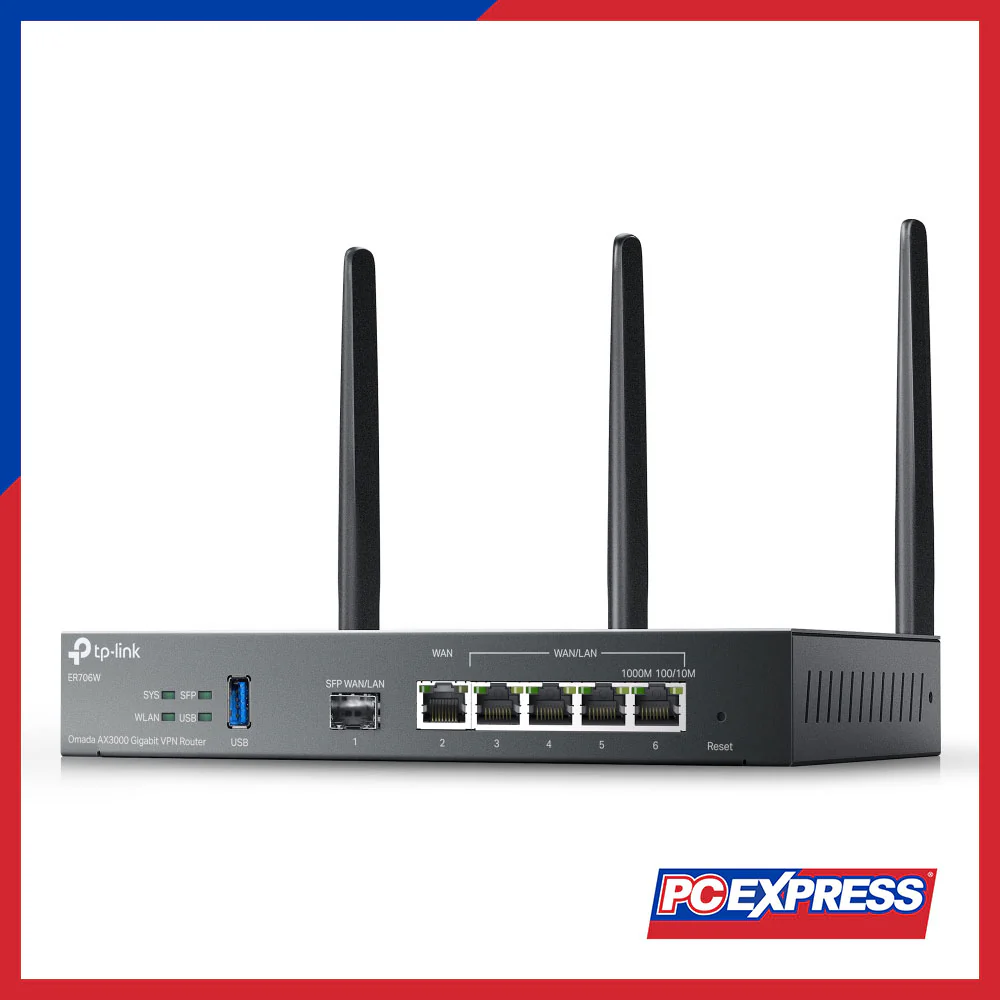

TP-LINK ER706W Omada AX3000 Gigabit VPN Router

Security – Access Control

Source/Destination IP‑Based Access Control

Security – Filtering

• Web Group Filtering†
• URL Filtering
• Web Security†

Security – ARP Inspection

• Sending GARP Packets
• ARP Scanning†
• IP‑MAC Binding

Security – Attack Defense

• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

Hardware – Interface

• 1 × Gigabit SFP WAN/LAN Port
• 1 × Gigabit WAN Port
• 4 × Gigabit LAN/WAN Ports
• 1 × USB 3.0 Port (USB LTE dongle & storage)

Hardware – Button

Reset Button

Hardware – Power Supply

12 V DC / 2 A Power Adapter

Hardware – Wi‑Fi Frequency & Rate

• 2.4 GHz: 574 Mbps
• 5 GHz: 2,402 Mbps (HE160)

Hardware – Flash & DRAM

128 MB NAND Flash; 512 MB DDR4

Hardware – Dimensions

8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (antenna excluded)

Hardware – Antenna

• 2.4 GHz: 2 × 3 dBi detachable dual‑band
• 5 GHz: 3 × 4.5 dBi detachable dual‑band

Hardware – Mounting

Desktop or wall mounting

Hardware – Power Consumption

• EU: 16.8 W (USB 3.0 connected), 11.8 W (without)
• US: 22.7 W (USB 3.0 connected), 18.2 W (without)

Performance – GRE VPN

• Unencrypted: 624.2 Mbps
• Encrypted: 301.5 Mbps

Performance – WireGuard VPN

393.5 Mbps

Performance – Sessions

Concurrent: 150,000
New/sec: 5,100

Performance – NAT Throughput

• Static IP: 937.2 / 936.1 Mbps
• DHCP: 945.8 / 940.6 Mbps
• PPPoE: 942.9 / 942.9 Mbps
• L2TP: 837.4 / 881.5 Mbps
• PPTP: 803.0 / 910.5 Mbps

Performance – IPsec VPN

• ESP‑SHA1‑AES256: 646.9 Mbps
• ESP‑SHA256‑AES256: 642.8 Mbps
• ESP‑SHA384‑AES256: 648.9 Mbps
• ESP‑SHA512‑AES256: 658.4 Mbps

Performance – OpenVPN

129.3 Mbps

Performance – L2TP VPN

• Unencrypted: 1,034.0 Mbps
• Encrypted: 570.0 Mbps

Performance – PPTP VPN

• Unencrypted: 1,165.0 Mbps
• Encrypted: 209.0 Mbps

Performance – SSL VPN

126.7 Mbps

Performance – Packet Rates

• 66 B: 1,453,489 pps / 1,453,488 pps
• 1,518 B: 81,274 pps / 91,275 pps

Wireless – Advanced Features

• Seamless Roaming
• Mesh (with compatible EAP)
• OFDMA
• Beamforming
• MU‑MIMO
• WPA/WPA2/WPA3 Personal & Enterprise

Wireless – Guest Network

Supported

Basic – WAN Connection

Static / Dynamic IP; PPPoE (MRU configurable); PPTP; L2TP

Basic – MAC Clone

Modify WAN address

Basic – DHCP

DHCP Server; DHCPv6 PD (standalone); Options customization; Address reservation; Multi‑IP & Multi‑Net DHCP

Basic – IPv6

Static IP; SLAAC; DHCPv6; PPPoE; 6in4 Tunnel; Pass‑Through; Non‑Address mode

Basic – VLAN & IPTV

802.1Q VLAN; IGMP v2/v3 proxy, custom, bridge modes

Advanced – Access Control

IP/Port/Protocol/Domain‑name filtering

Advanced – Routing

Static & Policy routing; RIP†; OSPF†

Advanced – Bandwidth Control

IP‑based control

Advanced – Load Balance

Intelligent load balance; App‑optimized routing; Link backup (timing, failover); Online detection

Advanced – NAT & ALG

One‑to‑one NAT; Multi‑Net NAT; Port forwarding; Port triggering†; NAT‑DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP

Advanced – Session Limit

IP‑based session limit

VPN – SD‑WAN

√ (controller mode only)

VPN – SSL

Up to 50 tunnels

VPN – IPsec

100 tunnels; LAN‑to‑LAN & client‑to‑LAN; DES/3DES/AES128/192/256; IKE v1/v2; SHA1/SHA2‑384/512; NAT‑T; DPD; PFS

VPN – PPTP

Server; 10 clients△; 50 tunnels; MPPE encryption

VPN – L2TP

Server; 10 clients△; 50 tunnels; L2TP over IPsec

VPN – OpenVPN

Server; 5 clients△; 55 tunnels; Certificate + Account & Full modes

VPN – WireGuard

20 tunnels

Authentication – Web

None; Simple password§; Hotspot (Local/Voucher§/SMS§/RADIUS§); External RADIUS; External portal§; LDAP

Management – Omada App

Yes

Management – Centralized

Omada Cloud‑Based, Hardware (OC300/OC200), or Software Controller

Management – Cloud Access

Yes

Service

Dynamic DNS (DynDNS, No‑IP, Peanuthull, Comexe, custom)

Maintenance & Tools

Web UI; Remote management; Export/import config; SNMP v1/v2c/v3; Diagnostics (Ping & traceroute†); NTP sync†; Port mirroring; CLI (standalone); Syslog; Auto discovery; Network monitoring; Event warnings; Unified config; Reboot schedule; Captive portal config; ZTP

Others

Certification: CE, FCC, RoHS
Package: ER706W; Power adapter; Quick guide
Requirements: Windows 98SE–11, macOS, NetWare, UNIX, Linux
Environment: Operating 0–40 ℃ (32–104 ℉); Storage –40–70 ℃ (–40–158 ℉); Humidity 10–90 %/5–90 % RH non‑condensing
