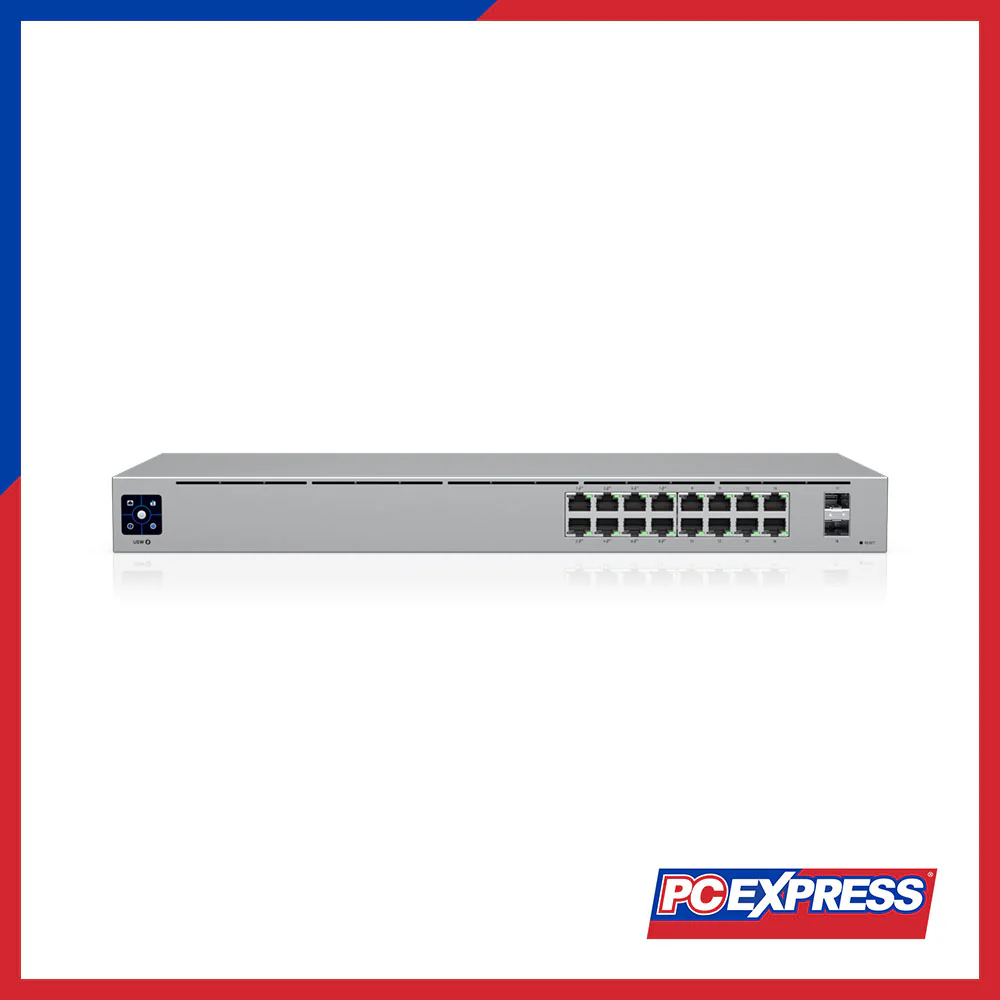

UBIQTUI USW-16-PoE Standard Switch

Mechanical

Dimensions

442 x 200 x 44 mm (17.4 x 7.9 x 1.7")

Weight

Without mounting brackets: 2.8 kg (6.2 lb)
With mounting brackets: 2.9 kg (6.4 lb)

Enclosure Material

SGCC steel

Hardware

Management Interface

Ethernet In-Band

Networking Interface

(16) GbE RJ45 ports
(2) 1G SFP ports

PoE Interface

(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total Non-blocking Throughput

18 Gbps

Switching Capacity

36 Gbps

Forwarding Rate

26.78 Mpps

Power Method

Universal input, 100–240V AC, 50/60 Hz

Power Supply

AC/DC, internal, 60W

Supported Voltage Range

100–240V AC

Max. Power Consumption

18W (Excluding PoE output)

Total Available PoE

42W

Max. PoE Wattage per Port

PoE+: 32W

Voltage Range PoE Mode

PoE: 44–57V
PoE+: 50–57V

ESD/EMP Protection

Air: ± 16kV, contact: ± 12kV

LCM Display

(1) 1.3" touchscreen

Button

Factory reset

Shock and Vibration

ETSI300-019-1.4 Standard

Environmental

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity

10 to 90% noncondensing

Certifications

CE, FCC, IC

Switching Features

Layer 2 Features

IGMP snooping, STP/RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast/broadcast rate limiting, MAC address blocking, Flow control, 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping/guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs

Layer 3 Features

–

LED Indicators

System

Status

Ethernet

PoE
Speed/link/activity

SFP

Link/activity

Application Requirements

UniFi Network

Version 7.2.94 and later
