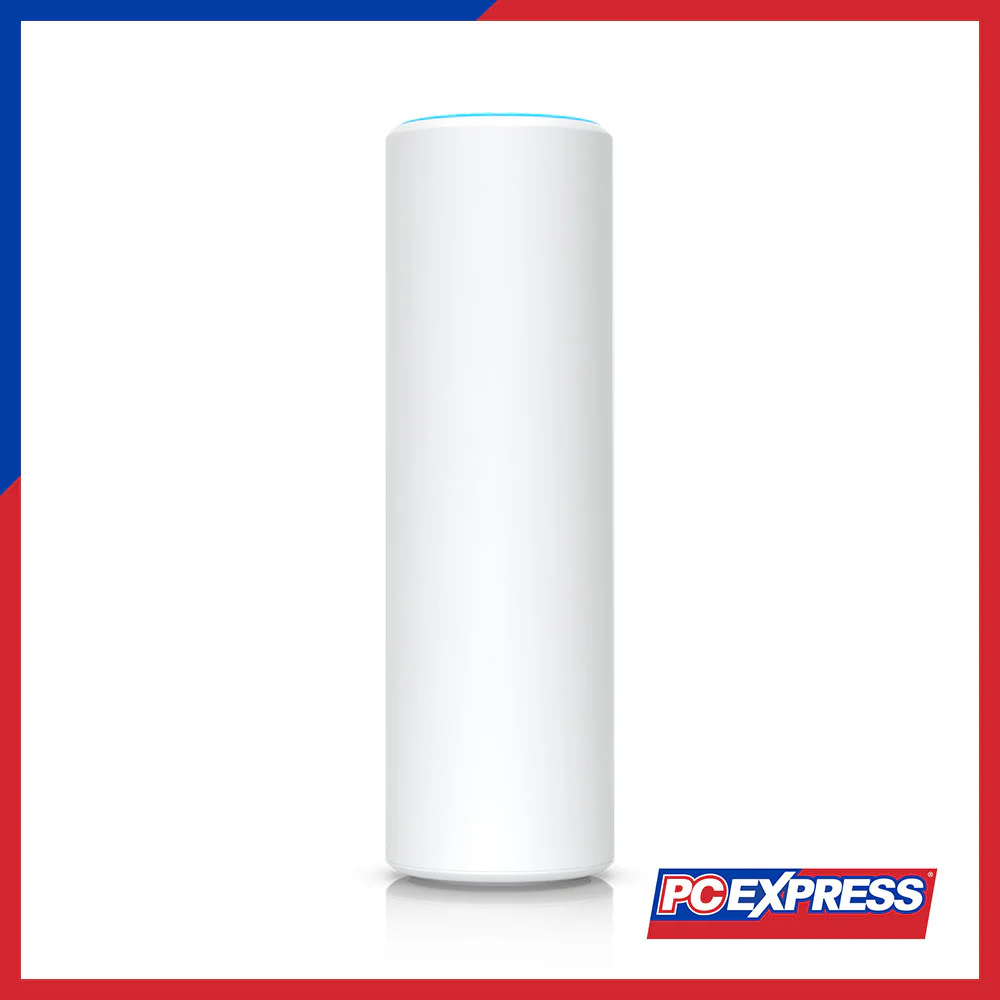

UBIQUITI U6-MESH Wifi Access Point

Mechanical

Dimensions

Ø48.5 x 159.5 mm (Ø1.9 x 6.3")

Weight

400 g (14.1 oz)

Enclosure Material

Polycarbonate, aluminum

Mount Material

Polycarbonate

Weatherproofing

IPX5

Hardware

Networking Interface

(1) GbE RJ45 port

Management Interface

Ethernet, Bluetooth

Power Method

PoE

Power Supply

UniFi PoE switch, 48V, 0.32A PoE adapter (Included)

Supported Voltage Range

44–57V DC

Max. Power Consumption

13W

Max. TX Power

2.4 GHz: 22 dBm
5 GHz: 26 dBm
6 GHz: –

MIMO

2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 4 x 4 (DL/UL MU-MIMO)
6 GHz: –

Max. Data Rate

2.4 GHz: 573.5 Mbps (BW40)
5 GHz: 4.8 Gbps (BW160)
6 GHz: –

Antenna Gain

2.4 GHz: 3 dBi
5 GHz: 5 dBi
6 GHz: –

LEDs

White/blue

Button

Factory reset

Mounting

Wall, desktop, pole (Included), Ceiling (Optional)

Ambient Operating Temp

-30 to 60°C (-22 to 140°F)

Ambient Humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Software

WiFi Standards

802.11a/b/g/n/ac/ax (WiFi 6)

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest Traffic Isolation

Supported

Concurrent Clients

300+

Zero Wait DFS

Yes*
*Supported with upcoming firmware versions

Supported Data Rates

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac: 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

Application Requirements

UniFi Network: Version 6.2.51 and later
