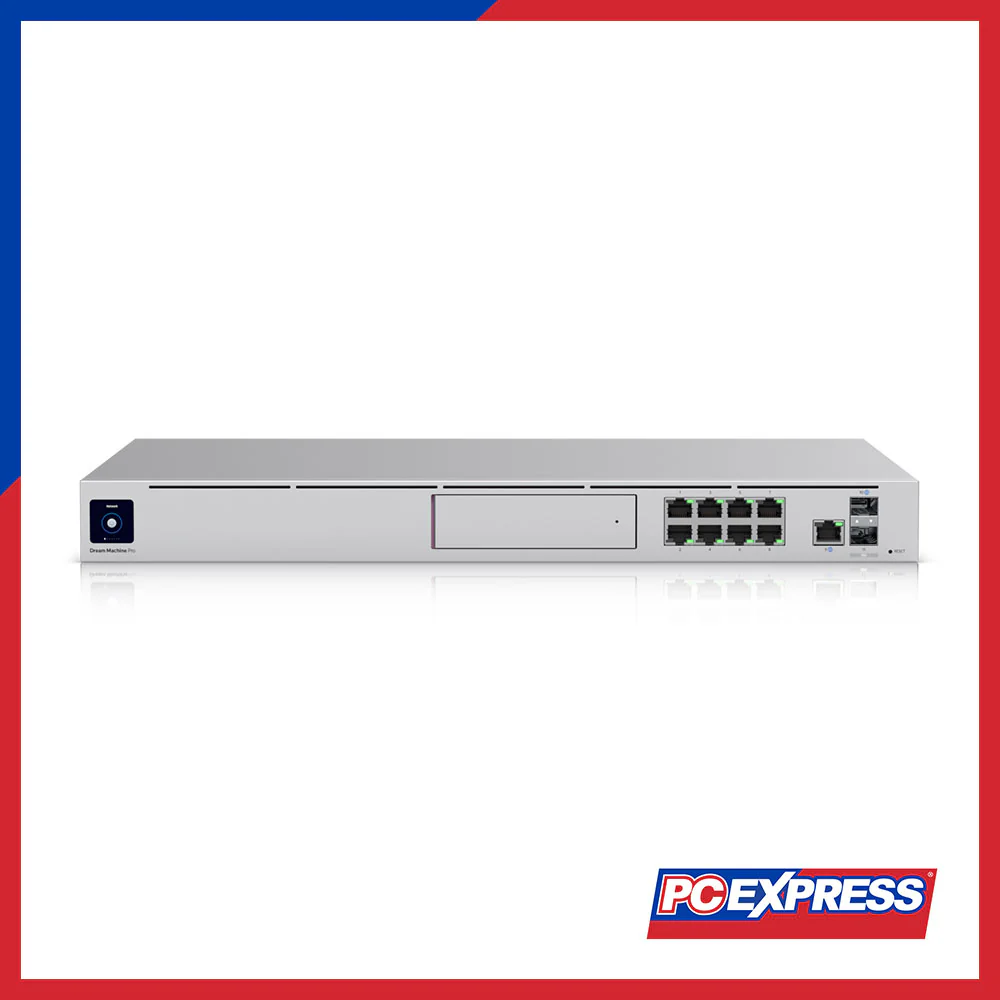

UBIQUITI UDM-PRO (Dream Machine Pro) Cloud Gateways

Mechanical

Dimensions

442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")

Weight

3.9 kg (8.6 lb)

Enclosure Material

Aluminium CNC, SGCC steel

Mount Material

SGCC steel

Hardware

Processor

Quad-core ARM® Cortex®-A57 at 1.7 GHz

System Memory

4 GB DDR4

On-board Storage

16 GB eMMC

Management Interface

Ethernet, Bluetooth

Networking Interface

LAN: (8) GbE RJ45 ports
(1) 10G SFP+ port
WAN: (1) GbE RJ45 port
(1) 10G SFP+ port

IDS/IPS Throughput

3.5 Gbps (measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation)

Power Method

AC Input: 100—240V AC, 50/60 Hz
DC Input: USP-RPS DC input

Power Supply

AC/DC, internal, 50W

Supported Voltage Range

100—240V AC

Max. Power Consumption

33W

ESD/EMP Protection

Air: ± 15kV, Contact: ± 8kV

LCM Display

(1) 1.3" touchscreen

Button

Factory reset

Ambient Operating Temp

-10° to 40° C (14° to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Gateway Features

Performance

Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification

Additional Internet Failover

LTE Backup
Internet quality and outage reporting

Security

Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall

Advanced Networking

License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support

LEDs

Ethernet

Link/activity: Green: 1G, Amber: 10/100M

SFP+

Link/activity: White: 10G, Green: 1G

HDD

White: disk activity
Amber: disk error

RPS

Blue: ready
