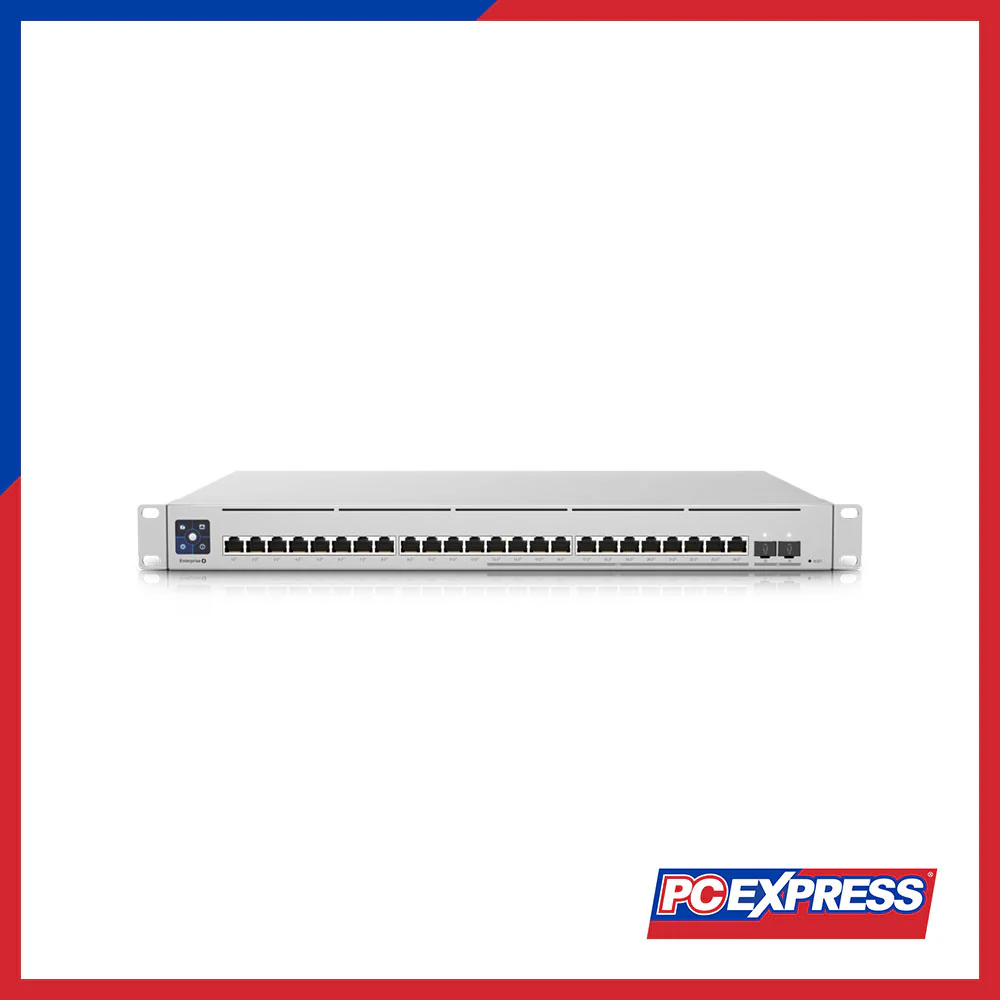

UBIQUITI USW-Enterprise-24-PoE Switch

Mechanical

Dimensions

442 x 325 x 44 mm (17.4 x 12.8 x 1.7")

Weight

Without mounting brackets: 5.1 kg (11.3 lb)
With mounting brackets: 5.2 kg (11.5 lb)

Enclosure Material

SGCC steel

Hardware

Management Interface

Ethernet In-Band

Networking Interface

(12) GbE RJ45 ports
(12) 2.5 GbE RJ45 ports
(2) 10G SFP+ ports

PoE Interface

(24) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total Non-blocking Throughput

62 Gbps

Switching Capacity

124 Gbps

Forwarding Rate

92.25 Mpps

Power Method

(1) Universal input: 100–240V AC, 8.5A Max., 50/60 Hz
(1) USP-RPS DC input: 52V DC, 7.7A; 11.5V DC, 8.7A

Power Supply

AC/DC, internal, 550W

Supported Voltage Range

100–240V AC

Max. Power Consumption

60W (Excluding PoE output)

Total Available PoE

400W

Max. PoE+ Wattage per Port by PSE

34.2W

Voltage Range PoE Mode

PoE: 44–57V
PoE+: 50–57V

Services

SMB Layer 3 PoE GbE switch

ESD/EMP Protection

Air: ± 16kV, contact: ± 12kV

LCM Display

(1) 1.3" color touchscreen

Button

Factory reset

Environmental

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity

10 to 95% noncondensing

Certifications

CE, FCC, IC

Switching Features

Layer 2 Features

IGMP snooping, STP/RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast/broadcast rate limiting, MAC address blocking, Flow control, 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping/guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs

Layer 3 Features

DHCP for locally-managed networks, DHCP relay, Inter-VLAN routing between networks on same switch, Static routing between local networks, Network isolation with ACLs

LED Indicators

System

Status

Ethernet

Link/activity

SFP+

Link/activity

Application Requirements

UniFi Network

Version 5.14.12 and later
