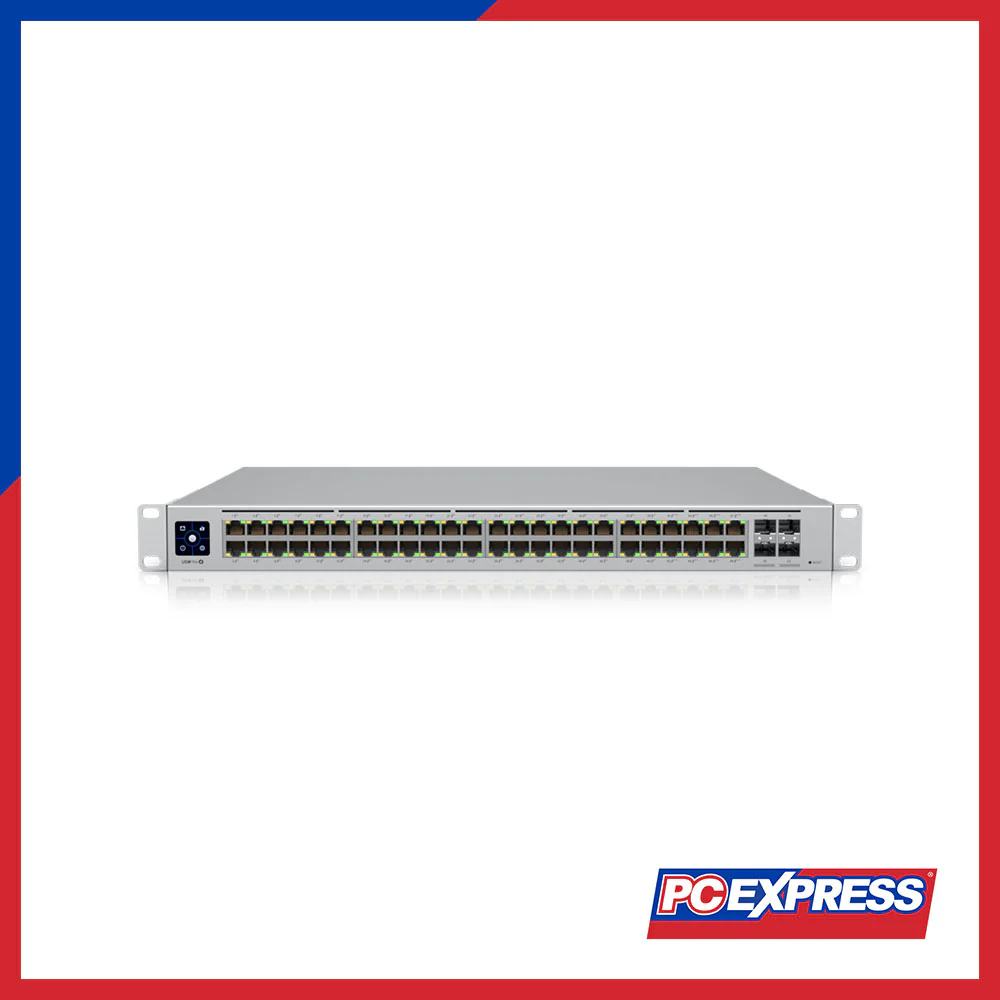

UBIQUITI USW-PRO-48-PoE Switch

Mechanical

Dimensions

442 x 400 x 44 mm (17.4 x 15.7 x 1.7")

Weight

Without mounting brackets: 6.2 kg (13.8 lb)
With mounting brackets: 6.3 kg (14 lb)

Enclosure Material

SGCC steel

Hardware

Management Interface

Ethernet In-Band

Networking Interface

(48) GbE RJ45 ports
(4) 1/10G SFP+ ports

PoE Interface

(40) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total Non-blocking Throughput

88 Gbps

Switching Capacity

176 Gbps

Forwarding Rate

130.944 Mpps

Power Method

(1) Universal input, 100–240V AC, 50/60 Hz
(1) USP-RPS DC input, 52V DC, 11.54A; 11.5V DC, 5.22A

Power Supply

AC/DC, internal, 660W

Supported Voltage Range

100–240V AC

Max. Power Consumption

60W (Excluding PoE output)

Total Available PoE

600W

Max. PoE Wattage per Port

PoE+: 32W
PoE++: 64W

Voltage Range (PoE Modes)

PoE: 44–57V
PoE+: 50–57V

ESD/EMP Protection

Air: ± 16kV, Contact: ± 12kV

LCM Display

(1) 1.3" touchscreen

Button

Factory reset

Shock and Vibration

ETSI300-019-1.4 Standard

Ambient Operating Temperature

-5 to 40°C (23 to 104°F)

Ambient Operating Humidity

10 to 90% non-condensing

Certifications

CE, FCC, IC

Switching Features

Layer 2 Features

IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs

Layer 3 Features

DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs

LEDs

System

Status

Ethernet

PoE
Speed/link/activity

SFP+

Link/activity

RPS

Status

Application Requirements

UniFi Network

Version 5.10.5 and later
