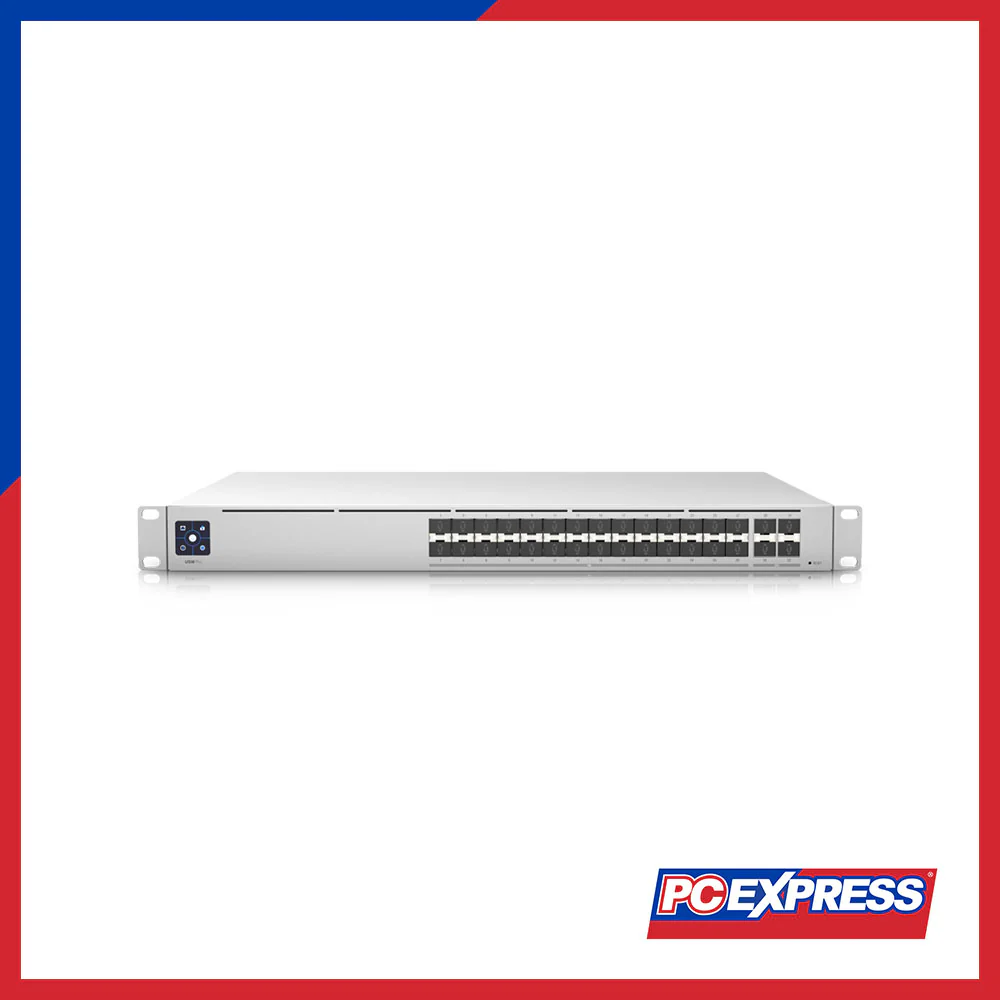

UBIQUITI USW-Pro-Aggregation (Hi-Capacity) Switch

Mechanical

Dimensions

442 x 325 x 44 mm (17.4 x 12.8 x 1.7")

Weight

Without mounting brackets: 4.6 kg (10.1 lb)
With mounting brackets: 4.7 kg (10.4 lb)

Enclosure Material

SGCC steel

Hardware

Management Interface

Ethernet In-Band

Networking Interface

(28) 1/10G SFP+ ports
(4) 1/10/25G SFP28 ports*

Note

Don't support mixed speed at 25 Gbps mode. Once one of the ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. Supports mixed speed when all ports are at 1 or 10 Gbps.

Total Non-blocking Throughput

380 Gbps

Switching Capacity

760 Gbps

Forwarding Rate

565.44 Mpps

Power Method

(1) Universal input, 100–240V AC, 2A Max., 50/60 Hz
(1) USP RPS DC input, 11.5V DC, 8.7A

Power Supply

AC/DC, internal, 100W

Supported Voltage Range

100–240V AC

Max. Power Consumption

100W

ESD/EMP Protection

Air: ± 16kV, contact: ± 12kV

Services

SMB Layer 3 10/25 G Fiber switch

LCM Display

(1) 1.3" LCM color touchscreen

Environmental

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity

10 to 90% noncondensing

Certifications

CE, FCC, IC

Switching Features

Layer 2 Features

IGMP snooping, STP/RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast/broadcast rate limiting, MAC address blocking, Flow control, 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping/guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs

Layer 3 Features

DHCP for locally-managed networks, DHCP relay, Inter-VLAN routing between networks on same switch, Static routing between local networks

LED Indicators

System

Status

SFP28/SFP+

Link/activity

Application Requirements

UniFi Network

Version 6.1.25 and later
