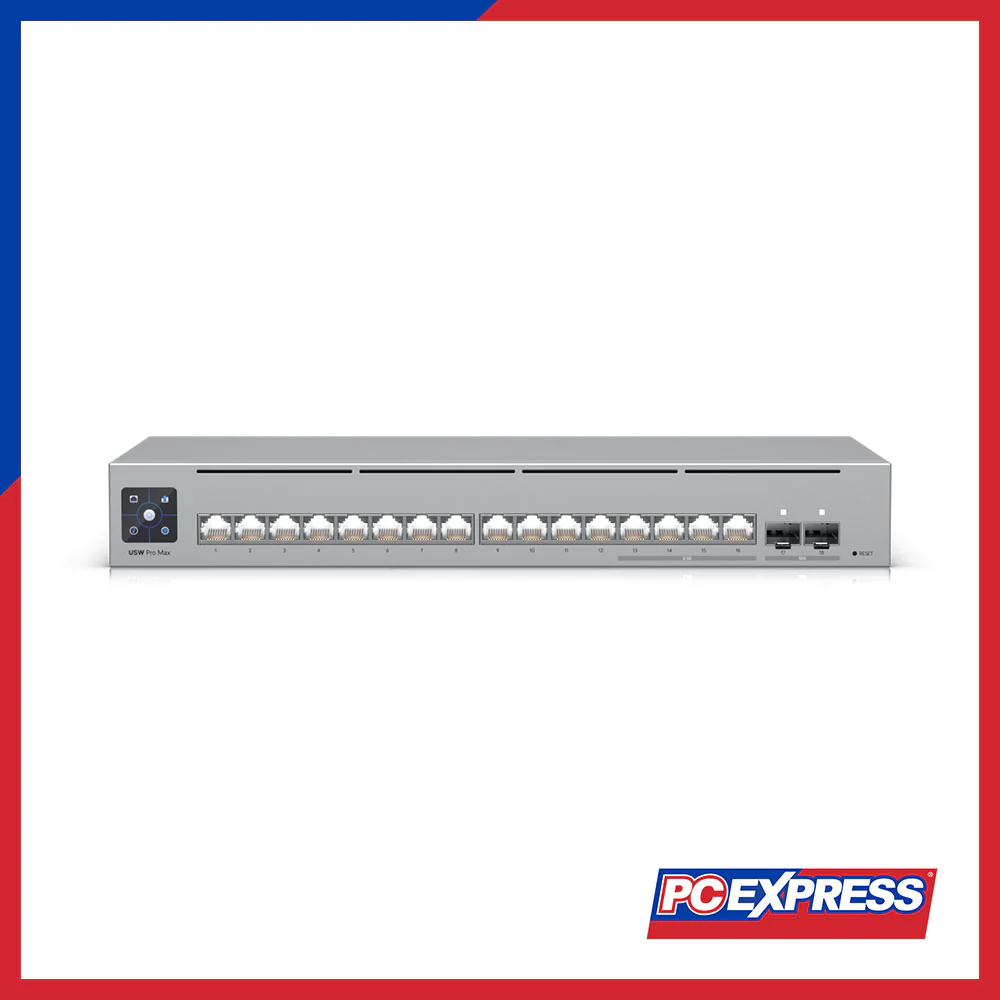

UBIQUITI USW-Pro-Max-16 Switch

Mechanical

Dimensions

325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")

Weight

1.95 kg (4.3 lb)

Enclosure Material

SGCC steel

Hardware

Management Interface

Ethernet In-Band

Networking Interface

(12) GbE RJ45 ports
(4) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports

Total Non-blocking Throughput

42 Gbps

Switching Capacity

84 Gbps

Forwarding Rate

62.496 Mpps

Power Method

Type-C adapter

Power Supply

5V, 25W

Max. Power Consumption

25W

LCM Display

(1) 1.3" touchscreen

Button

Factory reset

Environmental

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity

10 to 90% non-condensing

Certifications

CE, FCC, IC

Switching Features

Layer 2 Features

IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs

Layer 3 Features

DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs

Application Requirements

UniFi Network: Version 8.1.127 and later
