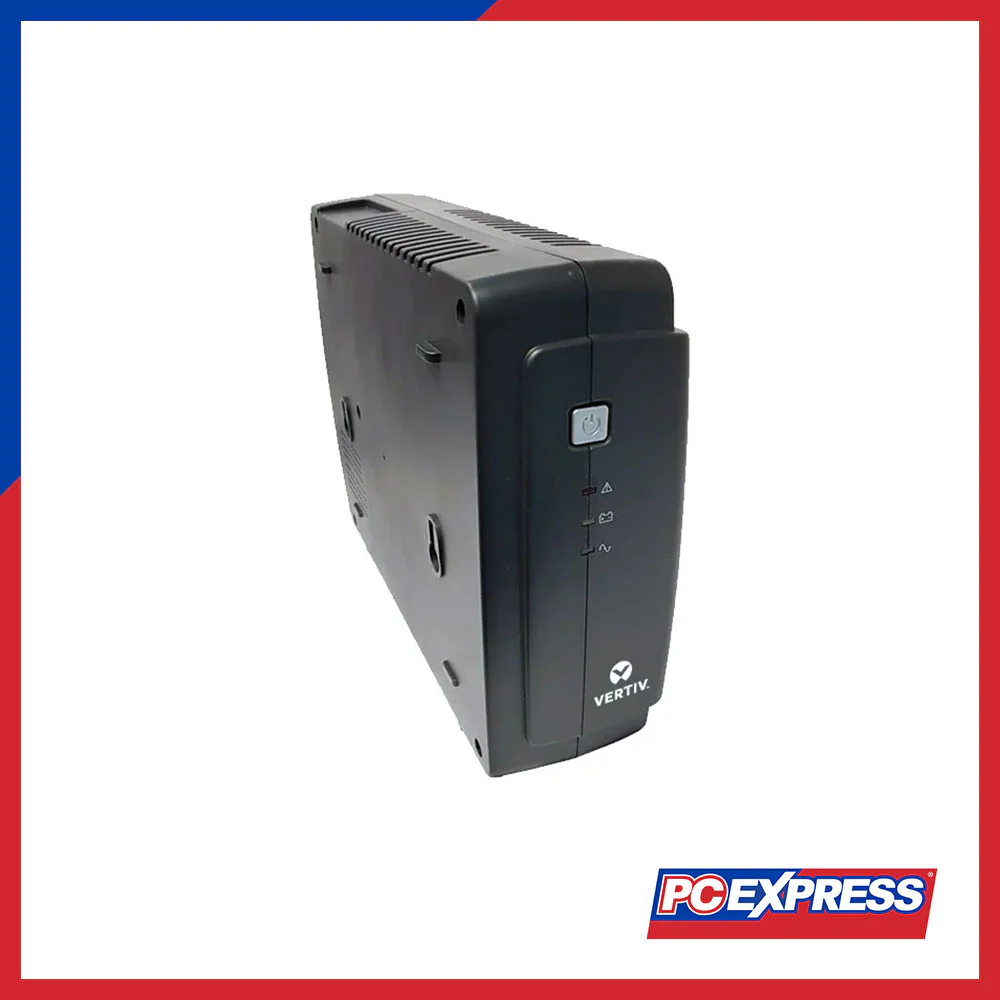

VERTIV Liebert® PSA1000-SOHO ITON 1000VA 230V AVR Universal Sockets

Capacity (VA/W)

1000VA / 600W

Input

Voltage Range

162 – 290VAC, Single-phase

Frequency Range

50Hz/60Hz, Automatic identification

Output

Voltage Tolerance (Battery Mode)

Simulated sine wave at nominal voltage ±10%

Frequency Range (Battery Mode)

50Hz/60Hz, Automatic identification

Transfer Time

Typical 2–6 ms, Max 10 ms

Battery

Battery Type & Number

12V/9Ah × 1

Typical Recharge Time

6–8 hours to 90% (1A charging current at Normal Mode)

Configuration

Battery: 1 × 2.7kg, 9Ah

Sockets & USB

Sockets

6 × Universal

USB Charger

No

Runtime (Minutes)

25% Load

18 min

50% Load

4 min

System Features

Indicators

Fault: Solid red LED

Protection

Alarm

Operating Temperature

Humidity Range

0 ~ 95% (non-condensing)

Noise Level

Fuse Protection

Physical

Dimensions (D × W × H)

87 × 346 × 208 mm

Gross Weight

6.6 kg

Net Weight

6.0 kg
