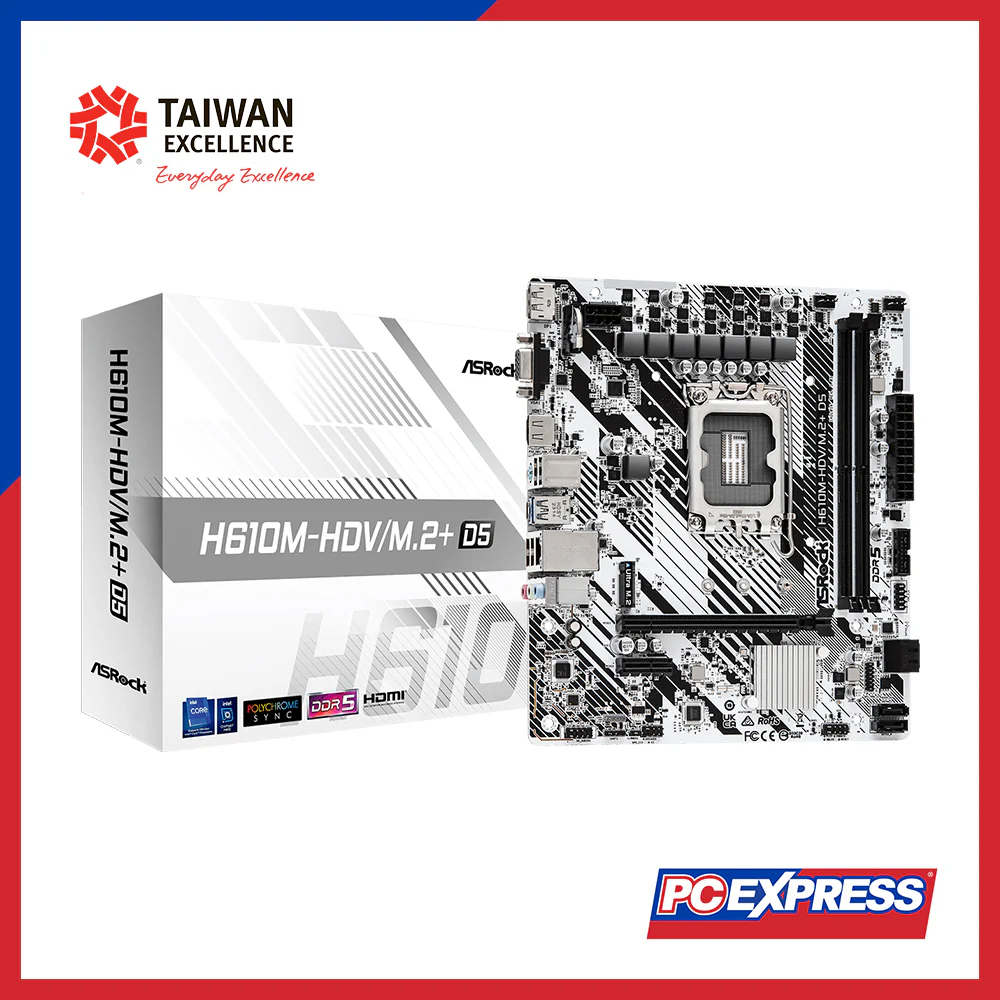

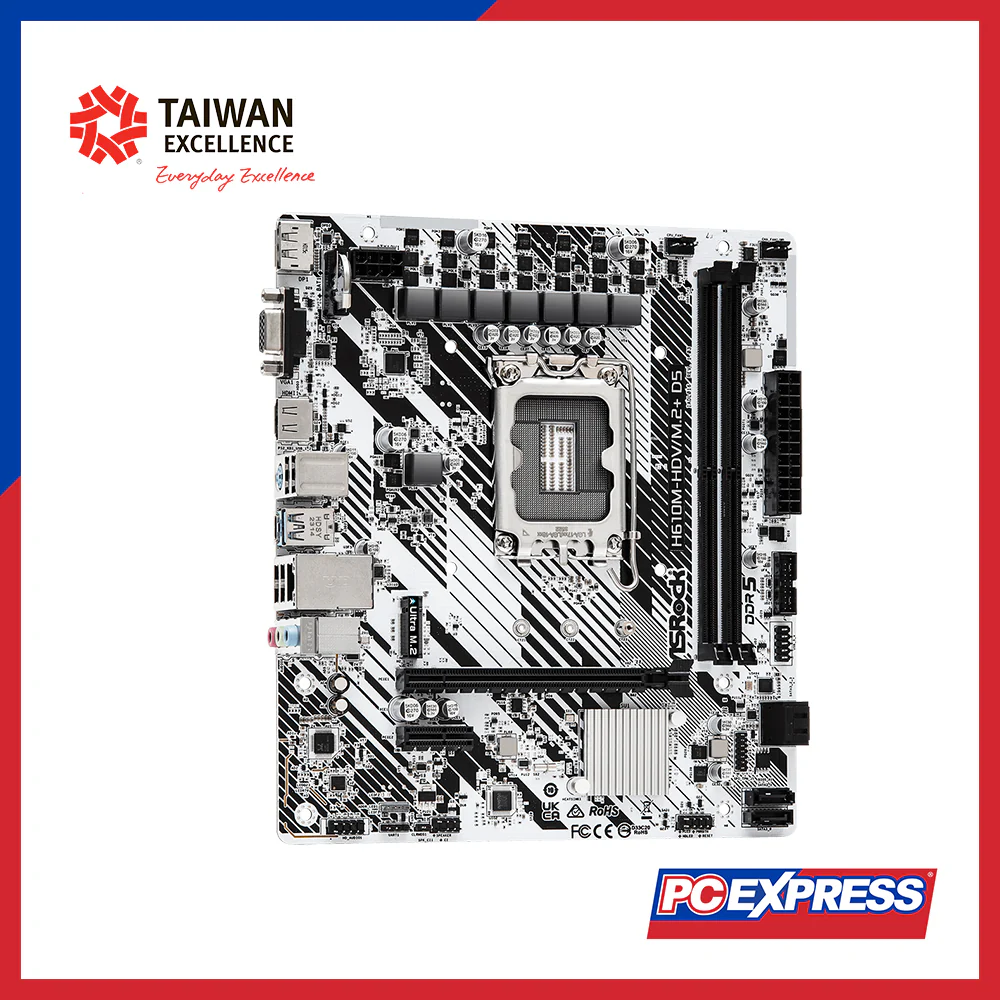

ASROCK H610M-HDV/M.2+ D5 micro-ATX Motherboard

Unique Feature

Superb Productivity
- Dual Channel DDR5
Rock-Solid Durability
- 6+1 Power Phase
EZ Update
- ASRock Auto Driver Installer

CPU

- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology

Chipset

Intel® H610

Memory

- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- 13th Gen Intel® Core™ Processors support DDR5 up to 5600*
- 12th Gen Intel® Core™ Processors support DDR5 up to 4800*
- Max. system memory: 96GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0
*Actual support may vary by CPU

BIOS

128Mb AMI UEFI Legal BIOS with GUI support

Graphics

- Intel® Xe Graphics Architecture (Gen 12)*
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3, max 4K 60Hz
- 1 x DisplayPort 1.4 with DSC, supports HDCP 2.3, max 8K 60Hz / 5K 120Hz
- 1 x D-Sub, max 1920x1080 60Hz
*Supported only with processors with integrated GPU

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H

Slots

CPU:
- 1 x PCIe 4.0 x16 Slot (x16 mode)<br>Chipset:<br>- 1 x PCIe 3.0 x1 Slot
*Supports NVMe SSD as boot disk

Storage

- 1 x Ultra M.2 (Key M), type 2242/2260/2280, PCIe Gen3x4 (32 Gb/s)*
- 4 x SATA3 6.0 Gb/s
*Supports NVMe SSD as boot disk

USB

- 1 x USB 3.2 Gen1 Type-C (Rear)
- 3 x USB 3.2 Gen1 Type-A (1 Rear, 2 Front)
- 6 x USB 2.0 (4 Rear, 2 Front)
*All ports support ESD Protection

Connectors

- 1 x SPI TPM Header
- 1 x Chassis Intrusion & Speaker Header
- 1 x Addressable LED Header*
- 1 x CPU Fan (4-pin)<br>- 1 x Chassis/Water Pump Fan (4-pin, Smart Fan)<br>- 1 x 24-pin ATX Power<br>- 1 x 8-pin 12V Power<br>- 1 x Front Panel Audio<br>- 1 x USB 2.0 Header (2 Ports)<br>- 1 x USB 3.2 Gen1 Header (2 Ports)<br><br>Supports up to 5V/3A, 15W LED Strip<br> CPU_FAN1 up to 1A (12W)
*** CHA_FAN1/WP up to 2A (24W), auto detects 3/4-pin

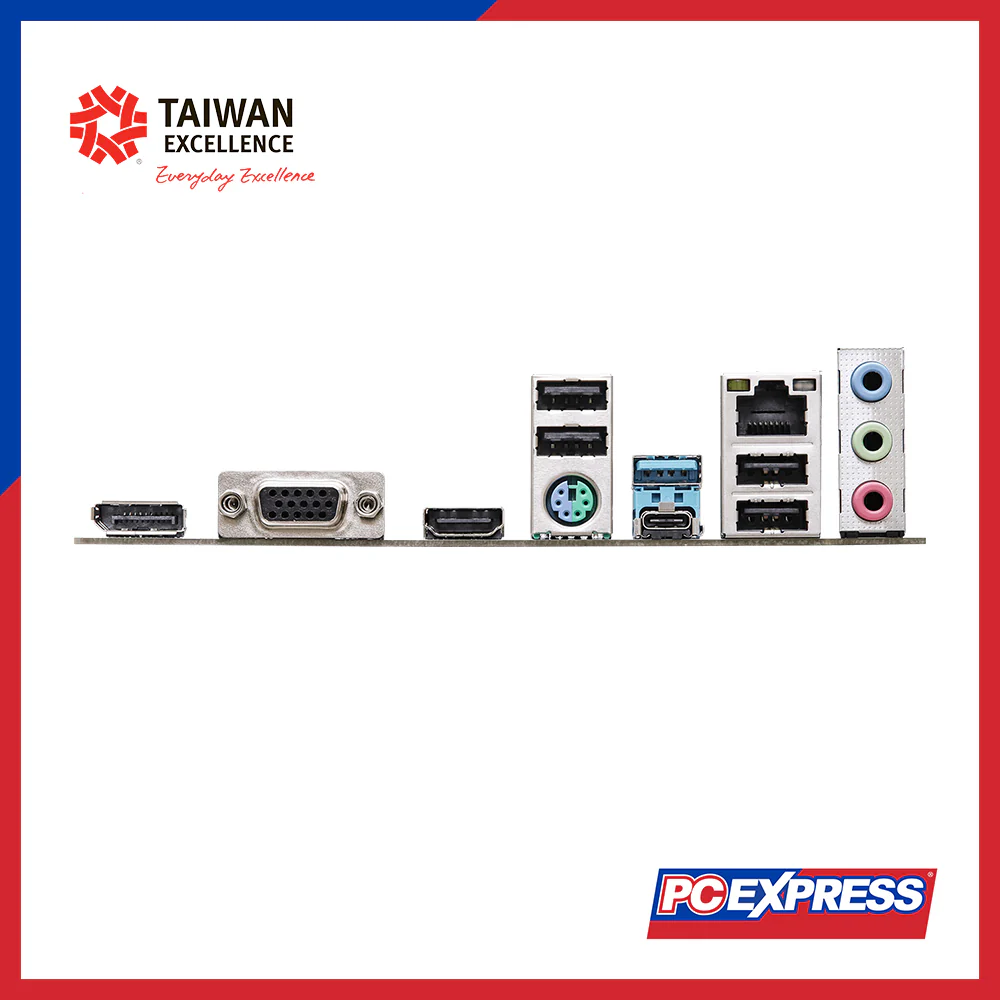

Rear I/O

- 1 x PS/2 Mouse/Keyboard
- 1 x D-Sub
- 1 x HDMI
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C
- 1 x USB 3.2 Gen1 Type-A
- 4 x USB 2.0
- 1 x RJ-45 LAN
- HD Audio Jacks: Line in / Front Speaker / Mic

Software & UEFI

Software
- ASRock A-Tuning
- ASRock Polychrome SYNC*
UEFI
- EZ Mode
- Full HD UEFI
- My Favorites
- Auto Driver Installer
- Instant Flash

*Downloadable via ASRock APP Shop

Accessories

- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2

Form Factor

Micro ATX: 8.66" x 7.6" (22.0 cm x 19.3 cm)

OS Support

Microsoft Windows® 10 64-bit / 11 64-bit

Certifications

FCC, CE
ErP/EuP Ready (requires ErP/EuP ready PSU)
