The Story
SPECIFICATION
|
Model |
MPE-7501-AFAAG-3EU2 |
|
ATX Version |
ATX 12V Ver. 3.1 |
|
PFC |
Active PFC |
|
Input Voltage |
100-240V |
|
Input Current |
10-5A |
|
Input Frequency |
50-60Hz |
|
Dimensions (L x W x H) |
160 x 150 x 86 mm |
|
Fan Size |
120mm |
|
Fan Bearing |
HDB |
|
Efficiency |
≥90% @ Typical Load |
|
80 PLUS Rating |
80 PLUS Gold |
|
ErP 2014 Lot 3 |
Yes |
|
Operating Temperature |
0-50°C |
|
Power Good Signal |
100 - 150 ms |
|
Hold Up Time |
≥16 ms |
|
MTBF |
>100,000 Hours |
|
Protections |
UVP, OVP, OPP, OTP, SCP, OCP |
|
Regulatory |
TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI, BIS, UKCA |
|

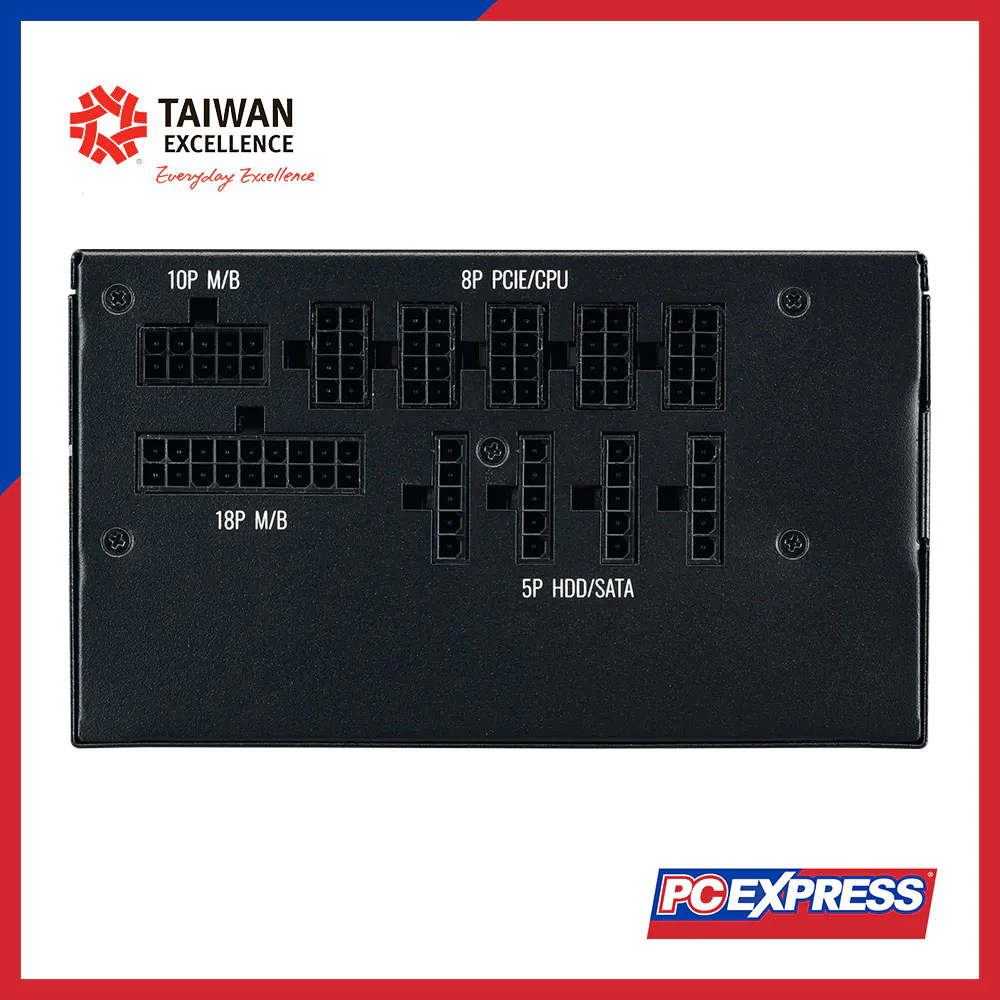

Connectors |
|
|
ATX 24 Pin |
1 |
|
EPS 4+4 Pin |
1 |
|
EPS 8 Pin |
1 |
|
SATA |
12 |
|
Peripheral 4 Pin |
4 |
|
PCI-e 6+2 Pin |
4 |
|
12V-2x6 |
1 (1 to 3) |
|
Category |
Above 750W |
|
Series |
MWE Gold Series |
|
Modular |
Fully Modular |
|
Form Factor |
ATX |
|
80 Plus Efficiency |
Gold |
|
Watts |
750W |
