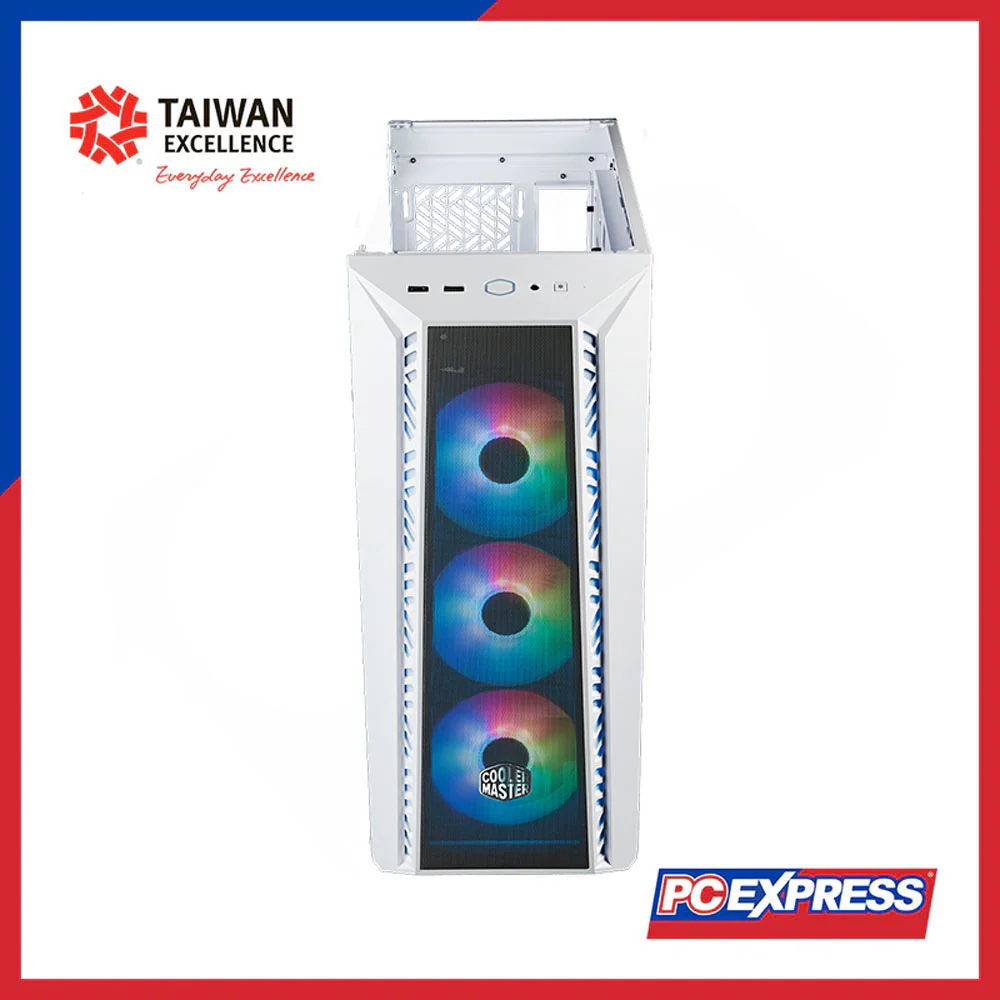

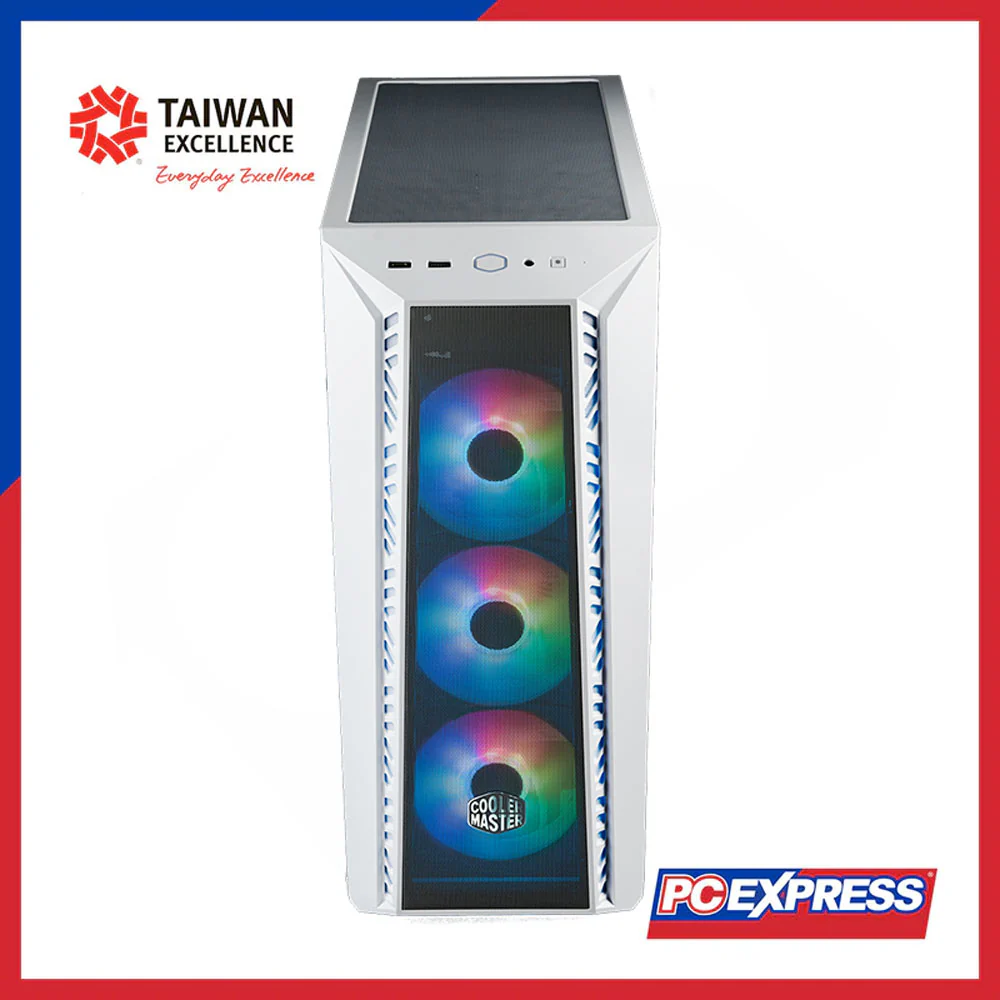

COOLER MASTER MASTERBOX MB520 Mesh White (MB520-WGNN-S00) Tempered Glass Mid Tower ATX Chassis

Model Number

MB520-KGNN-S00, MB520-WGNN-S00

Exterior Color

Black, White

Materials - Exterior

Mesh, Steel, ABS Plastic, Tempered Glass

Materials - Left Side Panel

Tempered Glass

Dimensions (L x W x H)

499 x 210 x 498mm (Incl. Protrusions), 430 x 210 x 479mm (Body Size)

Motherboard Support

Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature)

Expansion Slots

7

3.5" Drive Bays

2

2.5" Drive Bays

3

I/O Panel

1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button

Included Accessories

ARGB Fans Hub

Pre-installed Fans - Front

3x CF120 ARGB

Fan Support - Top

3x 120mm, 2x 140mm

Fan Support - Front

3x 120mm, 2x 140mm

Fan Support - Rear

1x 120mm

Radiator Support - Top

120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)

Radiator Support - Front

120mm, 140mm, 240mm, 280mm, 360mm

Radiator Support - Rear

120mm

Clearance - CPU Cooler

165mm/6.49"

Clearance - PSU

200mm, (Recommended up to 170mm)

Clearance - GFX

410mm/16.1"

Dust Filters

Bottom, Front, Top

Power Supply Support

ATX

Warranty

2 years

Series

MasterBox Series

Size

Mid Tower
