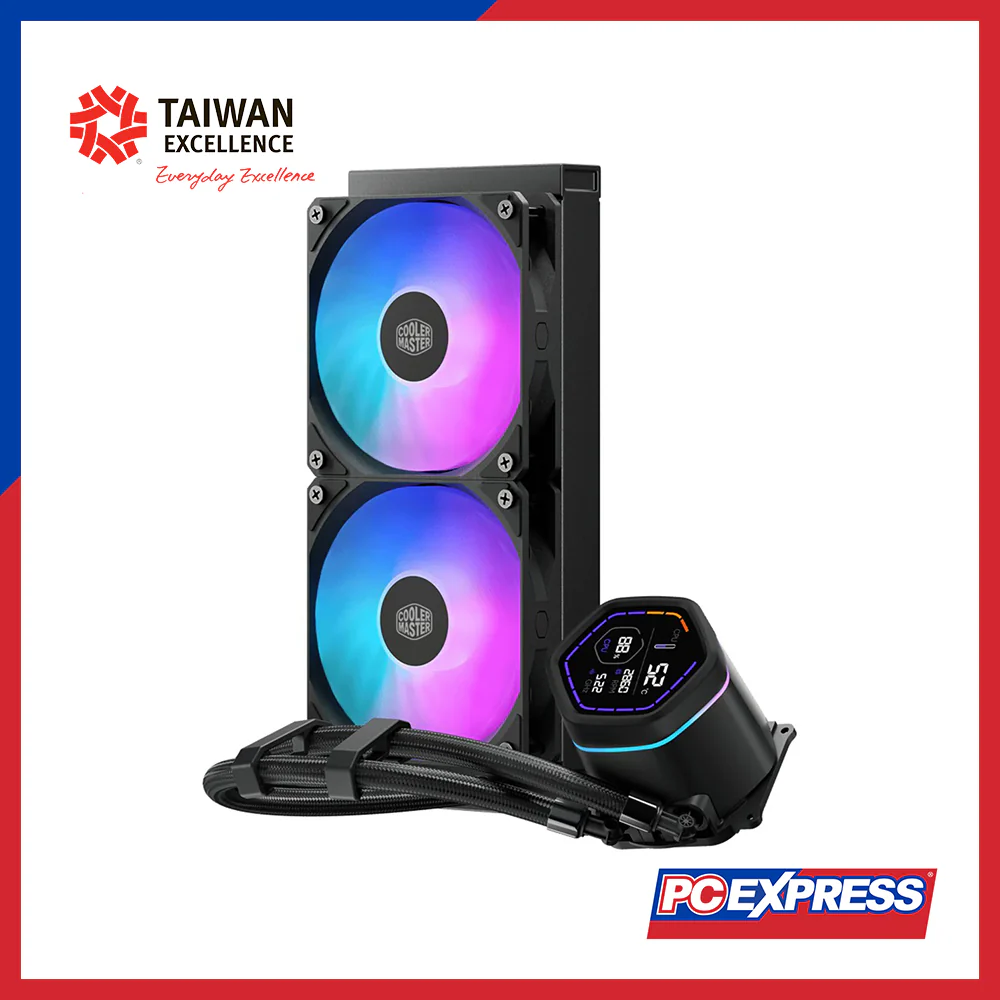

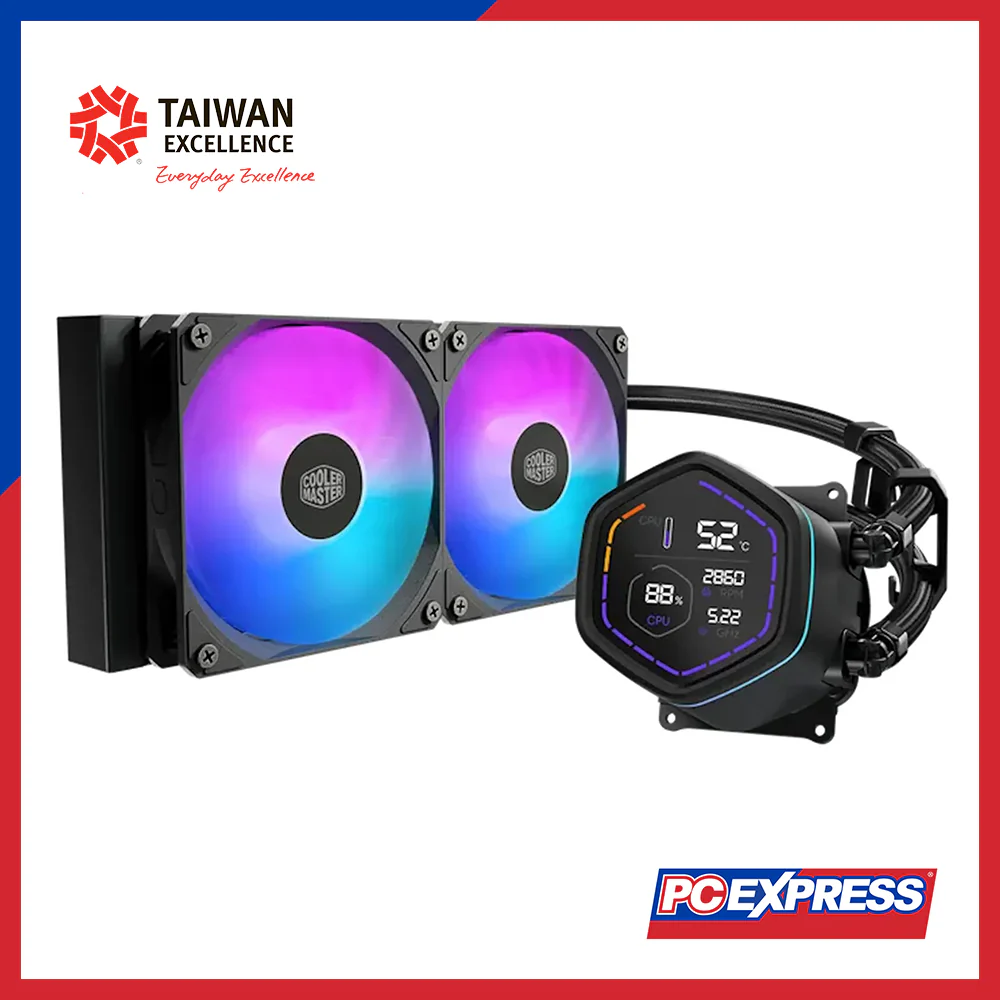

COOLER MASTER Master Liquid Core Nex Digital 240 (MLX-D24M-A18PA-RD) ARGB Liquid CPU Cooler Fan - Black

Product Number

240 Black: MLX-D24M-A18PA-RD

CPU Socket

Intel® LGA 1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150 Socket, AMD® AM5 / AM4 Socket

Radiator Material

Aluminum

Radiator Dimensions

277 x 119.6 x 27.2 mm (10.9 x 4.71 x 1.1 inch)

Pump Dimensions

83.6 x 78.5 x 68.6 mm (3.3 x 3.1 x 2.7 inch)

Pump Profiles

Addressable RGB

Pump Speed

3200 ±10% RPM

Pump MTTF

>35,000 Hours

Pump Noise Level

25 dBA (Max)

Pump Rated Voltage

12 VDC

Fan Power Consumption

7.2 W

Pump Connector

3-Pin ARGB + 4-Pin PWM

Digital Panel Type

LED Digital Display

Digital Panel Display Area

50.1 x 54.4 mm (2 x 2.1 inch)

Digital Panel Luminance

120 cd/m²

Digital Panel Rated Voltage

5 VDC

Digital Panel Rated Current

0.12 A ±10%

Digital Panel Safety Current

0.3 A ±20%

Digital Panel Power Consumption

0.6 W

Digital Panel Connector

USB 2.0 9PIN

Digital Panel Orientation

Software-MasterCtrl adjustable

Fan Dimensions (L x W x H)

120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)

Fan LED Profiles

Addressable RGB

Fan Quantity

2 PCS

Fan Speed

650–1750 RPM ±10%

Fan Airflow

122.4 m³/h (71.9 CFM) (Max)

Fan Air Pressure

1.86 mmH₂O (Max)

Fan MTTF

>40,000 Hours

Fan Noise Level

27.2 dBA (Max)

Fan Bearing Type

Rifle Bearing

Fan Connector

7-Pin PWM + ARGB

Fan Rated Voltage

12 VDC

Fan Rated Current

0.26 A

Fan Safety Current

0.37 A

Fan Power Consumption

3.12 W

Tube Length

400 mm

Radiator Size

240

Cooler Type

Liquid Cooler

Series

MasterLiquid
